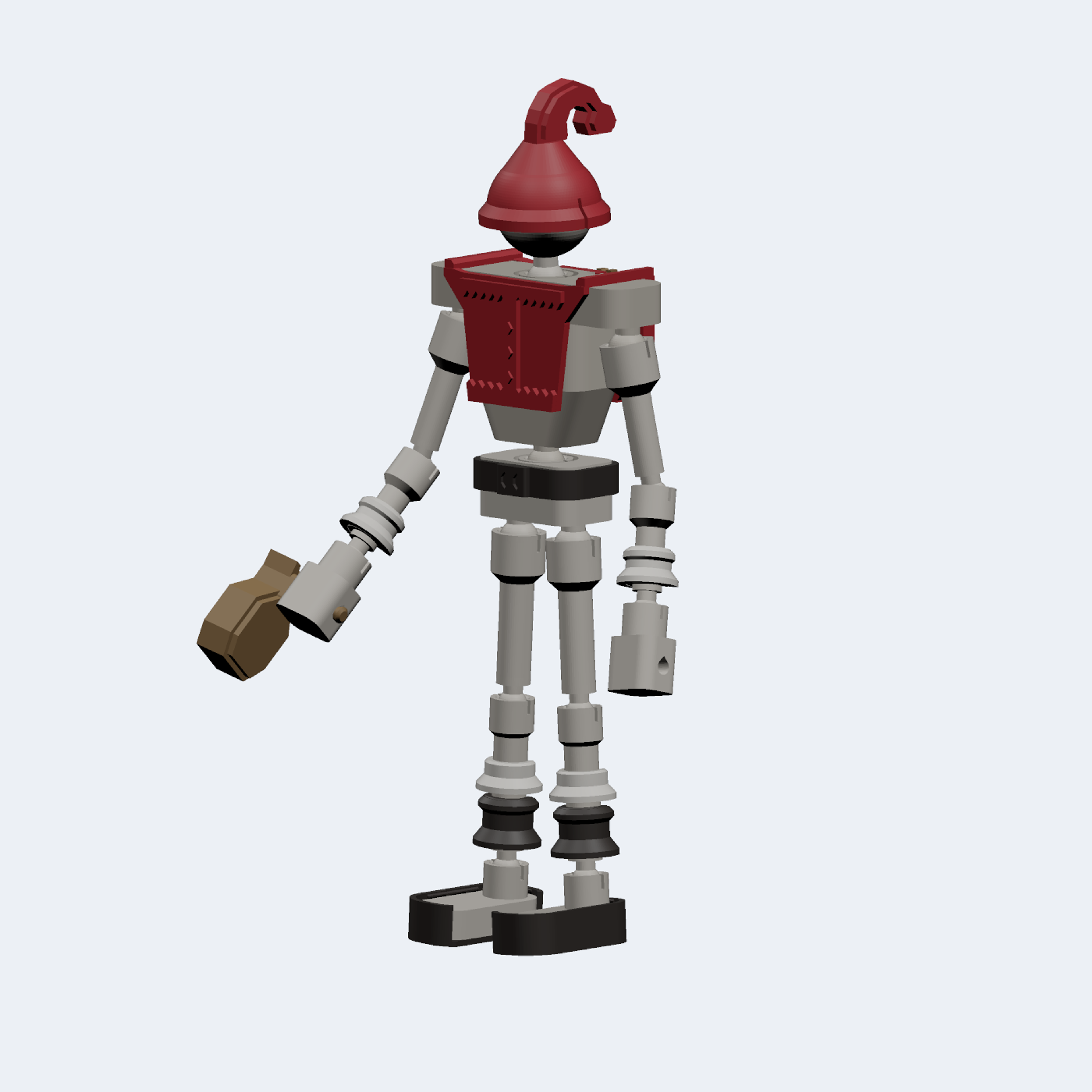

Poseable 6 inch figure in the holiday winter suit, stocking cap and over-shoes, holding the gift sack in a grip-hole hand

STL · 3MF · PDF · MD

Holiday Armor Kit for Poseable 6 Inch Action Figure: Snap-On Winter Suit, Stocking Cap, Gift Sack and Mini Sled

A snap-on winter suit with a fur-trim look, a stocking cap with a pom-pom tail, a gift sack, a mini sled and two gift boxes for the poseable 6 inch figure, plus grip-hole hands and a slotted chest. No supports.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses
Also on Cults3D (opens in a new tab)

About this design

A snap-on winter suit with a faceted fur-trim look, a stocking cap with a pom-pom tail, a gift sack, a mini sled the figure can sit on, and two small gift boxes. Every piece snaps or slides on without glue, and all of it prints without supports.

Requires the base figure, sold separately: Poseable 6 Inch Action Figure (https://www.saiyanprints.com/products/poseable-action-figure). This kit does not include the figure.

Works on the stock figure straight out of the zip: the kit includes two grip-hole hands and the slotted chest. They swap in for the stock hands and chest on the same joints, and the hand-held sack and the back sack (without the coat) need them.

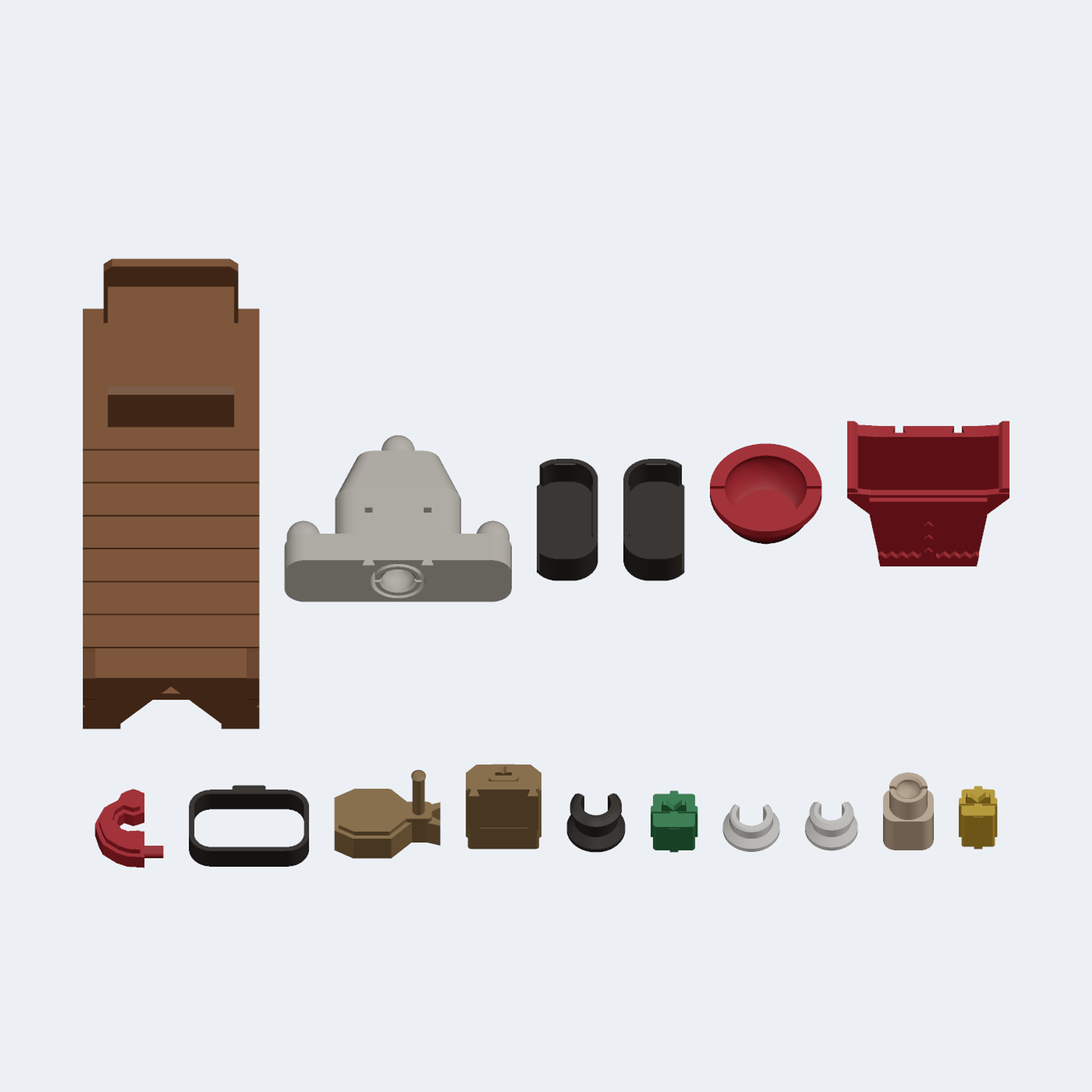

Parts (16 part files, 20 printed pieces, STL and 3MF for each, plus 3 ready-made plates):

  • Winter coat shell x1 (vest-style, drops over the shoulders like the armor chest pieces)
  • Belt with buckle x1
  • Sleeve cuff x2, leg cuff x2, boot shaft x2
  • Over-shoe, left and right
  • Stocking cap x1 and cap tail with pom-pom x1
  • Gift sack, hand-held (3.0 mm handle) x1
  • Gift sack, back-mounted (slider) x1
  • Mini sled x1 and gift boxes x2 (cube and tall)

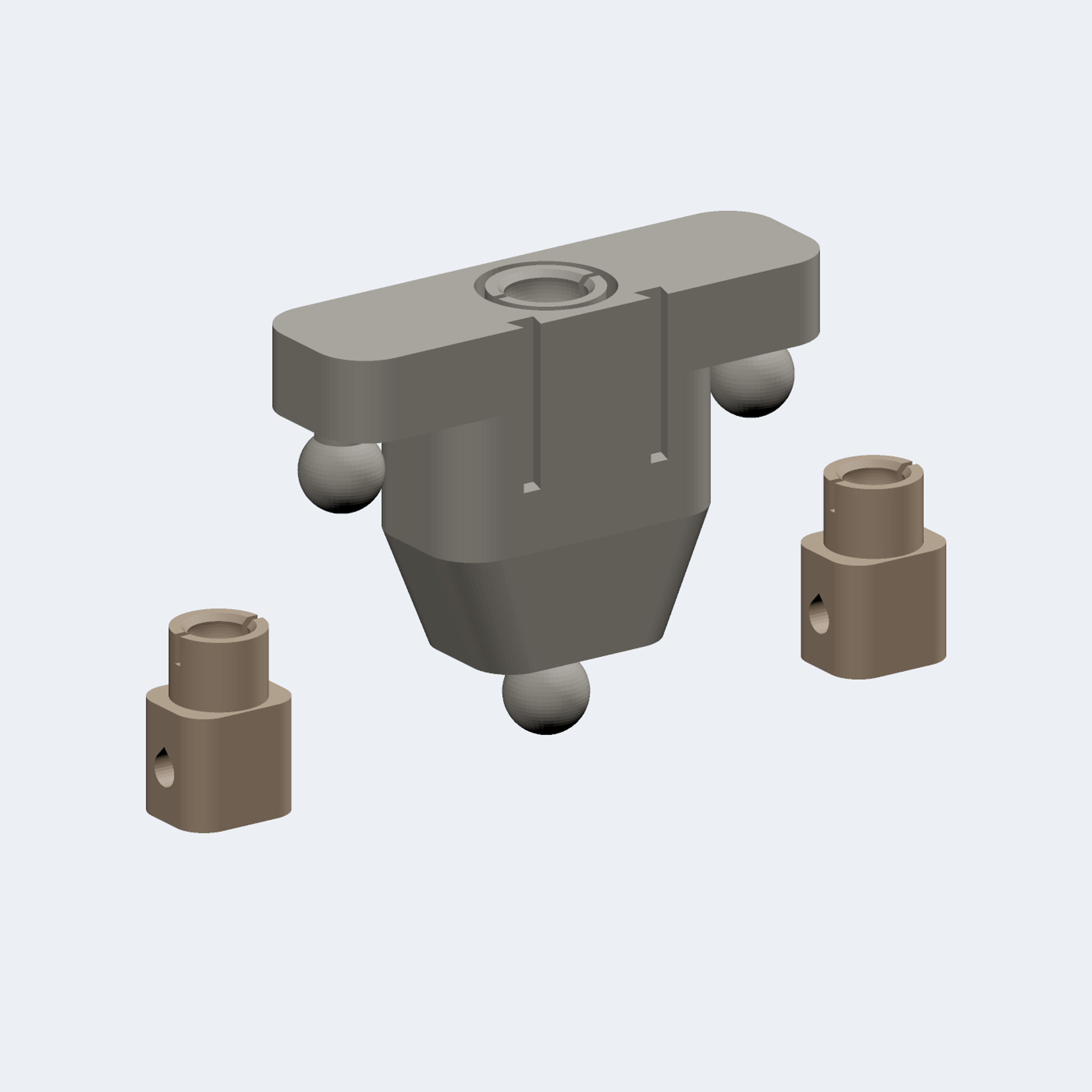

  • Grip-hole hand x2 and slotted chest x1 (swap in for the stock hands and chest)

Assembly and fit:

  • Print one leg cuff first (about 3 min) and clip it onto the shin. It should click on and turn with light drag. If it's very tight or cracks, print the suit clips in PETG.
  • Swap in the grip-hole hands and the slotted chest first: same neck, shoulder, waist and wrist joints as the stock parts. Have Accessory Pack Vol. 1 too? It includes the same chest and hands, so print that plate once. Own an armor kit? You already have grip-hole hands and can skip printing them, but you still need the slotted chest.
  • The coat drops over the shoulders, the belt slides over the hips, the cuffs and boot shafts snap sideways onto the limbs, and the over-shoes slide on from the inside of each foot.

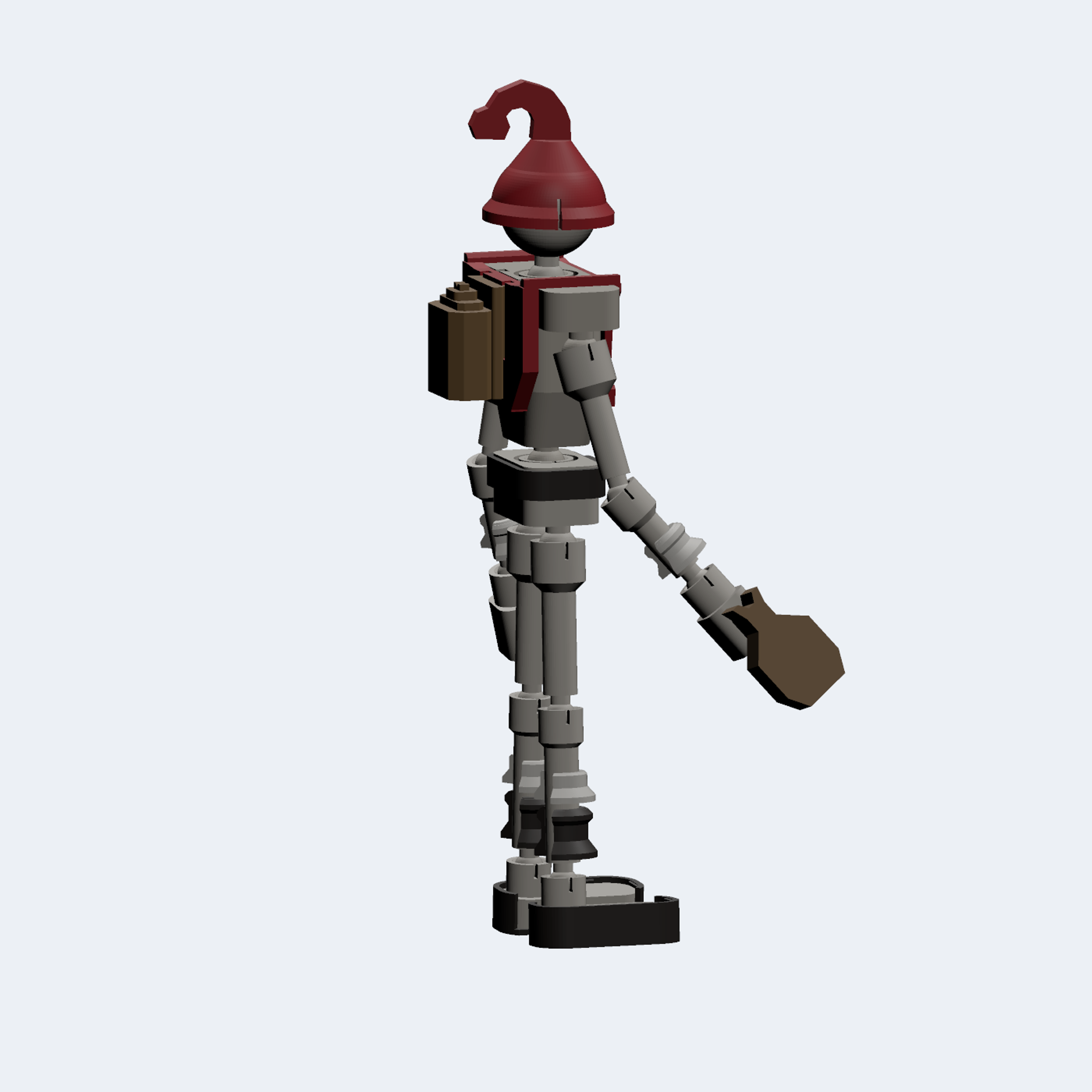

  • The back sack slides into the coat's back slots, or straight into the slotted chest without the coat.
  • The hand-held sack's 3.0 mm handle goes through a grip-hole hand.

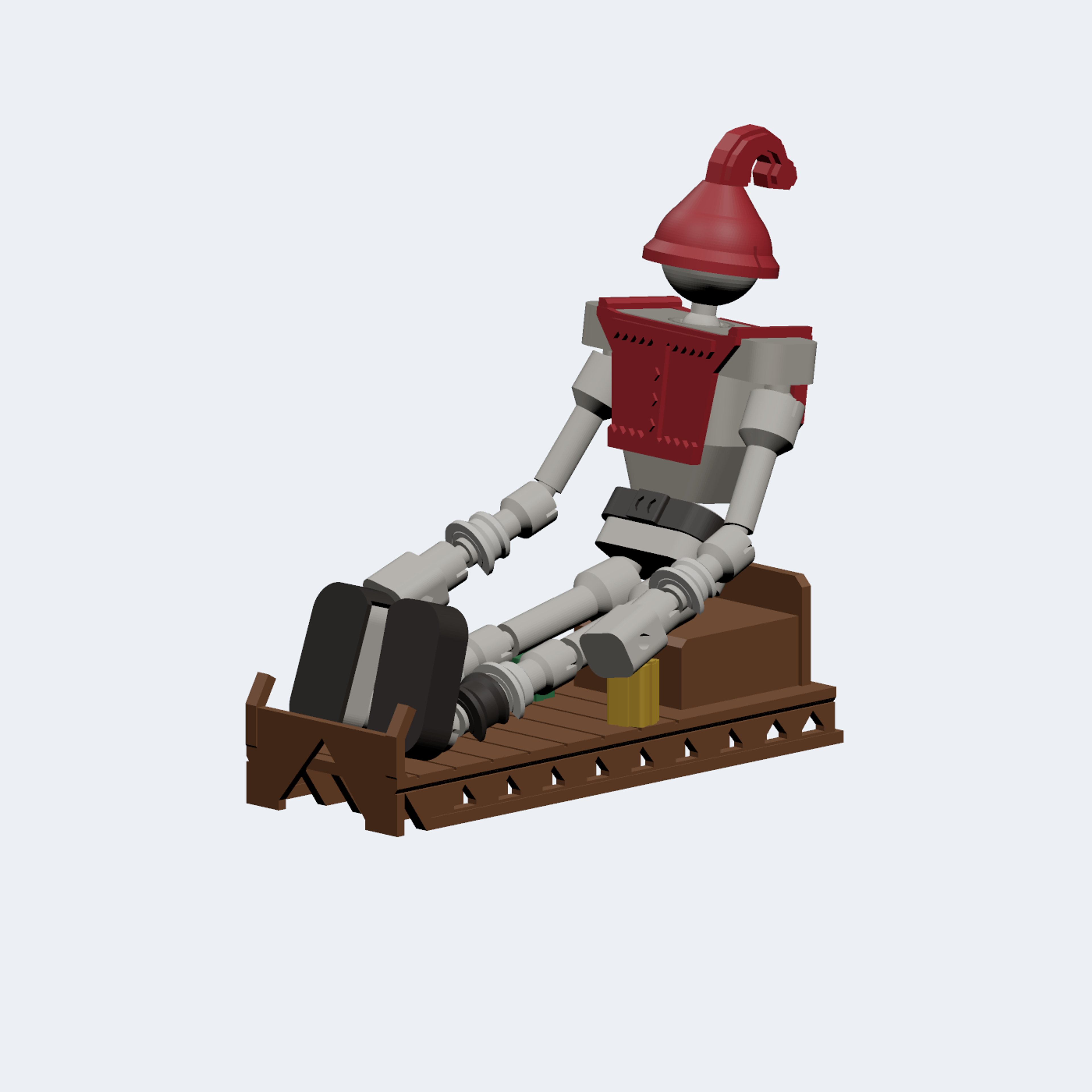

  • The stock figure sits on the sled with the back sack off. Kneeling on the sled needs the double-hinge legs from the Hands and Joints Upgrade (sold separately).
  • The cap limits head side tilt to about 35 degrees, and the over-shoes limit inward leg moves. Stand the figure with the feet slightly apart.
  • Includes GUIDE.pdf / GUIDE.md (settings, print order, assembly, pose limits) and a spec sheet.

CAD-checked: fits, poses and sled seating were checked in CAD against the figure's own meshes. Grams and times are slicer estimates.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only unless you buy the Commercial Use license.

Print notes

- PETG suggested for the clip-on suit parts (coat, cuffs, boot shafts, belt, cap, back sack), PLA for the sled, gifts, hand sack, cap tail, chest and hands. 0.4 mm nozzle, 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports, no brim. Needs a 220 x 220 mm bed or larger (the sled is 121 mm long). - Print order: one leg cuff as a test piece (0.35 g, about 3 min), then the suit plate (19.67 g, 2 h 20 min), the sled plate (sled and 2 gift boxes, 31.68 g, 3 h 54 min) and the chest and hands plate (slotted chest and 2 grip-hole hands, 13.44 g, 1 h 34 min). Skip the chest and hands plate if you already printed it from Accessory Pack Vol. 1. Armor-kit owners can skip the hands but still need the slotted chest. - Whole kit: 64.8 g, about 7 h 48 min (PrusaSlicer 2.9.2, PLA, 3 perimeters, 15% gyroid). Values are slicer estimates. - Designed for a red coat and cap, white cuffs, black belt and boots, and a brown sled. Single-color works too. - Files: STL and 3MF for each of the 16 parts and the 3 plates, plus GUIDE.pdf, GUIDE.md and SPEC.md.

Files

  • Holiday_Armor_Kit.zipzip3.3 MB
  • GUIDE.pdfpdf32 KB
  • GUIDE.mdmd8.6 KB
  • SPEC.mdmd5.3 KB
  • chest_slotted.3mf3mf163 KB
  • chest_slotted.stlstl597 KB
  • hand_grip.3mf3mf71 KB
  • hand_grip.stlstl270 KB
  • hk_belt.3mf3mf7.4 KB
  • hk_belt.stlstl32 KB
  • hk_boot.3mf3mf55 KB
  • hk_boot.stlstl242 KB
  • hk_boot_shoe_l.3mf3mf23 KB
  • hk_boot_shoe_l.stlstl112 KB
  • hk_boot_shoe_r.3mf3mf22 KB
  • hk_boot_shoe_r.stlstl109 KB
  • hk_coat.3mf3mf6.2 KB
  • hk_coat.stlstl32 KB
  • hk_gift_cube.3mf3mf6.9 KB
  • hk_gift_cube.stlstl34 KB
  • hk_gift_tall.3mf3mf7.6 KB
  • hk_gift_tall.stlstl39 KB
  • hk_hat.3mf3mf117 KB
  • hk_hat.stlstl404 KB
  • hk_hat_tip.3mf3mf3.3 KB
  • hk_hat_tip.stlstl12 KB
  • hk_leg_cuff.3mf3mf37 KB
  • hk_leg_cuff.stlstl159 KB
  • hk_sack_back.3mf3mf9.1 KB
  • hk_sack_back.stlstl39 KB
  • hk_sack_grip.3mf3mf22 KB
  • hk_sack_grip.stlstl112 KB
  • hk_sled.3mf3mf17 KB
  • hk_sled.stlstl94 KB
  • hk_sleeve_cuff.3mf3mf52 KB
  • hk_sleeve_cuff.stlstl222 KB
  • hk_plate1_suit.3mf3mf580 KB
  • hk_plate1_suit.stlstl2.1 MB
  • hk_plate2_sled.3mf3mf33 KB
  • hk_plate2_sled.stlstl167 KB
  • hk_plate3_chest_hands.3mf3mf313 KB
  • hk_plate3_chest_hands.stlstl1.1 MB
