Display Stands for Poseable 6 Inch Action Figure: Adjustable Flying Stand and Interlocking Hex Tiles

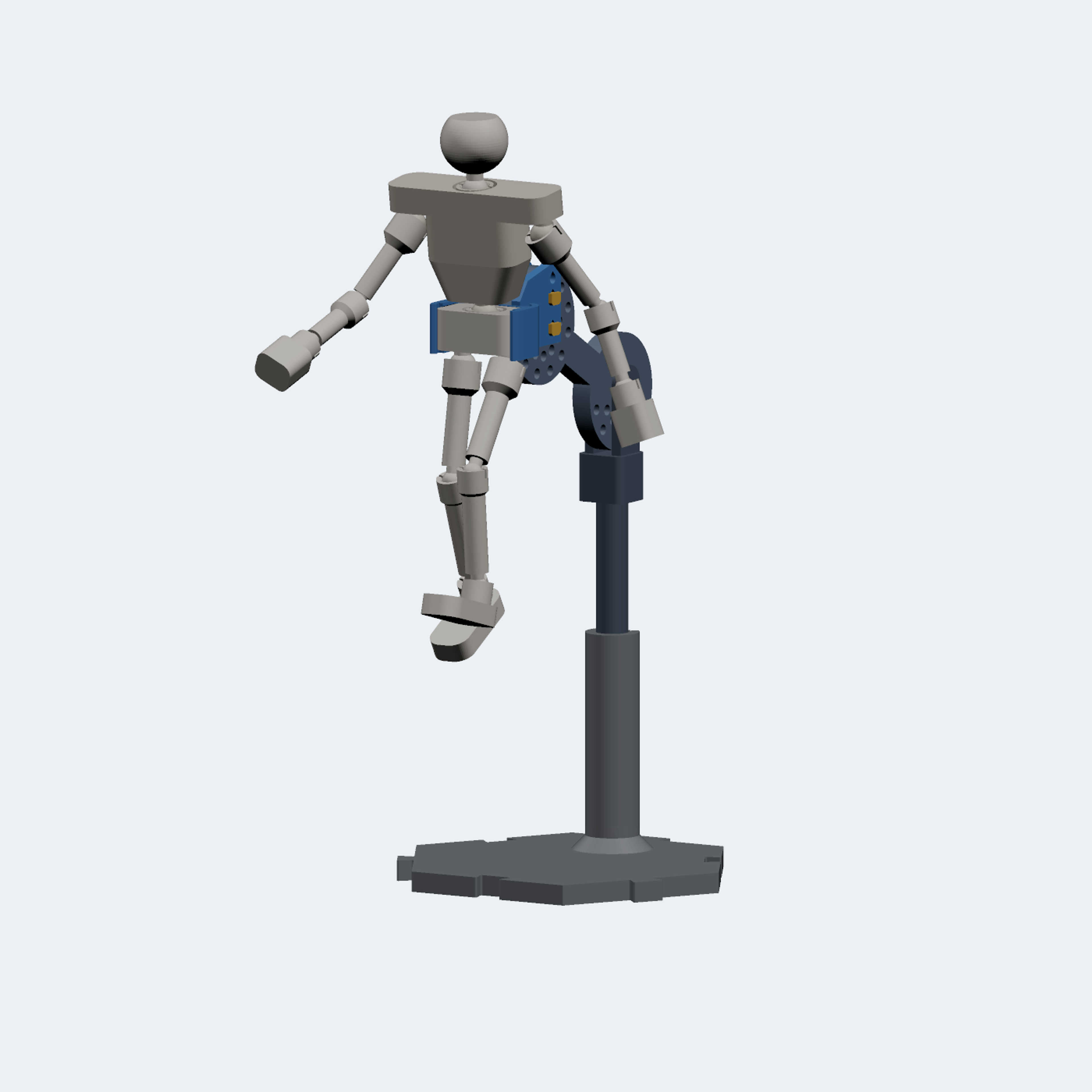

An adjustable flying stand that clips onto the figure's pelvis, plus interlocking hex display tiles. Show your figure mid-jump, flying or kicking, or standing on a tile.

For the Poseable 6 Inch Action Figure, sold separately (https://www.saiyanprints.com/products/poseable-action-figure). This pack does not include the figure.

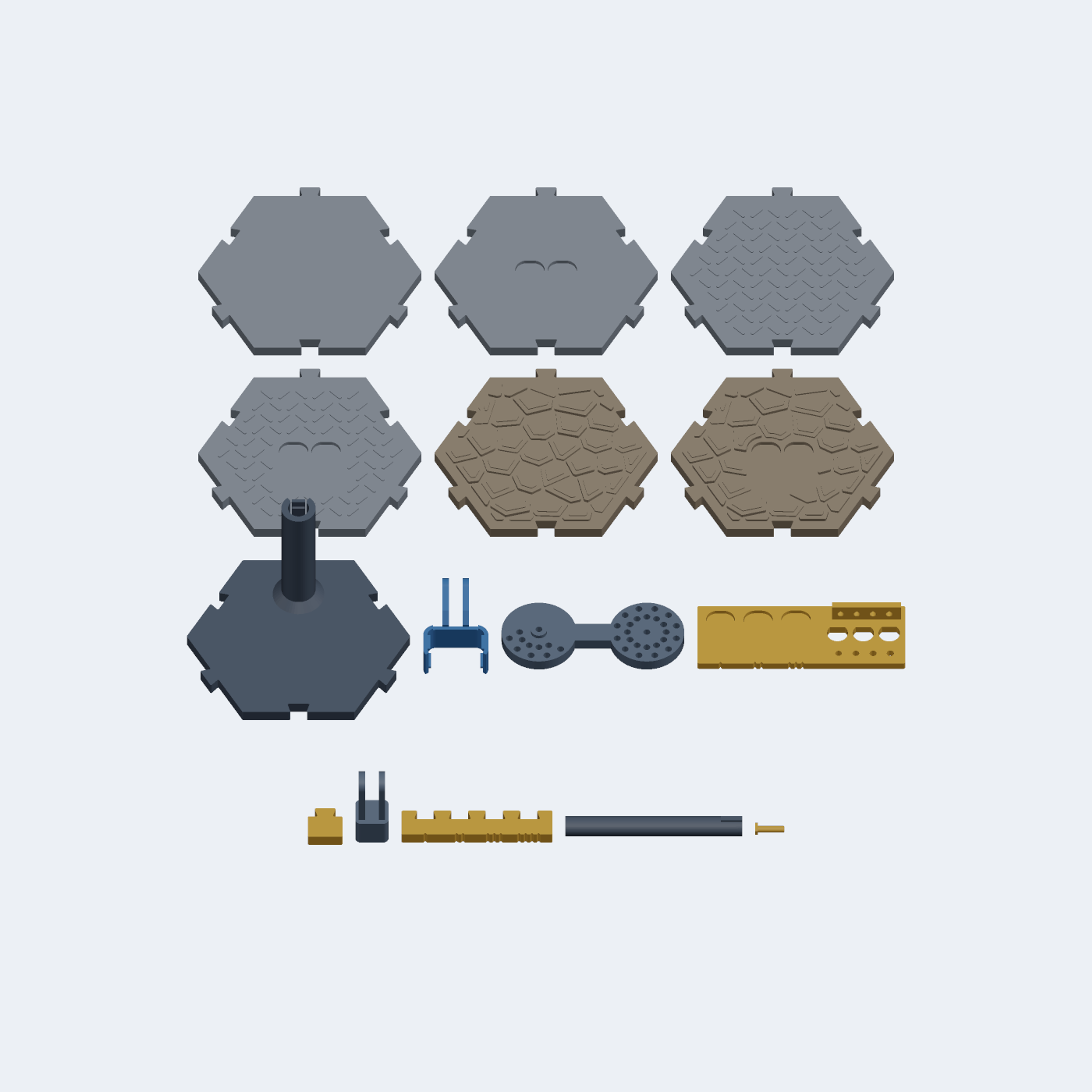

Parts (15 files, STL and 3MF for each, plus 5 ready-made plates):

• Flying stand: hex base with height tube, mast, head, arm, pelvis clip and 3.0 mm pins

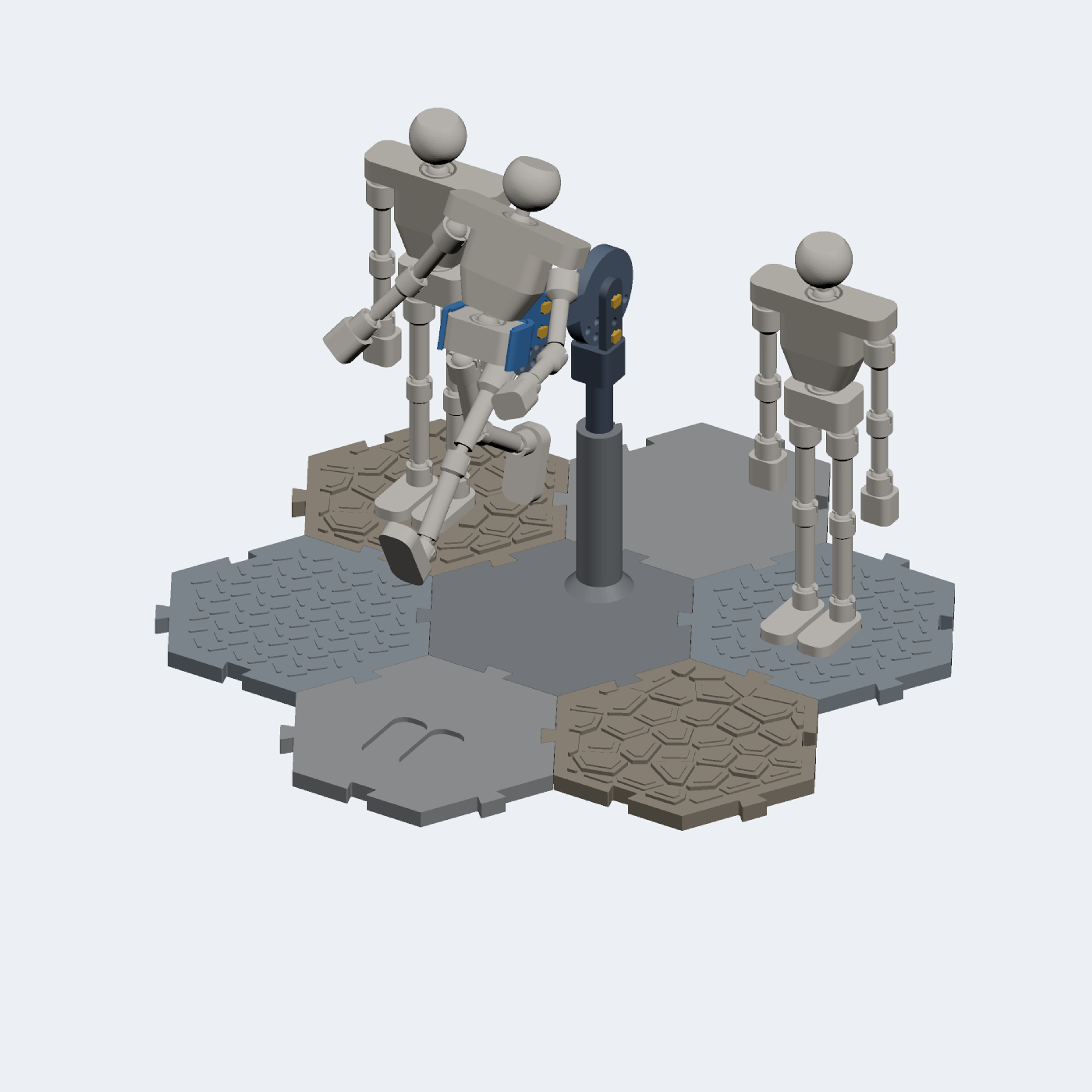

• Hex tiles: plain, tread plate and rock, each with and without foot pockets (6 tiles)
• Dovetail slot coupon with 2 keys, and a fit coupon for pockets, bores and pins (print first)

Adjustment:

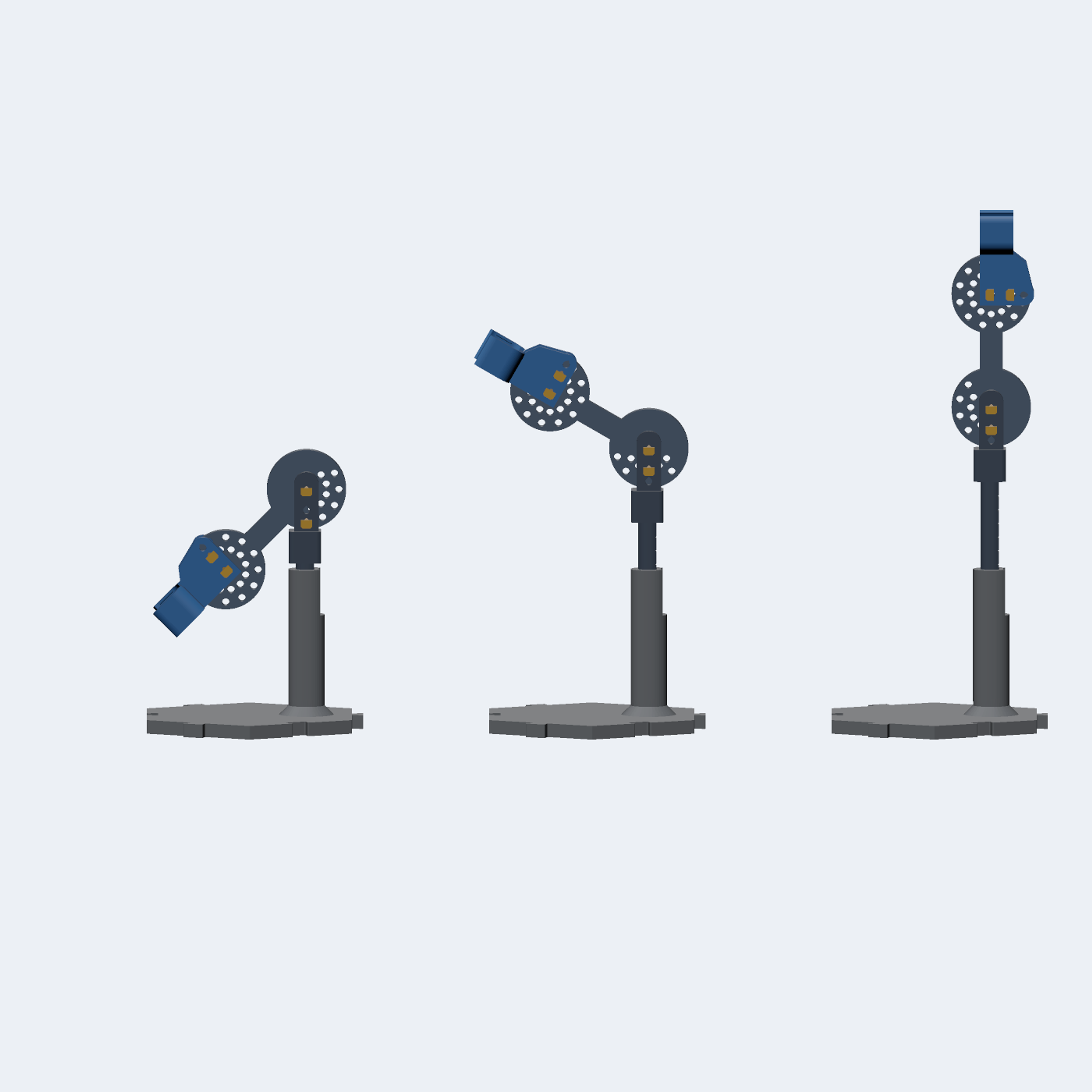

• Height: 7 clicks, 6 mm apart.

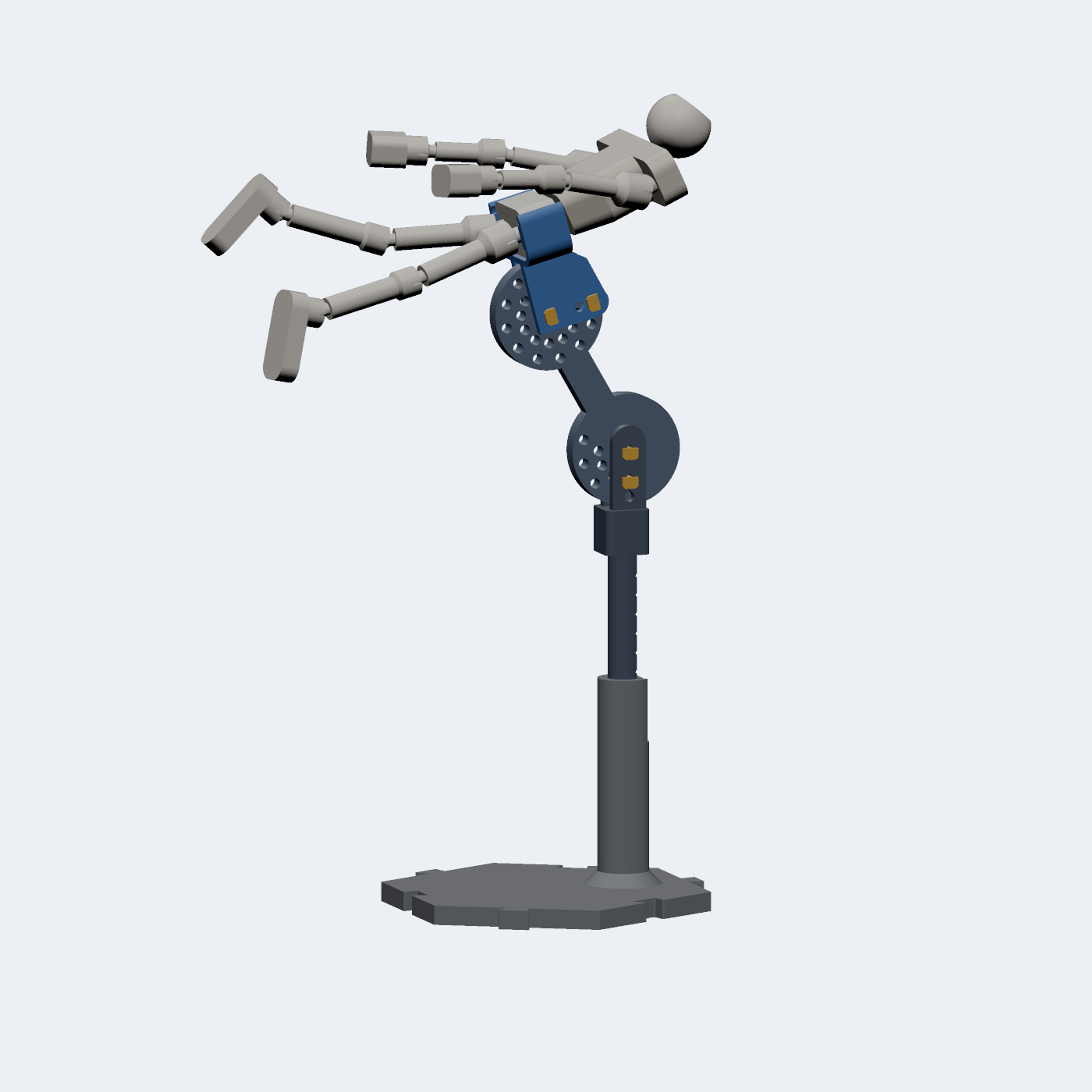

• Arm angle: -45 to +90 degrees in 15 degree steps. Figure angle: 15 degree steps at the clip, back or belly mounting.
• The arm always points forward (one key keeps it from tipping). Turn the base for side views.
• The stand base is a hex tile too, so it locks into the display tiles in any combination.
• With the clip on, the waist bends back 26 degrees and sideways 18 degrees. Remove belt-type armor before using the clip.
• 2,080 stand settings were checked for tipping in CAD, all stable.
• Includes GUIDE.pdf / GUIDE.md (settings, print order, coupons, assembly) and a spec sheet.

CAD-checked: fits, adjustment range and stability were checked in CAD against the figure's own meshes. Grams and times are slicer estimates.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only unless you buy the Commercial Use license.
