Hands and Joints Upgrade for Poseable 6 Inch Action Figure: 5 Hand Poses, Double-Hinge Elbows and Knees

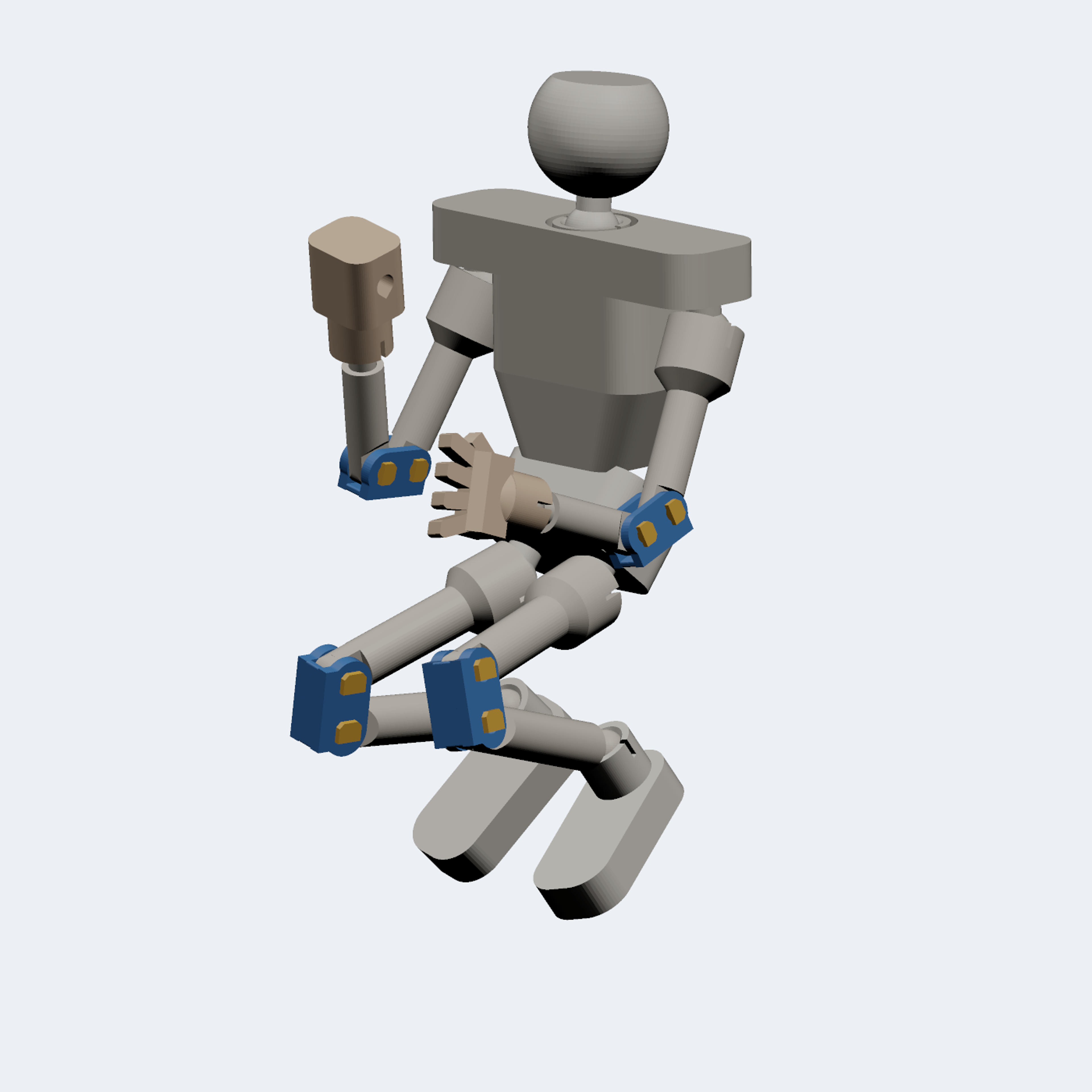

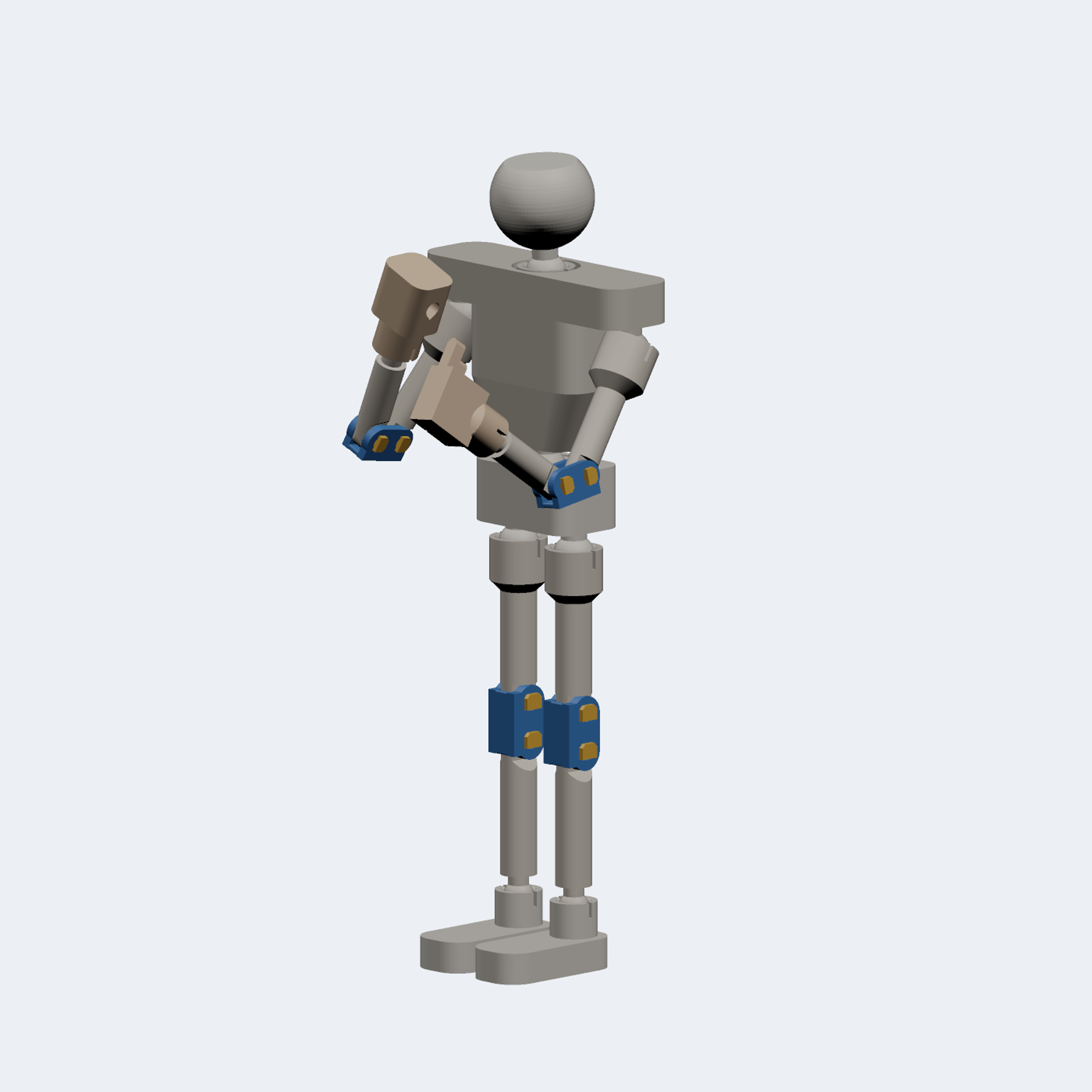

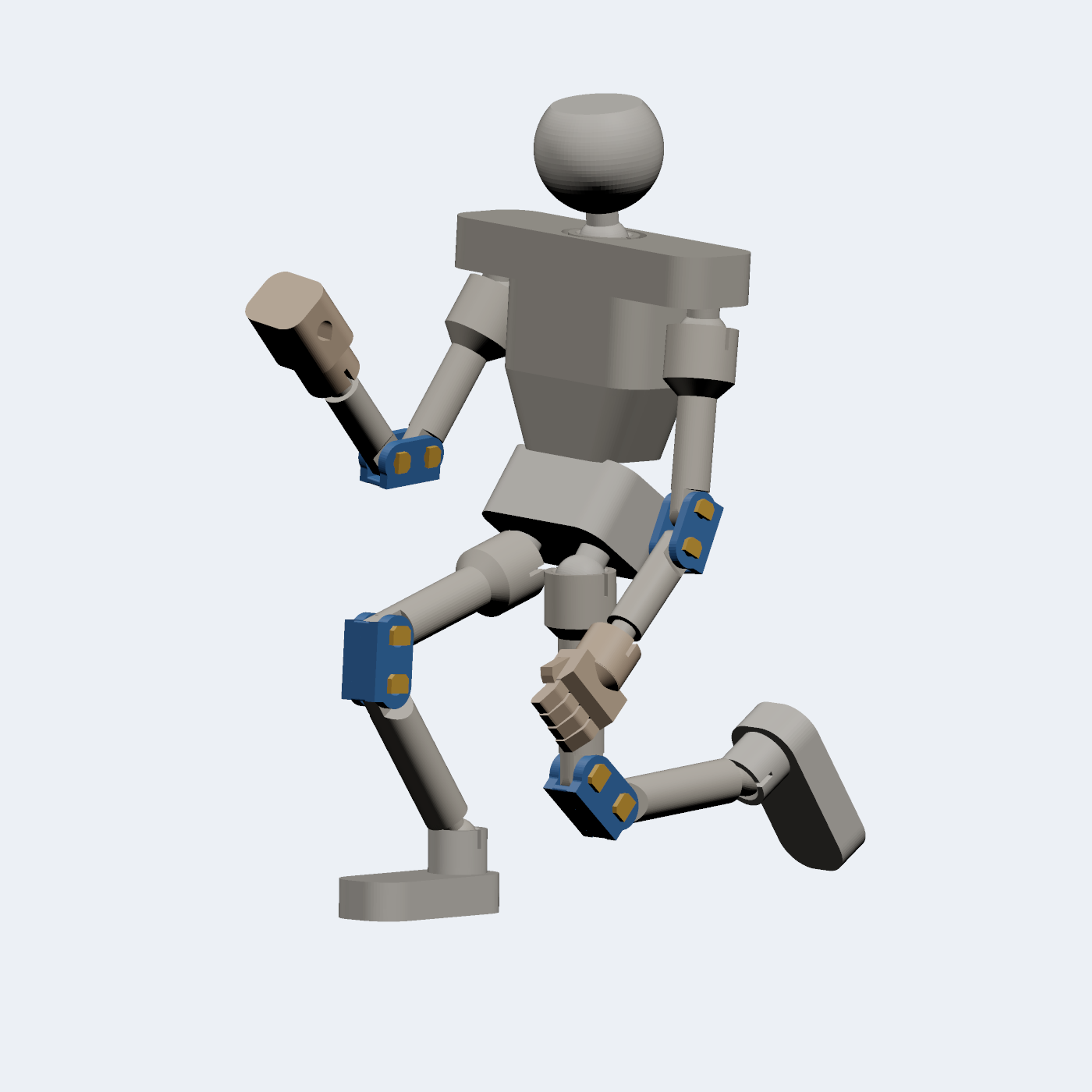

Double-hinge elbows and knees that bend to 168 degrees, five hand poses in left and right, and tight and loose versions of every ball joint. Direct swaps for the stock parts, no supports.
- Instant download after checkout
- 3 downloads over 30 days, links by email
- Digital files: all sales final. Licenses
About this design
Double-hinge elbows and knees that bend to 168 degrees, five hand poses in left and right, and tight and loose versions of every ball joint. Every part is a direct swap for the stock part and prints without supports.
Requires the base figure, sold separately: Poseable 6 Inch Action Figure (https://www.saiyanprints.com/products/poseable-action-figure). This pack does not include the figure.

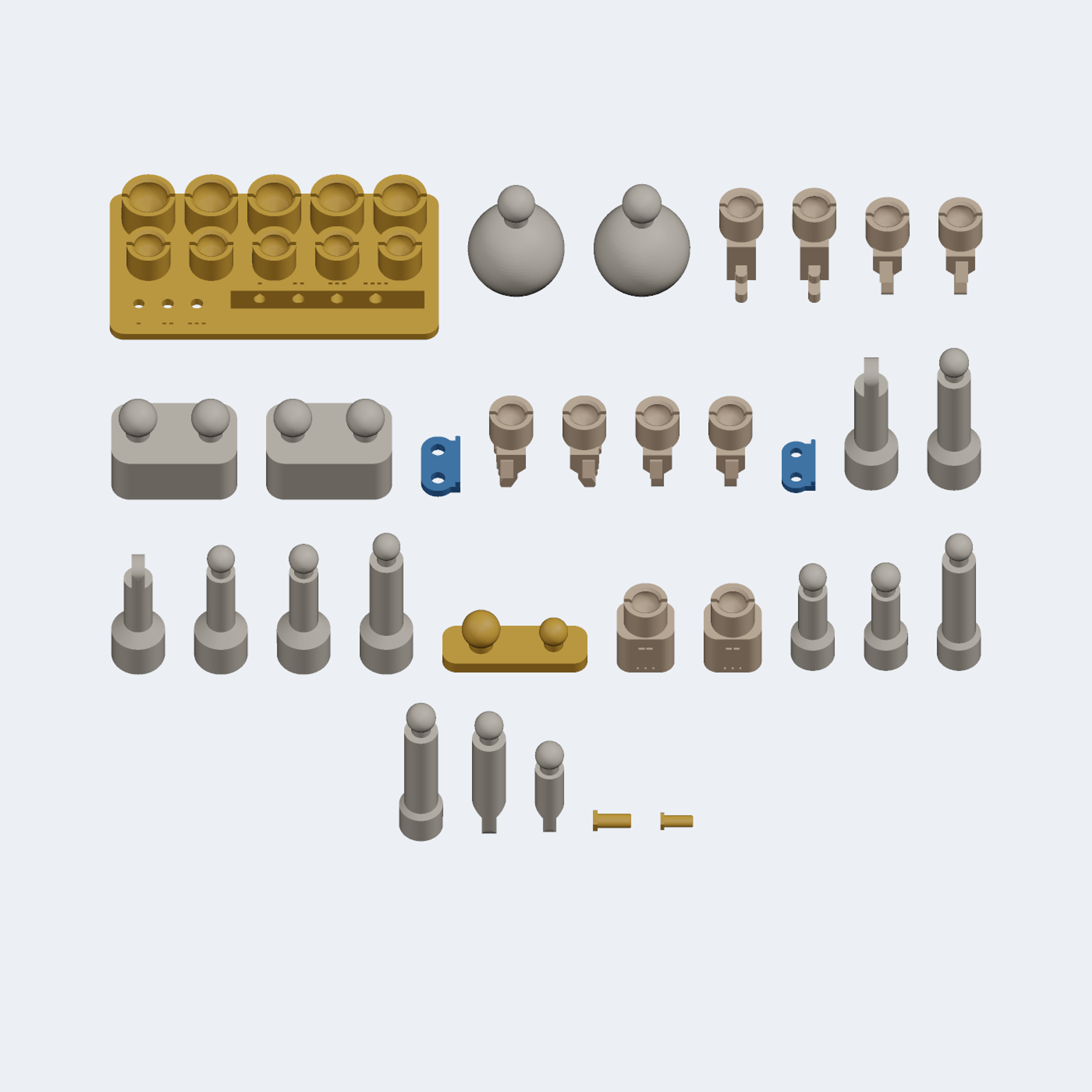

Parts (32 files, 62 printed pieces, STL and 3MF for each, plus 4 ready-made plates):

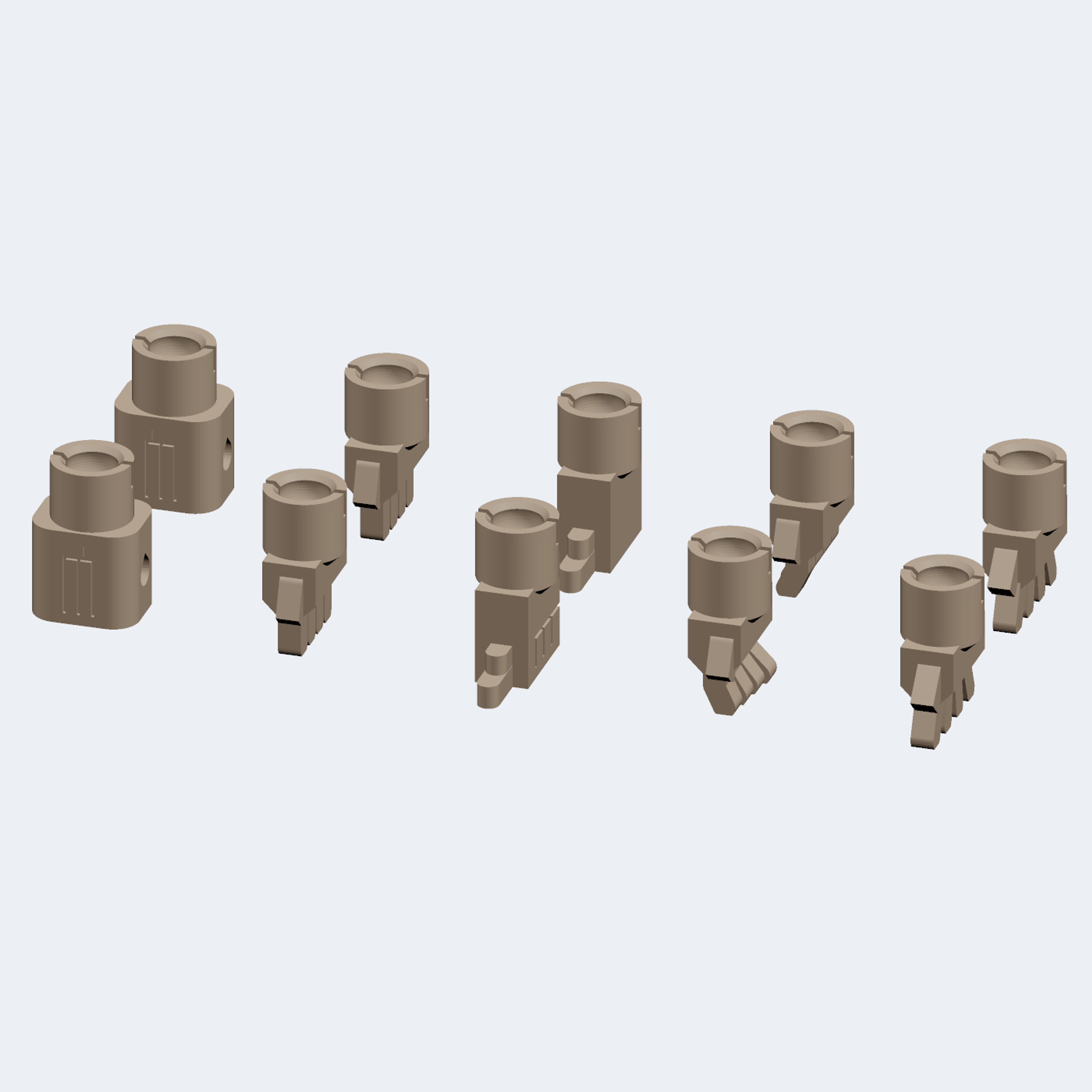

- Hands, left and right: fist with grip hole, flat, pointing, relaxed, splayed (10 hands)
- Double-hinge arms and legs: 2 upper arms, 2 lower arms, 2 thighs, 2 shins, 8 link plates, 12 printed pins (spares included)
- Tight and loose versions of the head, pelvis, upper and lower arms, thighs and shins
- Friction coupon: socket block, ball bar and test pins (print first)
What it changes:

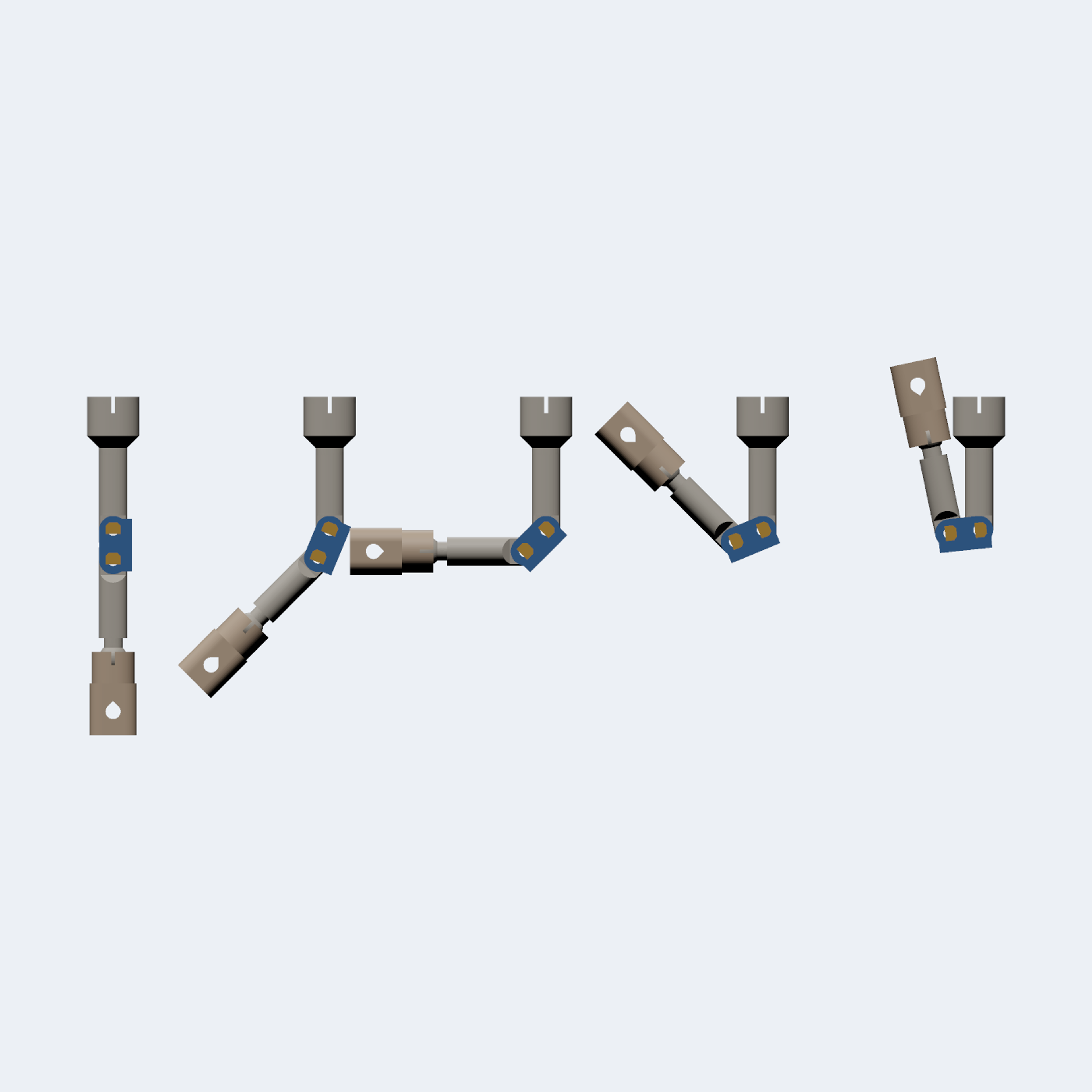

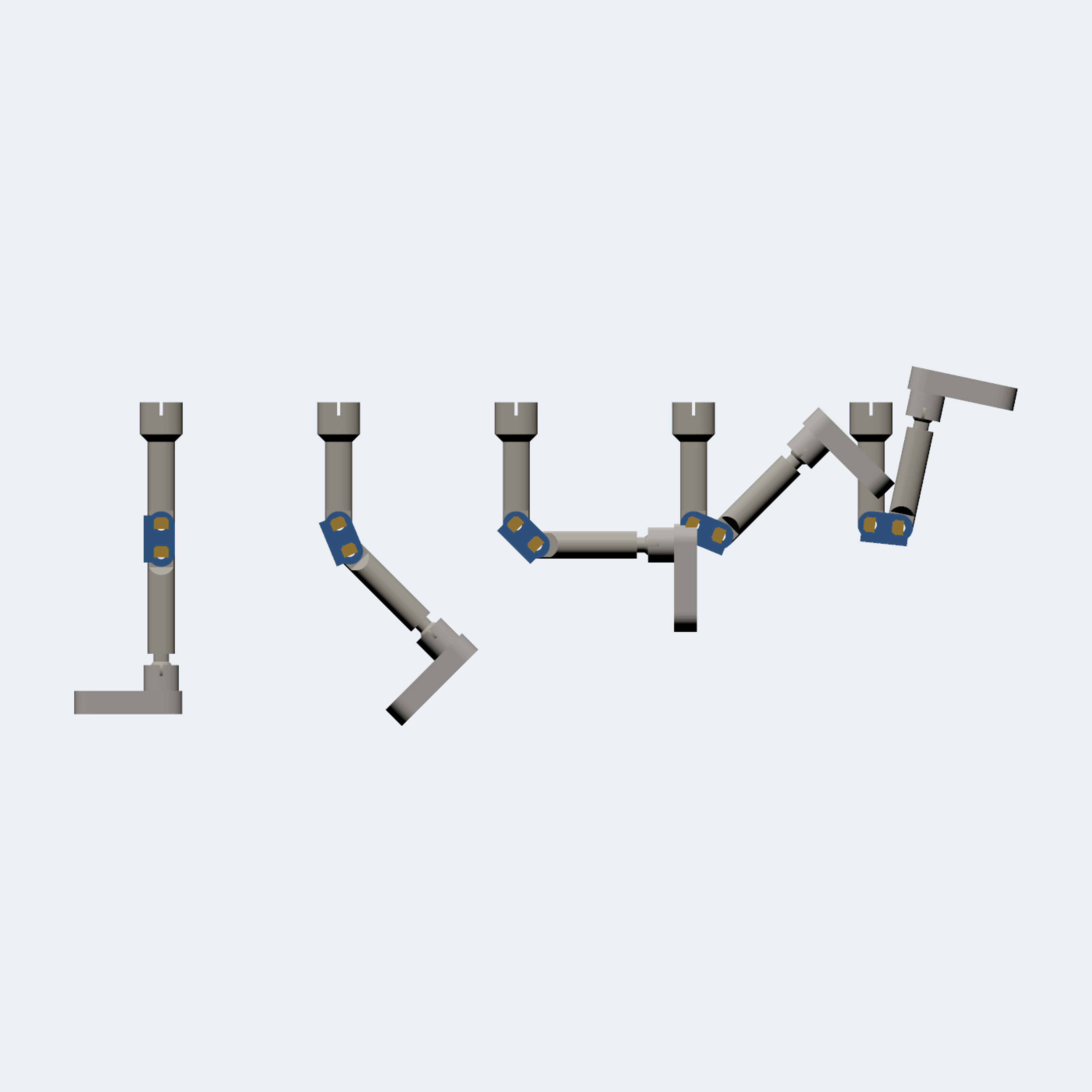

- Elbows and knees go from about 39 degrees each way on the stock ball joint to a 168 degree bend.
- The fists have a grip hole and hold the armor kit accessories and the Accessory Pack props. The open hands are for posing and do not hold props.
- The friction coupon tells you whether the stock, tight or loose joints suit your printer. Print the variants plate only for joints that need tuning.
- Some armor limits the new elbow range: mech kit 136 to 140 degrees, construction elbow pad 148 degrees.
- No chest in this pack. The slotted chest for the Accessory Pack backpack comes with Accessory Pack Vol. 1 (and the Holiday Armor Kit).
- Includes GUIDE.pdf / GUIDE.md (settings, print order, coupon, assembly) and a spec sheet.
CAD-checked: ranges, fits and walls were checked in CAD against the figure's own meshes. Grams and times are slicer estimates.
Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.
Private use only unless you buy the Commercial Use license.
Print notes
- PLA (PETG also works), 0.4 mm nozzle, 3 walls, 15% gyroid infill. 0.12 mm layers for the hands and coupon, 0.2 mm for the rest. - No supports. 3 mm brim on the double-hinge plate only. - Print order: friction coupon (12.29 g, 1 h 53 min), hands (12.73 g, 2 h 22 min), double hinge (14.06 g, 2 h 45 min). Most people only need these three (about 39 g, 7 h). Joint variants plate (42.25 g, 7 h 02 min) only for joints that need tuning. - Everything: 81.3 g, about 14 h at 0.2 mm (PrusaSlicer 2.9.2, PLA, 3 perimeters, 15% gyroid). Values are slicer estimates. - Files: STL and 3MF for each of the 32 parts and the 4 plates, plus GUIDE.pdf, GUIDE.md and SPEC.md.
