Construction Worker Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

3MF · STL

Construction Worker Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

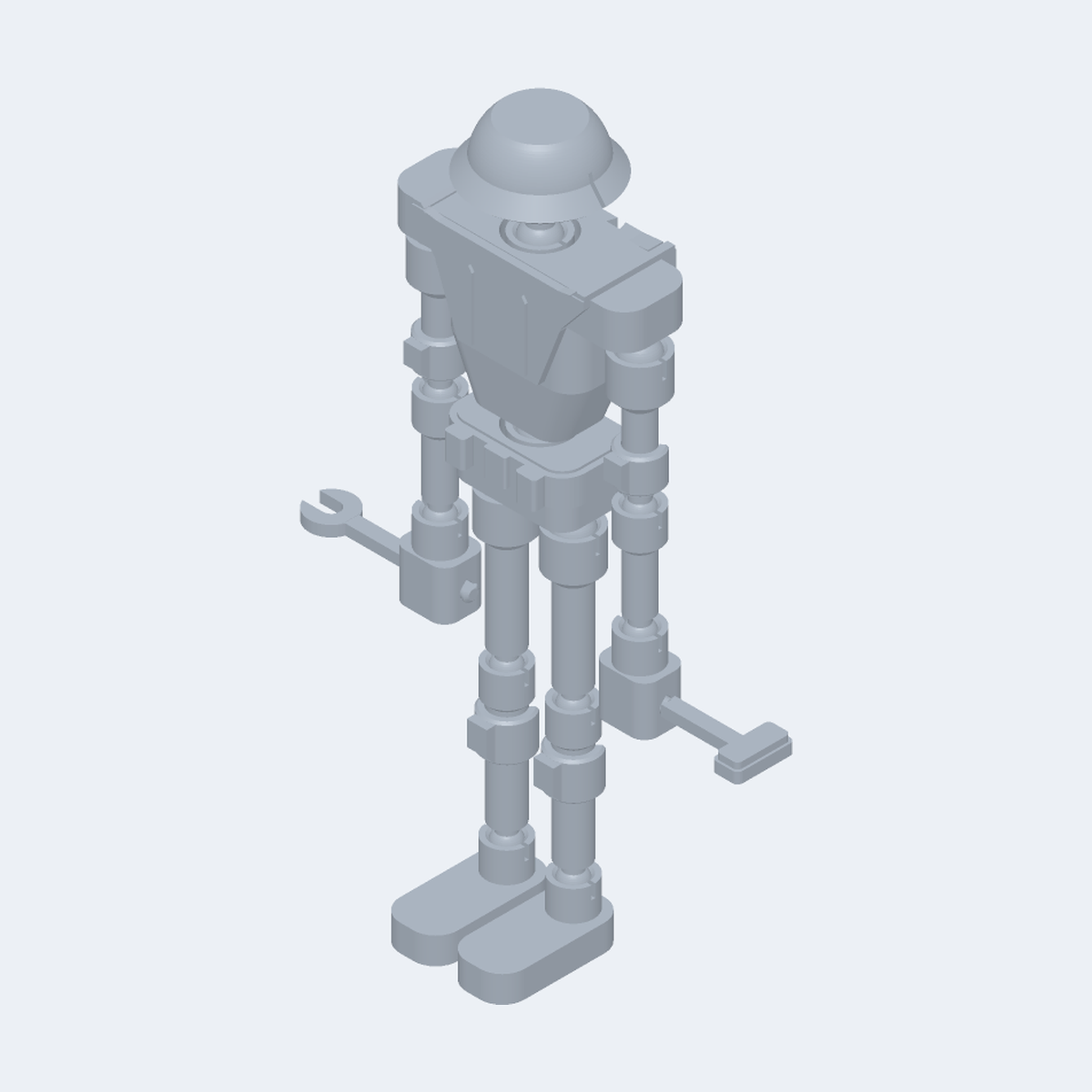

A construction-worker set: hard hat, ribbed safety vest, elbow and knee pads and a tool belt, plus a toy hammer, a spanner and a spare toolbox. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses

About this design

A construction-worker set: hard hat, ribbed safety vest, elbow and knee pads and a tool belt, plus a toy hammer, a spanner and a spare toolbox. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

Requires the base figure, sold separately: Poseable 6 Inch Action Figure. This kit does not include the figure.

Parts (10 files, STL and 3MF for each):

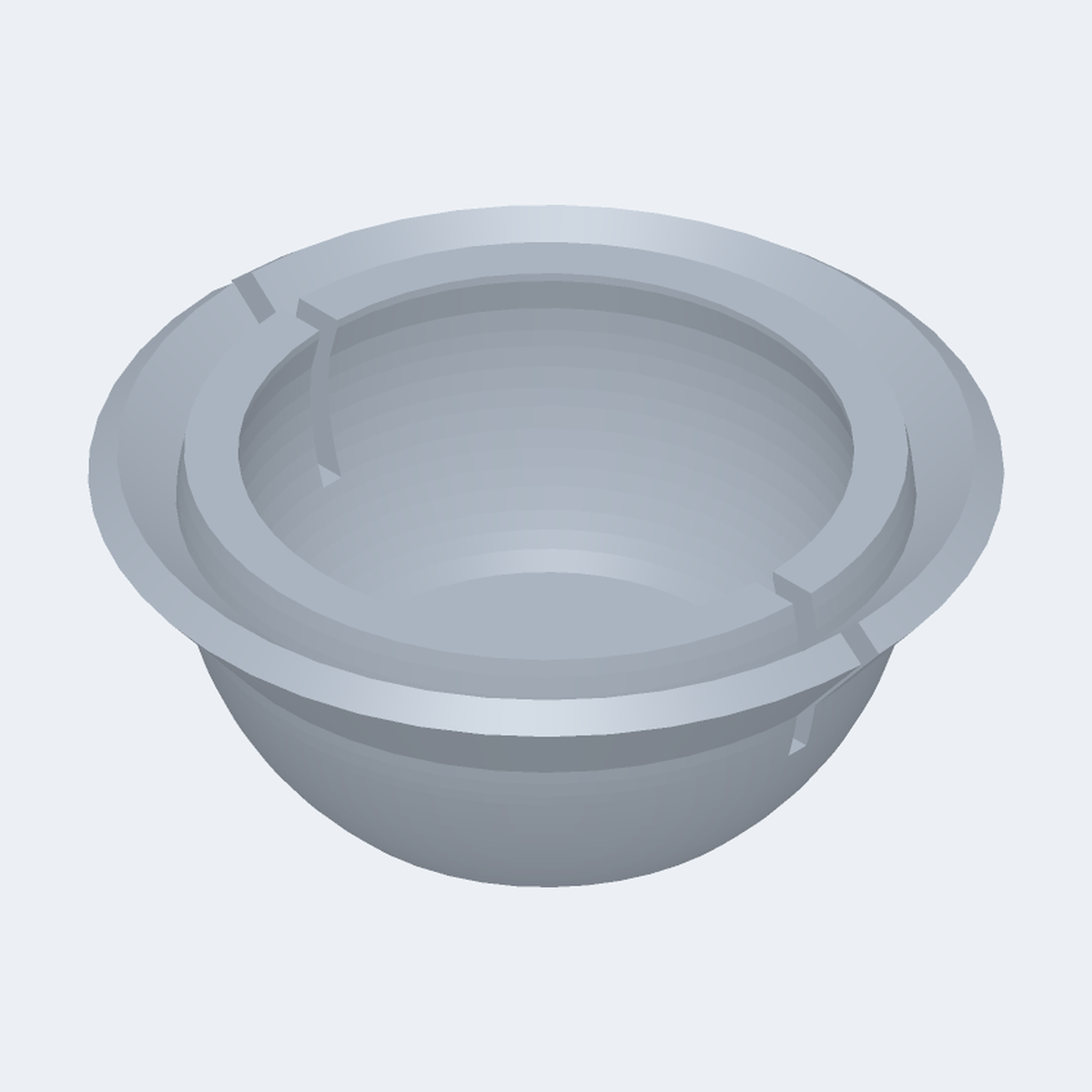

  • Hard hat x1

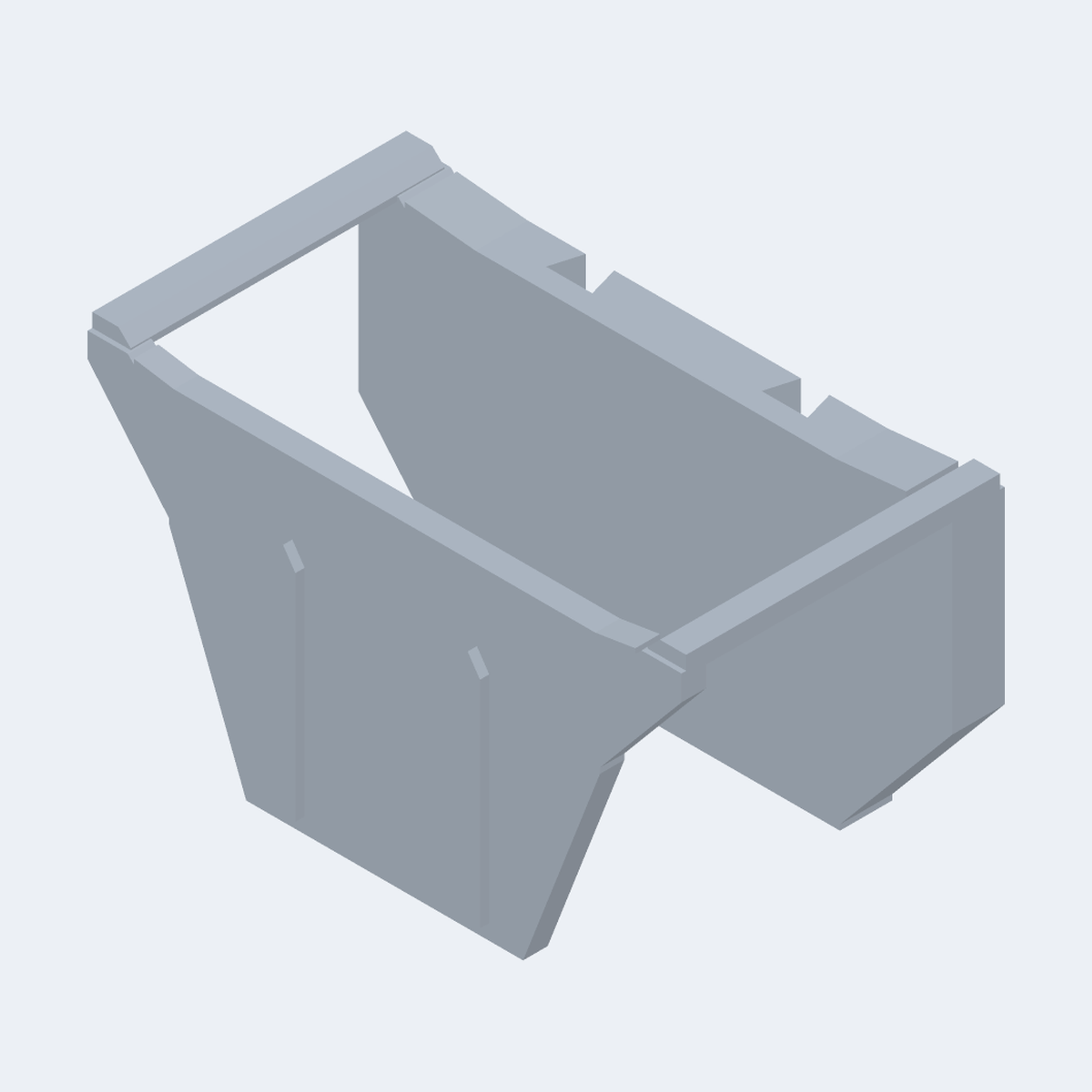

  • Safety vest x1

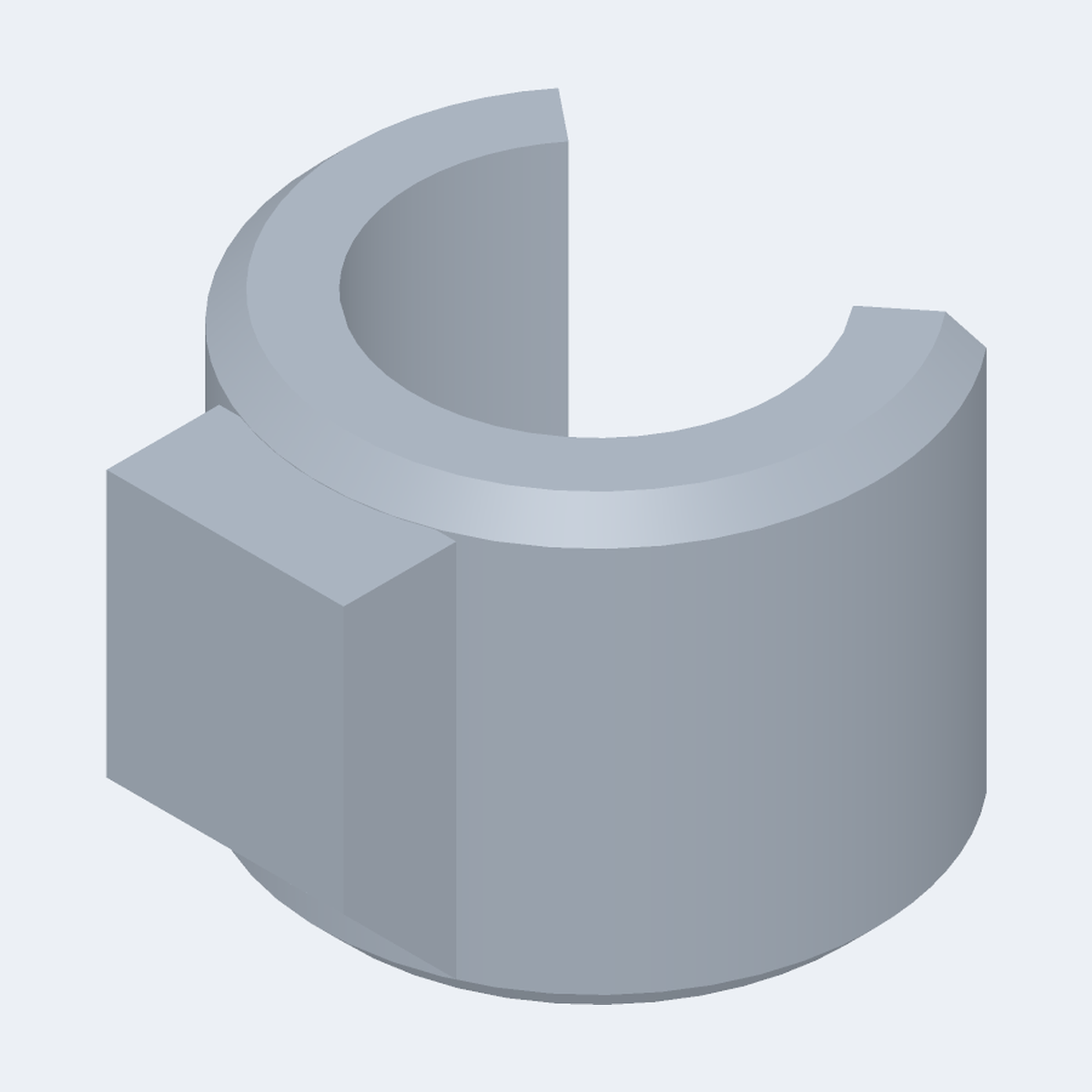

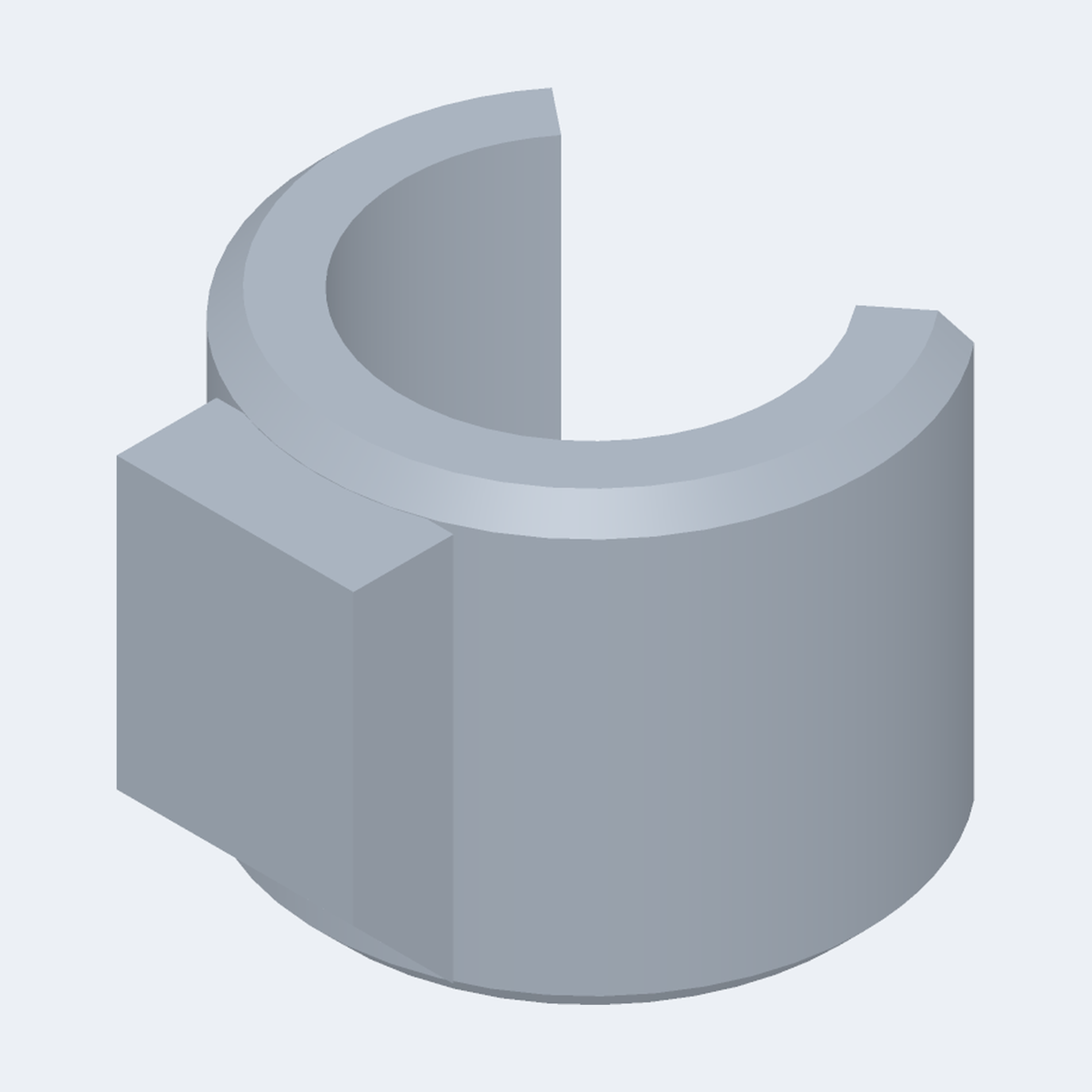

  • Elbow pad x2
  • Knee pad x2

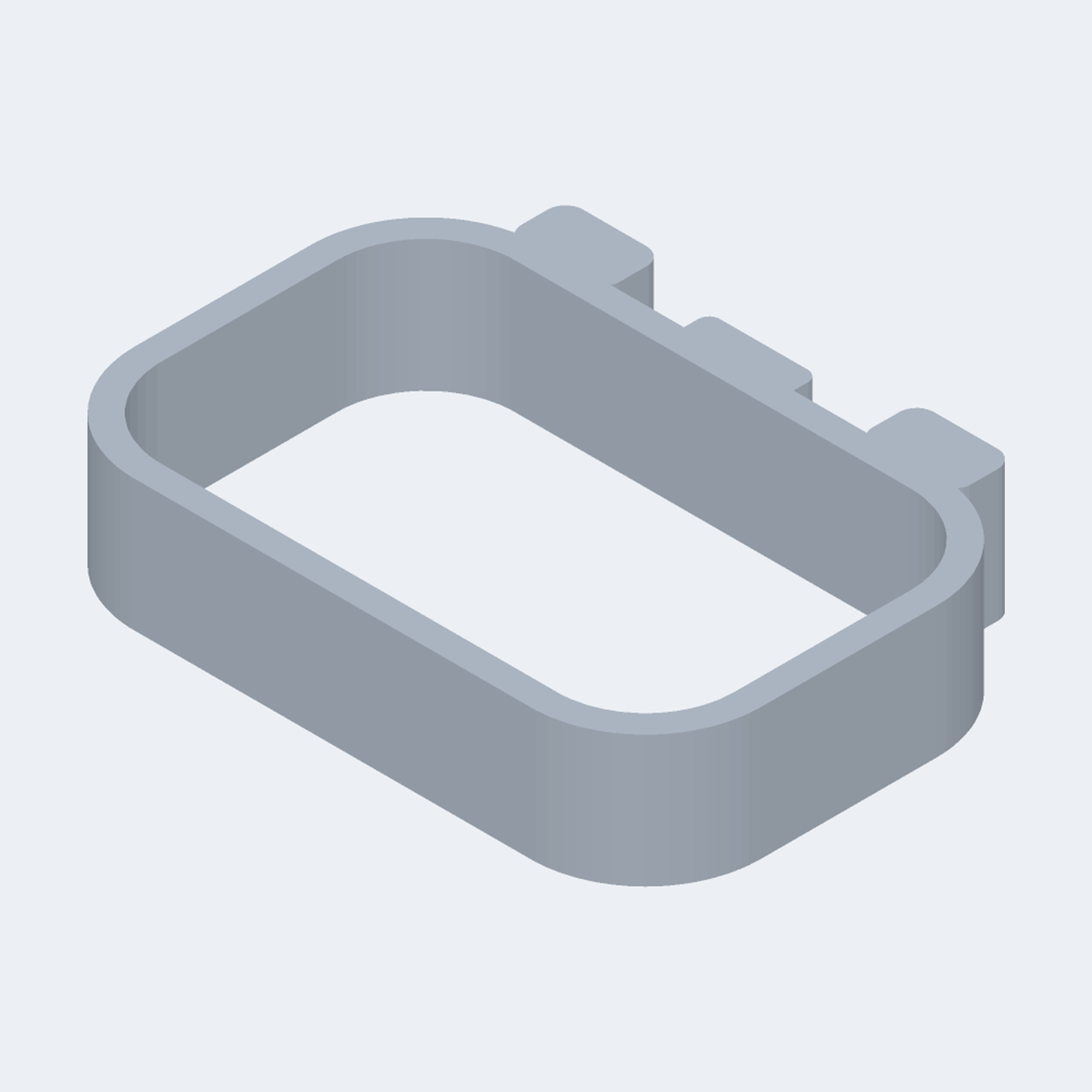

  • Tool belt x1

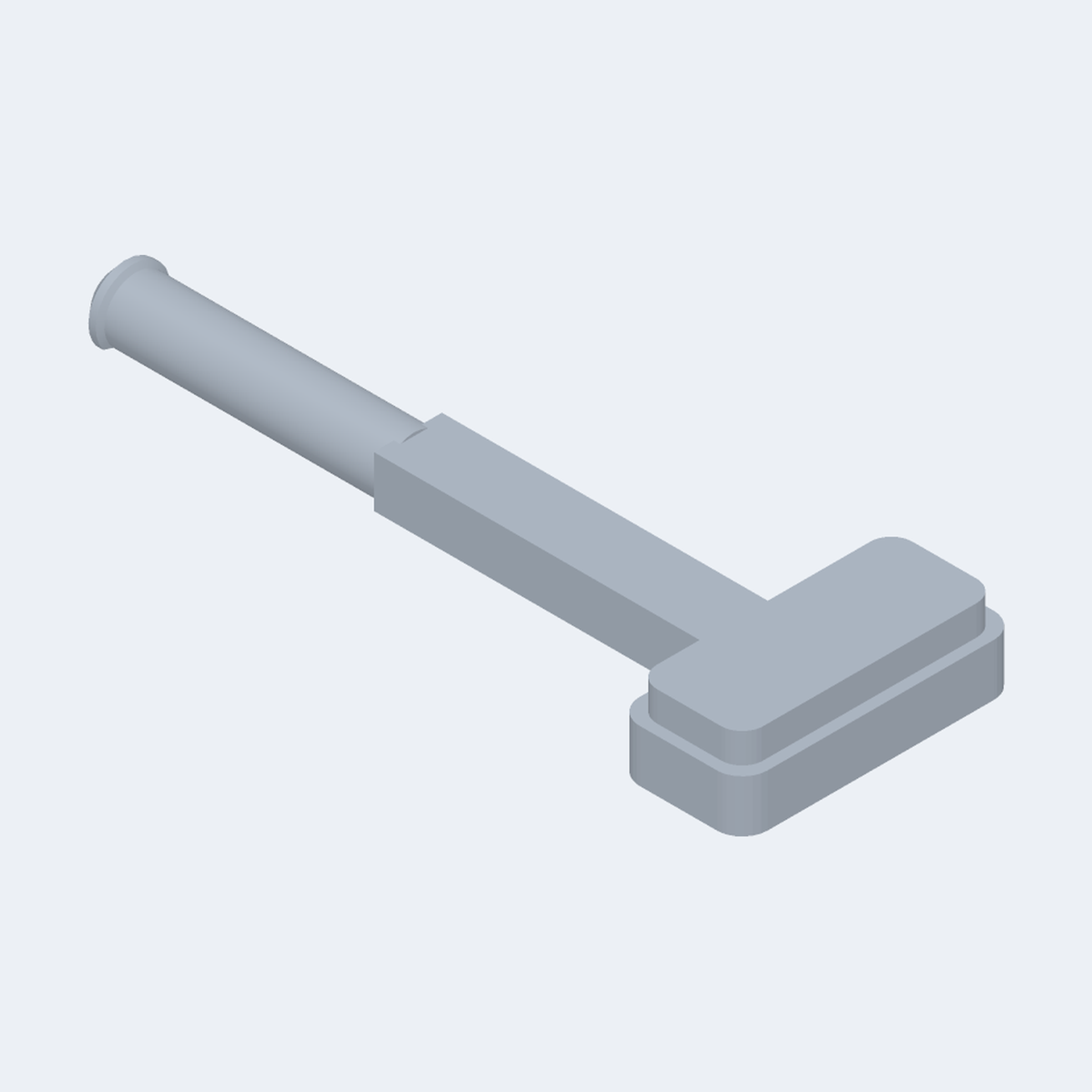

  • Toy hammer (hand grip) x1

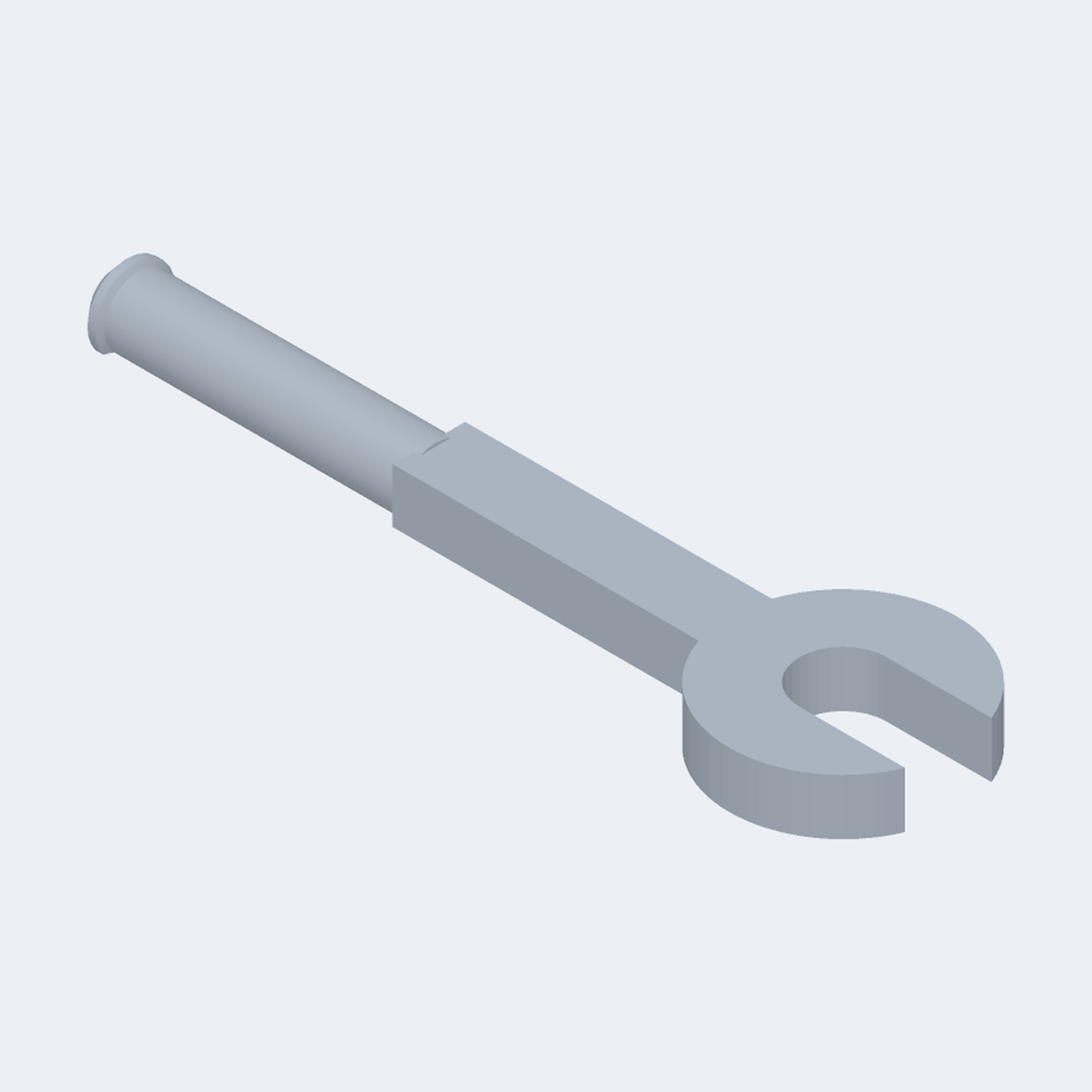

  • Toy spanner (hand grip) x1

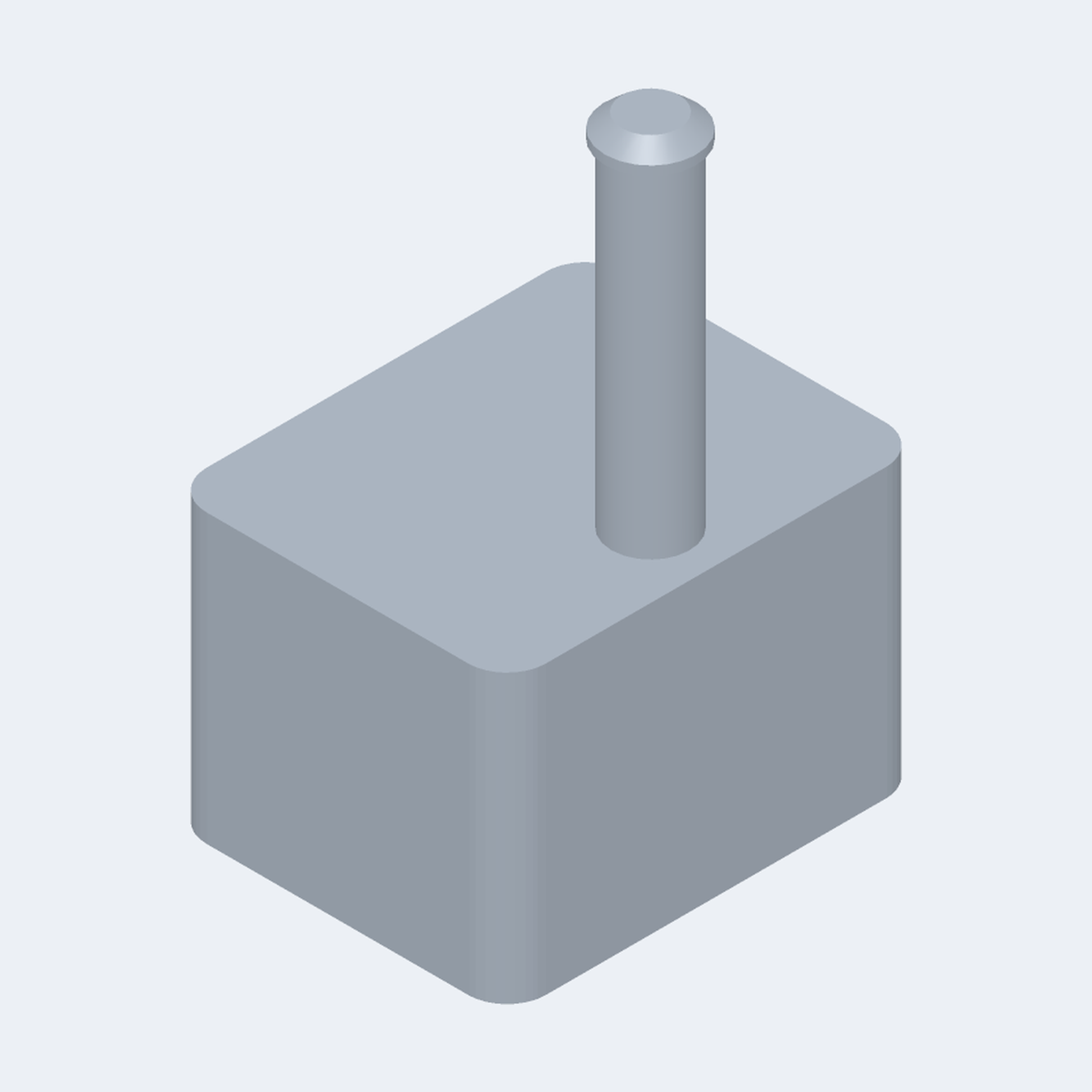

  • Toolbox (hand grip, spare 3rd accessory) x1
  • Fit-test coupon (print first) x1
  • Grip-hole hand (replaces the figure's hand so it can hold accessories) x1-2

Assembly and fit:

  • Print the coupon first. It carries test clips in several tightness steps. Snap each onto the matching limb and note which holds firmly without whitening the plastic. If they are all loose or all tight, adjust your printer's XY compensation before printing the kit.
  • Clips snap sideways onto the limbs. The chest piece drops over the shoulders, the belt slides over the hips, and back items slide down onto the rail on the back of the chest piece.
  • Swap the figure's hand for fig_hand_v3 to hold accessories. Each kit is posed with one accessory in each hand; any extra is a spare.
  • Joint range with armour on: head tilt is limited to about 33° (hard hat meets the vest beyond that). Arms swing back and inward to about 15° before touching the belt. With an accessory in hand, the item can touch the thigh when the arm hangs straight and the waist, elbow or hip bends. Turn the hand or lift the arm slightly. All other joints keep the base figure's full range.
  • Weapons and tools are blunt toy props with rounded tips.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only.

Print notes

- PETG recommended (it flexes for the snap clips without cracking). 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports. Some straps, visors and shoulder caps bridge up to about 20 mm. - Sliced (PrusaSlicer 2.9.2, PETG, 0.2 mm, 3 perimeters, 15% gyroid, no supports): full kit 11.6 g, 1.43 h (86 min). Values are slicer estimates. - arm_co_hardhat_v3.stl: x1, 2.25 g, 11.3 min each - arm_co_vest.stl: x1, 4.39 g, 35.7 min each - arm_co_elbowpad_v2.stl: x2, 0.30 g, 3.6 min each - arm_co_kneepad_v2.stl: x2, 0.39 g, 3.8 min each - arm_co_toolbelt.stl: x1, 0.93 g, 7.7 min each - arm_acc_hammer_grip.stl: x1, 0.63 g, 4.4 min each - arm_acc_spanner_grip.stl: x1, 0.42 g, 2.4 min each - arm_acc_toolbox_grip.stl: x1, 1.55 g, 9.3 min each - arm_coupon_v6.stl: x1, 14.39 g, 117.0 min each (fit-test coupon, print first, not in kit total) - fig_hand_v3.stl: x1-2, 1.50 g, 15.6 min each (grip-hole hand; needed to hold the accessories, not in kit total) - Orientation: Hard hat: upside-down on its flat top, rim up; Safety vest: as worn: plate bottoms on the bed, shoulder straps bridge 19.6 mm at the top; Elbow pad: upright tube, mouth to the side; Knee pad: upright tube, mouth to the side; Tool belt: upside-down: belt top on the bed; Toy hammer (hand grip): flat, handle along the bed (D-flat); Toy spanner (hand grip): flat, handle along the bed (D-flat); Toolbox (hand grip, spare 3rd accessory): body face down, handle pointing up; Fit-test coupon (print first): flat; Grip-hole hand (replaces the figure's hand so it can hold accessories): upright, wrist socket opening up. - Print arm_coupon_v6 first and pick the clip that holds firmly without whitening. If all are loose or all tight, adjust XY compensation.

Files

  • arm_co_hardhat_v3.stlstl400 KB
  • arm_co_vest.stlstl25 KB
  • arm_co_elbowpad_v2.stlstl172 KB
  • arm_co_kneepad_v2.stlstl172 KB
  • arm_co_toolbelt.stlstl37 KB
  • arm_acc_hammer_grip.stlstl100 KB
  • arm_acc_spanner_grip.stlstl100 KB
  • arm_acc_toolbox_grip.stlstl108 KB
  • arm_coupon_v6.stlstl2.1 MB
  • fig_hand_v3.stlstl270 KB
  • arm_co_hardhat_v3.3mf3mf100 KB
  • arm_co_vest.3mf3mf5.1 KB
  • arm_co_elbowpad_v2.3mf3mf37 KB
  • arm_co_kneepad_v2.3mf3mf37 KB
  • arm_co_toolbelt.3mf3mf8.4 KB
  • arm_acc_hammer_grip.3mf3mf22 KB
  • arm_acc_spanner_grip.3mf3mf22 KB
  • arm_acc_toolbox_grip.3mf3mf22 KB
  • arm_coupon_v6.3mf3mf404 KB
  • fig_hand_v3.3mf3mf59 KB
