Frontier Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

3MF · STL

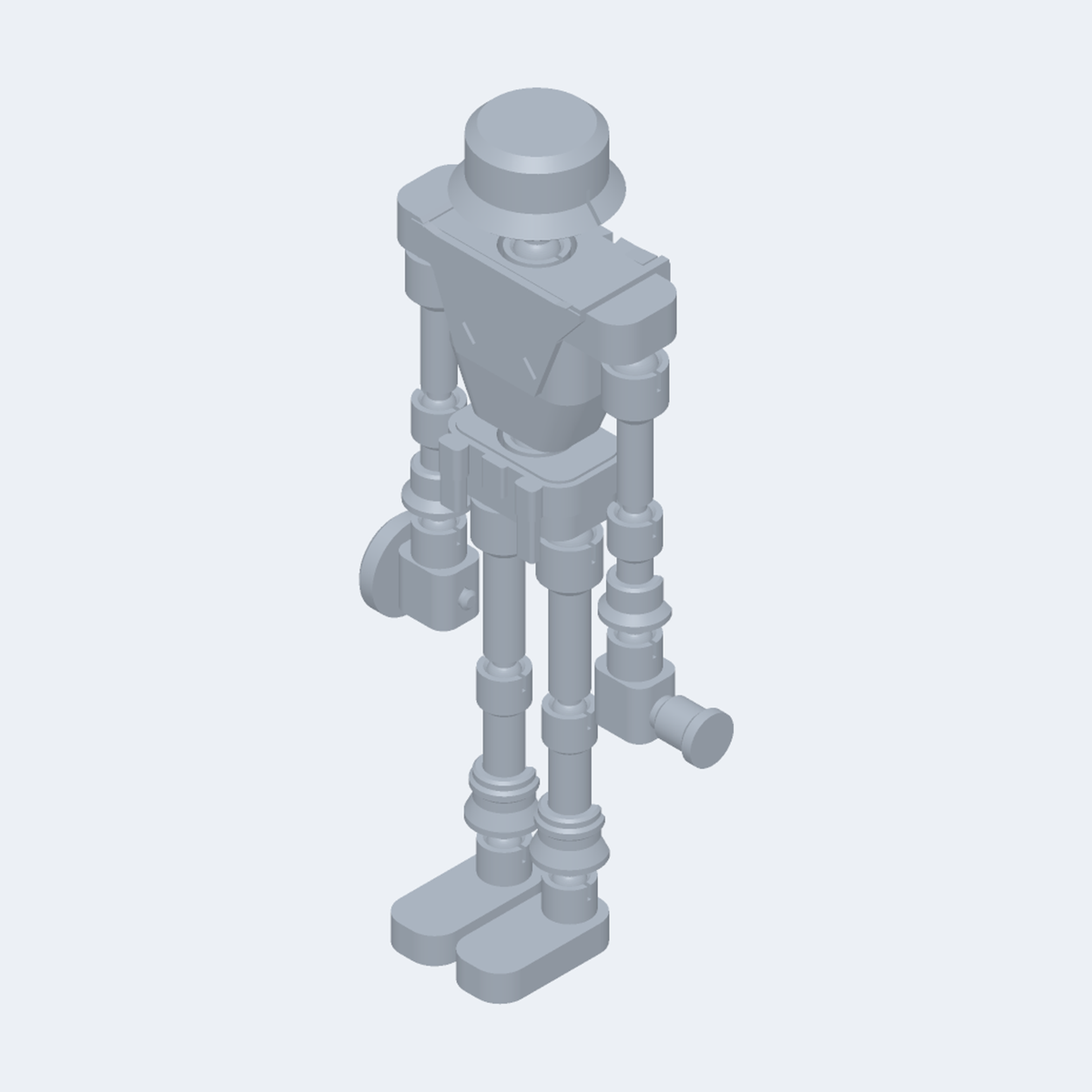

Frontier Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

A frontier set: wide-brim hat, vest, flared cuffs, boot covers and a belt with holster and satchel, plus a lantern and a rope coil. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses

About this design

A frontier set: wide-brim hat, vest, flared cuffs, boot covers and a belt with holster and satchel, plus a lantern and a rope coil. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

Requires the base figure, sold separately: Poseable 6 Inch Action Figure. This kit does not include the figure.

Parts (9 files, STL and 3MF for each):

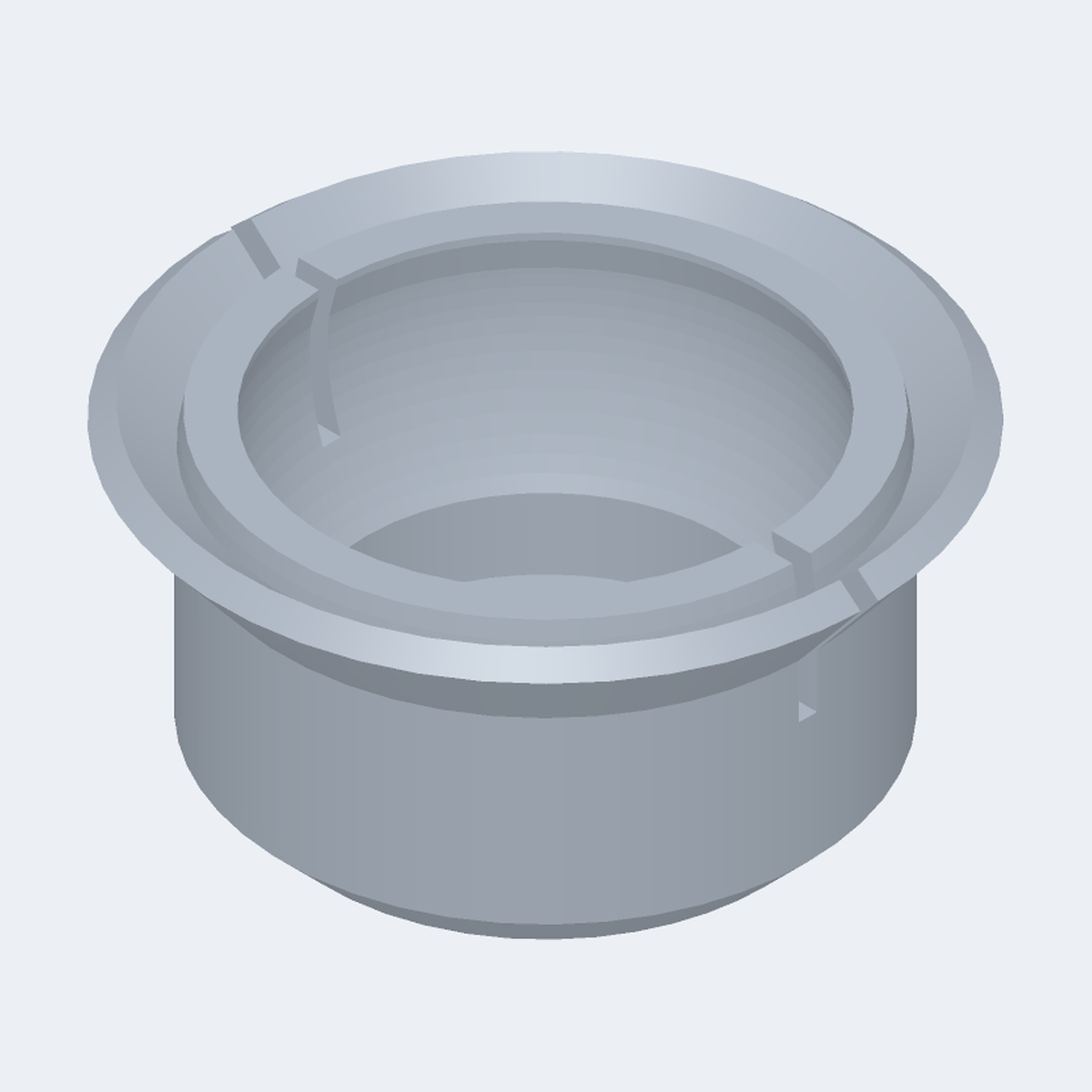

  • Wide-brim hat x1

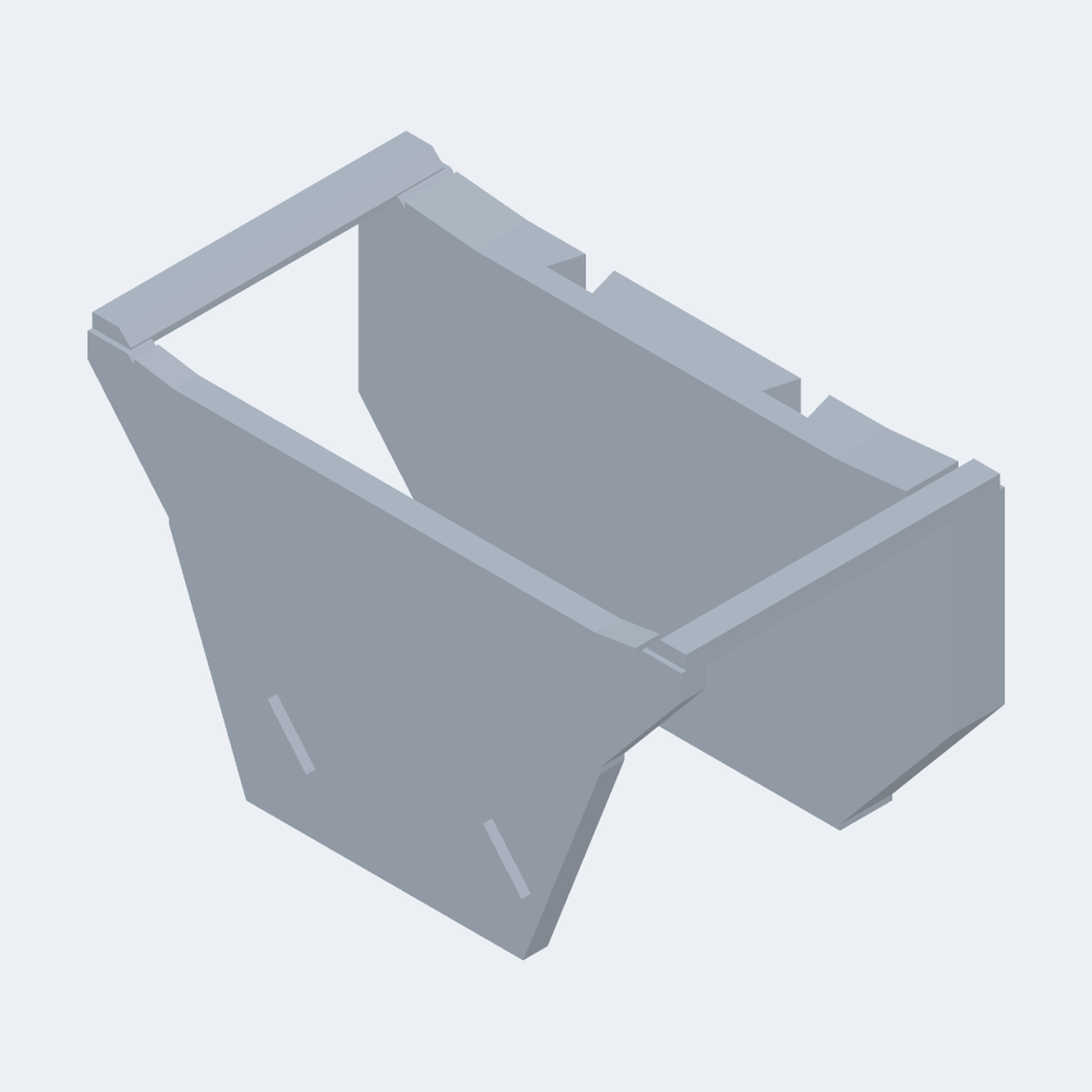

  • Safety vest x1

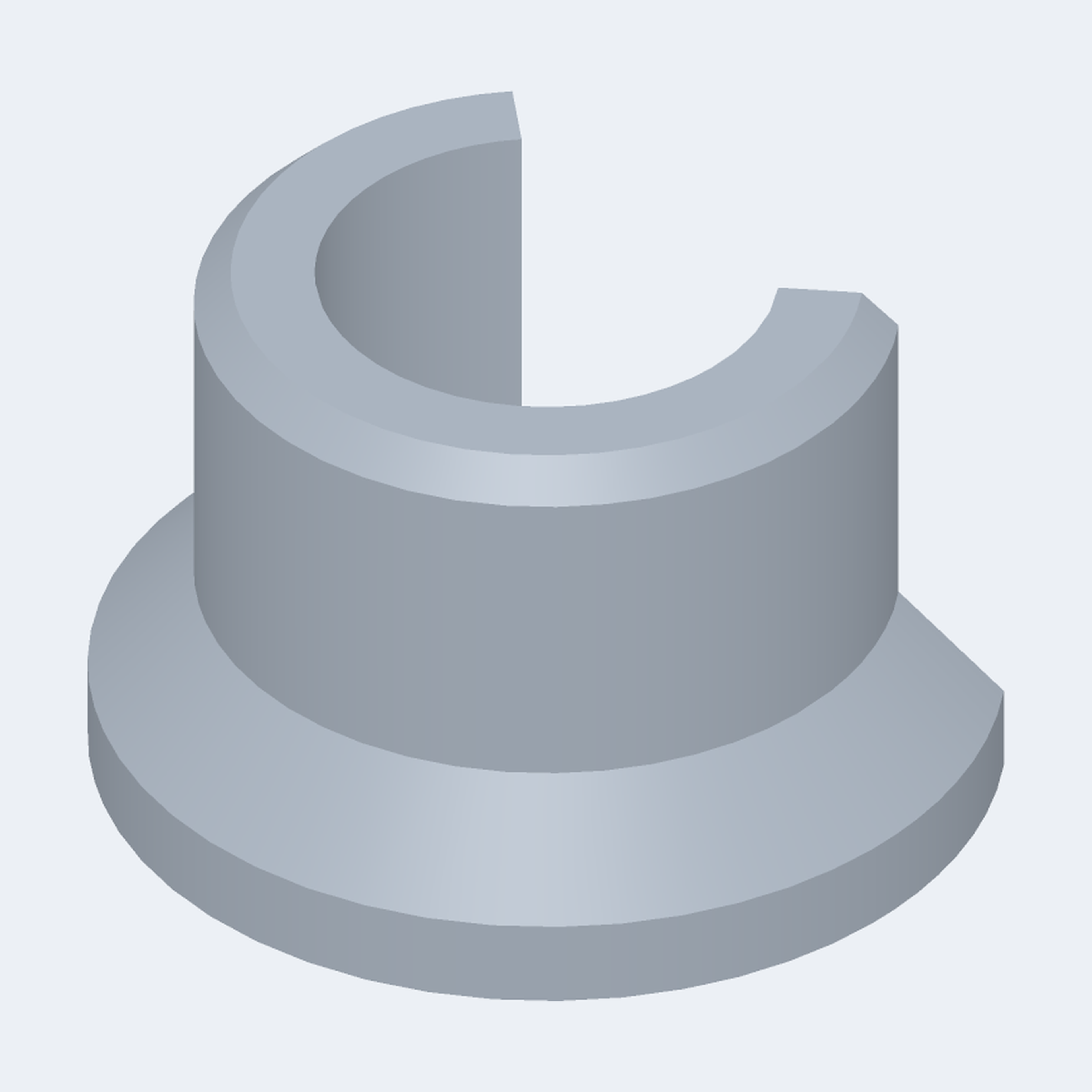

  • Glove cuff x2

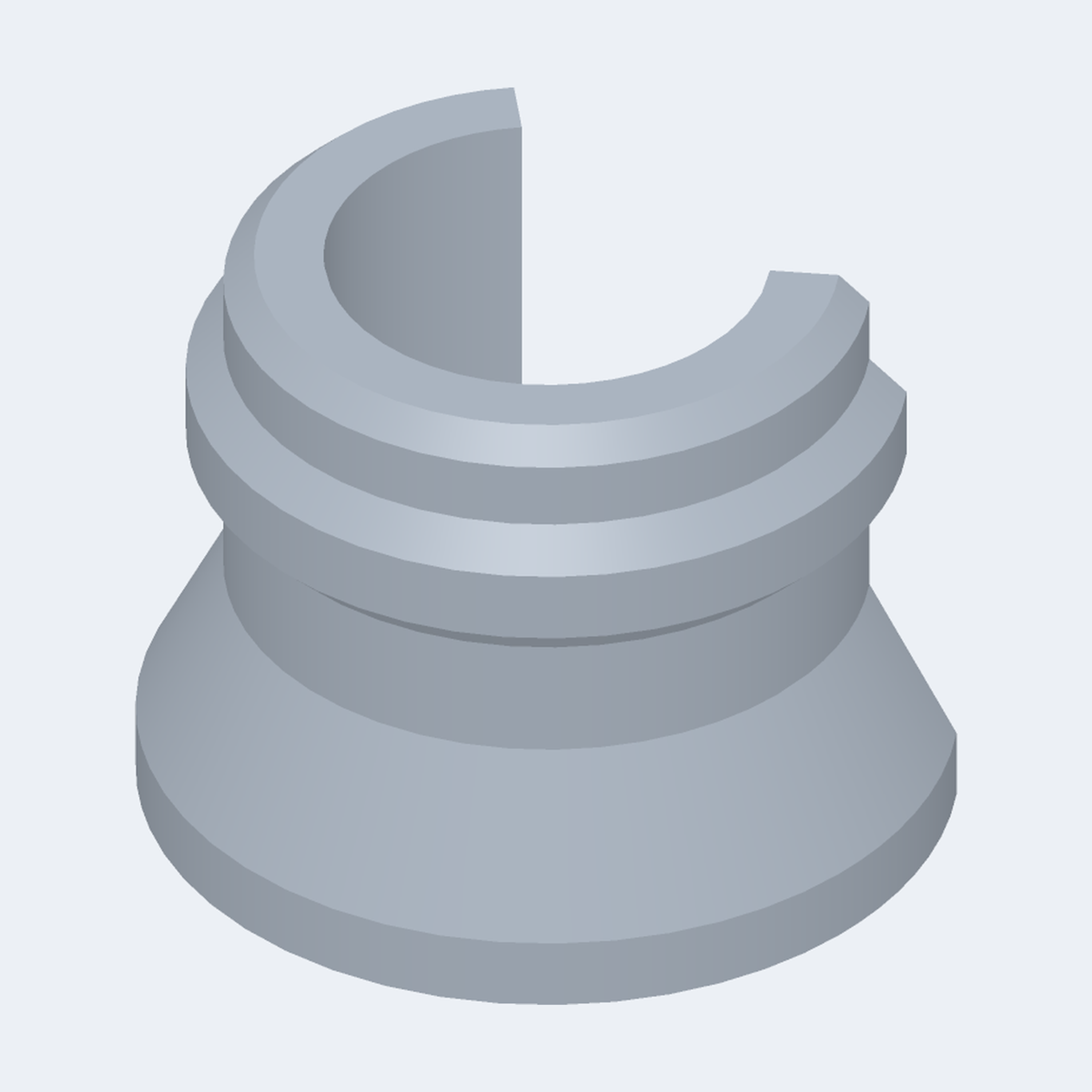

  • Boot cover x2

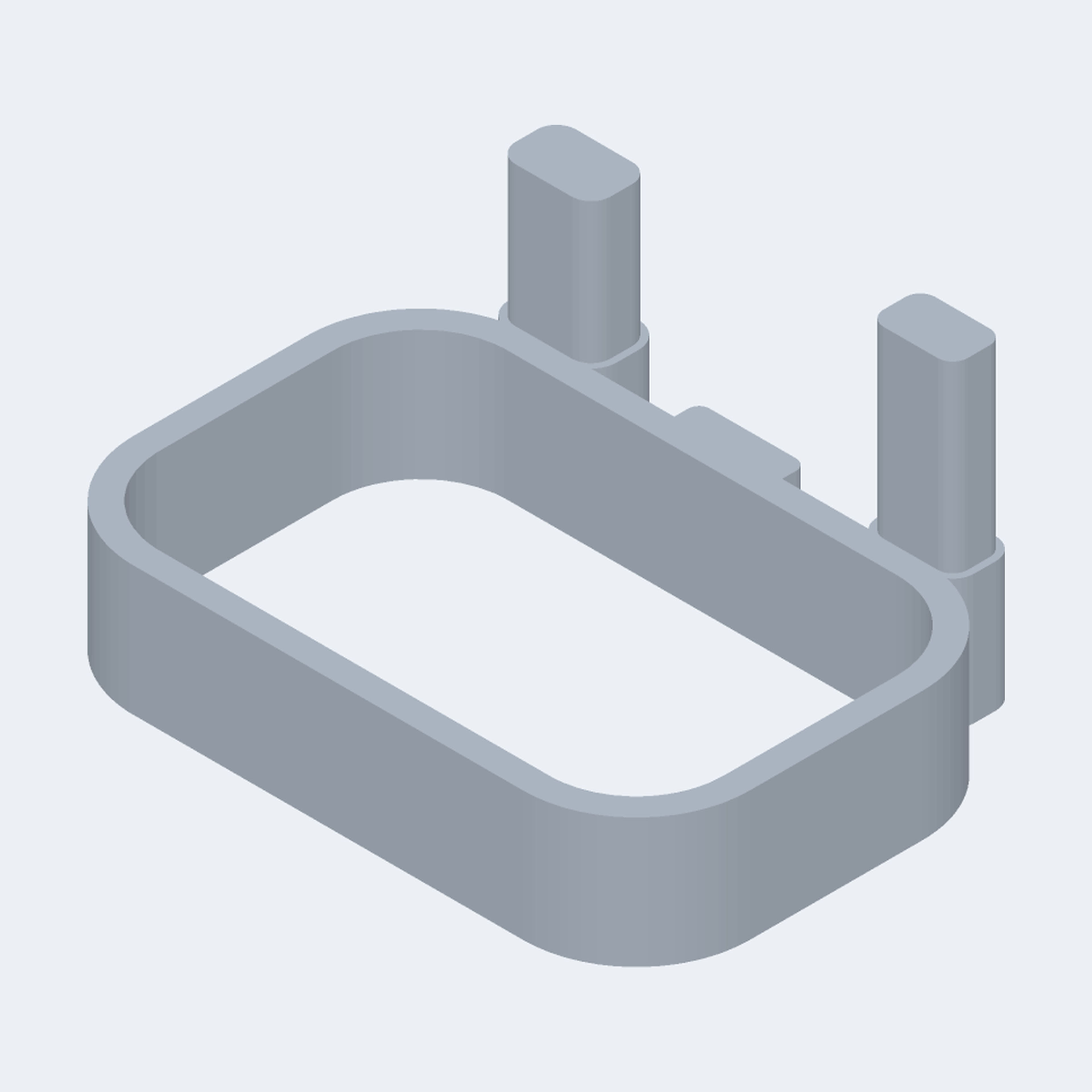

  • Belt x1

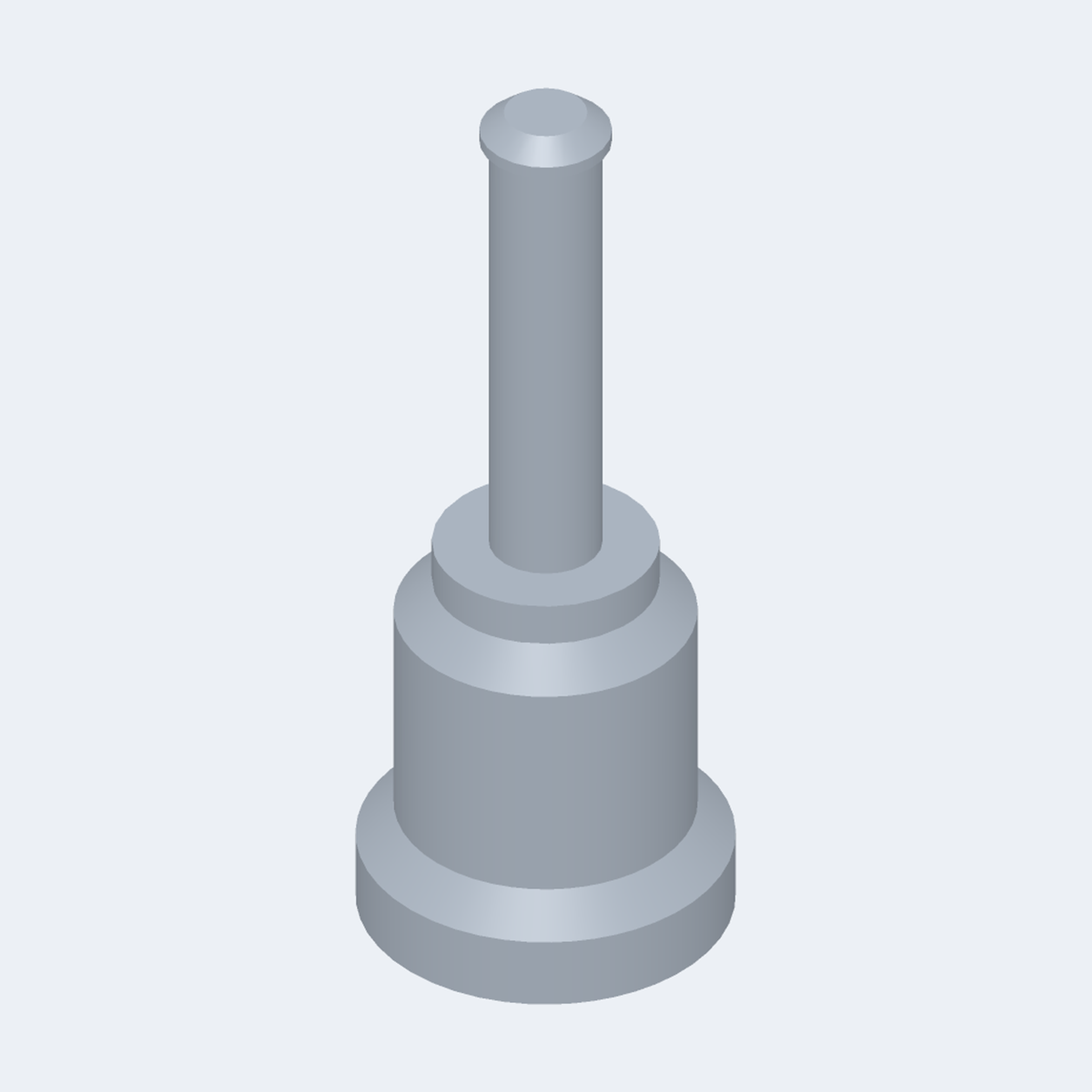

  • Lantern (hand grip) x1

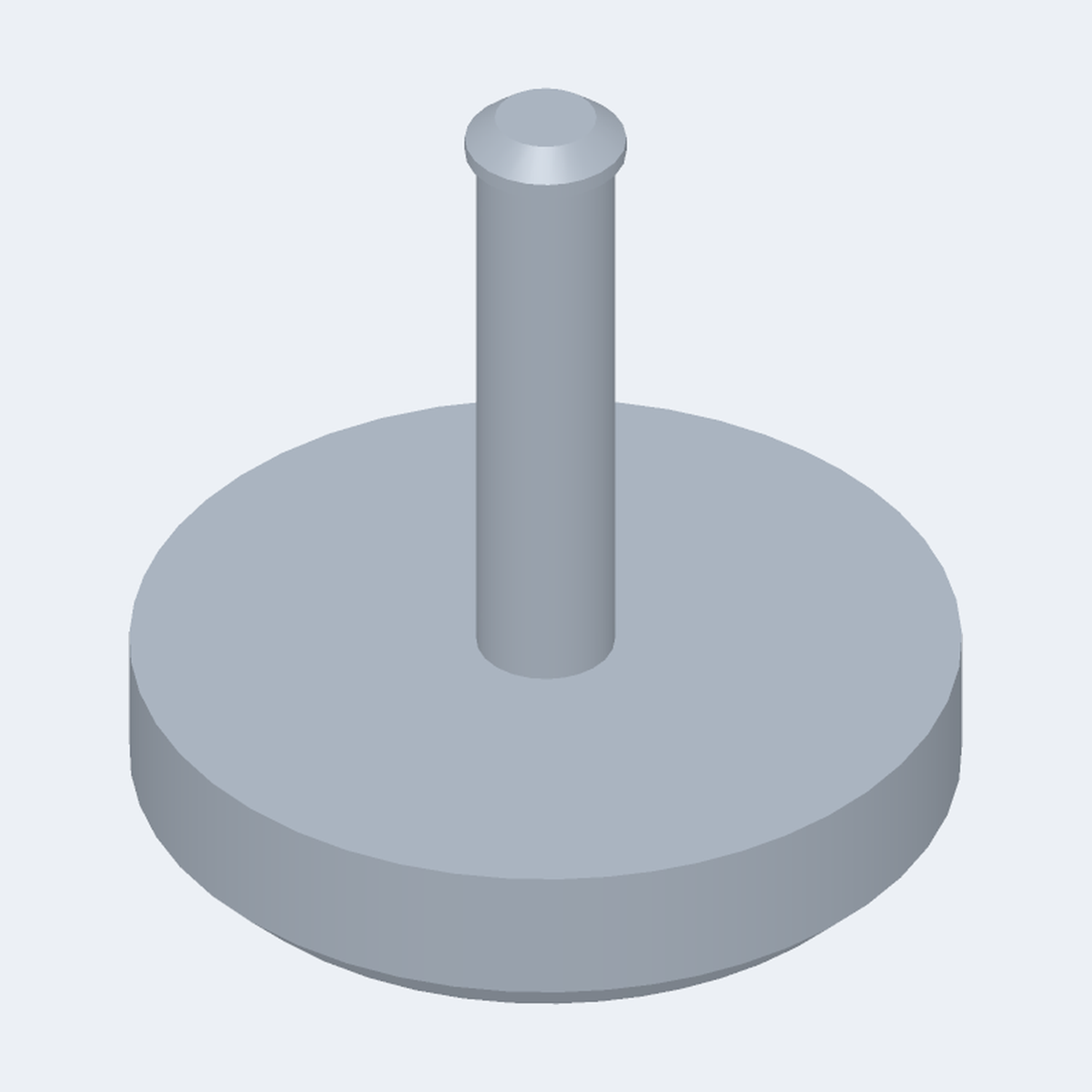

  • Rope coil (hand grip) x1
  • Fit-test coupon (print first) x1
  • Grip-hole hand (replaces the figure's hand so it can hold accessories) x1-2

Assembly and fit:

  • Print the coupon first. It carries test clips in several tightness steps. Snap each onto the matching limb and note which holds firmly without whitening the plastic. If they are all loose or all tight, adjust your printer's XY compensation before printing the kit.
  • Clips snap sideways onto the limbs. The chest piece drops over the shoulders, the belt slides over the hips, and back items slide down onto the rail on the back of the chest piece.
  • Swap the figure's hand for fig_hand_v3 to hold accessories. Each kit is posed with one accessory in each hand; any extra is a spare.
  • Joint range with armour on: head tilt is limited to about 30° (hat brim meets the vest beyond that). Arms swing back and inward to about 15° before touching the belt. With an accessory in hand, the item can touch the thigh when the arm hangs straight and the waist, elbow or hip bends. Turn the hand or lift the arm slightly. All other joints keep the base figure's full range.
  • Weapons and tools are blunt toy props with rounded tips.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only.

Print notes

- PETG recommended (it flexes for the snap clips without cracking). 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports. Some straps, visors and shoulder caps bridge up to about 20 mm. - Sliced (PrusaSlicer 2.9.2, PETG, 0.2 mm, 3 perimeters, 15% gyroid, no supports): full kit 12.5 g, 1.6 h (96 min). Values are slicer estimates. - arm_fr_hat_v4.stl: x1, 3.39 g, 16.8 min each - arm_fr_vest.stl: x1, 4.37 g, 34.2 min each - arm_fr_cuff_v2.stl: x2, 0.34 g, 3.6 min each - arm_fr_boot_v2.stl: x2, 0.54 g, 4.6 min each - arm_fr_belt.stl: x1, 1.16 g, 11.4 min each - arm_acc_lantern_grip_v3.stl: x1, 0.91 g, 10.3 min each - arm_acc_rope_grip_v2.stl: x1, 0.90 g, 6.5 min each - arm_coupon_v6.stl: x1, 14.39 g, 117.0 min each (fit-test coupon, print first, not in kit total) - fig_hand_v3.stl: x1-2, 1.50 g, 15.6 min each (grip-hole hand; needed to hold the accessories, not in kit total) - Orientation: Wide-brim hat: upside-down on its flat top, rim up; Safety vest: as worn: plate bottoms on the bed, shoulder straps bridge 19.6 mm at the top; Glove cuff: upright tube, mouth to the side; Boot cover: upright tube, mouth to the side; Belt: upside-down: belt top on the bed; Lantern (hand grip): body face down, handle pointing up; Rope coil (hand grip): body face down, handle pointing up; Fit-test coupon (print first): flat; Grip-hole hand (replaces the figure's hand so it can hold accessories): upright, wrist socket opening up. - Print arm_coupon_v6 first and pick the clip that holds firmly without whitening. If all are loose or all tight, adjust XY compensation.

Files

  • arm_fr_hat_v4.stlstl304 KB
  • arm_fr_vest.stlstl24 KB
  • arm_fr_cuff_v2.stlstl199 KB
  • arm_fr_boot_v2.stlstl223 KB
  • arm_fr_belt.stlstl56 KB
  • arm_acc_lantern_grip_v3.stlstl240 KB
  • arm_acc_rope_grip_v2.stlstl217 KB
  • arm_coupon_v6.stlstl2.1 MB
  • fig_hand_v3.stlstl270 KB
  • arm_fr_hat_v4.3mf3mf75 KB
  • arm_fr_vest.3mf3mf5.0 KB
  • arm_fr_cuff_v2.3mf3mf45 KB
  • arm_fr_boot_v2.3mf3mf50 KB
  • arm_fr_belt.3mf3mf12 KB
  • arm_acc_lantern_grip_v3.3mf3mf50 KB
  • arm_acc_rope_grip_v2.3mf3mf46 KB
  • arm_coupon_v6.3mf3mf404 KB
  • fig_hand_v3.3mf3mf59 KB
