Knight Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

A medieval-style knight set: domed helmet, chest plate, shoulder pads, forearm bracers, shin greaves and a belt, plus a blunt toy sword and a shield. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses

About this design

A medieval-style knight set: domed helmet, chest plate, shoulder pads, forearm bracers, shin greaves and a belt, plus a blunt toy sword and a shield. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

Requires the base figure, sold separately: Poseable 6 Inch Action Figure. This kit does not include the figure.

Parts (10 files, STL and 3MF for each):

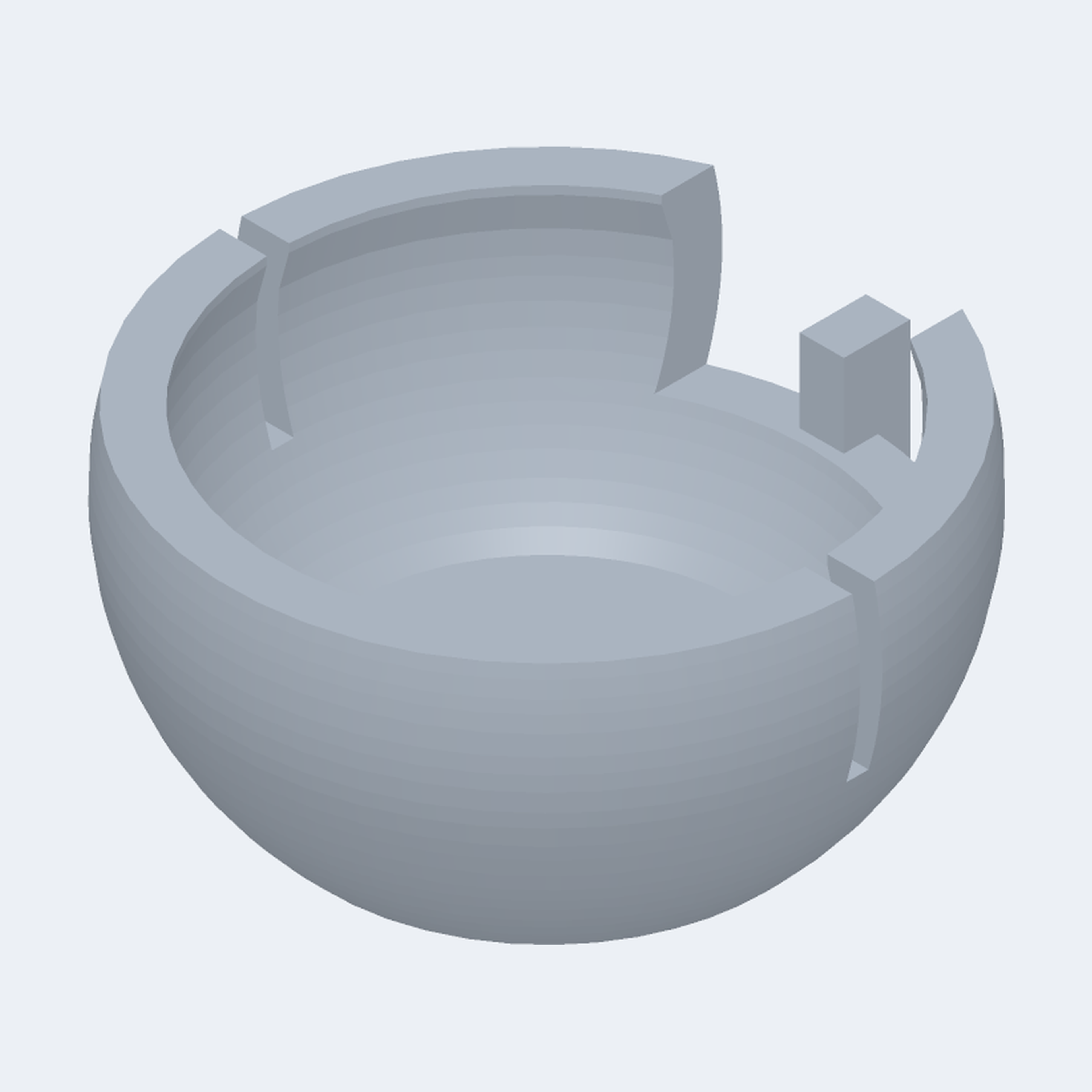

  • Helmet x1

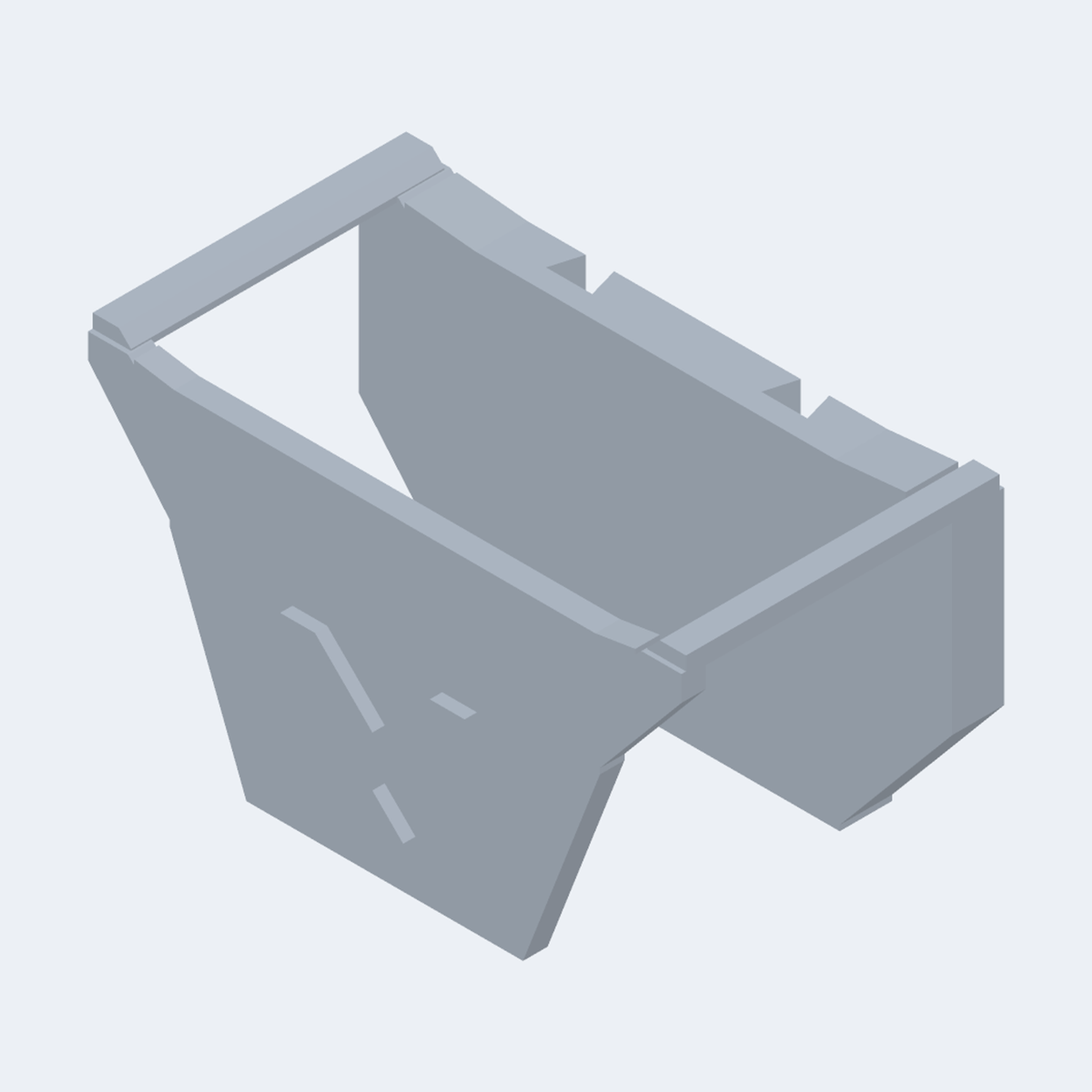

  • Chest plate x1

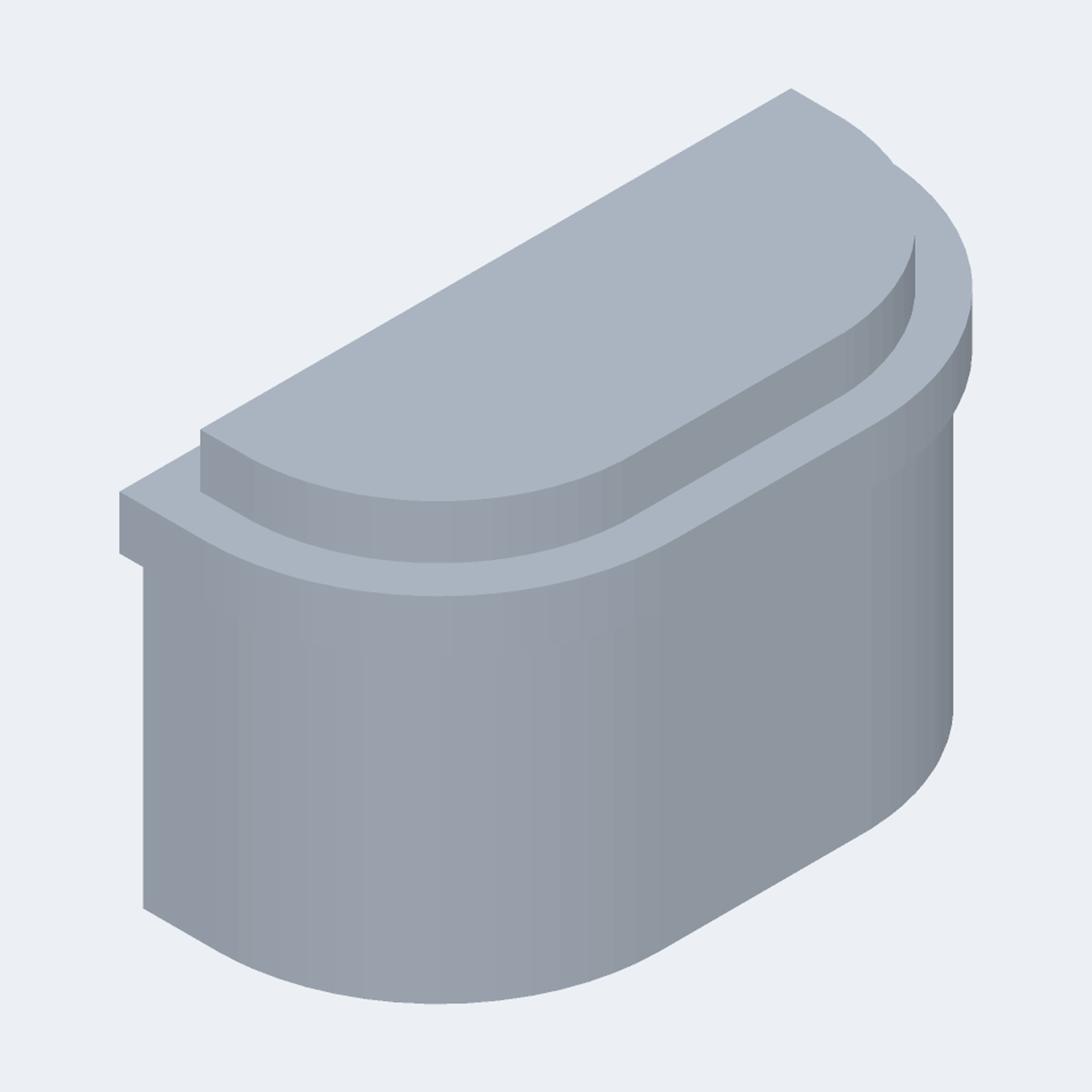

  • Shoulder pad x2

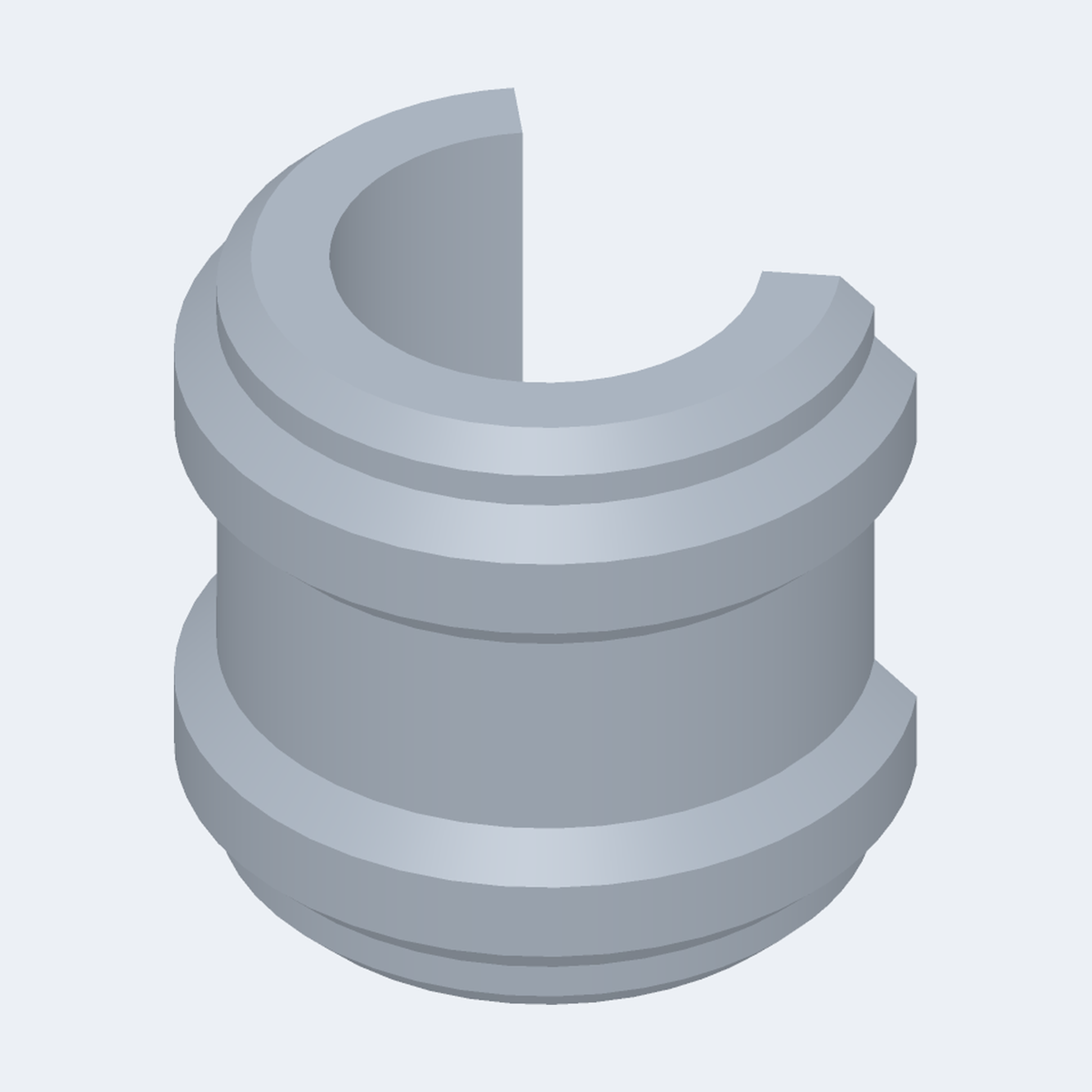

  • Forearm bracer x2

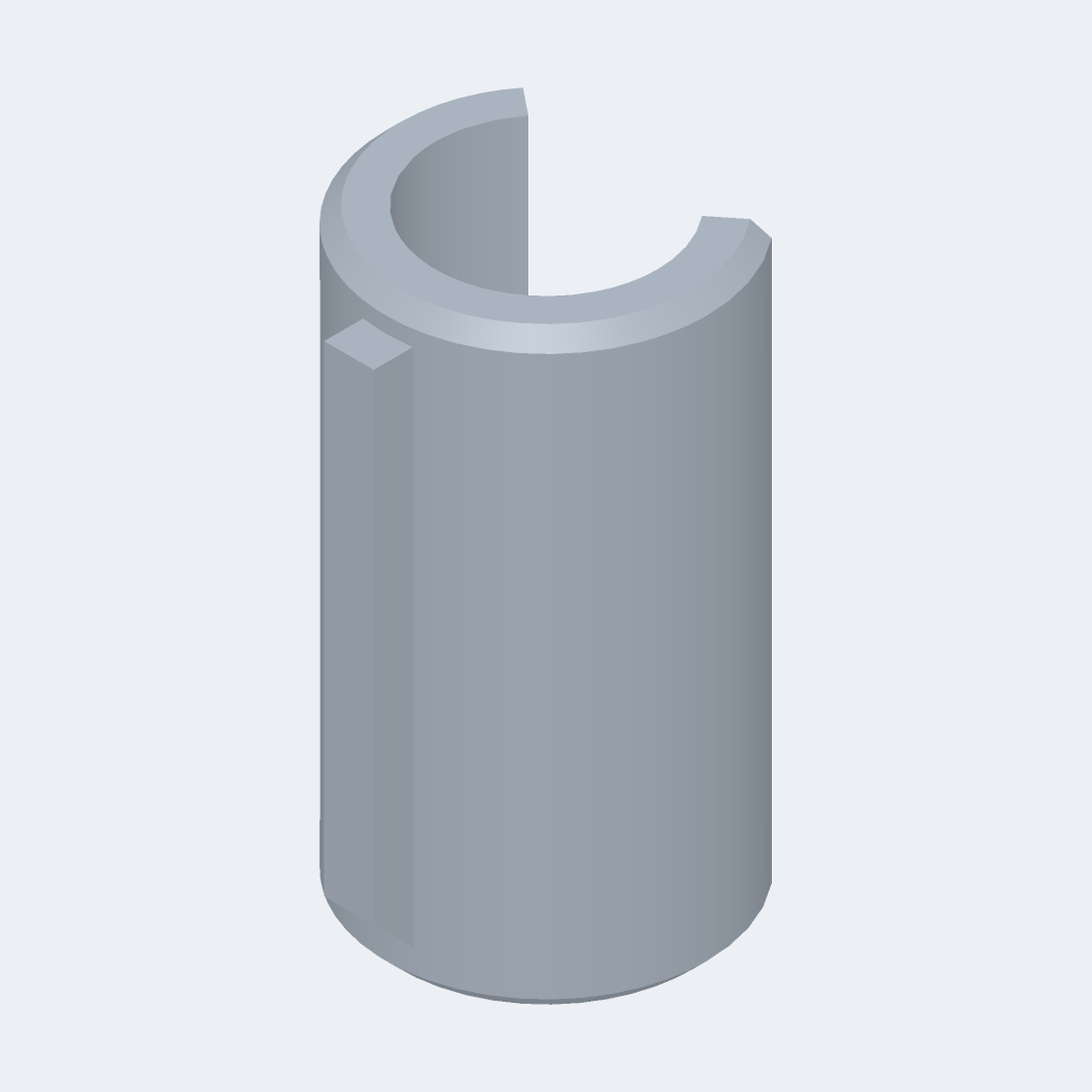

  • Shin greave x2

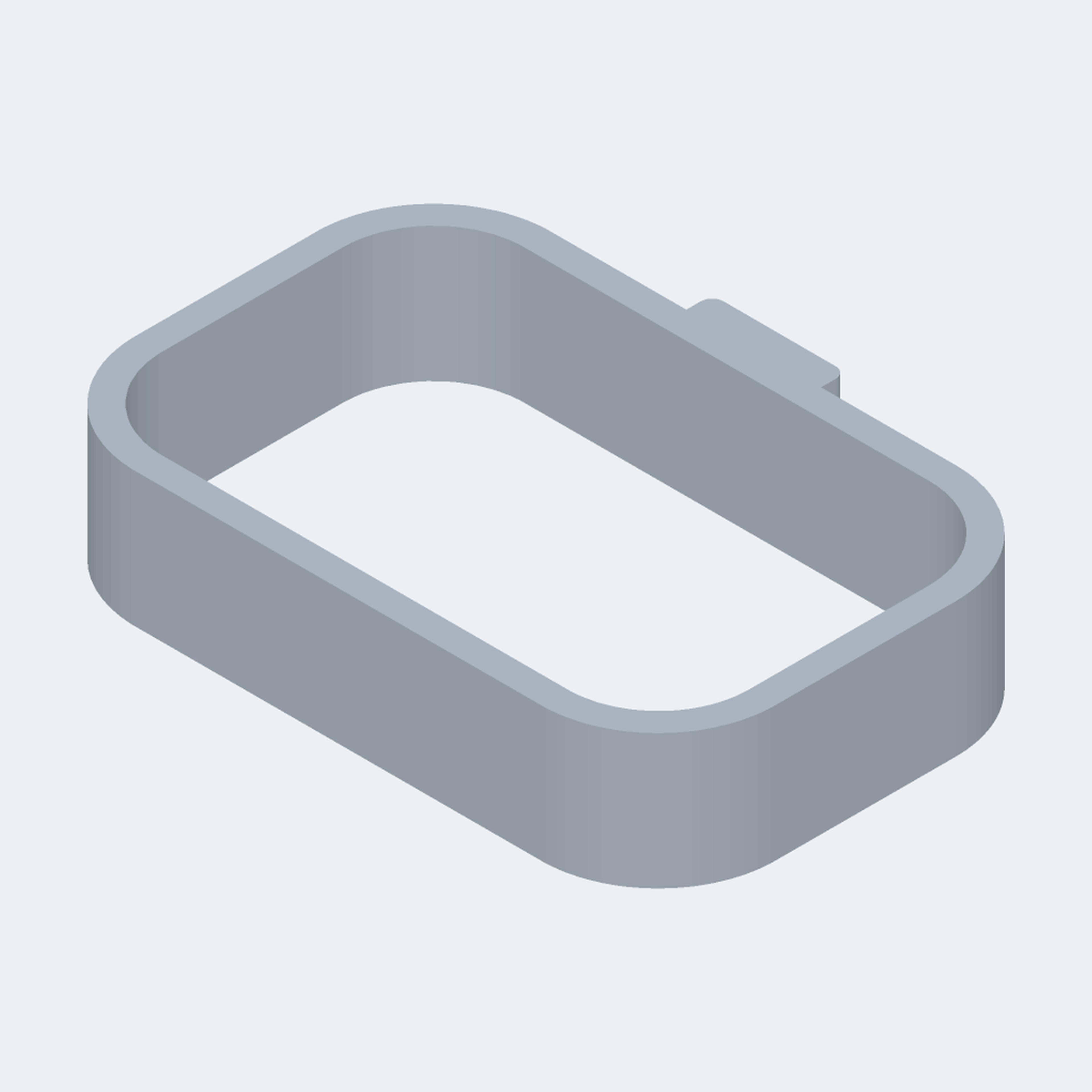

  • Belt x1

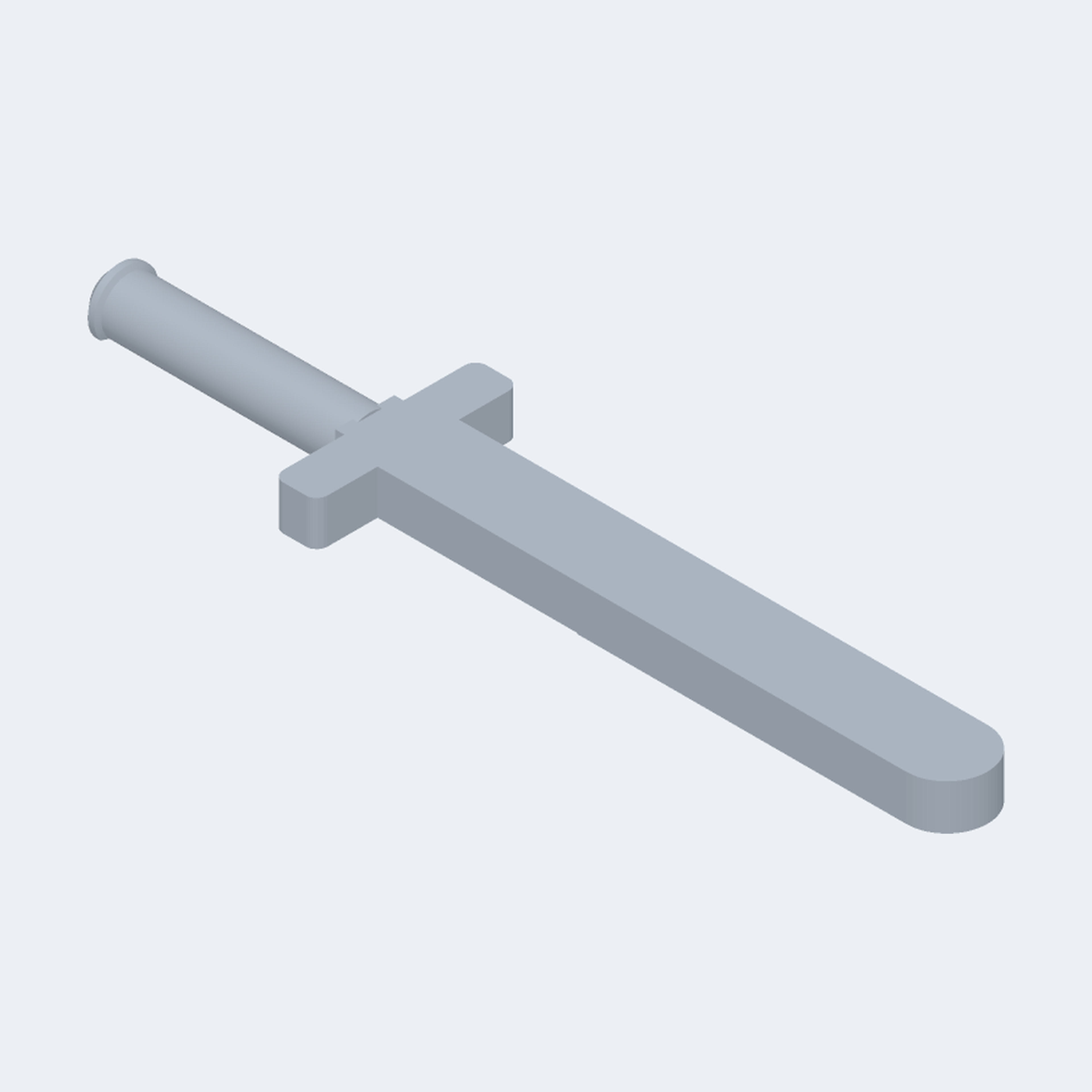

  • Blunt toy sword (hand grip) x1

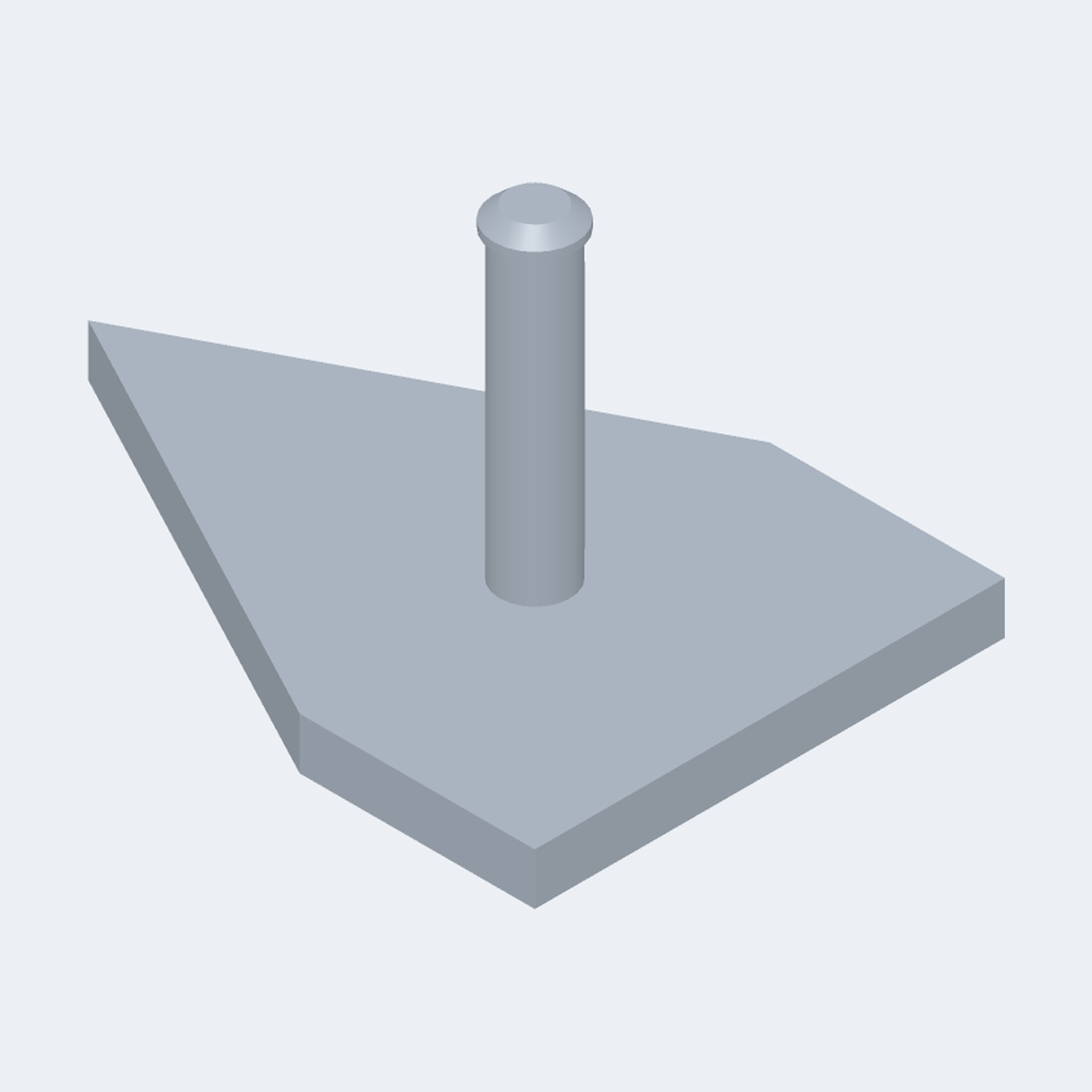

  • Shield (hand grip) x1
  • Fit-test coupon (print first) x1
  • Grip-hole hand (replaces the figure's hand so it can hold accessories) x1-2

Assembly and fit:

  • Print the coupon first. It carries test clips in several tightness steps. Snap each onto the matching limb and note which holds firmly without whitening the plastic. If they are all loose or all tight, adjust your printer's XY compensation before printing the kit.
  • Clips snap sideways onto the limbs. The chest piece drops over the shoulders, the belt slides over the hips, and back items slide down onto the rail on the back of the chest piece.
  • Swap the figure's hand for fig_hand_v3 to hold accessories. Each kit is posed with one accessory in each hand; any extra is a spare.
  • Joint range with armour on: head tilt is limited to about 33°. Arms swing back and inward to about 15° before touching the belt. With an accessory in hand, the item can touch the thigh when the arm hangs straight and the waist, elbow or hip bends. Turn the hand or lift the arm slightly. All other joints keep the base figure's full range.
  • Weapons and tools are blunt toy props with rounded tips.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only.

Print notes

- PETG recommended (it flexes for the snap clips without cracking). 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports. Some straps, visors and shoulder caps bridge up to about 20 mm. - Sliced (PrusaSlicer 2.9.2, PETG, 0.2 mm, 3 perimeters, 15% gyroid, no supports): full kit 12.8 g, 1.7 h (102 min). Values are slicer estimates. - arm_kn_helm.stl: x1, 1.66 g, 10.8 min each - arm_kn_chest_v5.stl: x1, 4.39 g, 34.8 min each - arm_kn_pauldron.stl: x2, 1.05 g, 7.6 min each - arm_kn_bracer_v2.stl: x2, 0.40 g, 4.7 min each - arm_kn_greave_v2.stl: x2, 0.77 g, 8.2 min each - arm_kn_belt_v2.stl: x1, 0.77 g, 4.8 min each - arm_acc_sword_grip.stl: x1, 0.57 g, 3.2 min each - arm_acc_shield_grip_v2.stl: x1, 0.98 g, 7.6 min each - arm_coupon_v6.stl: x1, 14.39 g, 117.0 min each (fit-test coupon, print first, not in kit total) - fig_hand_v3.stl: x1-2, 1.50 g, 15.6 min each (grip-hole hand; needed to hold the accessories, not in kit total) - Orientation: Helmet: upside-down on its flat top, rim up; Chest plate: as worn: plate bottoms on the bed, shoulder straps bridge 19.6 mm at the top; Shoulder pad: as worn: walls and lips on the bed, cap bridges 19 mm; Forearm bracer: upright tube, mouth to the side; Shin greave: upright tube, mouth to the side; Belt: upside-down: belt top on the bed; Blunt toy sword (hand grip): flat, handle along the bed (D-flat); Shield (hand grip): body face down, handle pointing up; Fit-test coupon (print first): flat; Grip-hole hand (replaces the figure's hand so it can hold accessories): upright, wrist socket opening up. - Print arm_coupon_v6 first and pick the clip that holds firmly without whitening. If all are loose or all tight, adjust XY compensation.

Files

  • arm_kn_helm.stlstl387 KB
  • arm_kn_chest_v5.stlstl25 KB
  • arm_kn_pauldron.stlstl103 KB
  • arm_kn_bracer_v2.stlstl244 KB
  • arm_kn_greave_v2.stlstl288 KB
  • arm_kn_belt_v2.stlstl29 KB
  • arm_acc_sword_grip.stlstl73 KB
  • arm_acc_shield_grip_v2.stlstl103 KB
  • arm_coupon_v6.stlstl2.1 MB
  • fig_hand_v3.stlstl270 KB
  • arm_kn_helm.3mf3mf98 KB
  • arm_kn_chest_v5.3mf3mf5.2 KB
  • arm_kn_pauldron.3mf3mf22 KB
  • arm_kn_bracer_v2.3mf3mf50 KB
  • arm_kn_greave_v2.3mf3mf57 KB
  • arm_kn_belt_v2.3mf3mf6.9 KB
  • arm_acc_sword_grip.3mf3mf16 KB
  • arm_acc_shield_grip_v2.3mf3mf21 KB
  • arm_coupon_v6.3mf3mf404 KB
  • fig_hand_v3.3mf3mf59 KB
