Mech Pilot Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On
A chunky mech-pilot set: helmet, chest plate with a slide-on back power pack, shoulder pads, upper-arm plates, bracers, greaves and a belt, plus a toy blaster. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.
- Instant download after checkout
- 3 downloads over 30 days, links by email
- Digital files: all sales final. Licenses
About this design
A chunky mech-pilot set: helmet, chest plate with a slide-on back power pack, shoulder pads, upper-arm plates, bracers, greaves and a belt, plus a toy blaster. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

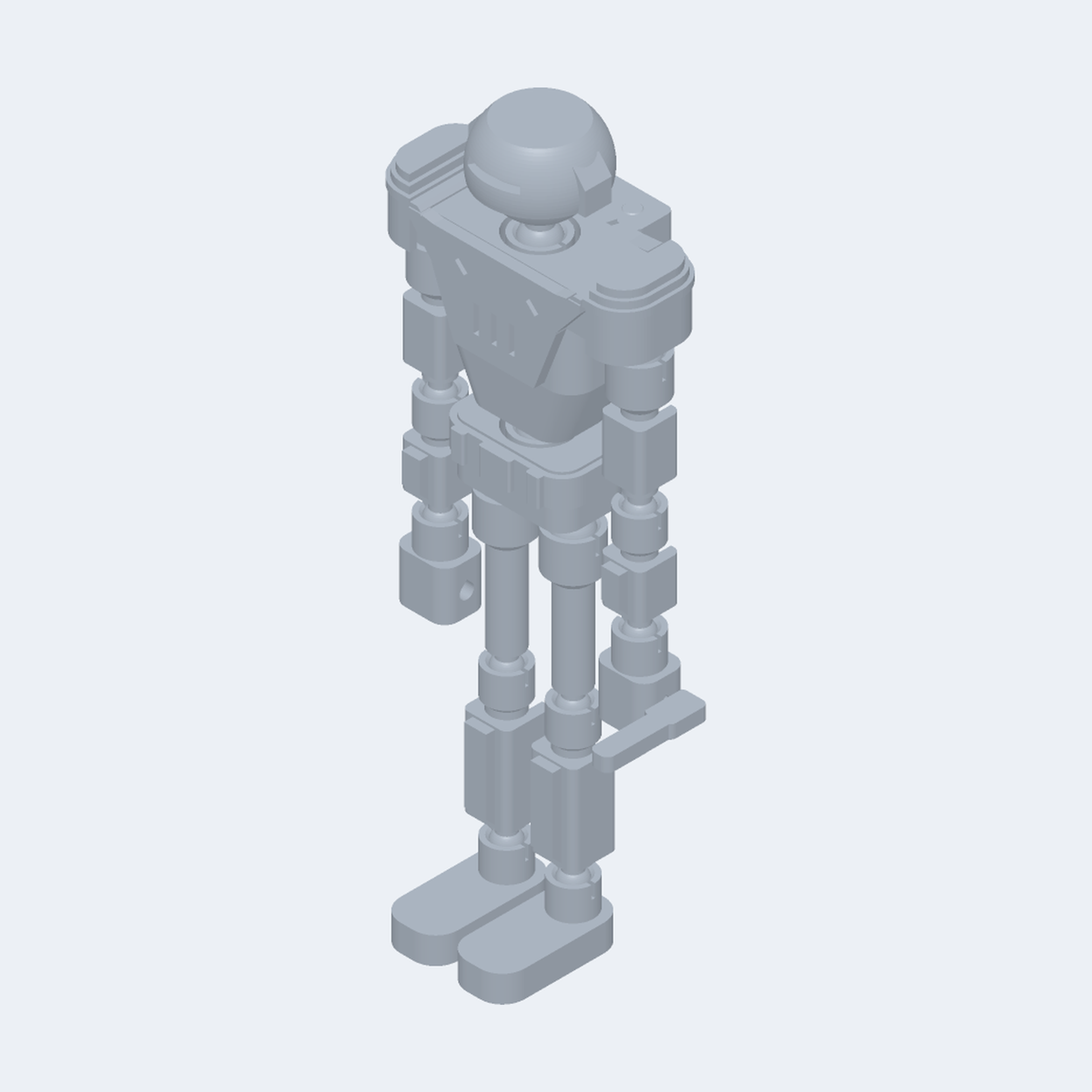

Requires the base figure, sold separately: Poseable 6 Inch Action Figure. This kit does not include the figure.
Parts (11 files, STL and 3MF for each):

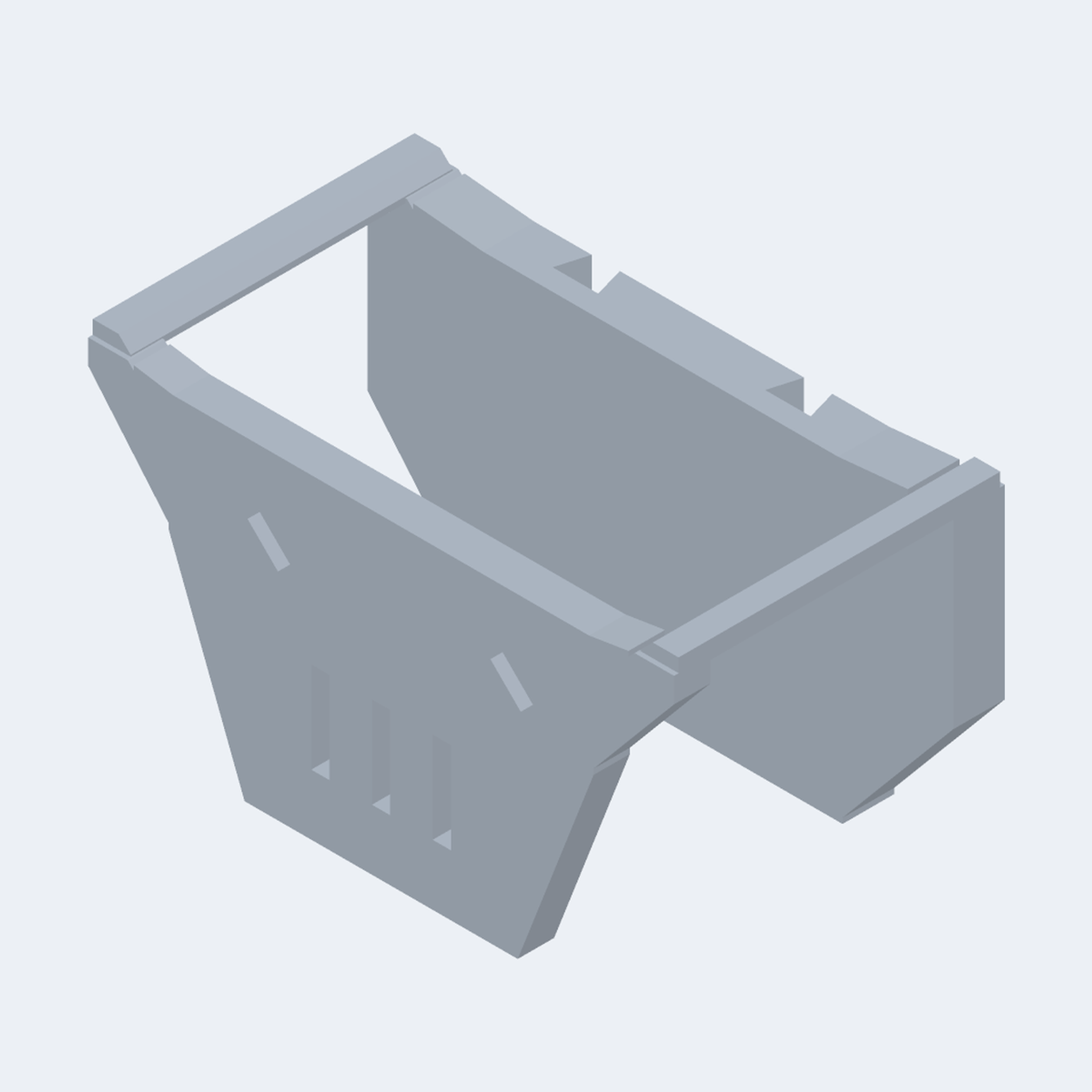

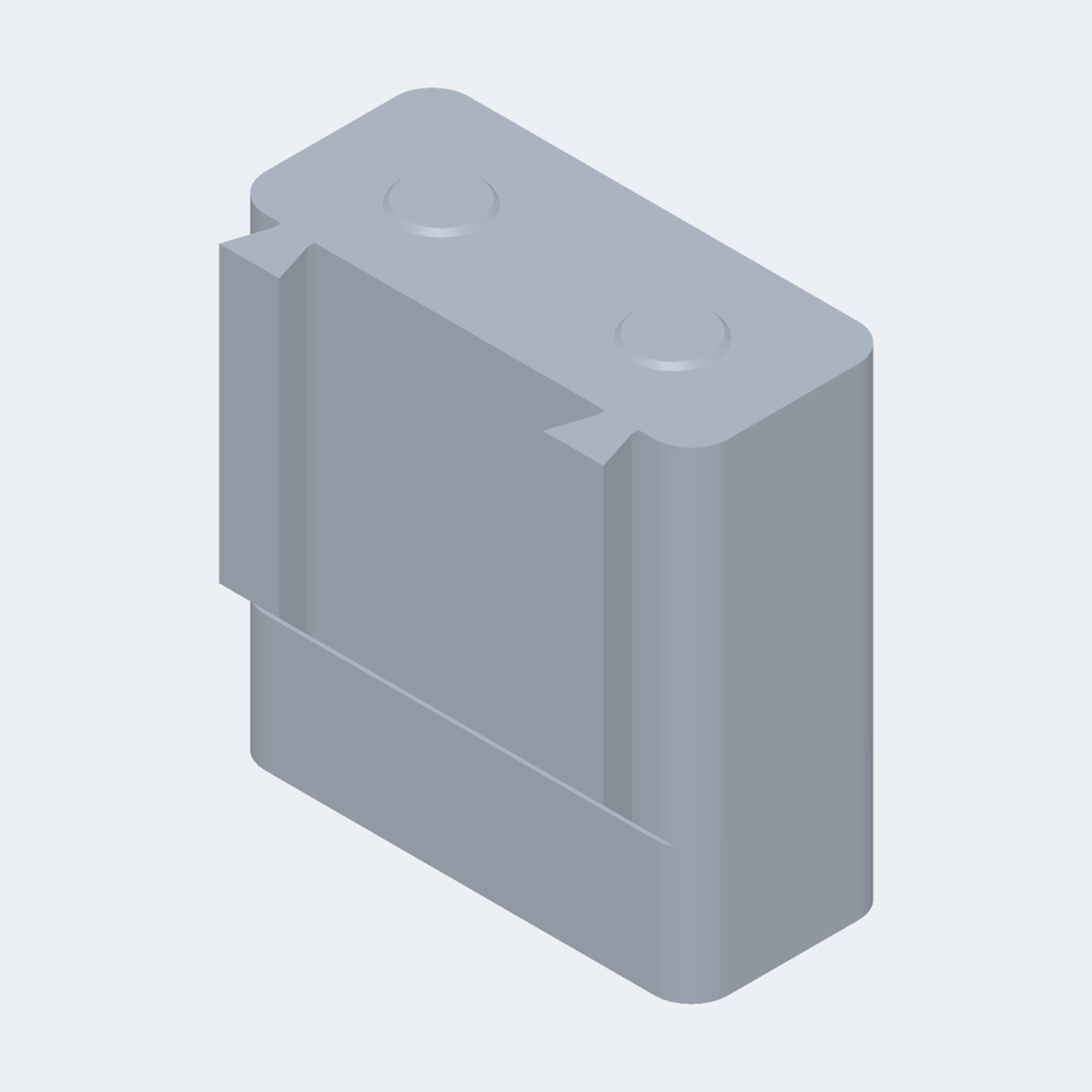

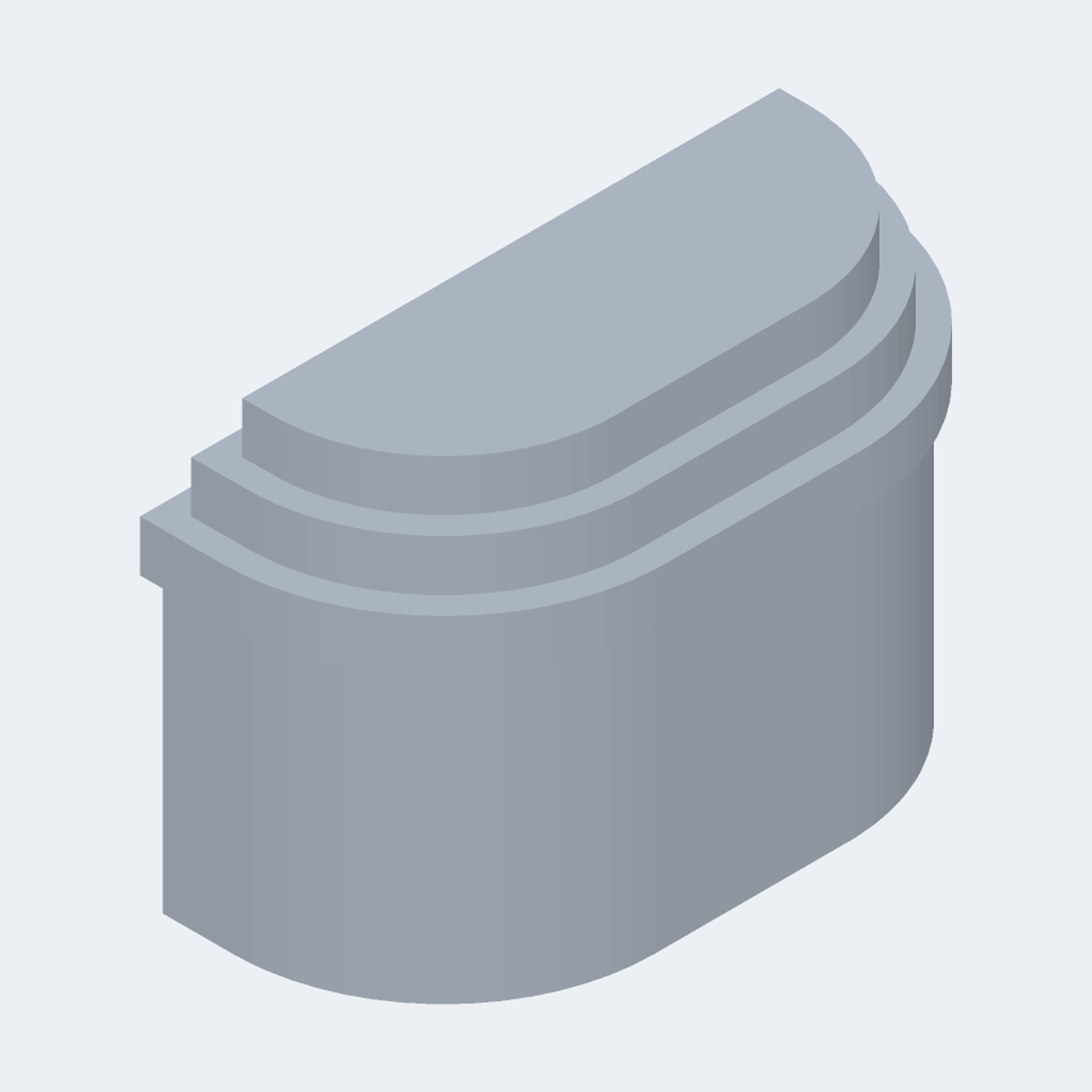

- Back power pack (slides onto chest-plate rail) x1

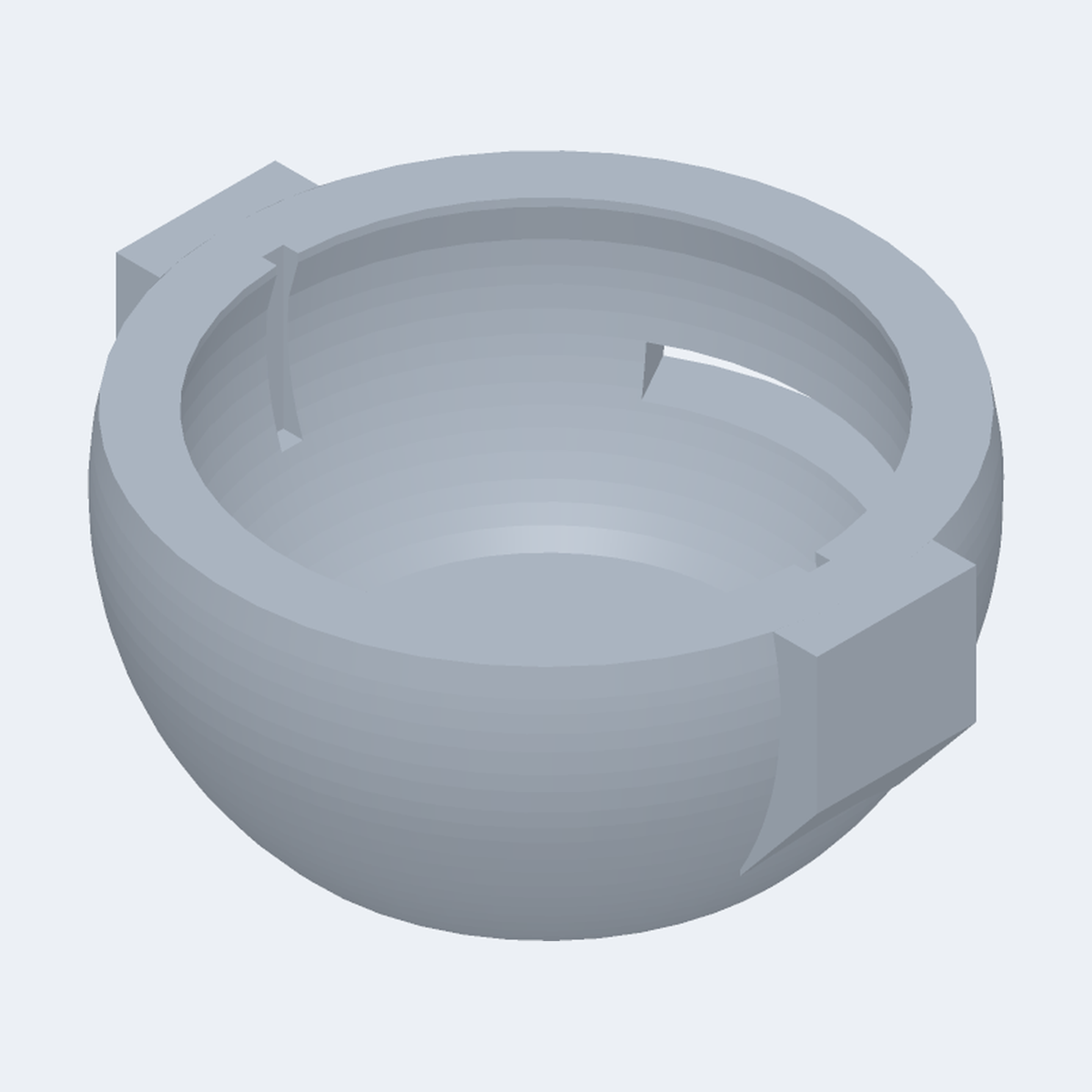

- Helmet x1
- Chest plate x1
- Shoulder pad x2
- Upper-arm plate x2
- Forearm bracer x2
- Shin greave x2

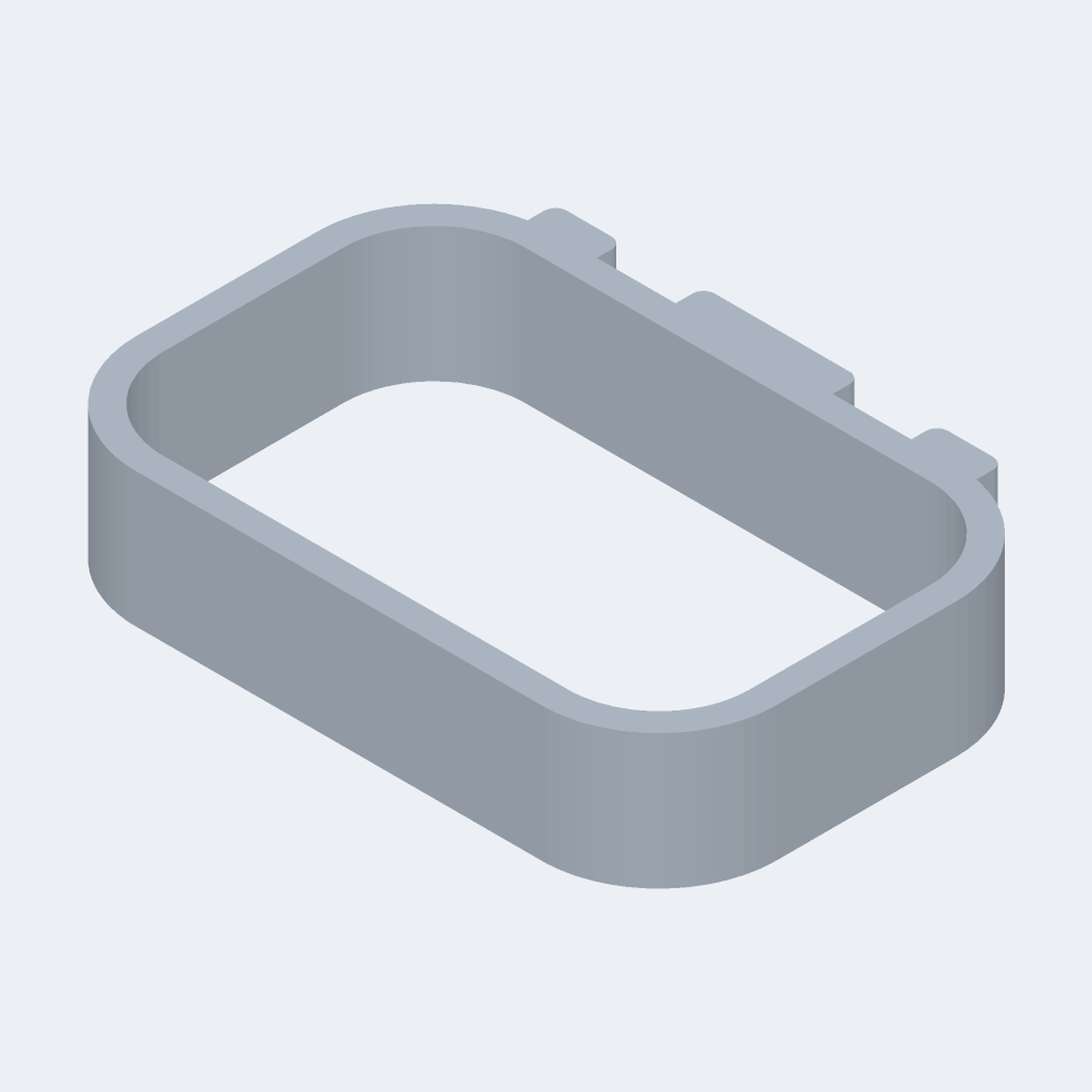

- Belt x1

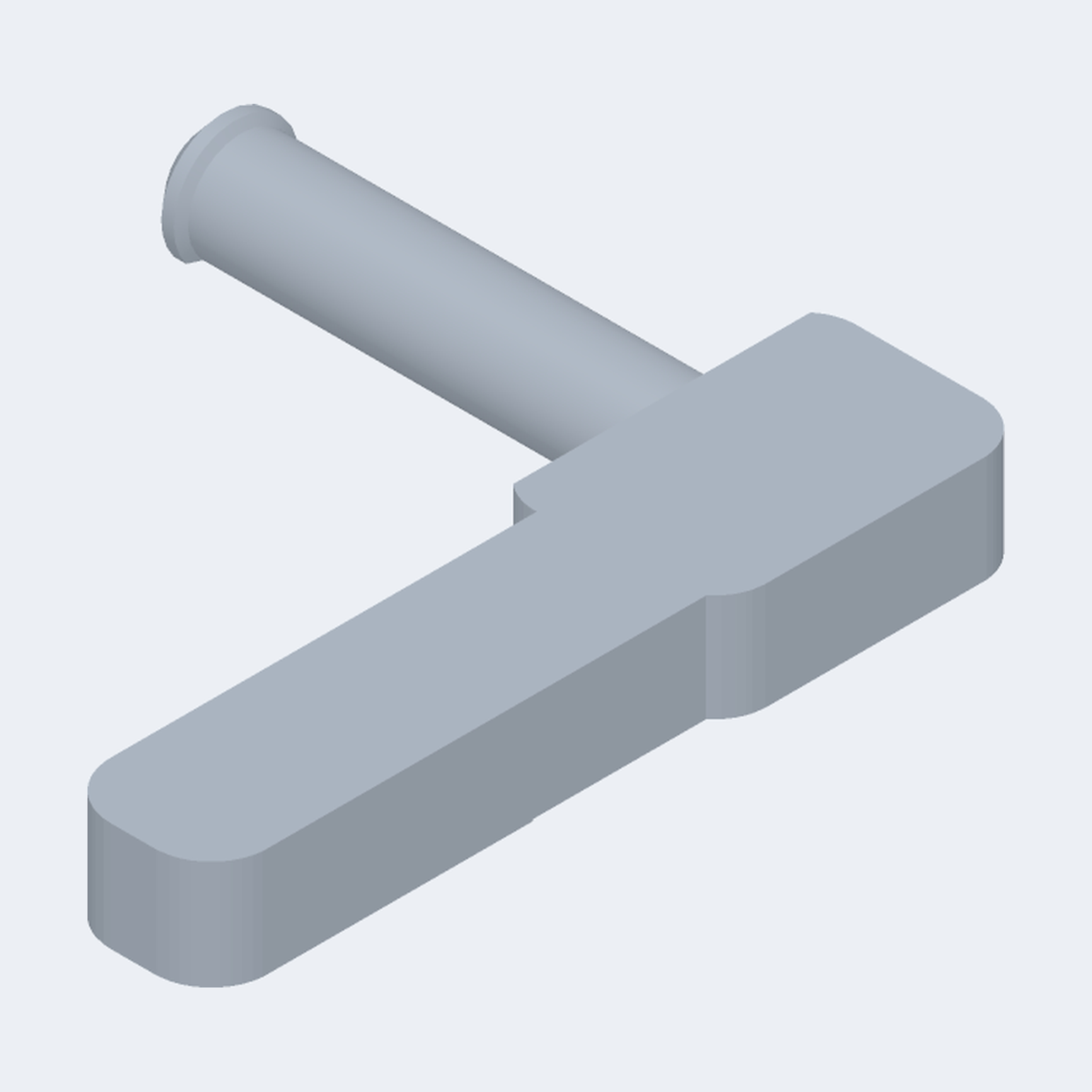

- Toy blaster (hand grip) x1
- Fit-test coupon (print first) x1
- Grip-hole hand (replaces the figure's hand so it can hold accessories) x1-2
Assembly and fit:

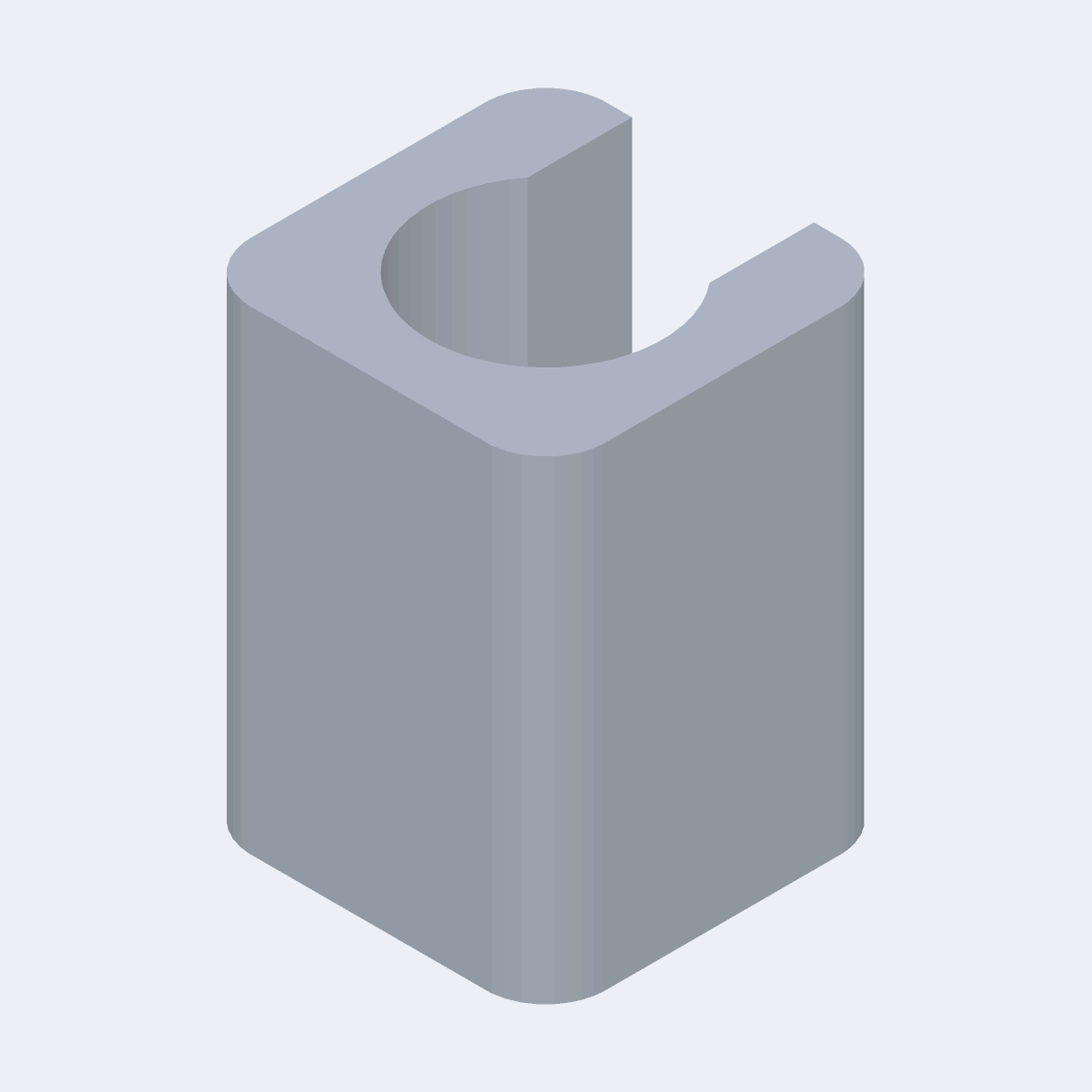

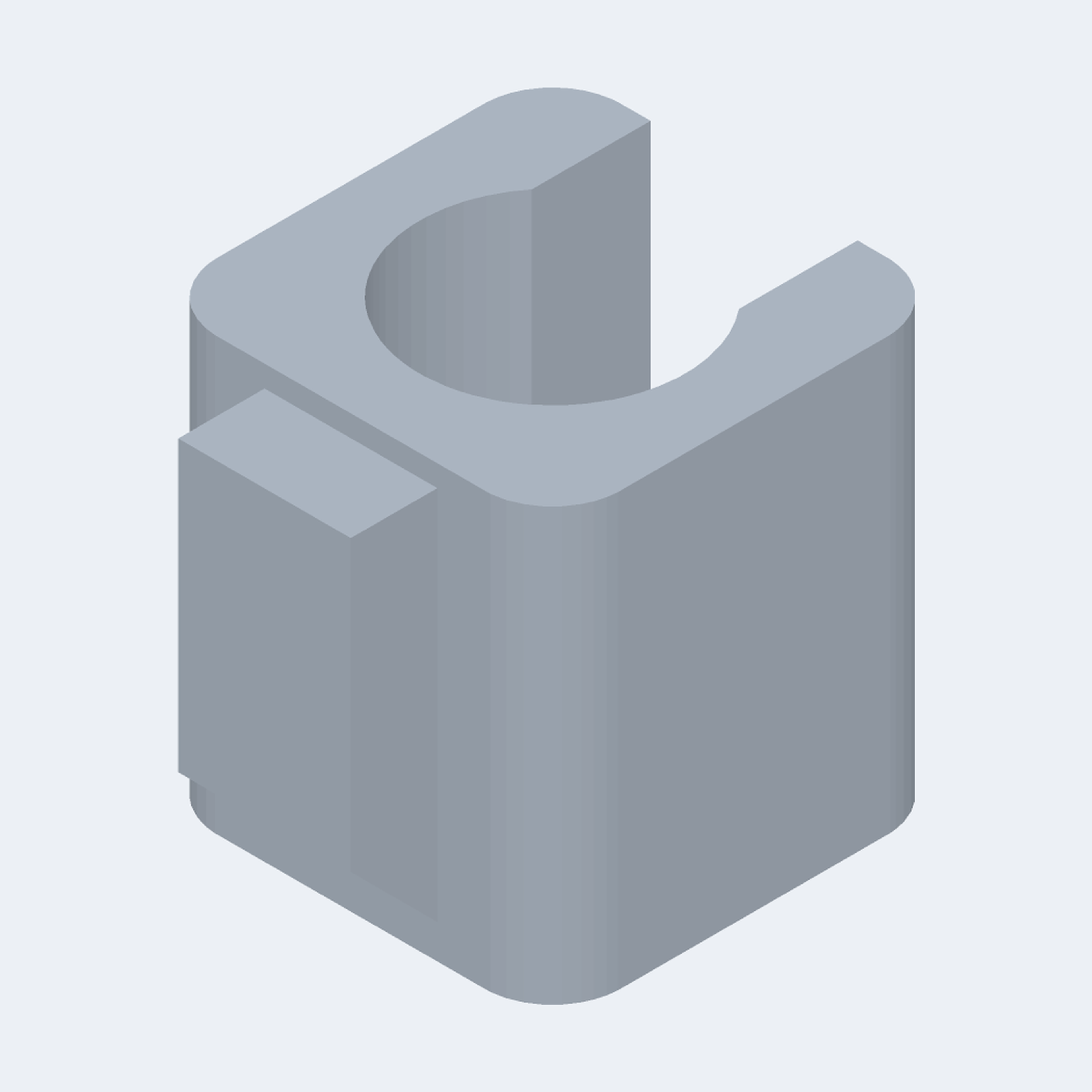

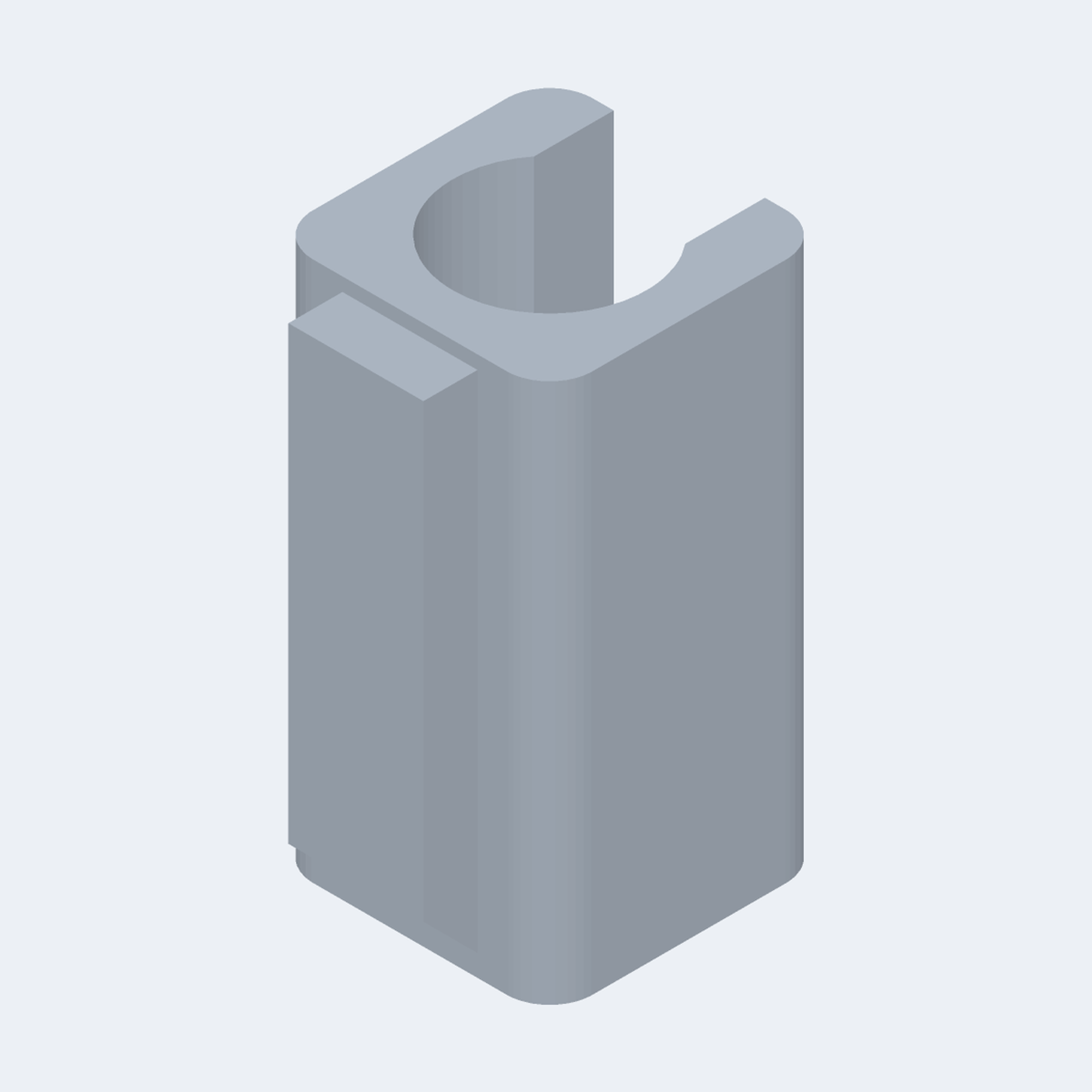

- Print the coupon first. It carries test clips in several tightness steps. Snap each onto the matching limb and note which holds firmly without whitening the plastic. If they are all loose or all tight, adjust your printer's XY compensation before printing the kit.
- Clips snap sideways onto the limbs. The chest piece drops over the shoulders, the belt slides over the hips, and back items slide down onto the rail on the back of the chest piece.
- Swap one of the figure's hands for fig_hand_v3 so it can hold the accessory.
- Joint range with armour on: head tilt is limited to about 33°. Arms swing back and inward to about 15° before touching the belt. With an accessory in hand, the item can touch the thigh when the arm hangs straight and the waist, elbow or hip bends. Turn the hand or lift the arm slightly. All other joints keep the base figure's full range.
- Weapons and tools are blunt toy props with rounded tips.
Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.
Private use only.
Print notes
- PETG recommended (it flexes for the snap clips without cracking). 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports. Some straps, visors and shoulder caps bridge up to about 20 mm. - Sliced (PrusaSlicer 2.9.2, PETG, 0.2 mm, 3 perimeters, 15% gyroid, no supports): full kit 19.3 g, 2.38 h (143 min). Values are slicer estimates. - arm_me_powerpack_v3.stl: x1, 2.53 g, 13.4 min each - arm_me_helm_v4.stl: x1, 2.36 g, 15.0 min each - arm_me_chest.stl: x1, 4.89 g, 39.4 min each - arm_me_pauldron.stl: x2, 1.14 g, 8.3 min each - arm_me_armplate.stl: x2, 0.69 g, 6.2 min each - arm_me_bracer.stl: x2, 0.64 g, 5.1 min each - arm_me_greave.stl: x2, 1.60 g, 12.7 min each - arm_me_belt_v2.stl: x1, 0.84 g, 6.7 min each - arm_acc_blaster_grip.stl: x1, 0.55 g, 3.5 min each - arm_coupon_v6.stl: x1, 14.39 g, 117.0 min each (fit-test coupon, print first, not in kit total) - fig_hand_v3.stl: x1-2, 1.50 g, 15.6 min each (grip-hole hand; needed to hold the accessories, not in kit total) - Orientation: Back power pack (slides onto chest-plate rail): upright, rails vertical; Helmet: upside-down on its flat top, rim up; Chest plate: as worn: plate bottoms on the bed, shoulder straps bridge 19.6 mm at the top; Shoulder pad: as worn: walls and lips on the bed, cap bridges 19 mm; Upper-arm plate: upright tube, mouth to the side; Forearm bracer: upright tube, mouth to the side; Shin greave: upright tube, mouth to the side; Belt: upside-down: belt top on the bed; Toy blaster (hand grip): flat, handle along the bed (D-flat); Fit-test coupon (print first): flat; Grip-hole hand (replaces the figure's hand so it can hold accessories): upright, wrist socket opening up. - Print arm_coupon_v6 first and pick the clip that holds firmly without whitening. If all are loose or all tight, adjust XY compensation.
