Ninja Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

3MF · STL

Ninja Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

A ninja set: hood, wrapped chest plate with a slide-on back scabbard, shoulder pads, arm and shin wraps and a waist sash, plus a blunt toy short blade. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses

About this design

A ninja set: hood, wrapped chest plate with a slide-on back scabbard, shoulder pads, arm and shin wraps and a waist sash, plus a blunt toy short blade. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

Requires the base figure, sold separately: Poseable 6 Inch Action Figure. This kit does not include the figure.

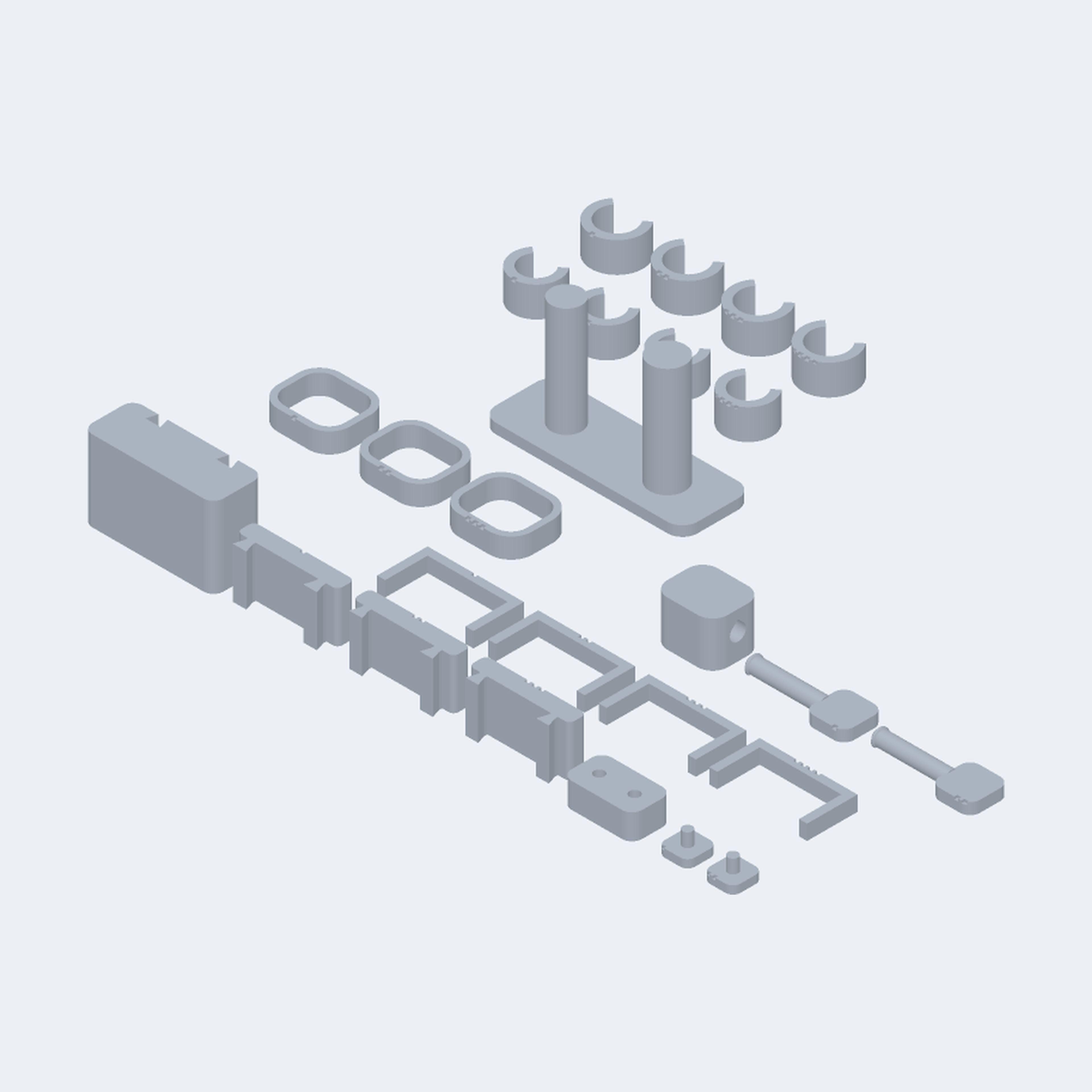

Parts (10 files, STL and 3MF for each):

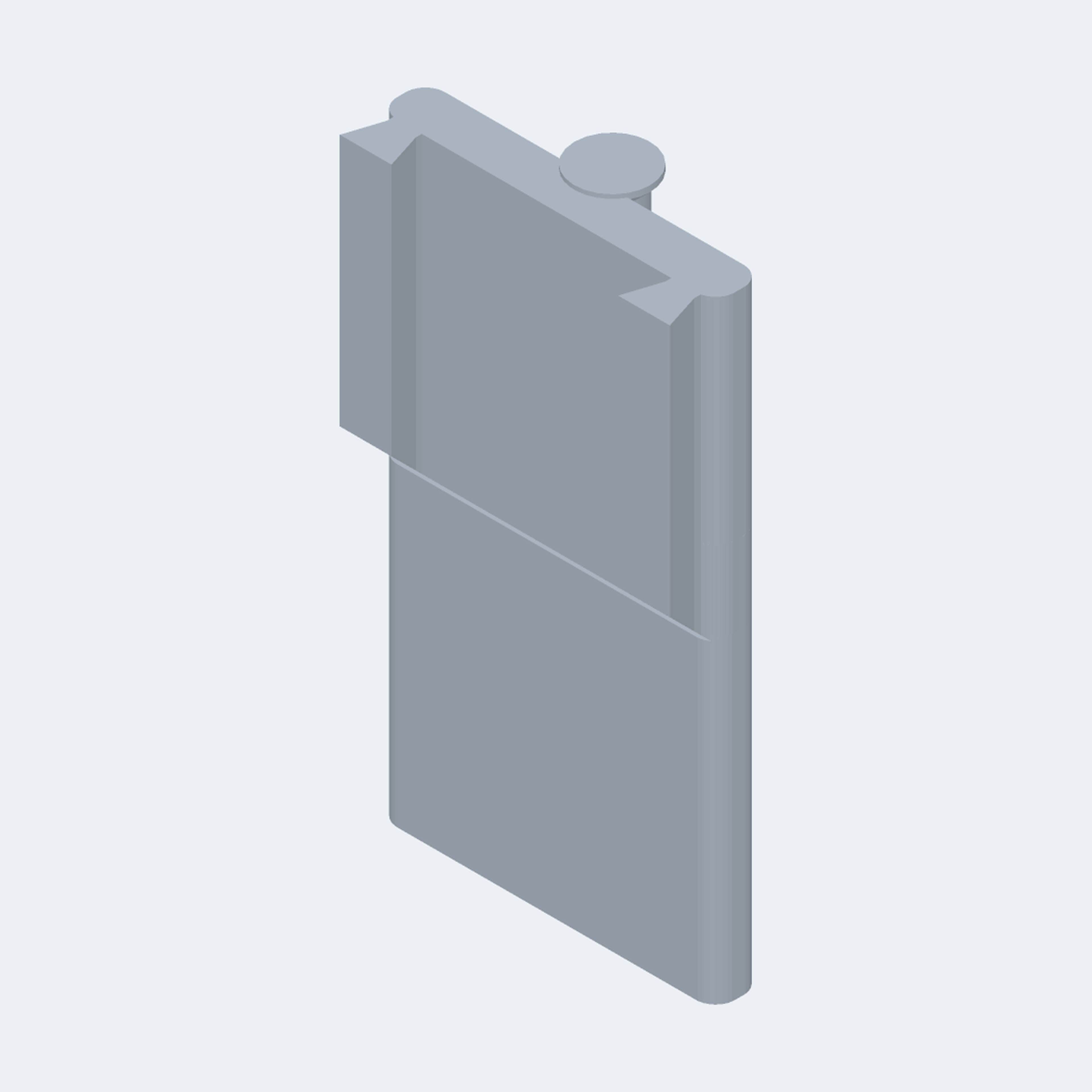

  • Back scabbard (slides onto chest-plate rail) x1

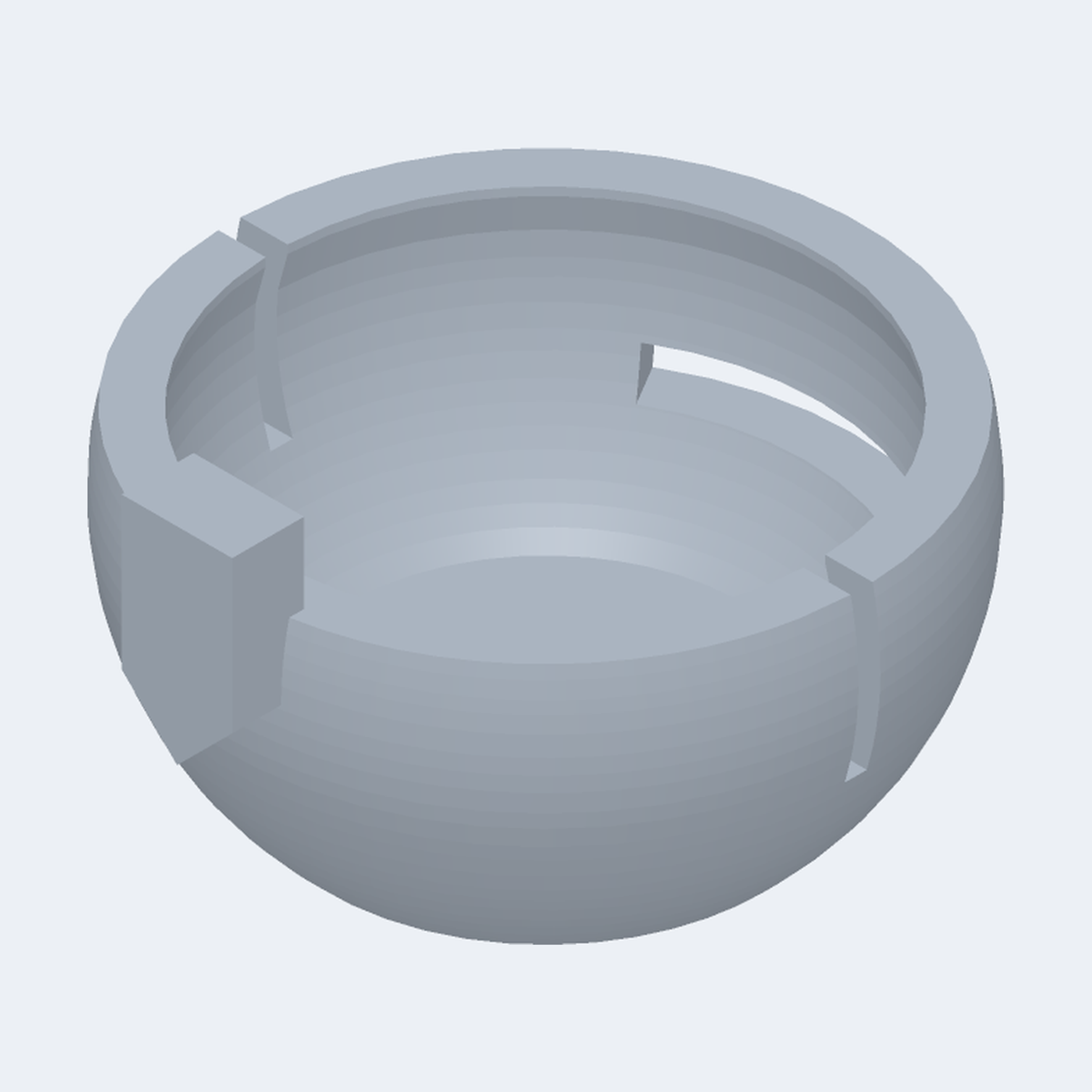

  • Hood x1

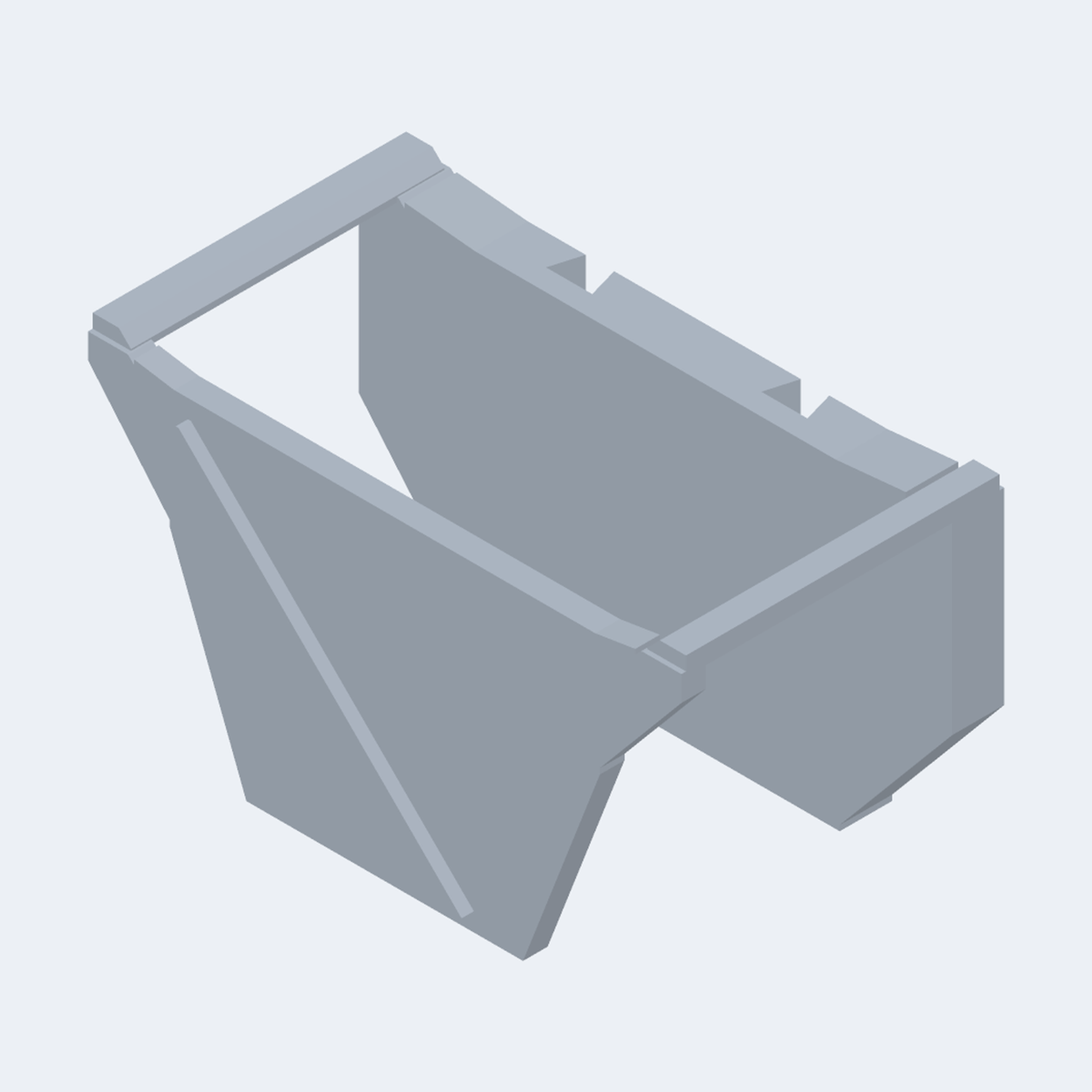

  • Chest plate x1

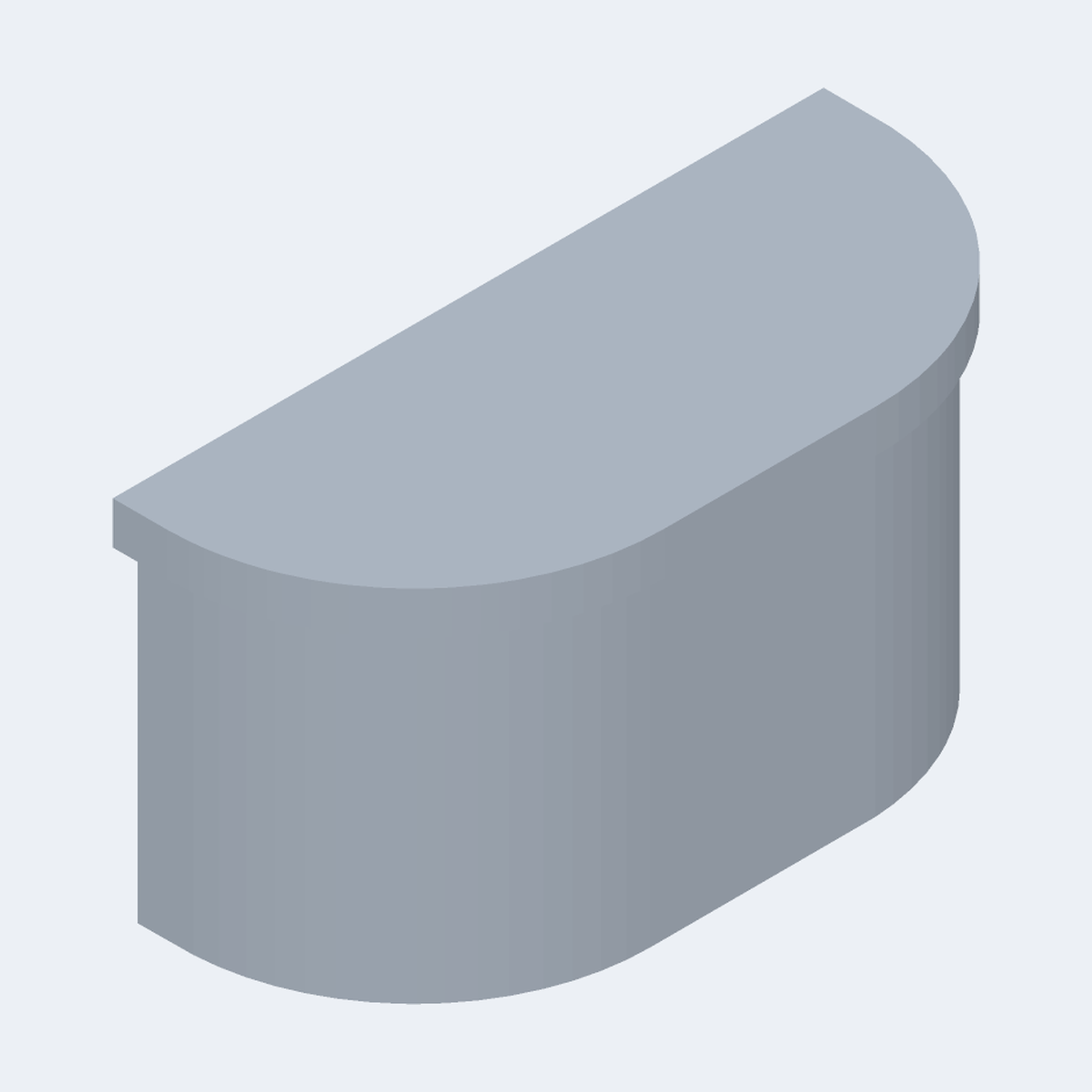

  • Shoulder pad x2

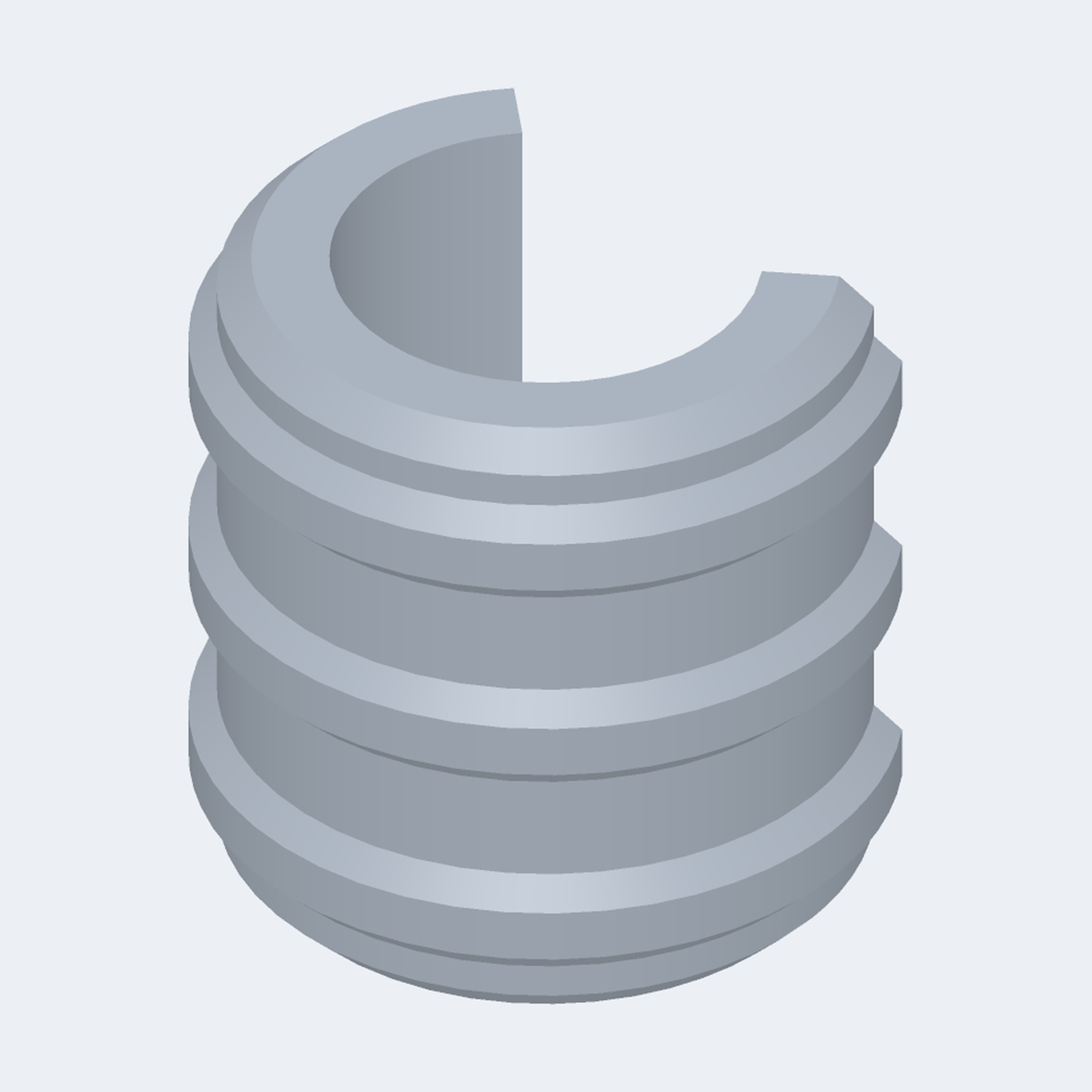

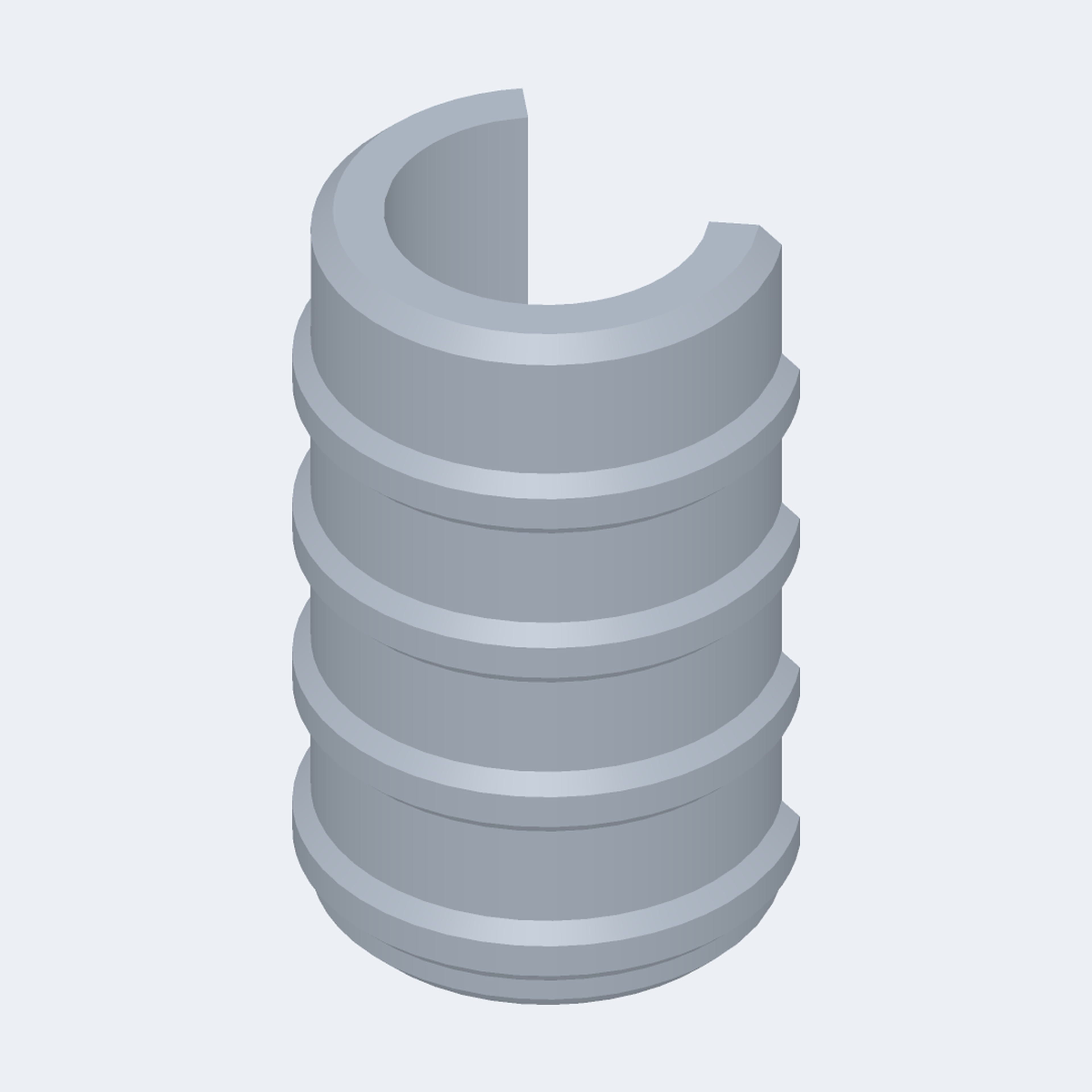

  • Arm wrap x2
  • Shin wrap x2

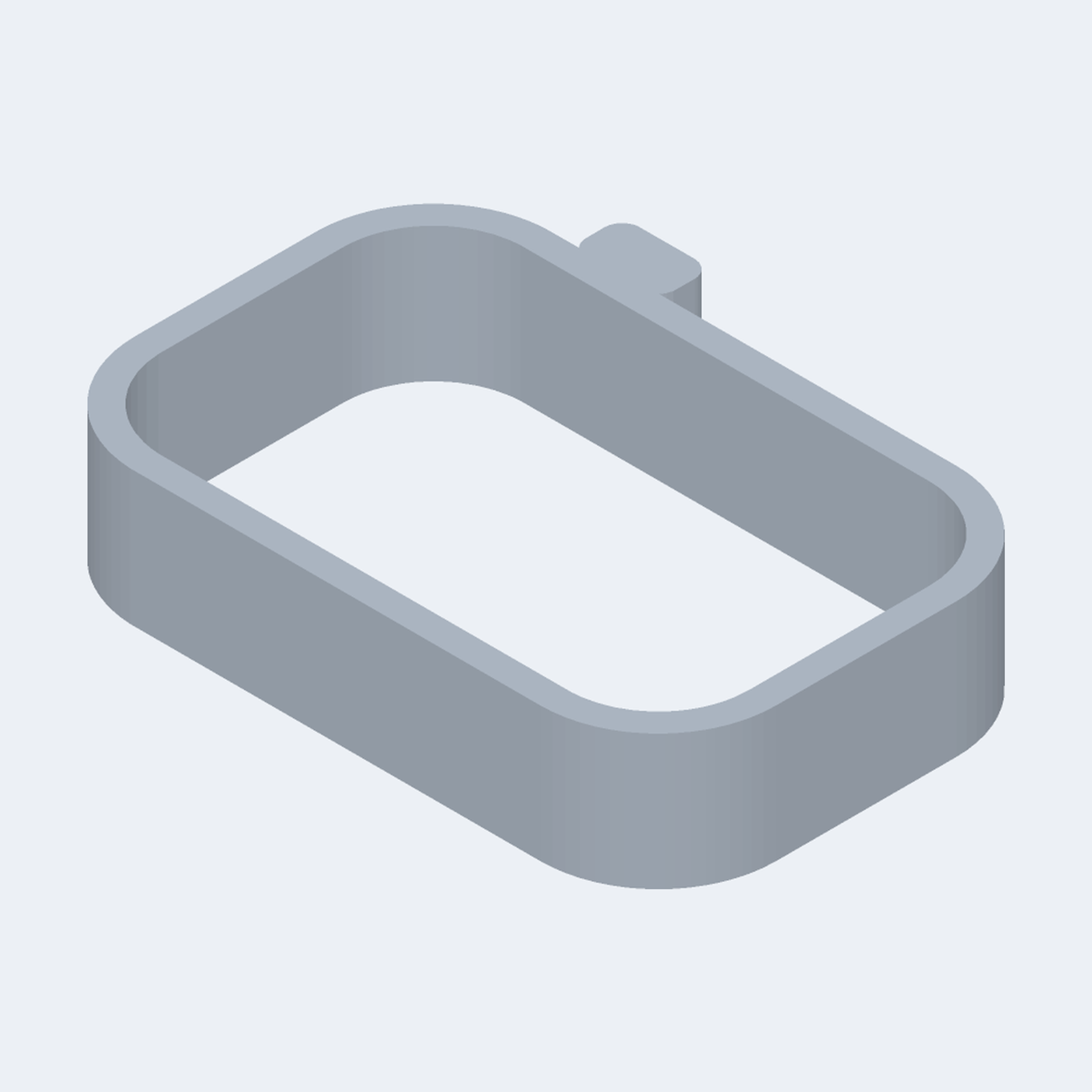

  • Waist sash x1

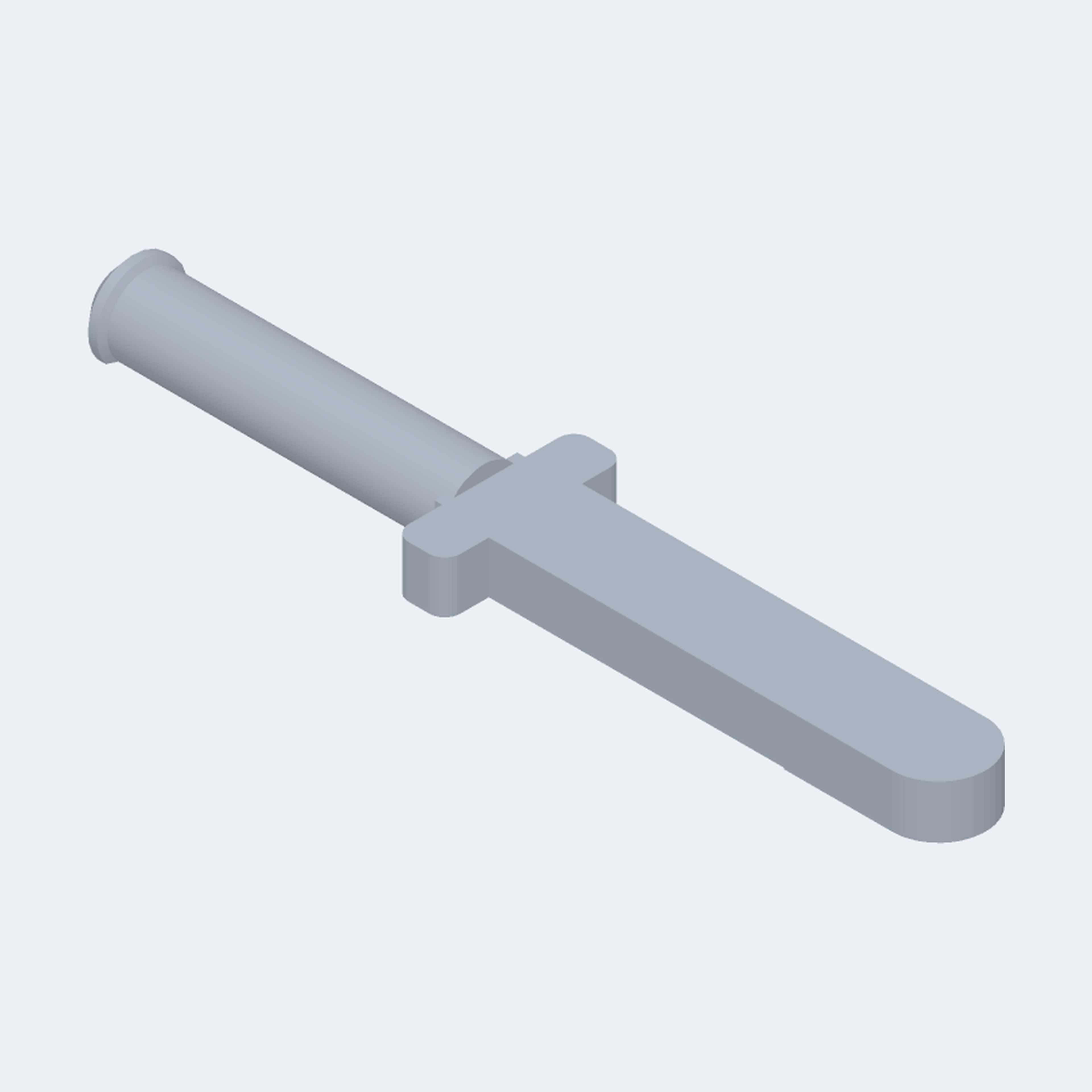

  • Blunt toy short blade (hand grip) x1
  • Fit-test coupon (print first) x1

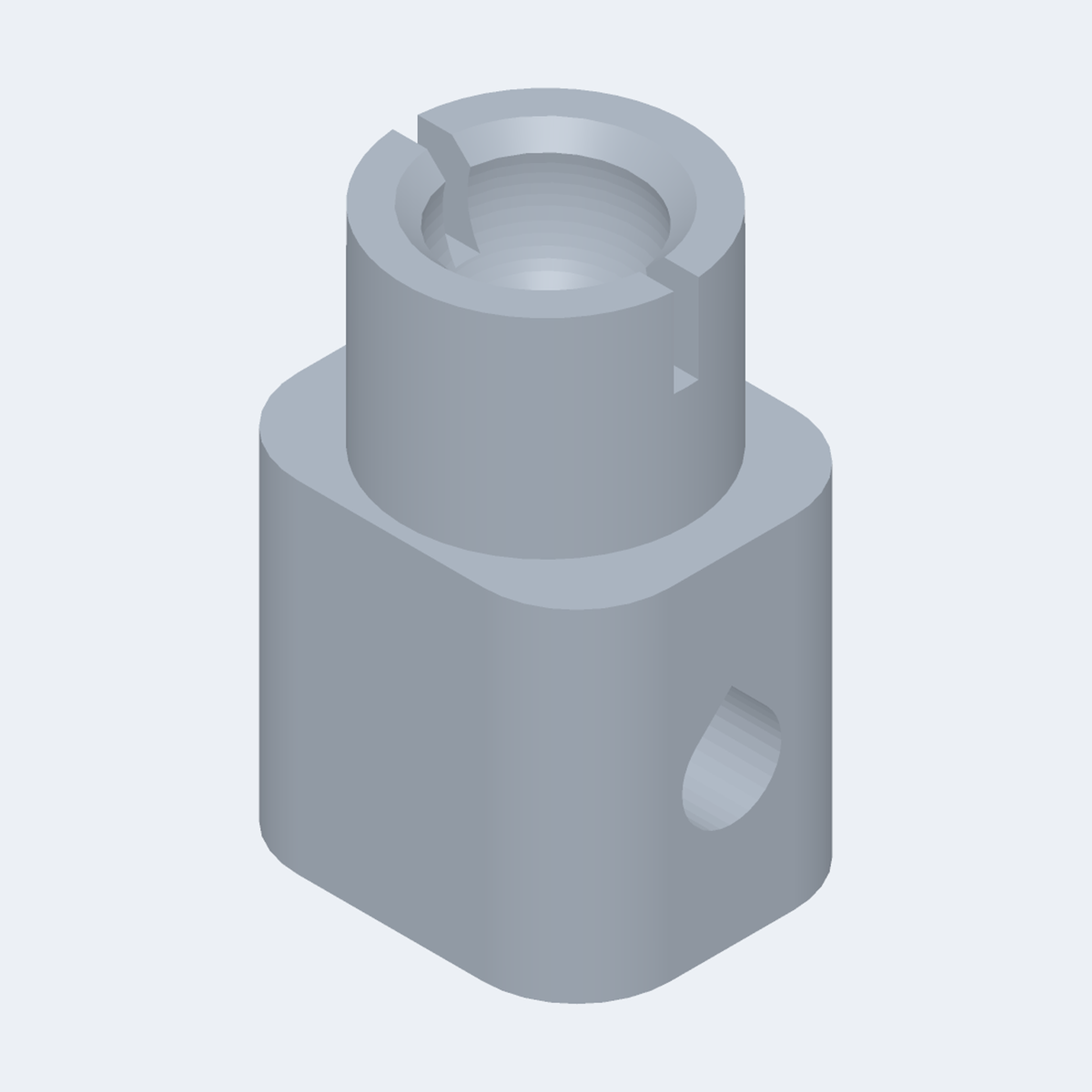

  • Grip-hole hand (replaces the figure's hand so it can hold accessories) x1-2

Assembly and fit:

  • Print the coupon first. It carries test clips in several tightness steps. Snap each onto the matching limb and note which holds firmly without whitening the plastic. If they are all loose or all tight, adjust your printer's XY compensation before printing the kit.
  • Clips snap sideways onto the limbs. The chest piece drops over the shoulders, the belt slides over the hips, and back items slide down onto the rail on the back of the chest piece.
  • Swap one of the figure's hands for fig_hand_v3 so it can hold the accessory.
  • Joint range with armour on: head tilt is limited to about 33° (hood meets the scabbard hilt beyond that). Arms swing back and inward to about 15° before touching the belt. With an accessory in hand, the item can touch the thigh when the arm hangs straight and the waist, elbow or hip bends. Turn the hand or lift the arm slightly. All other joints keep the base figure's full range.
  • Weapons and tools are blunt toy props with rounded tips.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only.

Print notes

- PETG recommended (it flexes for the snap clips without cracking). 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports. Some straps, visors and shoulder caps bridge up to about 20 mm. - Sliced (PrusaSlicer 2.9.2, PETG, 0.2 mm, 3 perimeters, 15% gyroid, no supports): full kit 13.4 g, 1.88 h (113 min). Values are slicer estimates. - arm_ni_scabbard_v3.stl: x1, 2.33 g, 23.3 min each - arm_ni_hood_v2.stl: x1, 1.80 g, 10.4 min each - arm_ni_chest_v3.stl: x1, 4.42 g, 35.8 min each - arm_ni_pauldron.stl: x2, 0.73 g, 5.5 min each - arm_ni_armwrap.stl: x2, 0.38 g, 4.6 min each - arm_ni_shinwrap.stl: x2, 0.75 g, 8.1 min each - arm_ni_sash_v2.stl: x1, 0.78 g, 4.9 min each - arm_acc_shortblade_grip.stl: x1, 0.32 g, 2.1 min each - arm_coupon_v6.stl: x1, 14.39 g, 117.0 min each (fit-test coupon, print first, not in kit total) - fig_hand_v3.stl: x1-2, 1.50 g, 15.6 min each (grip-hole hand; needed to hold the accessories, not in kit total) - Orientation: Back scabbard (slides onto chest-plate rail): upright, rails vertical; Hood: upside-down on its flat top, rim up; Chest plate: as worn: plate bottoms on the bed, shoulder straps bridge 19.6 mm at the top; Shoulder pad: as worn: walls and lips on the bed, cap bridges 19 mm; Arm wrap: upright tube, mouth to the side; Shin wrap: upright tube, mouth to the side; Waist sash: upside-down: belt top on the bed; Blunt toy short blade (hand grip): flat, handle along the bed (D-flat); Fit-test coupon (print first): flat; Grip-hole hand (replaces the figure's hand so it can hold accessories): upright, wrist socket opening up. - Print arm_coupon_v6 first and pick the clip that holds firmly without whitening. If all are loose or all tight, adjust XY compensation.

Files

  • arm_ni_scabbard_v3.stlstl269 KB
  • arm_ni_hood_v2.stlstl399 KB
  • arm_ni_chest_v3.stlstl26 KB
  • arm_ni_pauldron.stlstl77 KB
  • arm_ni_armwrap.stlstl263 KB
  • arm_ni_shinwrap.stlstl371 KB
  • arm_ni_sash_v2.stlstl31 KB
  • arm_acc_shortblade_grip.stlstl108 KB
  • arm_coupon_v6.stlstl2.1 MB
  • fig_hand_v3.stlstl270 KB
  • arm_ni_scabbard_v3.3mf3mf50 KB
  • arm_ni_hood_v2.3mf3mf102 KB
  • arm_ni_chest_v3.3mf3mf5.2 KB
  • arm_ni_pauldron.3mf3mf16 KB
  • arm_ni_armwrap.3mf3mf53 KB
  • arm_ni_shinwrap.3mf3mf72 KB
  • arm_ni_sash_v2.3mf3mf7.2 KB
  • arm_acc_shortblade_grip.3mf3mf23 KB
  • arm_coupon_v6.3mf3mf404 KB
  • fig_hand_v3.3mf3mf59 KB
