Space Explorer Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

3MF · STL

Space Explorer Armor Kit for Poseable 6 Inch Action Figure, Snap-On Add-On

A space-explorer set: round helmet, chest plate with a slide-on oxygen pack, shoulder pads, glove cuffs, boot covers and a belt, plus a hand scanner. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses

About this design

A space-explorer set: round helmet, chest plate with a slide-on oxygen pack, shoulder pads, glove cuffs, boot covers and a belt, plus a hand scanner. Every piece snaps or slides onto the figure without glue, and all of it prints without supports. The kit includes a fit-test coupon and the grip-hole hand needed to hold the accessories.

Requires the base figure, sold separately: Poseable 6 Inch Action Figure. This kit does not include the figure.

Parts (10 files, STL and 3MF for each):

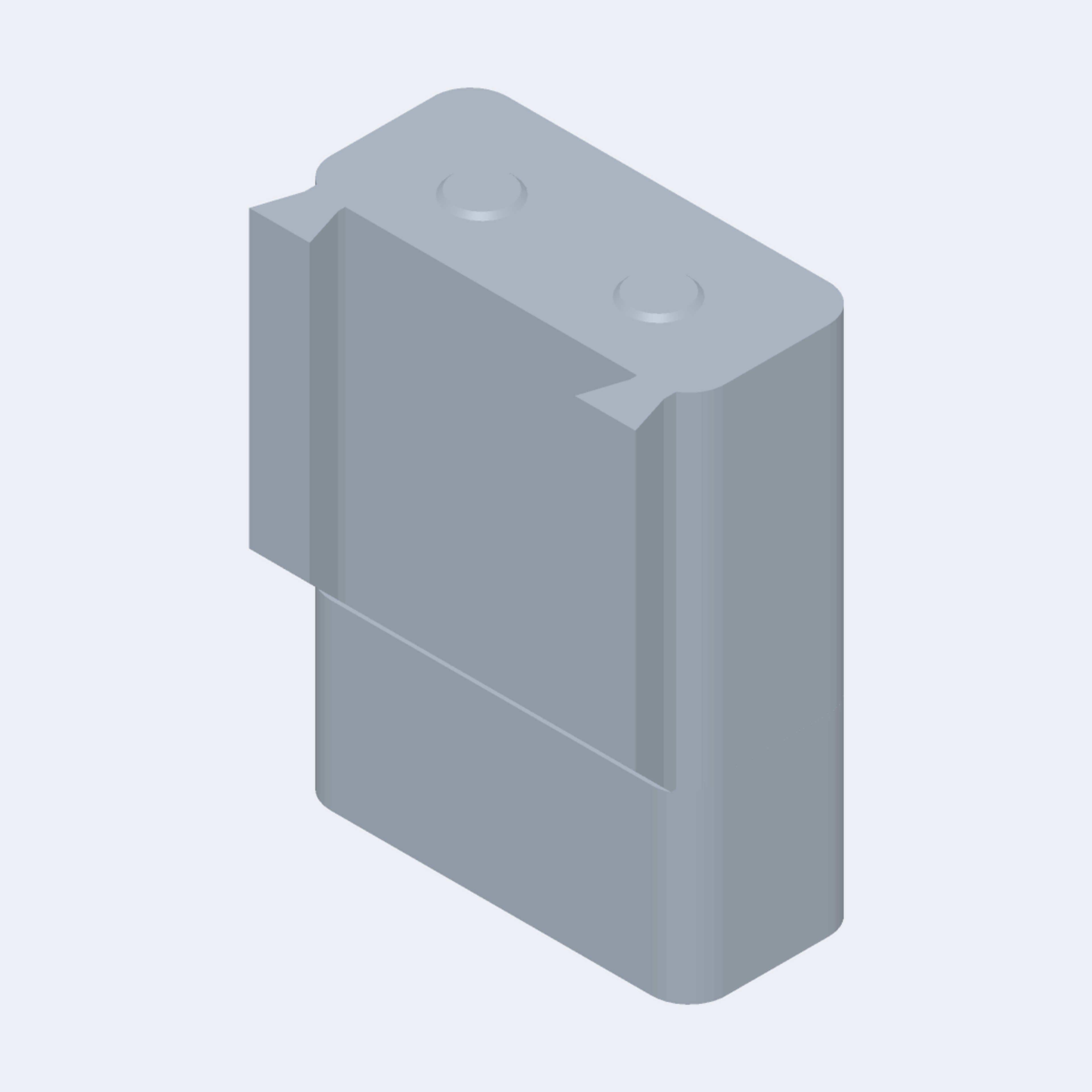

  • Back oxygen pack (slides onto chest-plate rail) x1
  • Helmet x1

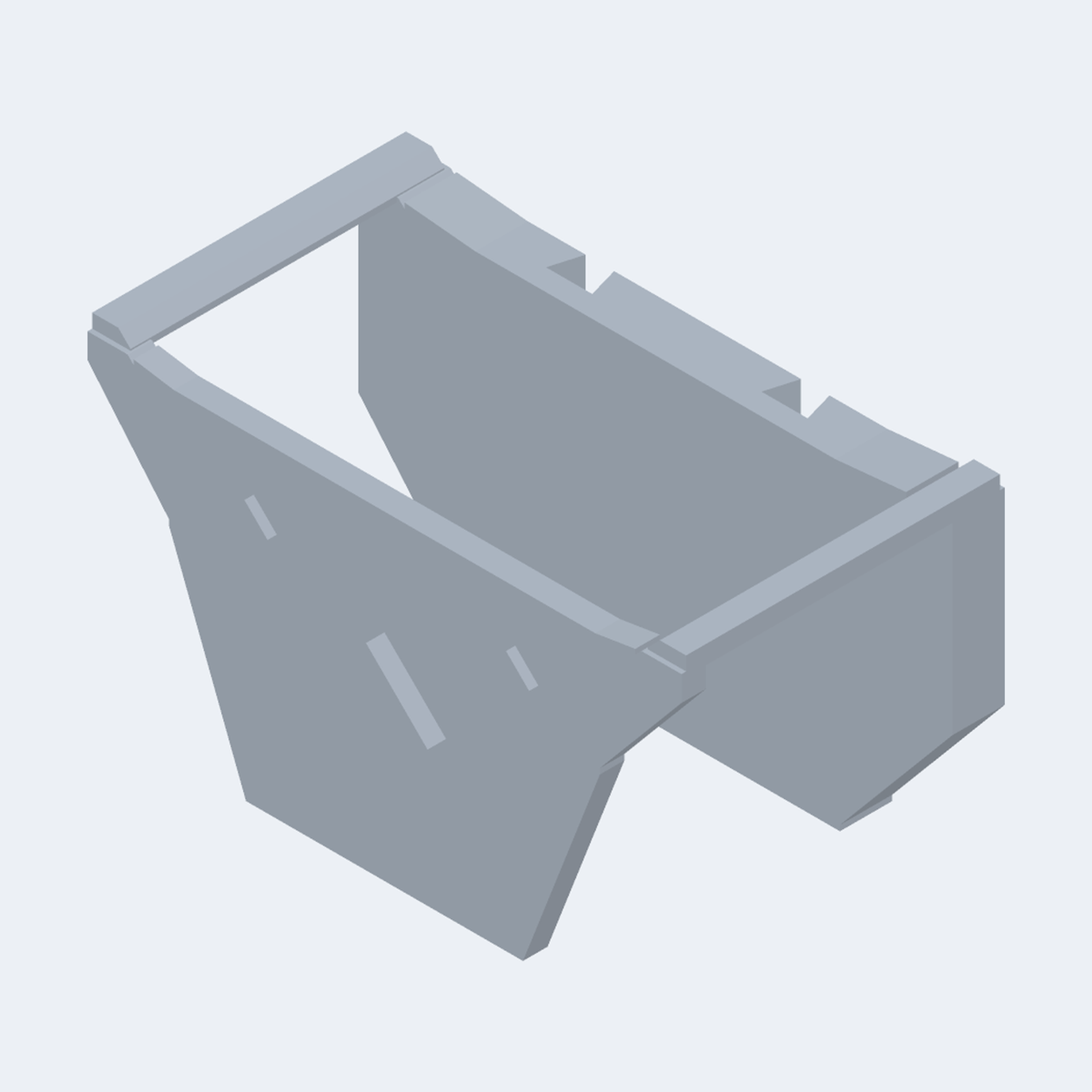

  • Chest plate x1

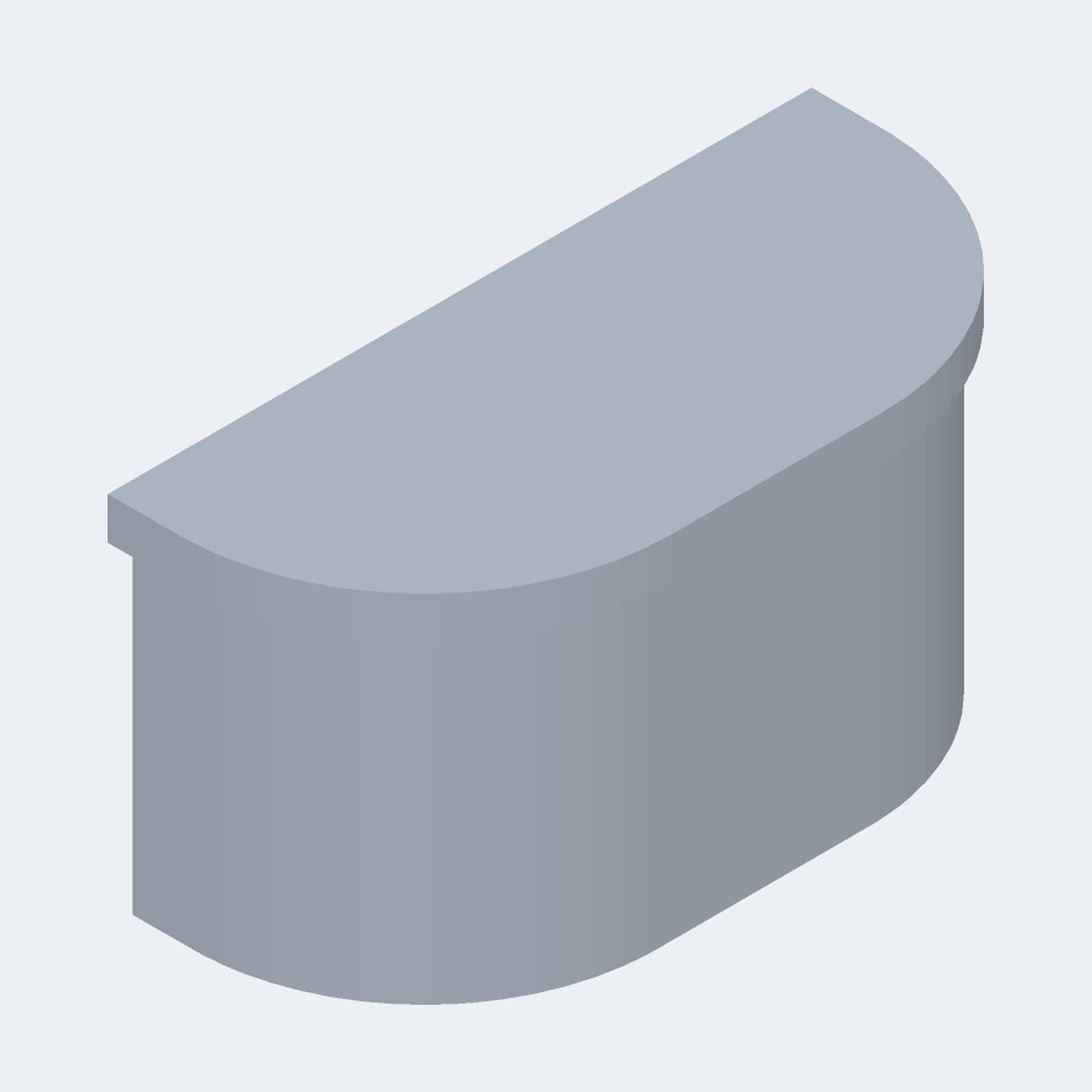

  • Shoulder pad x2

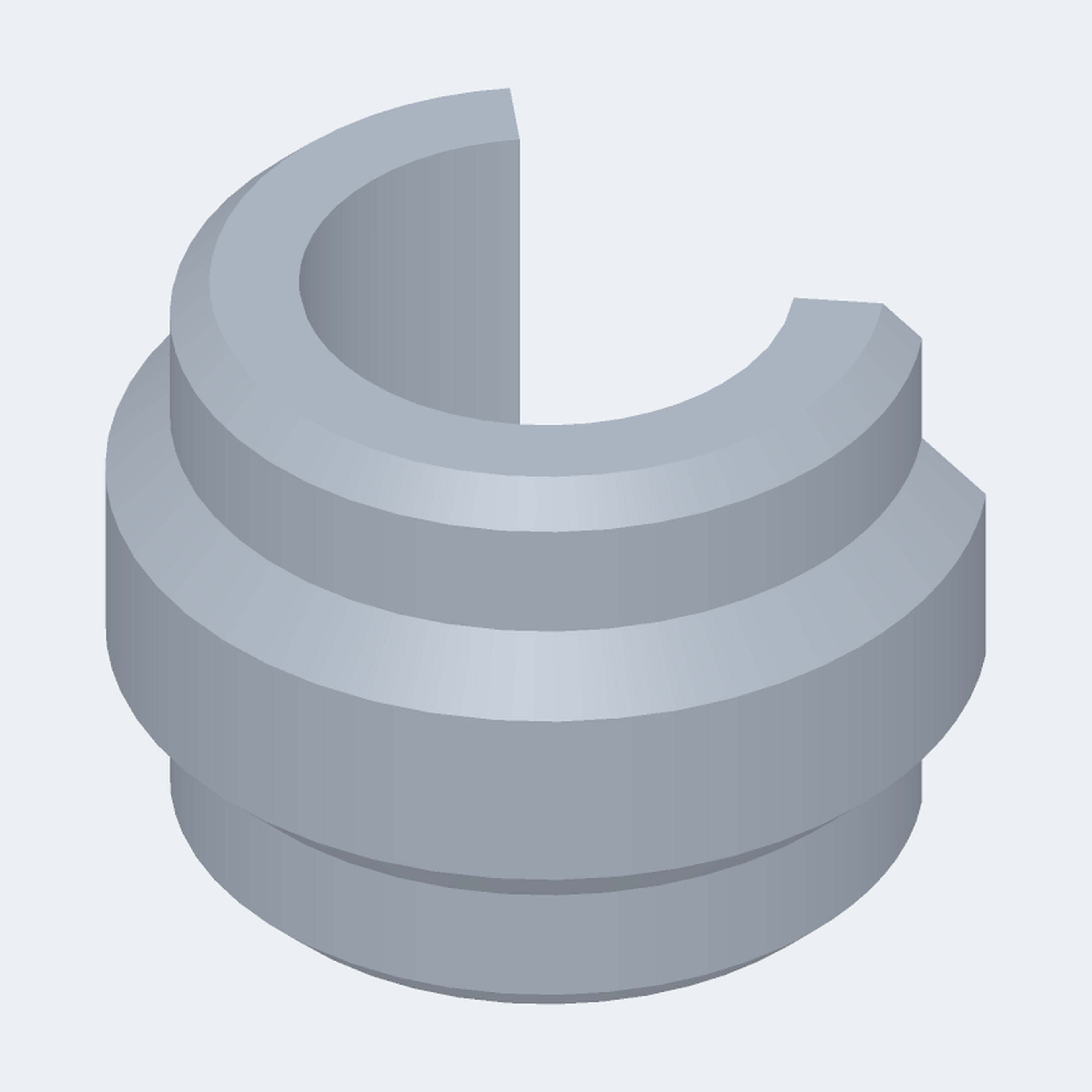

  • Glove cuff x2

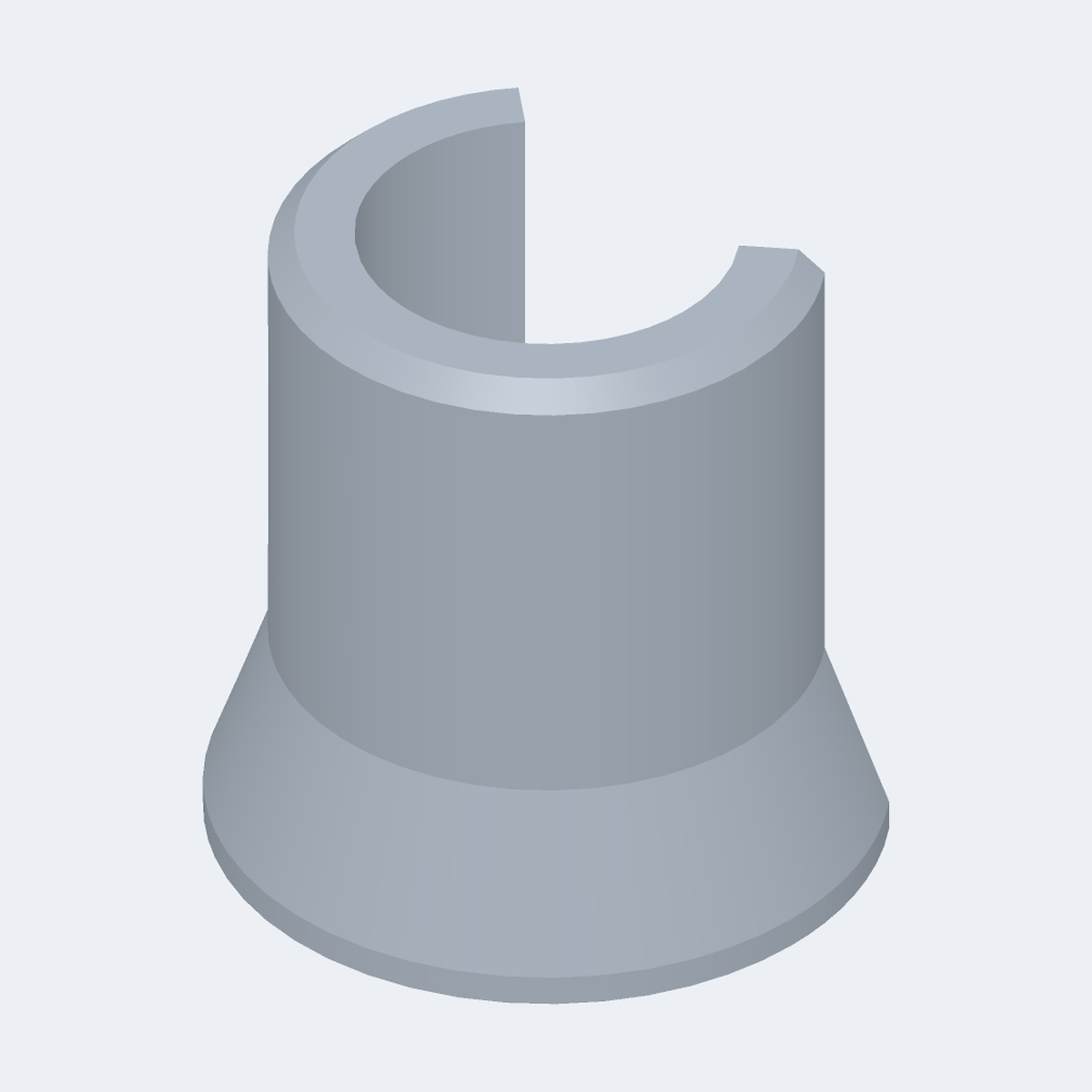

  • Boot cover x2

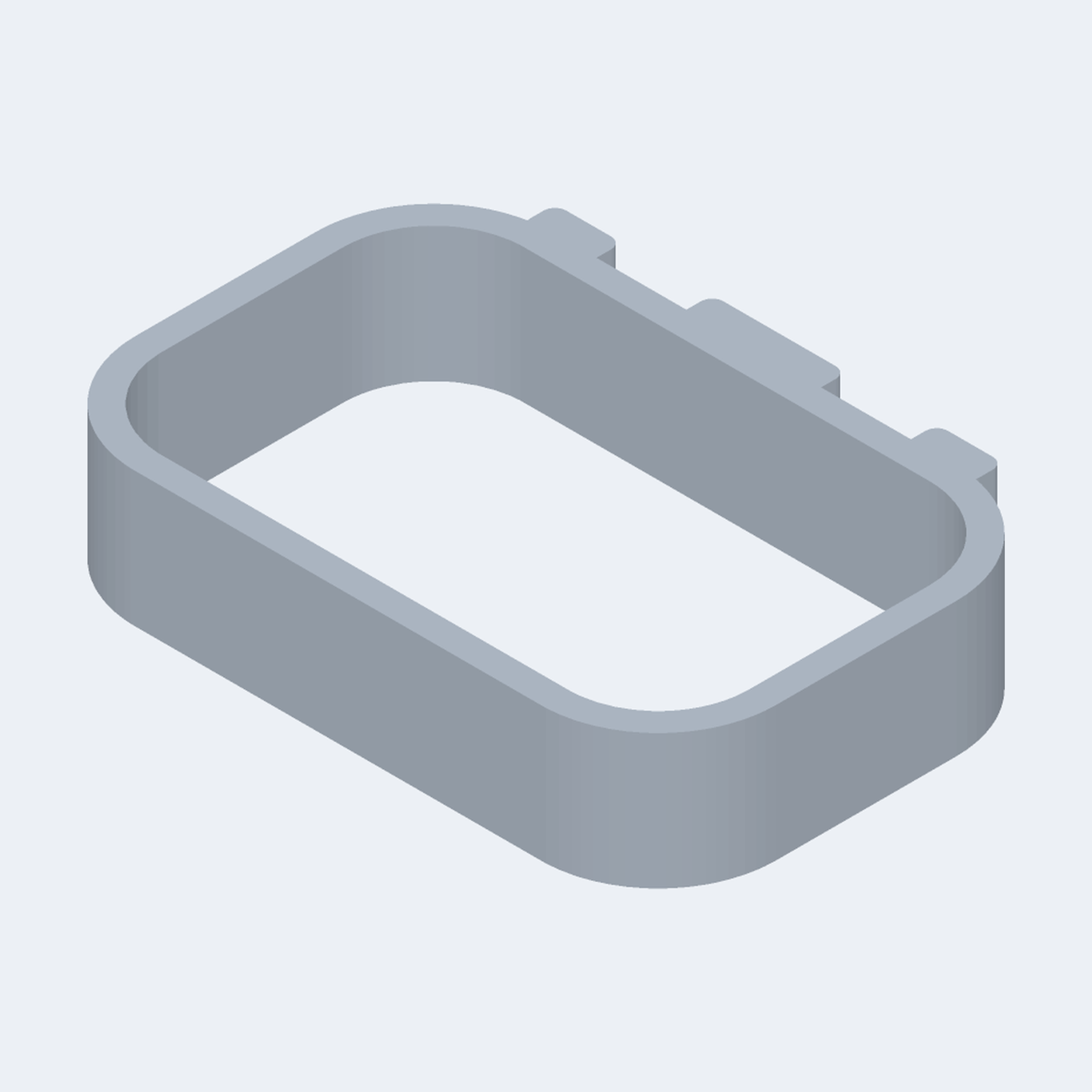

  • Belt x1

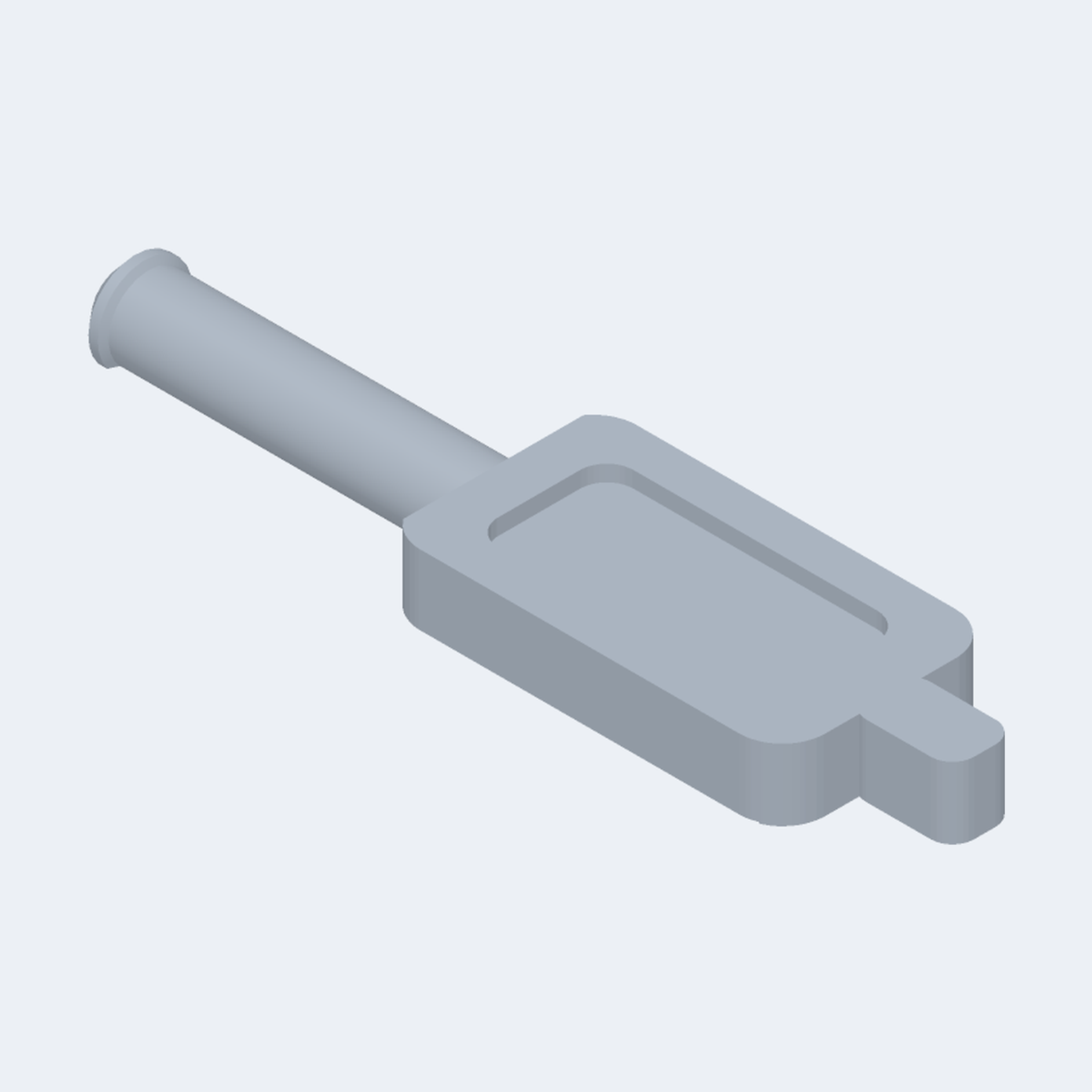

  • Hand scanner (hand grip) x1
  • Fit-test coupon (print first) x1
  • Grip-hole hand (replaces the figure's hand so it can hold accessories) x1-2

Assembly and fit:

  • Print the coupon first. It carries test clips in several tightness steps. Snap each onto the matching limb and note which holds firmly without whitening the plastic. If they are all loose or all tight, adjust your printer's XY compensation before printing the kit.
  • Clips snap sideways onto the limbs. The chest piece drops over the shoulders, the belt slides over the hips, and back items slide down onto the rail on the back of the chest piece.
  • Swap one of the figure's hands for fig_hand_v3 so it can hold the accessory.
  • Joint range with armour on: head tilt is limited to about 33° (helmet meets the vest strap beyond that). Arms swing back and inward to about 15° before touching the belt. With an accessory in hand, the item can touch the thigh when the arm hangs straight and the waist, elbow or hip bends. Turn the hand or lift the arm slightly. All other joints keep the base figure's full range.
  • Weapons and tools are blunt toy props with rounded tips.

Warning: small parts, choking hazard. Not for children under 3. Adult supervision recommended.

Private use only.

Print notes

- PETG recommended (it flexes for the snap clips without cracking). 0.2 mm layers, 3 walls, 15% gyroid infill. - No supports. Some straps, visors and shoulder caps bridge up to about 20 mm. - Sliced (PrusaSlicer 2.9.2, PETG, 0.2 mm, 3 perimeters, 15% gyroid, no supports): full kit 14.9 g, 1.84 h (110 min). Values are slicer estimates. - arm_sp_oxygen_v3.stl: x1, 2.24 g, 15.6 min each - arm_sp_helm.stl: x1, 3.57 g, 18.8 min each - arm_sp_chest.stl: x1, 4.41 g, 35.6 min each - arm_sp_pauldron.stl: x2, 0.77 g, 5.6 min each - arm_sp_cuff.stl: x2, 0.34 g, 3.9 min each - arm_sp_boot.stl: x2, 0.59 g, 5.9 min each - arm_sp_belt_v2.stl: x1, 0.83 g, 6.6 min each - arm_acc_scanner_grip.stl: x1, 0.44 g, 2.9 min each - arm_coupon_v6.stl: x1, 14.39 g, 117.0 min each (fit-test coupon, print first, not in kit total) - fig_hand_v3.stl: x1-2, 1.50 g, 15.6 min each (grip-hole hand; needed to hold the accessories, not in kit total) - Orientation: Back oxygen pack (slides onto chest-plate rail): upright, rails vertical; Helmet: upside-down on its flat top, rim up; Chest plate: as worn: plate bottoms on the bed, shoulder straps bridge 19.6 mm at the top; Shoulder pad: as worn: walls and lips on the bed, cap bridges 19 mm; Glove cuff: upright tube, mouth to the side; Boot cover: upright tube, mouth to the side; Belt: upside-down: belt top on the bed; Hand scanner (hand grip): flat, handle along the bed (D-flat); Fit-test coupon (print first): flat; Grip-hole hand (replaces the figure's hand so it can hold accessories): upright, wrist socket opening up. - Print arm_coupon_v6 first and pick the clip that holds firmly without whitening. If all are loose or all tight, adjust XY compensation.

Files

  • arm_sp_oxygen_v3.stlstl134 KB
  • arm_sp_helm.stlstl440 KB
  • arm_sp_chest.stlstl24 KB
  • arm_sp_pauldron.stlstl79 KB
  • arm_sp_cuff.stlstl191 KB
  • arm_sp_boot.stlstl250 KB
  • arm_sp_belt_v2.stlstl35 KB
  • arm_acc_scanner_grip.stlstl116 KB
  • arm_coupon_v6.stlstl2.1 MB
  • fig_hand_v3.stlstl270 KB
  • arm_sp_oxygen_v3.3mf3mf25 KB
  • arm_sp_helm.3mf3mf108 KB
  • arm_sp_chest.3mf3mf5.0 KB
  • arm_sp_pauldron.3mf3mf16 KB
  • arm_sp_cuff.3mf3mf41 KB
  • arm_sp_boot.3mf3mf54 KB
  • arm_sp_belt_v2.3mf3mf7.9 KB
  • arm_acc_scanner_grip.3mf3mf24 KB
  • arm_coupon_v6.3mf3mf404 KB
  • fig_hand_v3.3mf3mf59 KB
