Geometric Snowflake and Star Ornament Set: 8 Faceted 2-Colour Ornaments, Slot-Together Stars, Spinner and Snap Flake
Eight faceted snowflake and star ornaments, from flat two-colour flakes to slot-together 3D stars and a spinner. PLA, no supports, CAD-checked.
- Instant download after checkout
- 3 downloads over 30 days, links by email
- Digital files: all sales final. Licenses
About this design

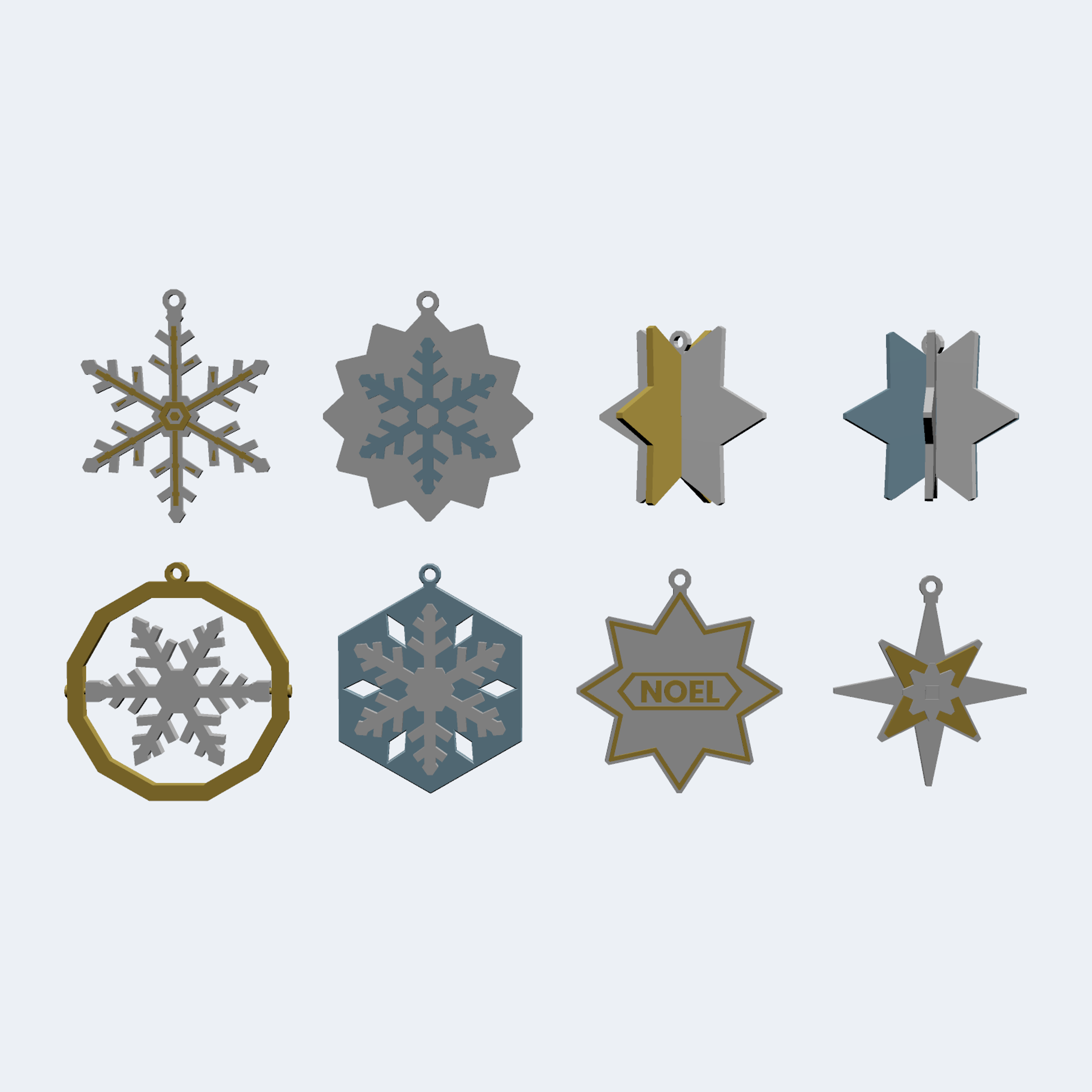

Eight geometric holiday ornaments with straight-edged facets: flat snowflakes and stars, slot-together 3D stars, a snowflake that spins inside a ring, a snap-together flake, a tiered compass star and a name star. Each one is 72 to 91 mm across and has a hanging loop.
- C1 Hex Crystal Flake: one piece, raised gold layer.

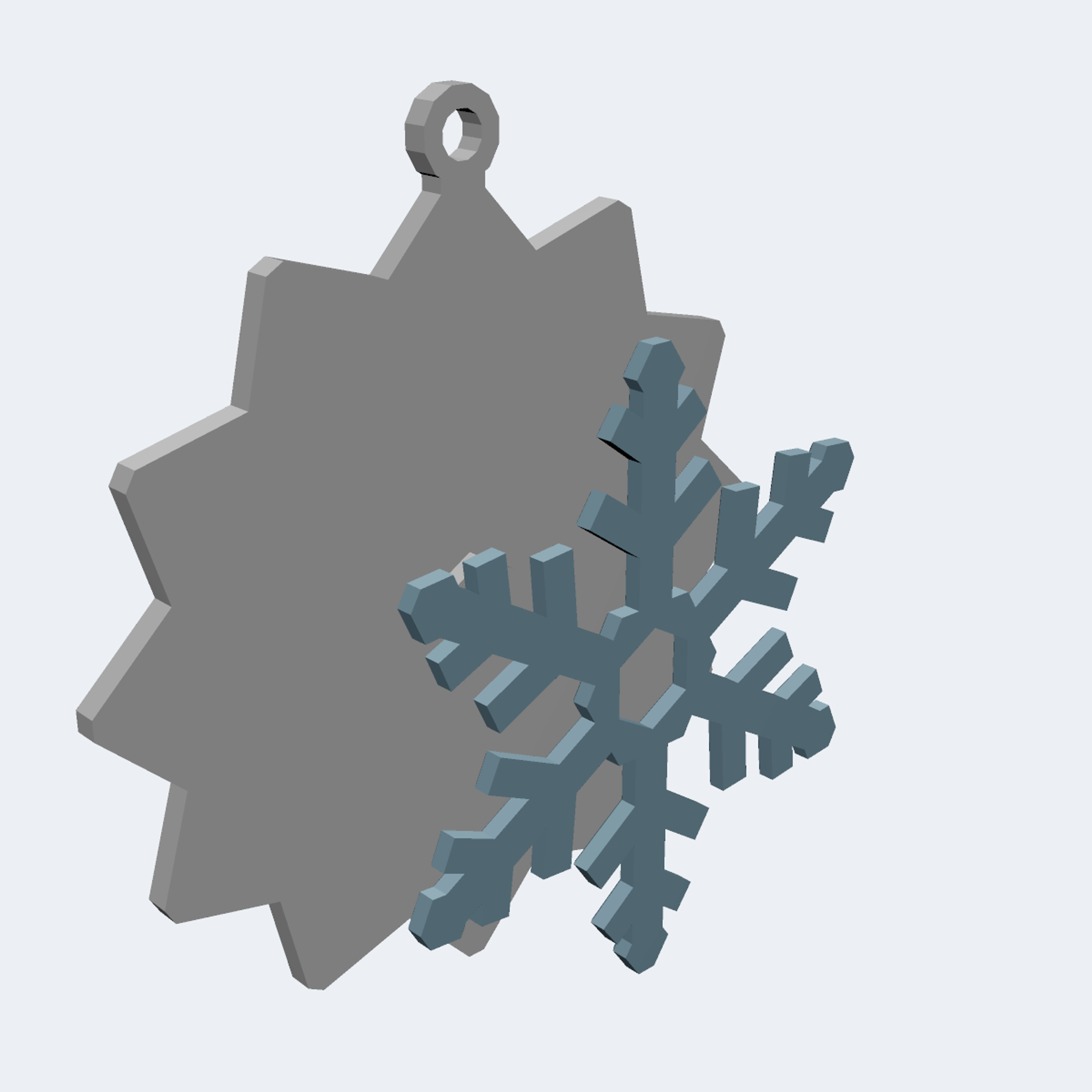

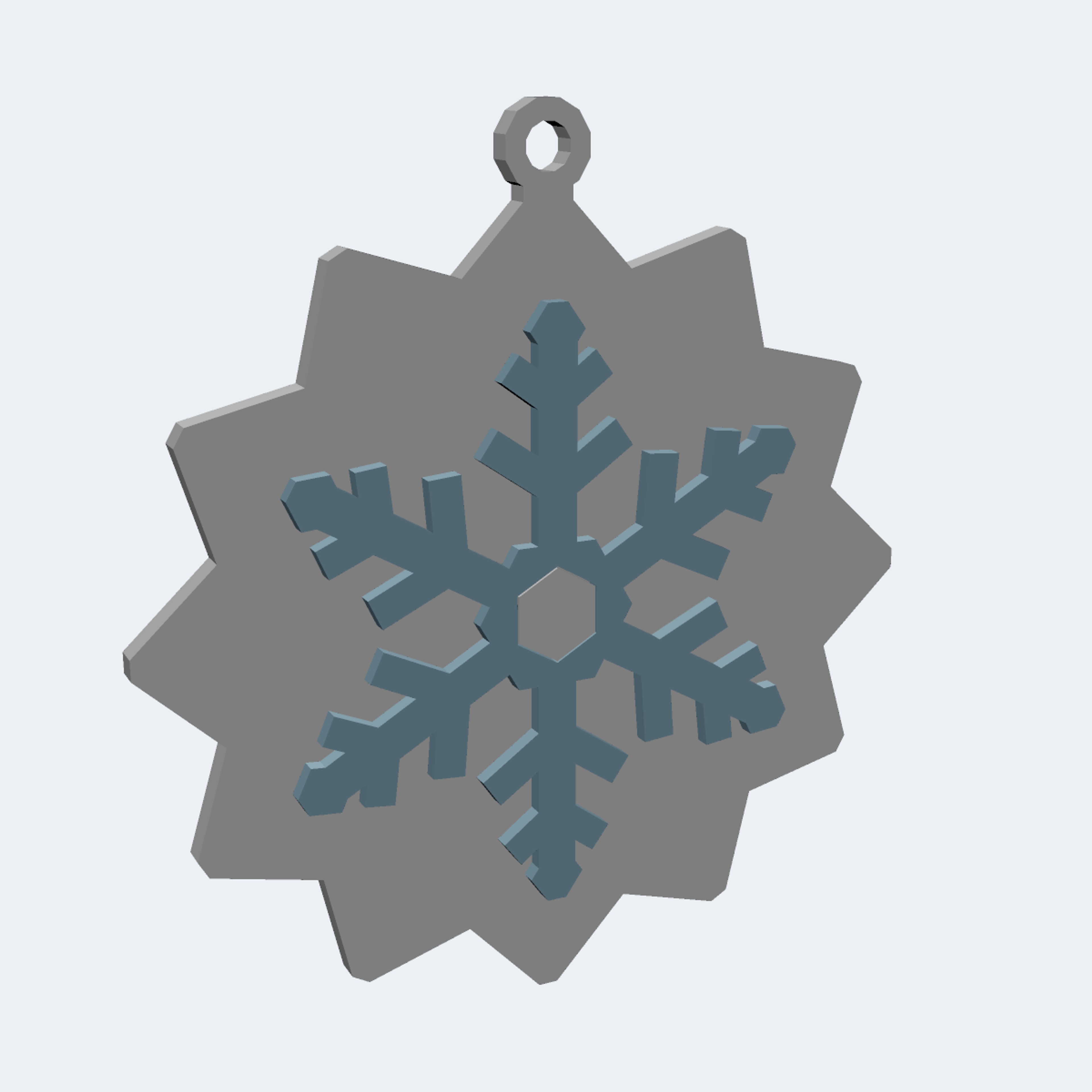

- C2 Layered Frost Star: two stacked layers on a hex peg.

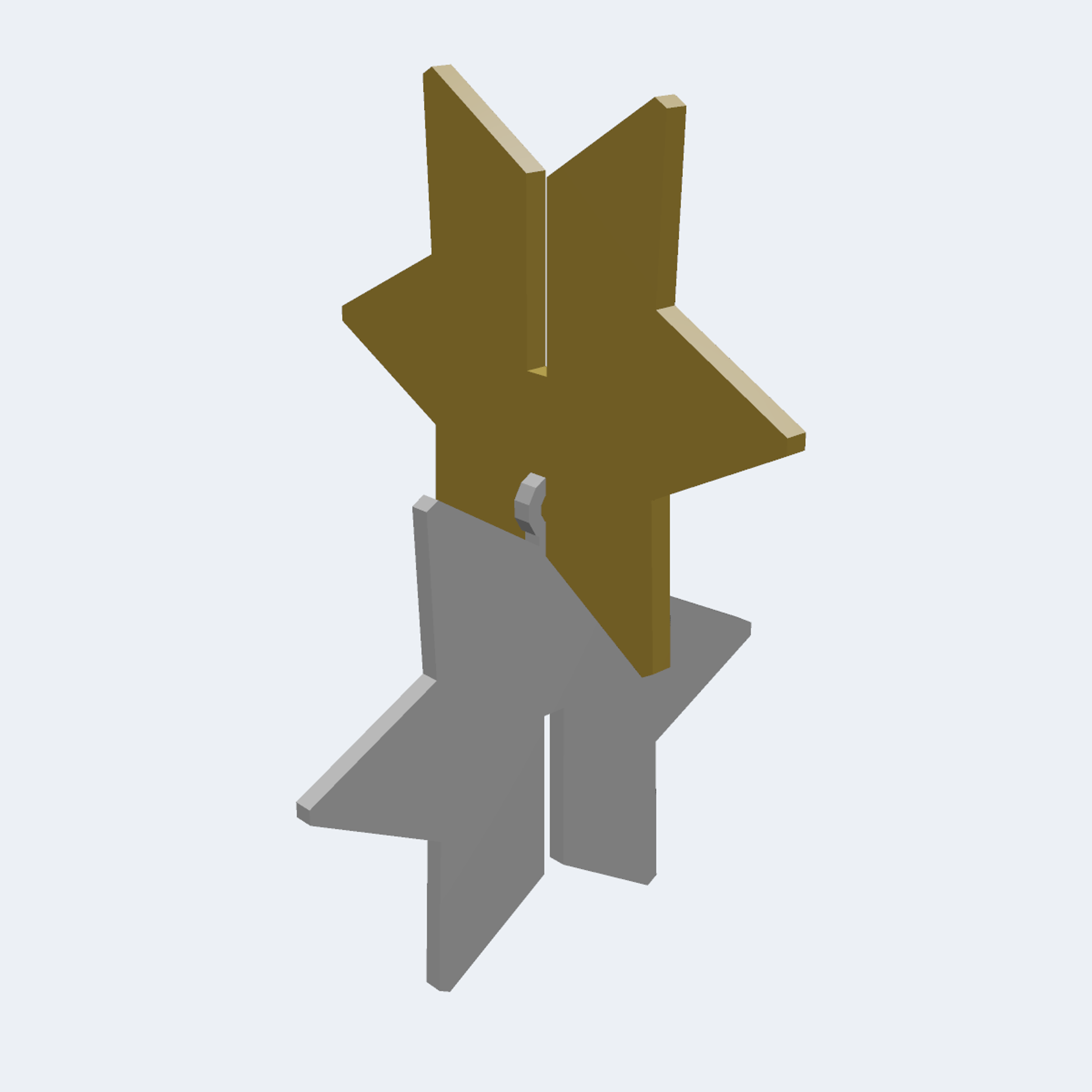

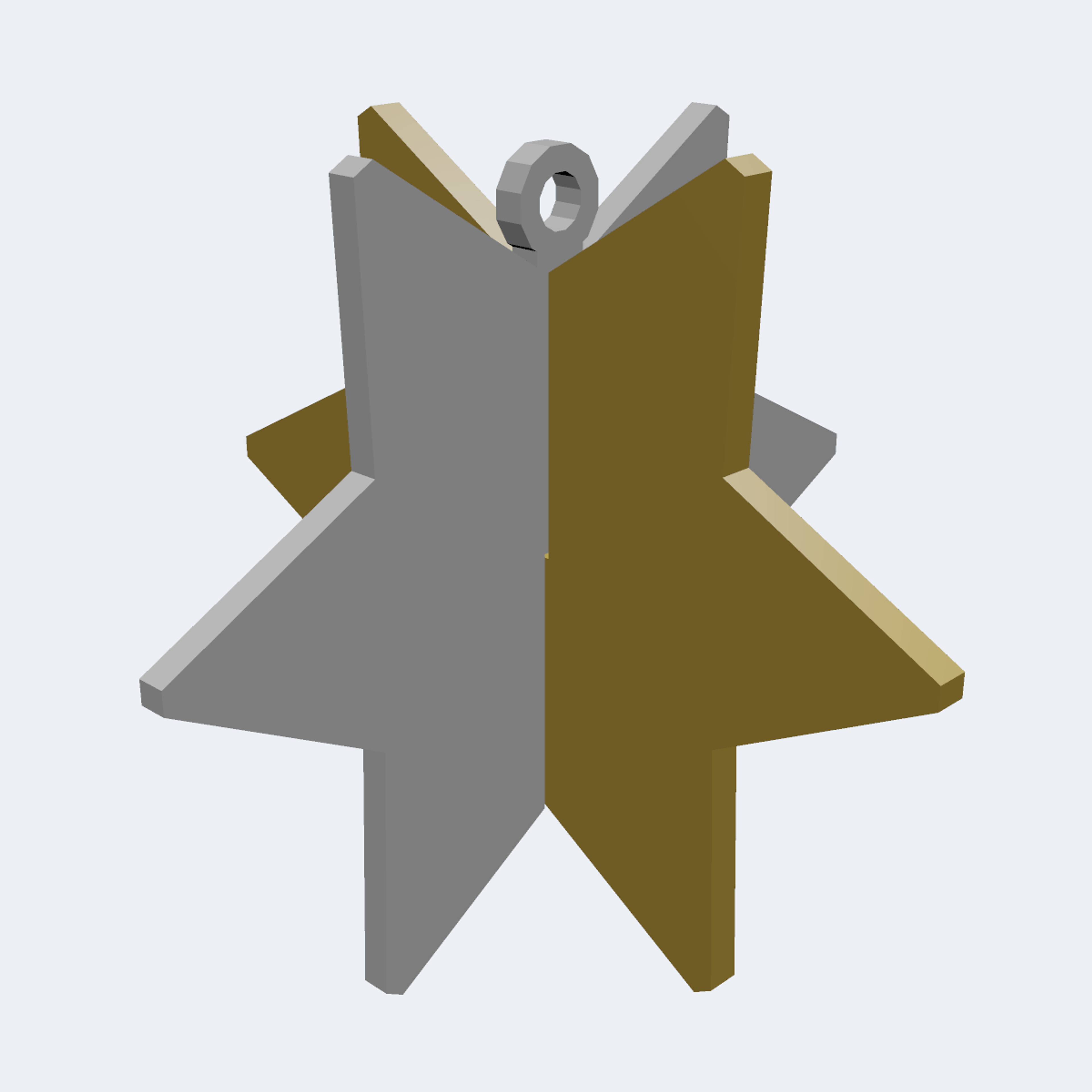

- C3 Cross-Lap Star: two stars that slot together at 90 degrees.

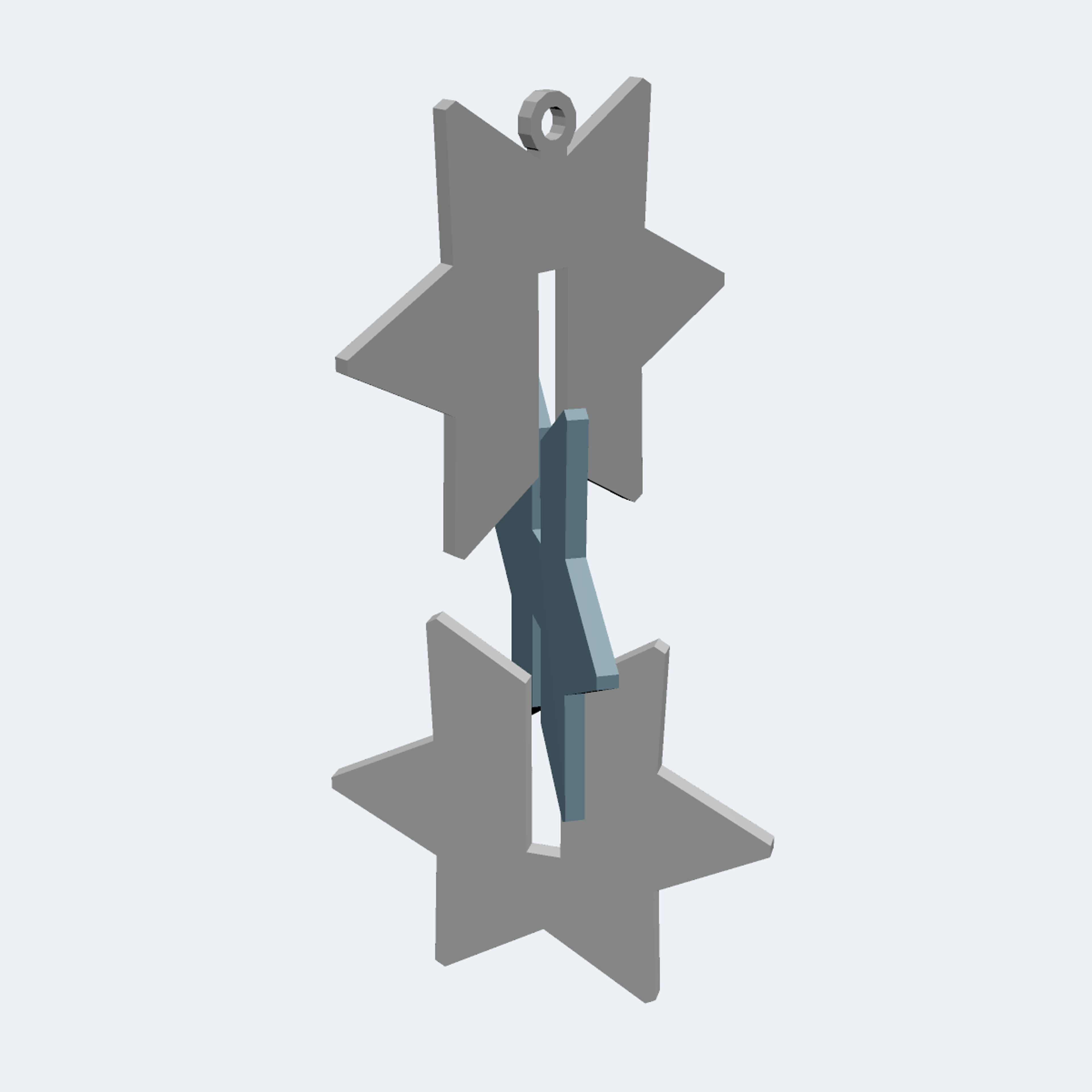

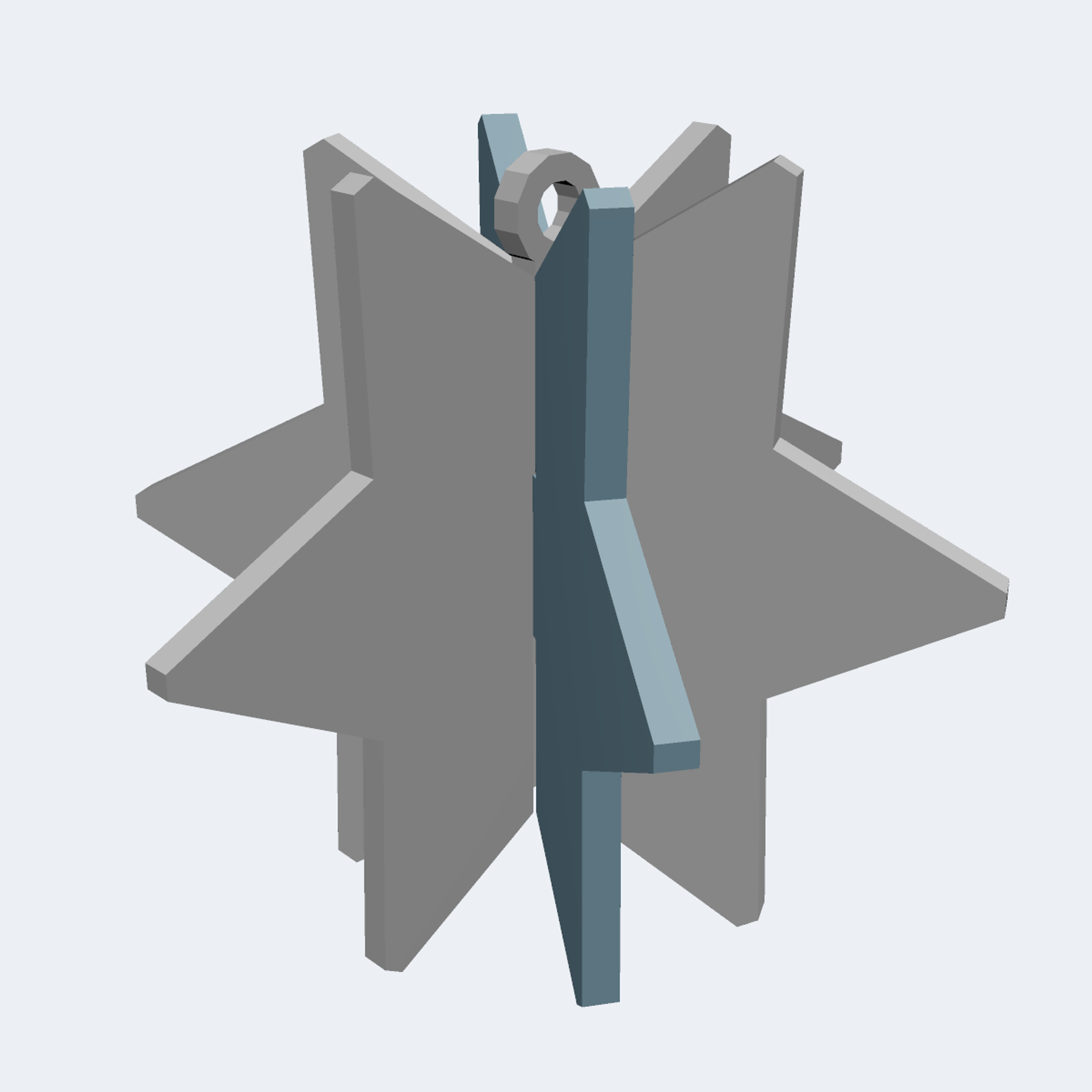

- C4 Trinity Star: three stars that slot together at 60 degrees (assemble C, then B, then A).

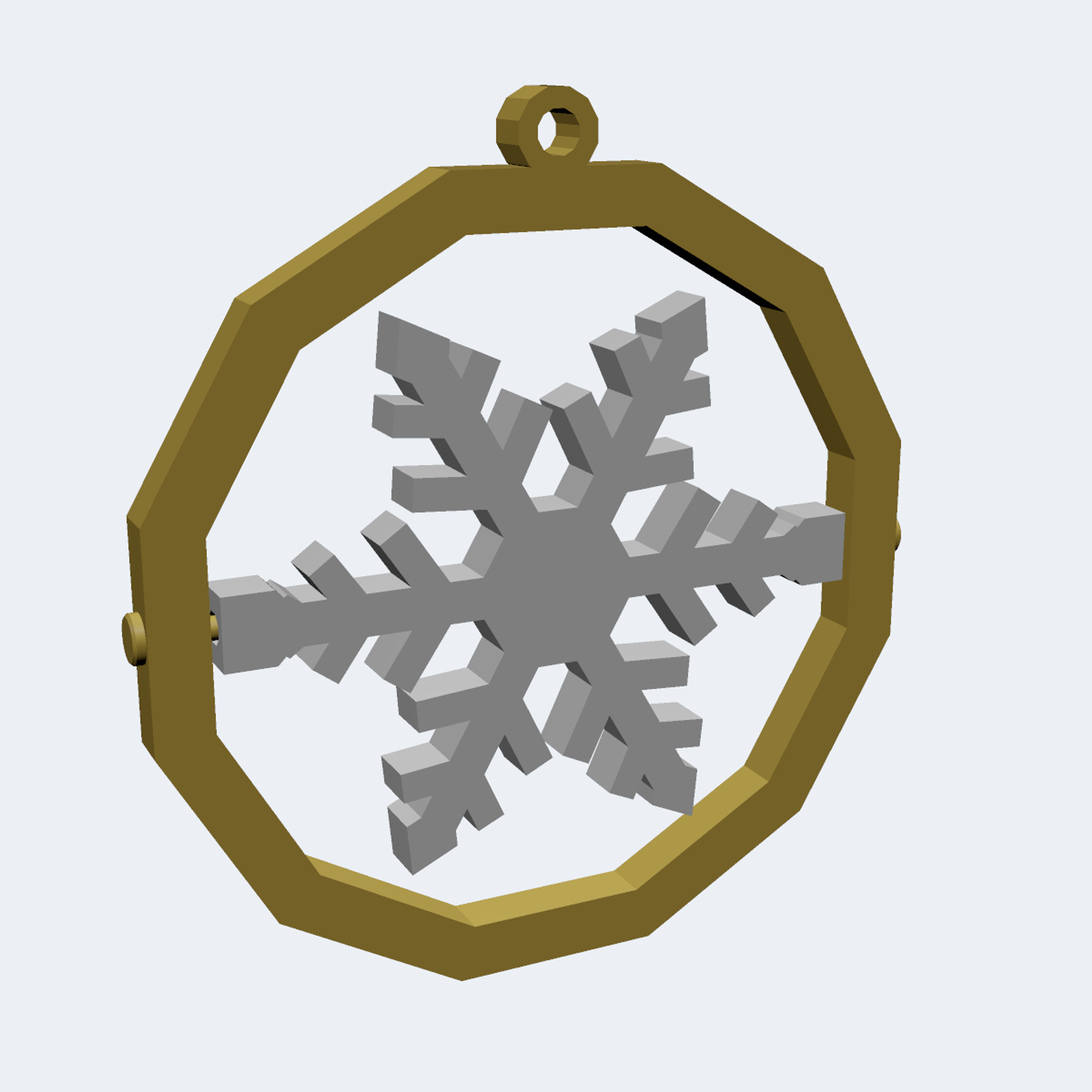

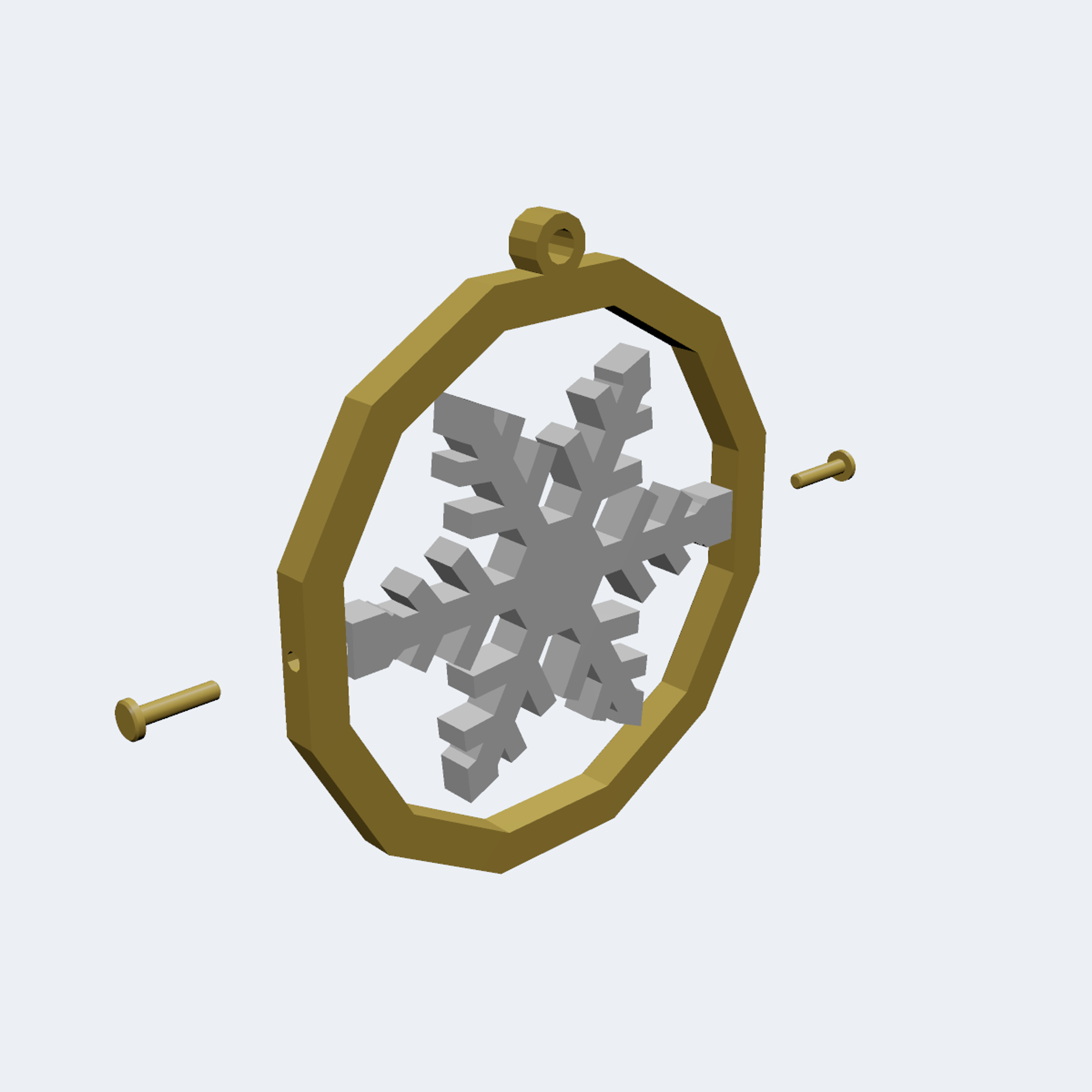

- C5 Orbit Spinner: a snowflake on two pin axles inside a ring, so it turns in a draught.

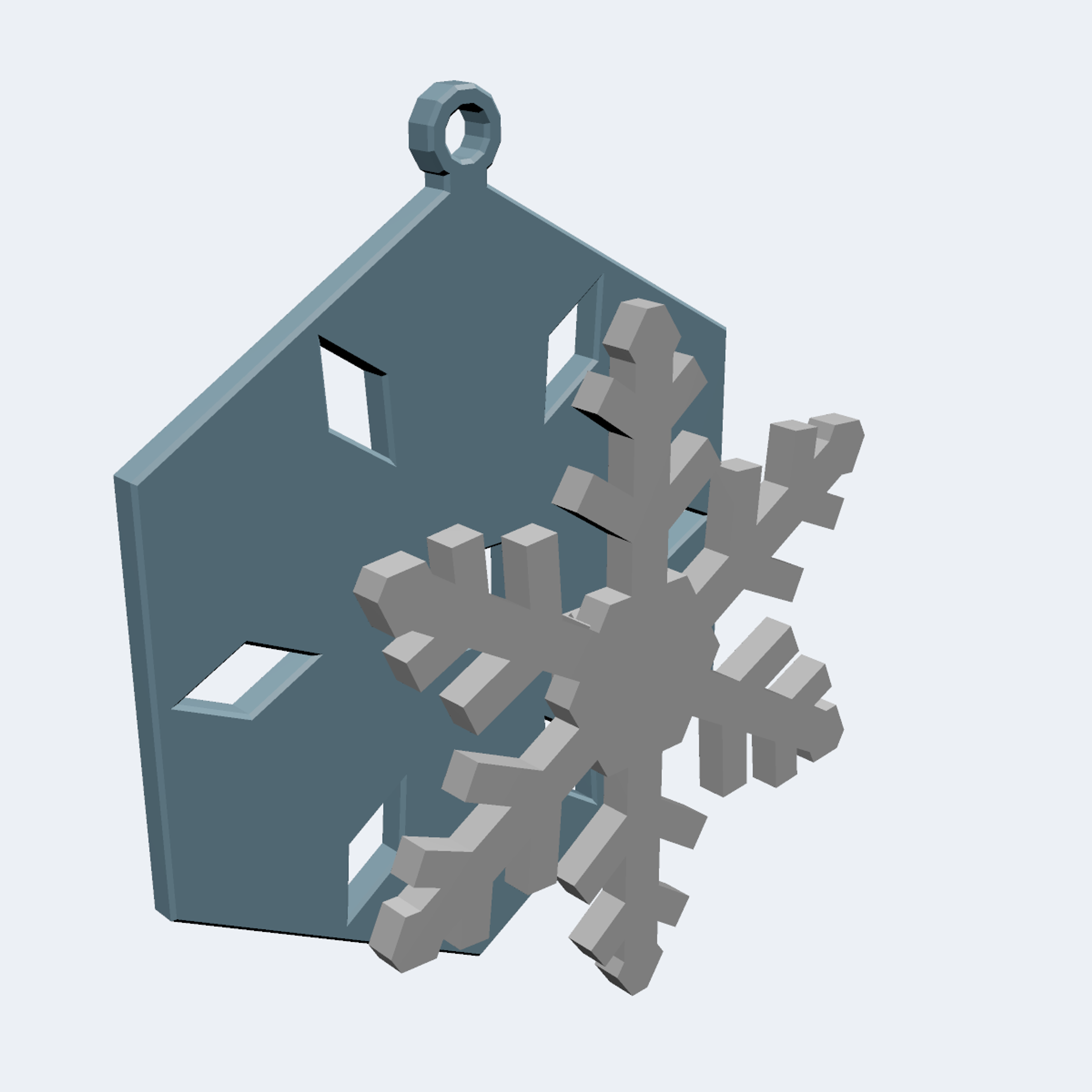

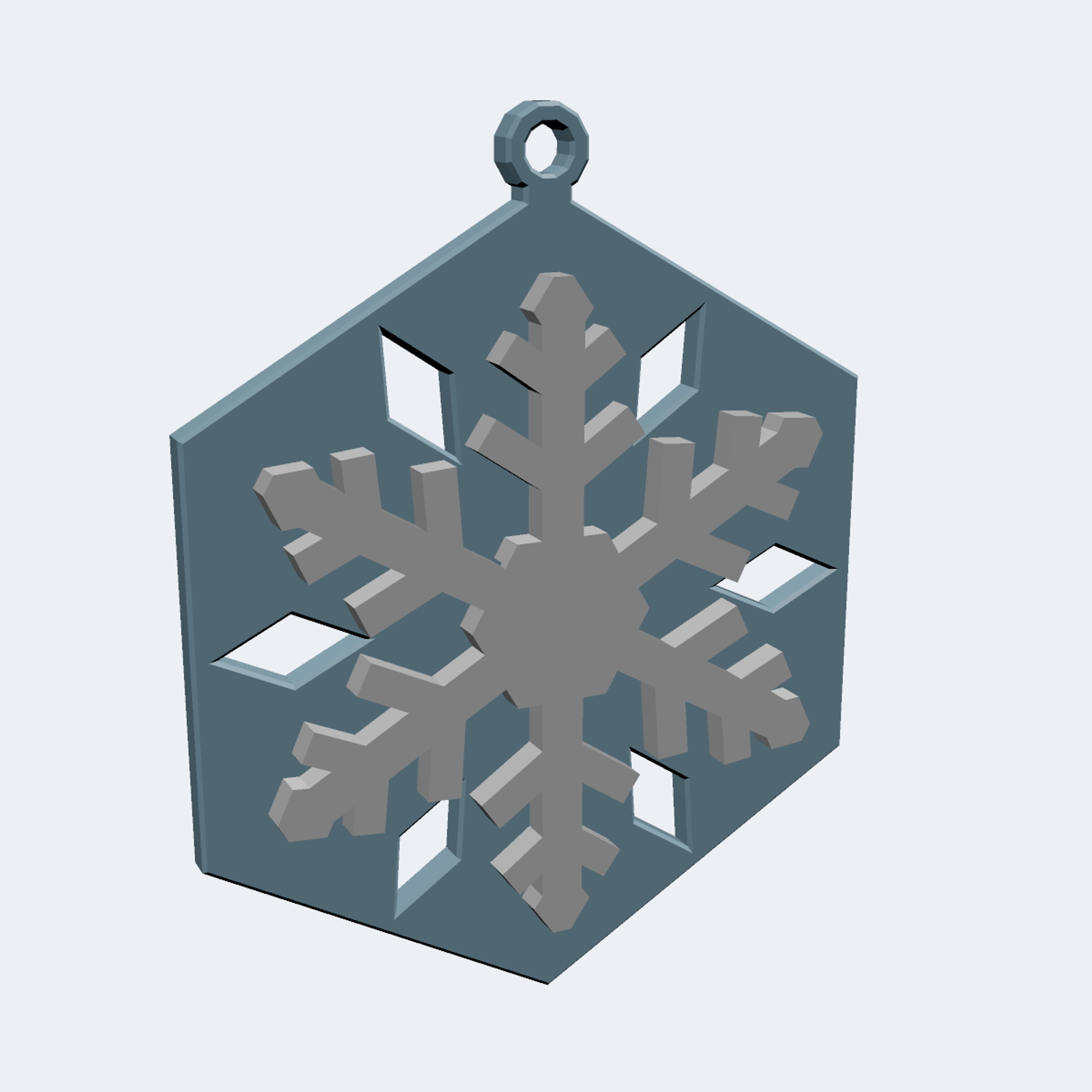

- C6 Snap Flake: a snowflake front that snaps onto a hexagon back.

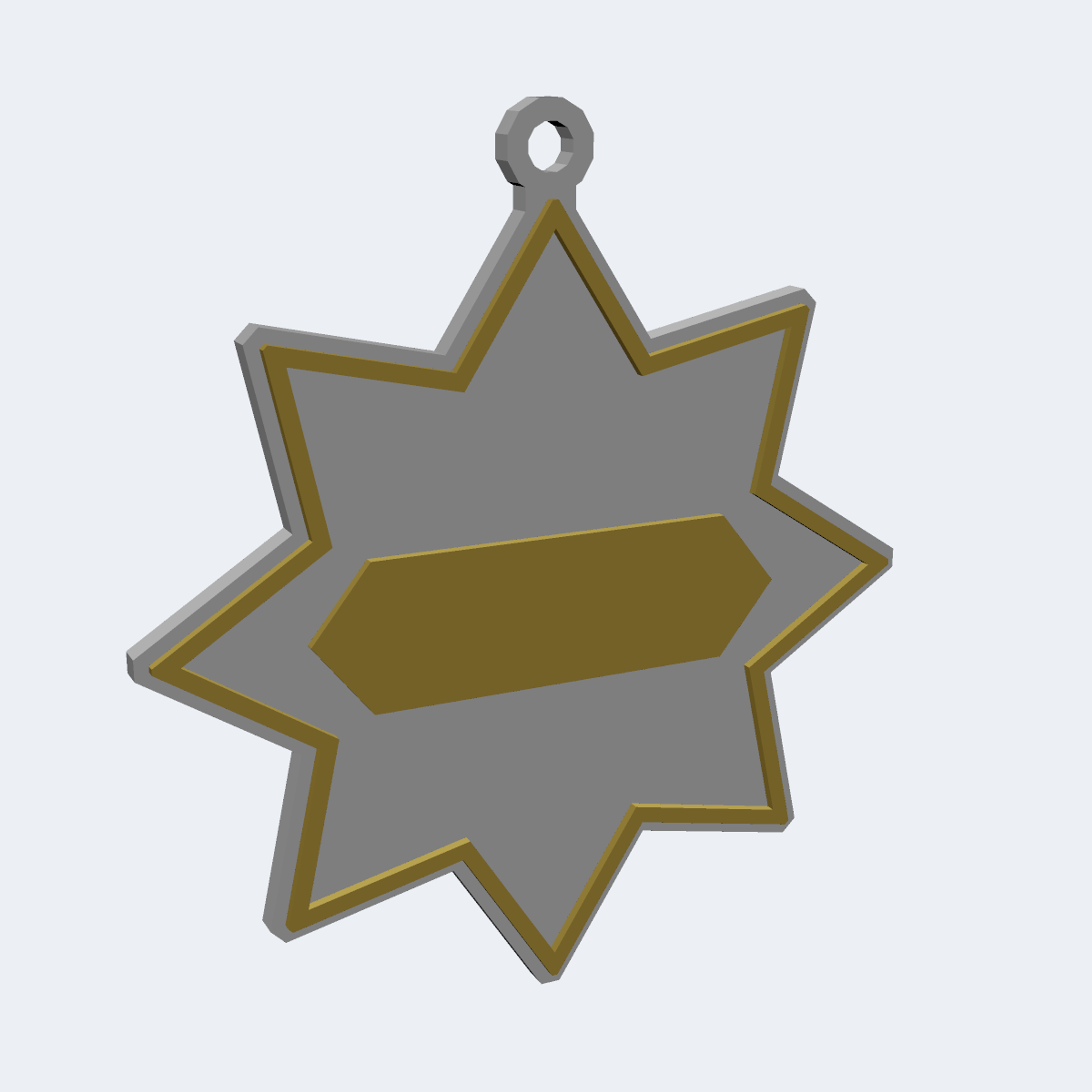

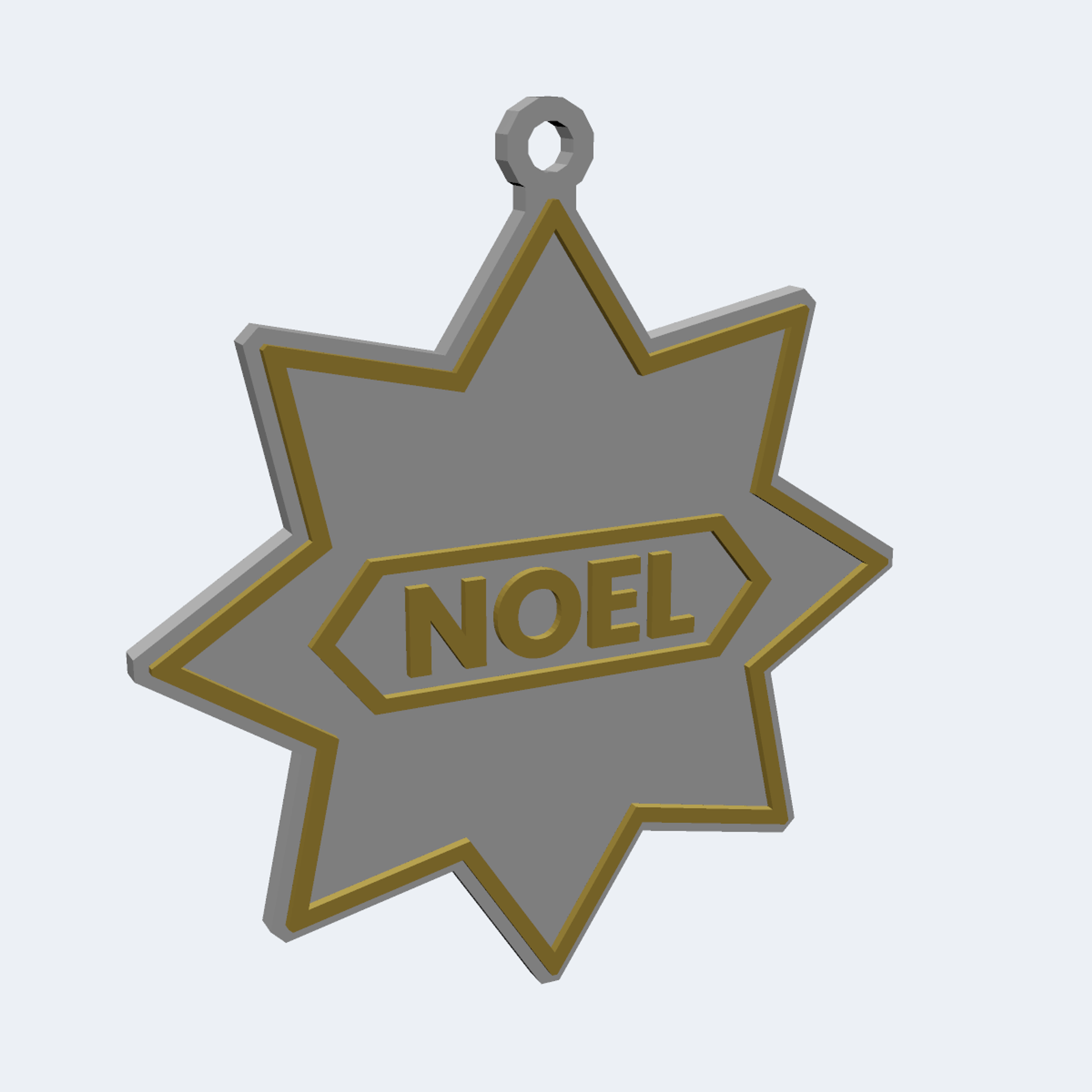

- C7 Name Star: comes with a sample name (NOEL) and a blank name plate that fits about 7 letters.

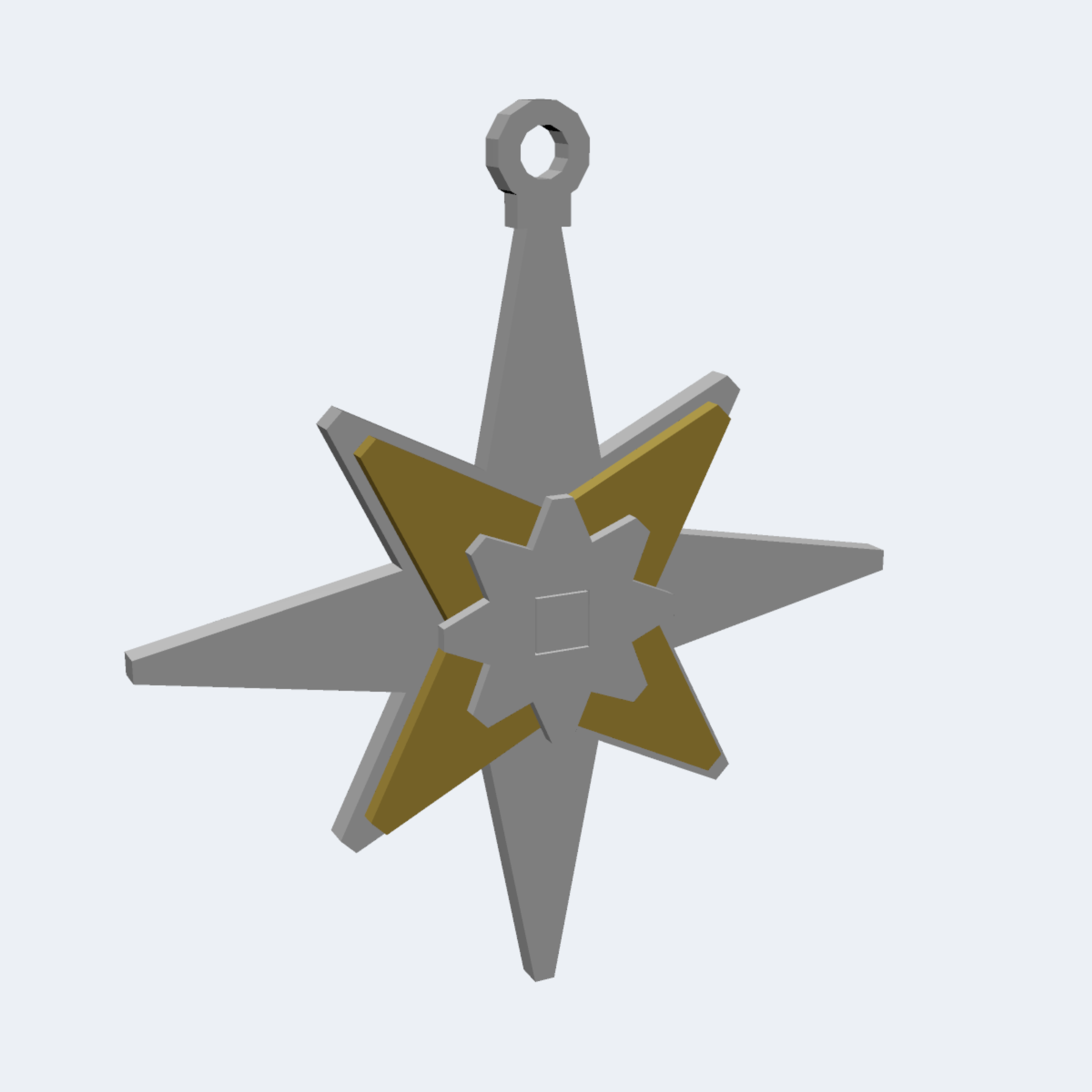

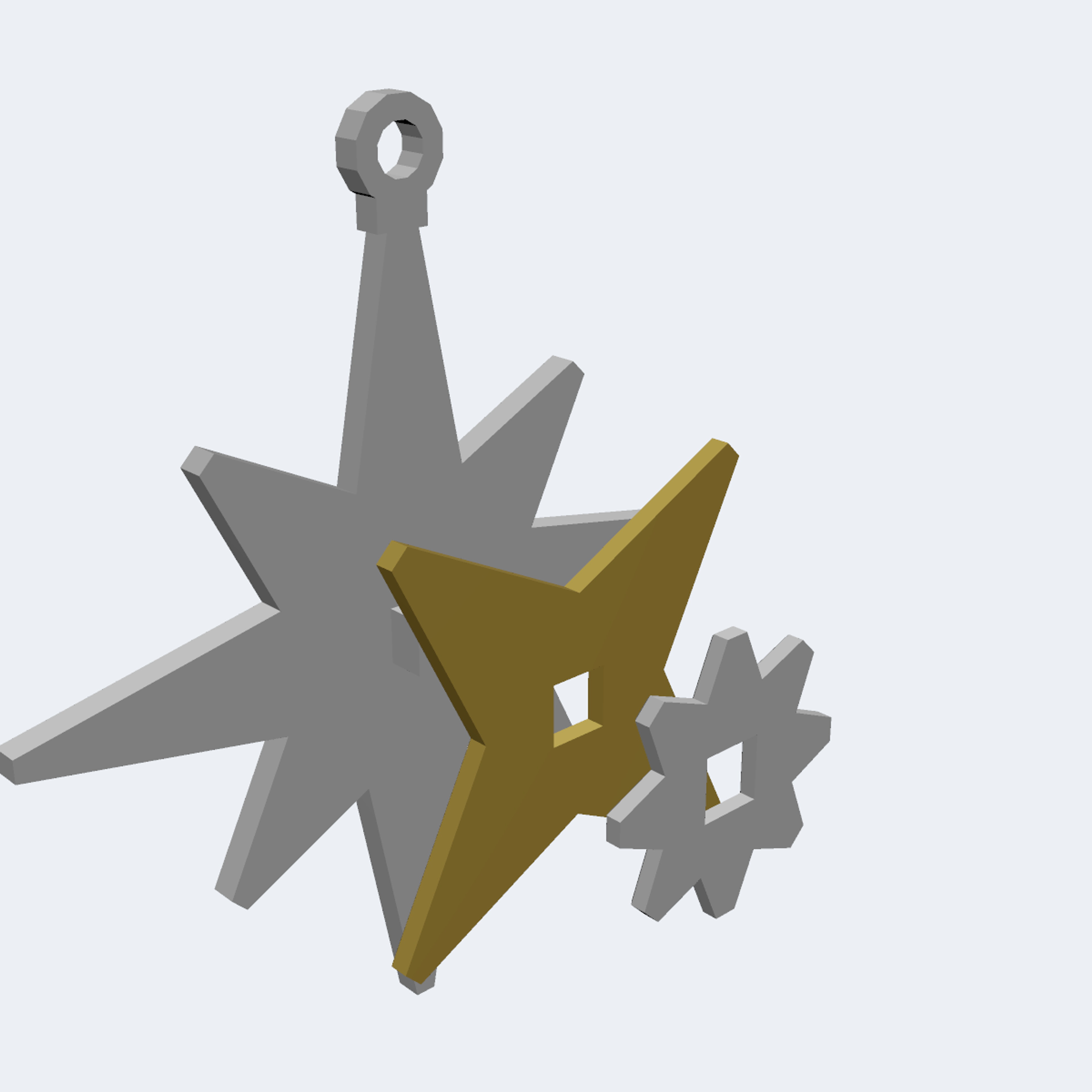

- C8 Tiered Compass Star: three stacked tiers on a square peg.
Everything prints flat in PLA with no supports. Two colours: for C1 and C7, change filament at Z 3.0 mm (PrusaSlicer files include the change), and the multi-part ornaments are colour by part. PETG is advised for the C6 Snap Flake, because the snap is borderline in PLA.
Your own name on C7 (optional): in PrusaSlicer 2.6 or newer, add a negative text volume to the blank plate, about 8.5 mm tall and 1.0 mm deep, and keep it to about 7 letters. The guide has the steps. Custom names are not CAD-checked.
You get 9 ready-to-print 3MF plates (one per ornament, both Name Star versions), 18 STL part files for any slicer, a PDF guide with settings, colour change and assembly steps, and a spec sheet.
CAD-checked, not print-tested: fits, clearances and walls were checked in CAD on the exported files, and grams and times are PrusaSlicer estimates. Press fits are sized for a calibrated printer; sand a slot if it is tight, add a drop of glue if it is loose.
Just want one? The Hex Crystal Flake (C1) is also free on its own.
Small parts, not for children under 3. PLA softens at about 55 to 60 C, so keep the ornaments away from hot bulbs and heaters.
Print notes
- PLA, 0.4 mm nozzle, 0.20 mm layers, 3 walls, 5 top / 4 bottom layers, 15% gyroid infill, no supports. Elephant-foot compensation 0.2 mm recommended. Bed 220 x 220 mm or larger. - PETG advised for C6 Snap Flake (the snap is borderline in PLA). - Two colours: for C1 and C7, change filament at Z 3.0 mm (PrusaSlicer files include the change). In other slicers, add the change at Z 3.0 mm by hand. C2, C3, C4, C5, C6 and C8 are colour by part. - No brim, except 3 mm on the C5 axle pins (already set in the C5 3MF). Pins print standing on their heads. - Grams and times (PrusaSlicer 2.9.2, PLA, 0.20 mm): C1 6.08 g, 38 min; C2 13.95 g, 1 h 39 min; C3 14.29 g, 1 h 37 min; C4 18.82 g, 2 h 06 min; C5 15.37 g, 1 h 30 min; C6 15.77 g, 1 h 55 min; C7 10.11 g, 1 h 10 min (blank version 10.06 g, 1 h 08 min); C8 7.04 g, 50 min. - Whole set (one of each, NOEL version of C7): 101.43 g, about 11 h 25 min. - Assembly: C4 goes together C, then B, then A. Slots are a 0.20 mm press fit, pegs 0.15 mm; the C5 flake turns freely on its pins. - C7 fits about 7 letters. Own name (optional): PrusaSlicer 2.6+, negative text volume on the blank plate, bold font about 8.5 mm tall, 1.0 mm deep, strokes 1.2 mm or wider. Not CAD-checked. - CAD-checked, not print-tested.
Files
- Geometric_Ornament_Set.zipzip445 KB
- GUIDE.pdfpdf45 KB
- GUIDE.mdmd14 KB
- SPEC.mdmd3.6 KB
- orn01_hex_crystal_flake_plate.3mf3mf29 KB
- orn02_layered_frost_star_plate.3mf3mf19 KB
- orn03_cross_lap_star_plate.3mf3mf5.7 KB
- orn04_trinity_star_plate.3mf3mf6.3 KB
- orn05_orbit_spinner_plate.3mf3mf84 KB
- orn06_snap_flake_plate.3mf3mf16 KB
- orn07_name_star_blank_plate.3mf3mf7.7 KB
- orn07_name_star_noel_plate.3mf3mf12 KB
- orn08_tiered_compass_star_plate.3mf3mf17 KB
- orn01_hex_crystal_flake.stlstl133 KB
- orn02_layered_frost_base.stlstl27 KB
- orn02_layered_frost_flake.stlstl67 KB
- orn03_crosslap_star_a.stlstl4.5 KB
- orn03_crosslap_star_b.stlstl20 KB
- orn04_trinity_star_a.stlstl20 KB
- orn04_trinity_star_b.stlstl5.5 KB
- orn04_trinity_star_c.stlstl4.1 KB
- orn05_orbit_spinner_flake.stlstl36 KB
- orn05_orbit_spinner_pin.stlstl198 KB
- orn05_orbit_spinner_ring.stlstl25 KB
- orn06_snap_flake_back.stlstl30 KB
- orn06_snap_flake_front.stlstl52 KB
- orn07_name_star_blank.stlstl31 KB
- orn07_name_star_noel.stlstl56 KB
- orn08_tiered_compass_l1.stlstl24 KB
- orn08_tiered_compass_l2.stlstl25 KB
- orn08_tiered_compass_l3.stlstl36 KB
