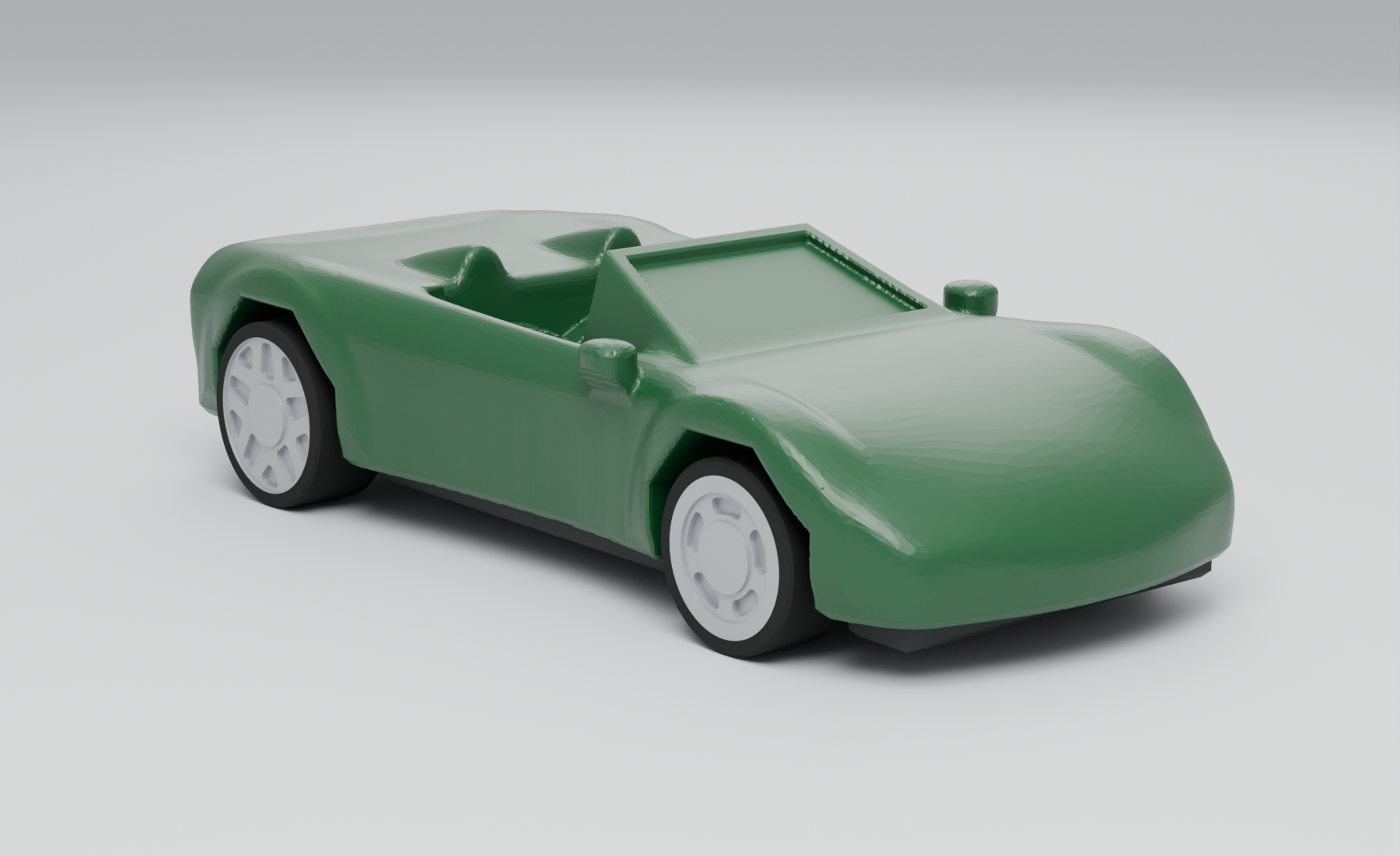

R1 Roadster on the 1:64 chassis with deep-dish front wheels and Y-spoke rear wheels

STL · 3MF · PDF · MD

Wheel Pack 1:64: Nine Printable Rim Styles for Paperclip or Metal Axles

Nine extra 1:64 rim styles, each in 11 mm front and 12 mm rear sizes, with both axle options included: standard paperclip-axle and metal-axle versions of every style. Easy-print 0.4 and showcase 0.2 versions, plus two-colour parts. CAD-checked, not print-tested.

License

  • Instant download after checkout
  • 3 downloads over 30 days, links by email
  • Digital files: all sales final. Licenses

About this design

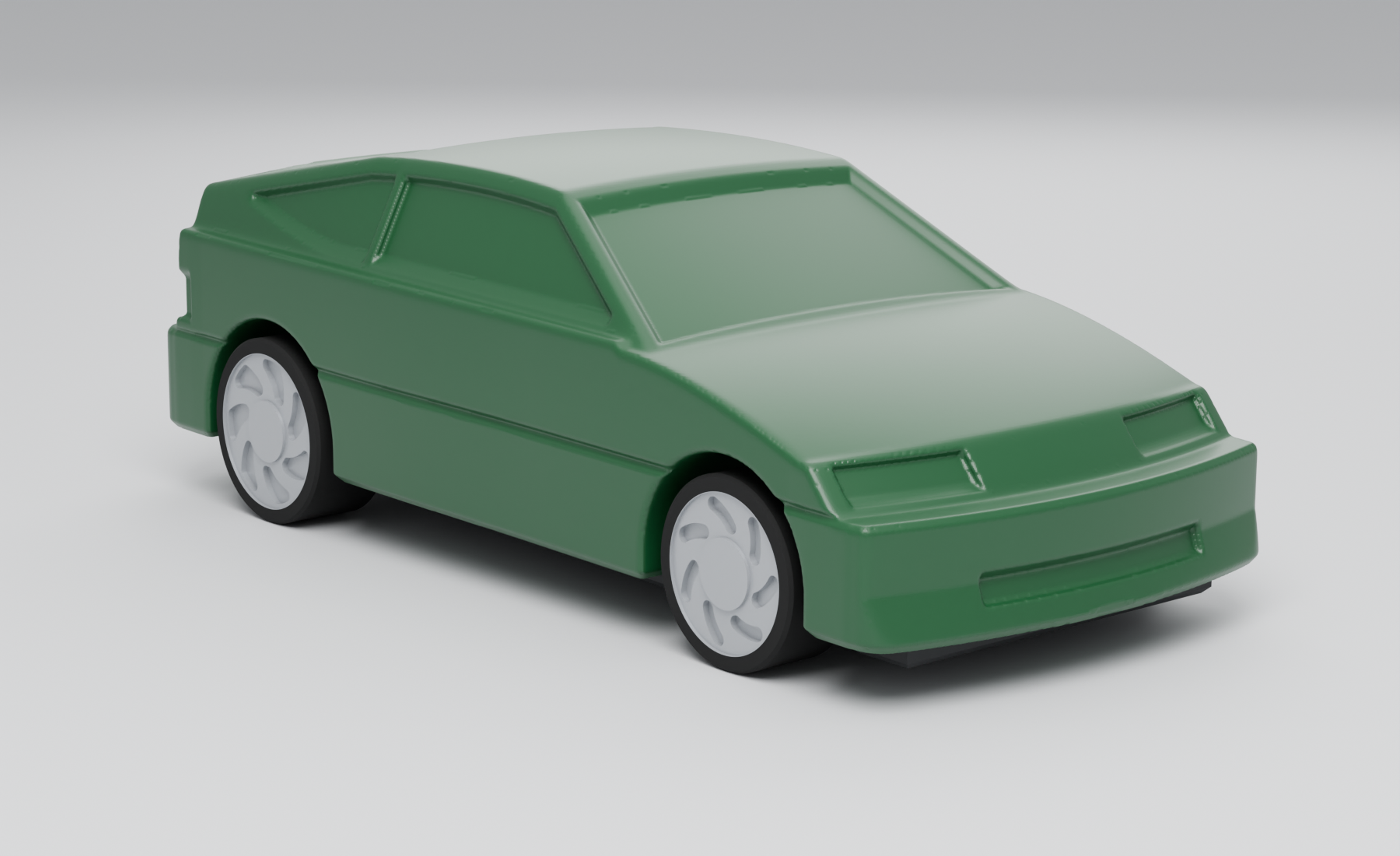

Nine extra rim styles for the 1:64 toy car chassis, with both axle options included. Every style comes in the 11 mm front and 12 mm rear sizes, so they swap straight onto the free R1 Roadster, the Hatch Coupe, the Pop-Up Coupe and the Pocket Roadster (open or hardtop), or any other car on the same 44 mm wheelbase chassis. The cars are not included.

  • Styles: Split 5-spoke, Multi-spoke mesh, Deep-dish with stepped lip, Turbofan aero disc, Forged monoblock Y-spoke, Directional swept spoke, Off-road beadlock, Retro basketweave and Slotted vintage. The directional wheels come as a left and right pair.

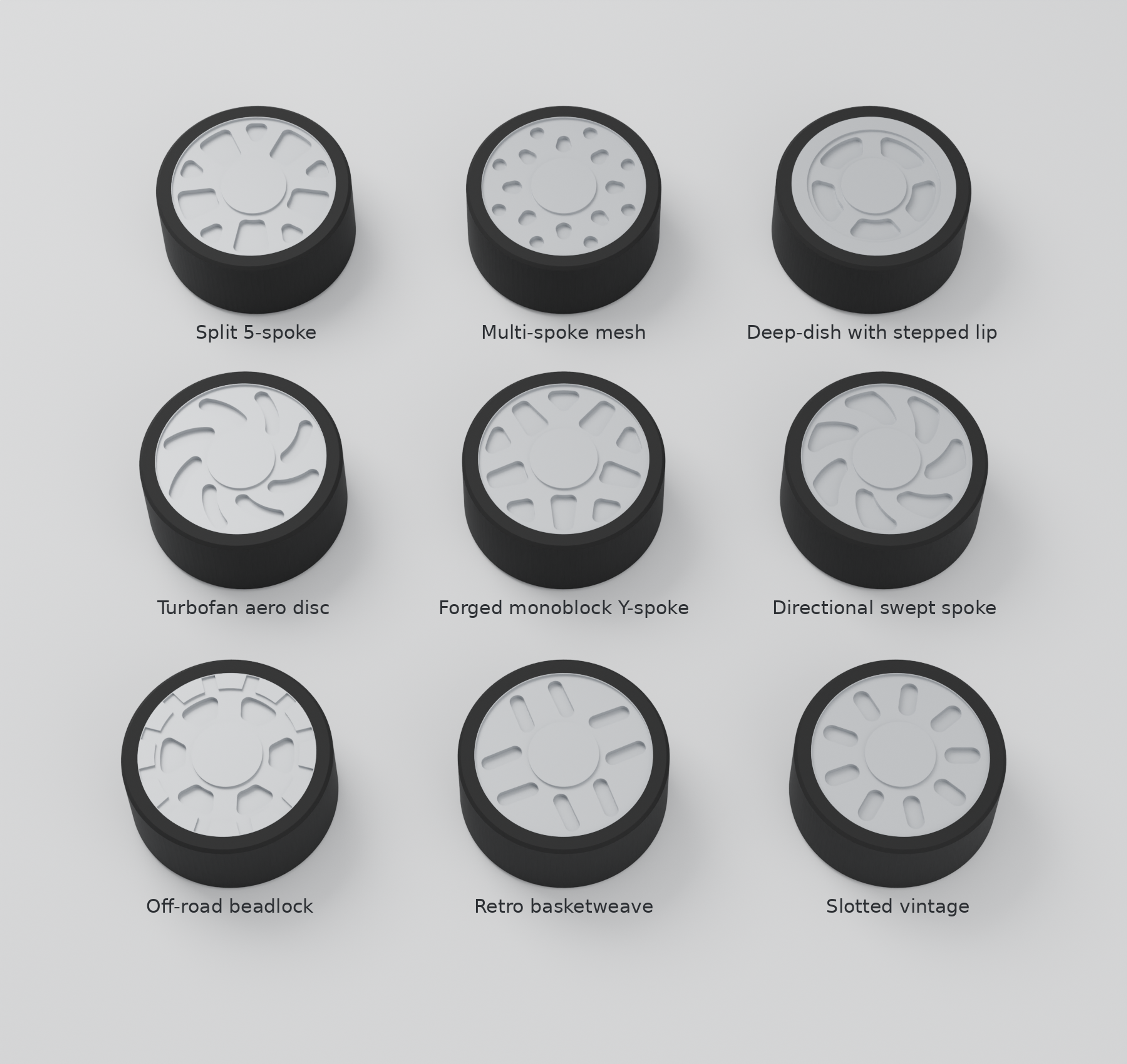

  • Easy-print versions for a 0.4 mm nozzle: solid wheels with the style cut as shallow pockets, the same way the wheels that come with the cars print.

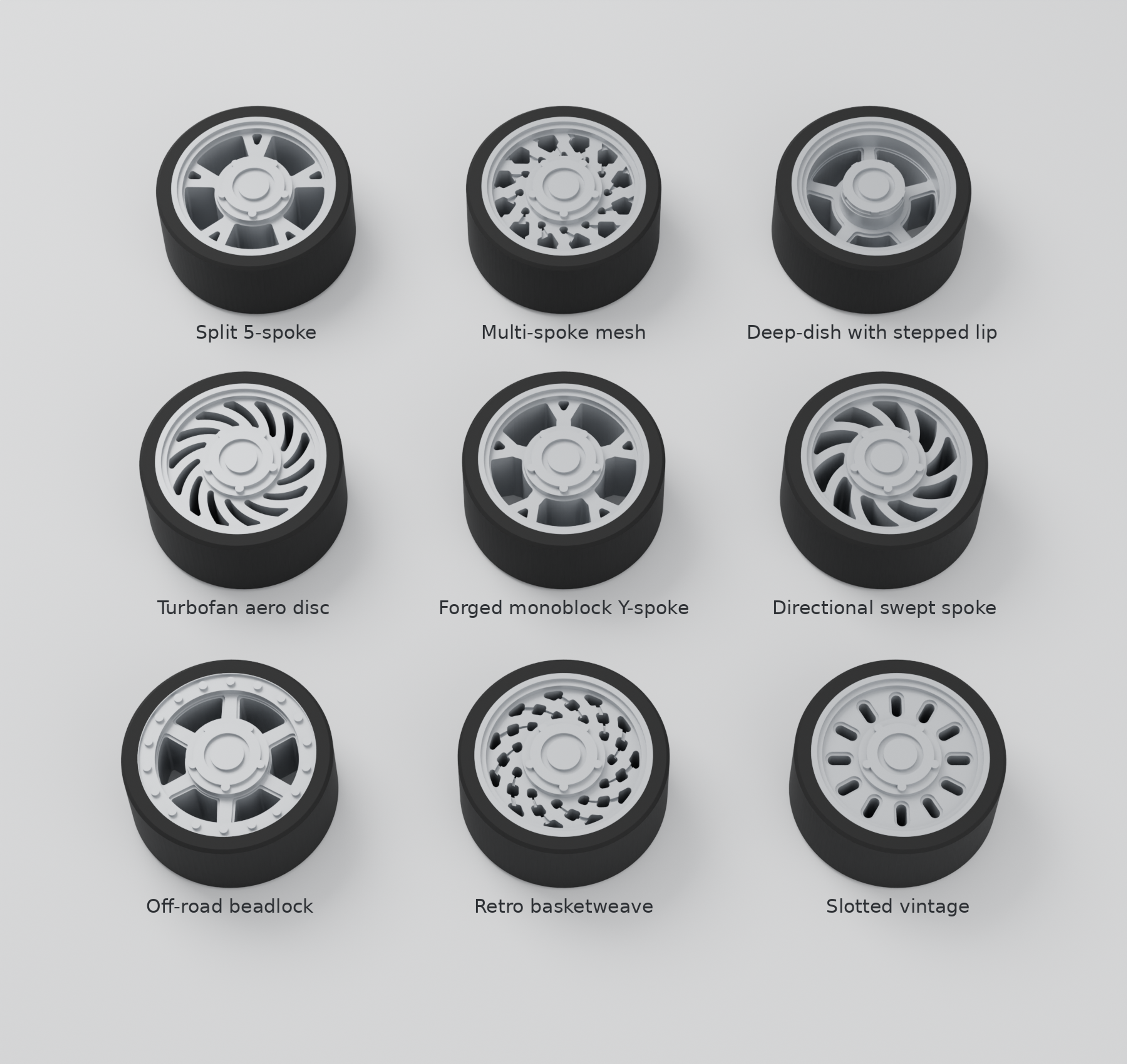

  • Showcase versions for a 0.2 mm nozzle at 0.08 mm layers: open windows between the spokes, deeper relief, lug bosses and a stepped lip.

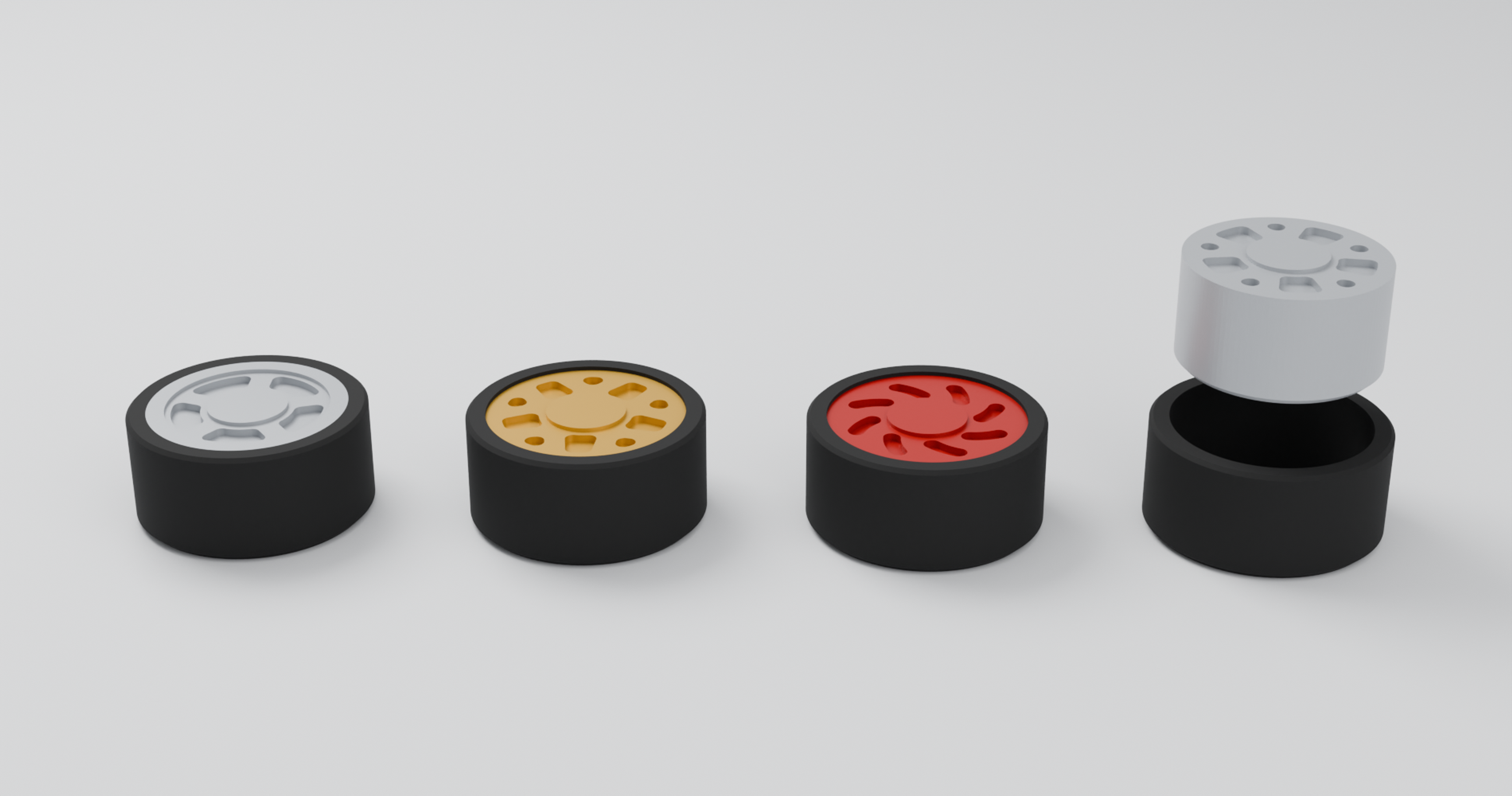

  • Two-colour option: shared tyre rings plus a rim core for every style (easy cores for all nine, showcase cores for seven; mesh and basketweave use the easy cores). The directional cores also come as a left and right pair. The same tyre rings fit both axle options.
  • Both axle options included. Standard (paperclip) wheels use the same hub as the original wheels: a 1.0 mm blind bore that presses onto a paperclip axle (ream with a 0.9 mm drill if a bore is tight). Metal-axle wheels have smaller bores for hollow 0.98 in (24.9 mm) metal shafts with nail ends; for the chassis and drill jig, get the free Metal Axle Conversion 1:64. The metal shaft and nail sizes are assumptions until a real set is measured.
  • Paperclip parts and metal-axle parts don't mix: the metal-axle wheels don't fit paperclip axles, and the paperclip wheels don't fit metal axles.
  • Print inner face down at 100 % infill with no supports. About 0.6 to 0.8 g and 10 to 14 min per easy-print wheel; 0.5 to 0.7 g and 27 to 42 min per showcase wheel (slicer estimates, PLA).
  • Both axle options in one download: 78 standard parts and 76 metal-axle parts, each as STL, 3MF and STEP with editable SolidCraft source (the tyre rings and the four mirrored right-hand directional rim cores come without SolidCraft source), plus a parameters guide for the metal-axle parts. A guide (PDF and Markdown) and a spec sheet are in the zip and also separate downloads.

The guide covers which nozzle to pick, print orientation, two-colour assembly, how to swap rims on a built car and the metal-axle option.

CAD-checked, not print-tested: every file is a closed single-piece mesh and every wheel was turned through a full rotation on the chassis in CAD with no contact. Grams and times are slicer estimates.

For ages 8 and up once fitted. Small parts: not for children under 3. Wire cutting and drilling are adult jobs.

Licensed by Raymond Thurman, doing business as SaiyanPrints.

Print notes

- Start with easy-print-0.4/: PLA, 0.4 mm nozzle, 0.12 mm layers (0.16 mm first), 3 perimeters, 100 % infill, no supports. About 0.59 g / 10.5 min (11 mm) and 0.78 g / 13.6 min (12 mm) per wheel. - Showcase (showcase-0.2/): 0.2 mm nozzle, 0.22 mm extrusion width, 0.08 mm layers (0.12 mm first), 100 % rectilinear, 2 mm brim. 0.48 to 0.55 g / 27 to 31 min (11 mm) and 0.61 to 0.74 g / 33 to 42 min (12 mm) per wheel. - All wheels and rim cores print inner face down, as supplied. Print a set of four or add a 2 mm brim; a lone small part can warn about bed adhesion. - Two-colour: tyre rings (0.19 g / 0.24 g, standing on an end face) plus a rim core per wheel. Press the ring onto the core flat against a table. - Directional wheels and directional rim cores are mirrored pairs: plain on the left, _R on the right, one of each per axle. - Fit: press fit on a paperclip axle (1.0 mm blind bore). Ream 0.9 mm if tight; the play shim from the car sets the side play.

Files

  • Wheel_Pack_164.zipzip89 MB
  • GUIDE.pdfpdf43 KB
  • GUIDE.mdmd13 KB
  • SPEC.mdmd13 KB
  • p164_wheel_beadlock_L.3mf3mf77 KB
  • p164_wheel_beadlock_L.stlstl397 KB
  • p164_wheel_beadlock_S.3mf3mf74 KB
  • p164_wheel_beadlock_S.stlstl380 KB
  • p164_wheel_directional_L.3mf3mf90 KB
  • p164_wheel_directional_L.stlstl440 KB
  • p164_wheel_directional_L_R.3mf3mf90 KB
  • p164_wheel_directional_L_R.stlstl440 KB
  • p164_wheel_directional_S.3mf3mf83 KB
  • p164_wheel_directional_S.stlstl411 KB
  • p164_wheel_directional_S_R.3mf3mf83 KB
  • p164_wheel_directional_S_R.stlstl412 KB
  • p164_wheel_dish_L.3mf3mf78 KB
  • p164_wheel_dish_L.stlstl397 KB
  • p164_wheel_dish_S.3mf3mf77 KB
  • p164_wheel_dish_S.stlstl387 KB
  • p164_wheel_mesh_L.3mf3mf100 KB
  • p164_wheel_mesh_L.stlstl517 KB
  • p164_wheel_mesh_S.3mf3mf73 KB
  • p164_wheel_mesh_S.stlstl371 KB
  • p164_wheel_slotted_L.3mf3mf80 KB
  • p164_wheel_slotted_L.stlstl404 KB
  • p164_wheel_slotted_S.3mf3mf74 KB
  • p164_wheel_slotted_S.stlstl379 KB
  • p164_wheel_split10_L.3mf3mf87 KB
  • p164_wheel_split10_L.stlstl444 KB
  • p164_wheel_split10_S.3mf3mf83 KB
  • p164_wheel_split10_S.stlstl424 KB
  • p164_wheel_turbofan_L.3mf3mf89 KB
  • p164_wheel_turbofan_L.stlstl441 KB
  • p164_wheel_turbofan_S.3mf3mf81 KB
  • p164_wheel_turbofan_S.stlstl402 KB
  • p164_wheel_weave_L.3mf3mf77 KB
  • p164_wheel_weave_L.stlstl392 KB
  • p164_wheel_weave_S.3mf3mf75 KB
  • p164_wheel_weave_S.stlstl380 KB
  • p164_wheel_yspoke_L.3mf3mf86 KB
  • p164_wheel_yspoke_L.stlstl440 KB
  • p164_wheel_yspoke_S.3mf3mf82 KB
  • p164_wheel_yspoke_S.stlstl415 KB
  • p164_wheel_sc_beadlock_L.3mf3mf149 KB
  • p164_wheel_sc_beadlock_L.stlstl774 KB
  • p164_wheel_sc_beadlock_S.3mf3mf142 KB
  • p164_wheel_sc_beadlock_S.stlstl734 KB
  • p164_wheel_sc_directional_L.3mf3mf109 KB
  • p164_wheel_sc_directional_L.stlstl545 KB
  • p164_wheel_sc_directional_L_R.3mf3mf110 KB
  • p164_wheel_sc_directional_L_R.stlstl545 KB
  • p164_wheel_sc_directional_S.3mf3mf107 KB
  • p164_wheel_sc_directional_S.stlstl532 KB
  • p164_wheel_sc_directional_S_R.3mf3mf106 KB
  • p164_wheel_sc_directional_S_R.stlstl531 KB
  • p164_wheel_sc_dish_L.3mf3mf128 KB
  • p164_wheel_sc_dish_L.stlstl650 KB
  • p164_wheel_sc_dish_S.3mf3mf125 KB
  • p164_wheel_sc_dish_S.stlstl640 KB
  • p164_wheel_sc_mesh_L.3mf3mf133 KB
  • p164_wheel_sc_mesh_L.stlstl670 KB
  • p164_wheel_sc_mesh_S.3mf3mf120 KB
  • p164_wheel_sc_mesh_S.stlstl608 KB
  • p164_wheel_sc_slotted_L.3mf3mf121 KB
  • p164_wheel_sc_slotted_L.stlstl605 KB
  • p164_wheel_sc_slotted_S.3mf3mf113 KB
  • p164_wheel_sc_slotted_S.stlstl565 KB
  • p164_wheel_sc_split10_L.3mf3mf105 KB
  • p164_wheel_sc_split10_L.stlstl525 KB
  • p164_wheel_sc_split10_S.3mf3mf103 KB
  • p164_wheel_sc_split10_S.stlstl518 KB
  • p164_wheel_sc_turbofan_L.3mf3mf115 KB
  • p164_wheel_sc_turbofan_L.stlstl570 KB
  • p164_wheel_sc_turbofan_S.3mf3mf109 KB
  • p164_wheel_sc_turbofan_S.stlstl542 KB
  • p164_wheel_sc_weave_L.3mf3mf148 KB
  • p164_wheel_sc_weave_L.stlstl728 KB
  • p164_wheel_sc_weave_S.3mf3mf130 KB
  • p164_wheel_sc_weave_S.stlstl648 KB
  • p164_wheel_sc_yspoke_L.3mf3mf106 KB
  • p164_wheel_sc_yspoke_L.stlstl532 KB
  • p164_wheel_sc_yspoke_S.3mf3mf103 KB
  • p164_wheel_sc_yspoke_S.stlstl519 KB
  • p164_rimcore_beadlock_L.3mf3mf76 KB
  • p164_rimcore_beadlock_L.stlstl390 KB
  • p164_rimcore_beadlock_S.3mf3mf76 KB
  • p164_rimcore_beadlock_S.stlstl390 KB
  • p164_rimcore_directional_L.3mf3mf76 KB
  • p164_rimcore_directional_L.stlstl378 KB
  • p164_rimcore_directional_L_R.3mf3mf76 KB
  • p164_rimcore_directional_L_R.stlstl379 KB
  • p164_rimcore_directional_S.3mf3mf70 KB
  • p164_rimcore_directional_S.stlstl352 KB
  • p164_rimcore_directional_S_R.3mf3mf71 KB
  • p164_rimcore_directional_S_R.stlstl354 KB
  • p164_rimcore_dish_L.3mf3mf79 KB
  • p164_rimcore_dish_L.stlstl403 KB
  • p164_rimcore_dish_S.3mf3mf80 KB
  • p164_rimcore_dish_S.stlstl406 KB
  • p164_rimcore_mesh_L.3mf3mf67 KB
  • p164_rimcore_mesh_L.stlstl350 KB
  • p164_rimcore_mesh_S.3mf3mf66 KB
  • p164_rimcore_mesh_S.stlstl336 KB
  • p164_rimcore_slotted_L.3mf3mf72 KB
  • p164_rimcore_slotted_L.stlstl366 KB
  • p164_rimcore_slotted_S.3mf3mf66 KB
  • p164_rimcore_slotted_S.stlstl343 KB
  • p164_rimcore_split10_L.3mf3mf77 KB
  • p164_rimcore_split10_L.stlstl394 KB
  • p164_rimcore_split10_S.3mf3mf61 KB
  • p164_rimcore_split10_S.stlstl315 KB
  • p164_rimcore_turbofan_L.3mf3mf74 KB
  • p164_rimcore_turbofan_L.stlstl375 KB
  • p164_rimcore_turbofan_S.3mf3mf69 KB
  • p164_rimcore_turbofan_S.stlstl345 KB
  • p164_rimcore_weave_L.3mf3mf68 KB
  • p164_rimcore_weave_L.stlstl347 KB
  • p164_rimcore_weave_S.3mf3mf67 KB
  • p164_rimcore_weave_S.stlstl341 KB
  • p164_rimcore_yspoke_L.3mf3mf76 KB
  • p164_rimcore_yspoke_L.stlstl390 KB
  • p164_rimcore_yspoke_S.3mf3mf60 KB
  • p164_rimcore_yspoke_S.stlstl306 KB
  • p164_rimcore_sc_beadlock_L.3mf3mf138 KB
  • p164_rimcore_sc_beadlock_L.stlstl721 KB
  • p164_rimcore_sc_beadlock_S.3mf3mf132 KB
  • p164_rimcore_sc_beadlock_S.stlstl690 KB
  • p164_rimcore_sc_directional_L.3mf3mf97 KB
  • p164_rimcore_sc_directional_L.stlstl487 KB
  • p164_rimcore_sc_directional_L_R.3mf3mf98 KB
  • p164_rimcore_sc_directional_L_R.stlstl487 KB
  • p164_rimcore_sc_directional_S.3mf3mf96 KB
  • p164_rimcore_sc_directional_S.stlstl481 KB
  • p164_rimcore_sc_directional_S_R.3mf3mf96 KB
  • p164_rimcore_sc_directional_S_R.stlstl480 KB
  • p164_rimcore_sc_dish_L.3mf3mf116 KB
  • p164_rimcore_sc_dish_L.stlstl593 KB
  • p164_rimcore_sc_dish_S.3mf3mf115 KB
  • p164_rimcore_sc_dish_S.stlstl589 KB
  • p164_rimcore_sc_slotted_L.3mf3mf109 KB
  • p164_rimcore_sc_slotted_L.stlstl546 KB
  • p164_rimcore_sc_slotted_S.3mf3mf102 KB
  • p164_rimcore_sc_slotted_S.stlstl514 KB
  • p164_rimcore_sc_split10_L.3mf3mf93 KB
  • p164_rimcore_sc_split10_L.stlstl468 KB
  • p164_rimcore_sc_split10_S.3mf3mf92 KB
  • p164_rimcore_sc_split10_S.stlstl467 KB
  • p164_rimcore_sc_turbofan_L.3mf3mf103 KB
  • p164_rimcore_sc_turbofan_L.stlstl513 KB
  • p164_rimcore_sc_turbofan_S.3mf3mf98 KB
  • p164_rimcore_sc_turbofan_S.stlstl491 KB
  • p164_rimcore_sc_yspoke_L.3mf3mf94 KB
  • p164_rimcore_sc_yspoke_L.stlstl475 KB
  • p164_rimcore_sc_yspoke_S.3mf3mf93 KB
  • p164_rimcore_sc_yspoke_S.stlstl468 KB
  • p164_tyre_ring_L.3mf3mf32 KB
  • p164_tyre_ring_L.stlstl161 KB
  • p164_tyre_ring_S.3mf3mf32 KB
  • p164_tyre_ring_S.stlstl163 KB
