Garage Starter Trio 1:64: Three Printable Toy Car Bodies with Chassis and Wheels
Three 1:64 toy car bodies plus a bonus hardtop, inspired by classic 80s/90s Japanese sport compacts. Each comes with the standard chassis and classic 5-spoke wheels. PLA, no supports. CAD-checked, not print-tested.
- Instant download after checkout
- 3 downloads over 30 days, links by email
- Digital files: all sales final. Licenses
About this design
Three small cars for the 1:64 swappable-body chassis, inspired by classic 80s/90s Japanese sport compacts, plus a bonus hardtop version of the roadster. Each body is one piece and pushes onto the chassis posts, so you can swap bodies on one chassis or build one chassis per car.

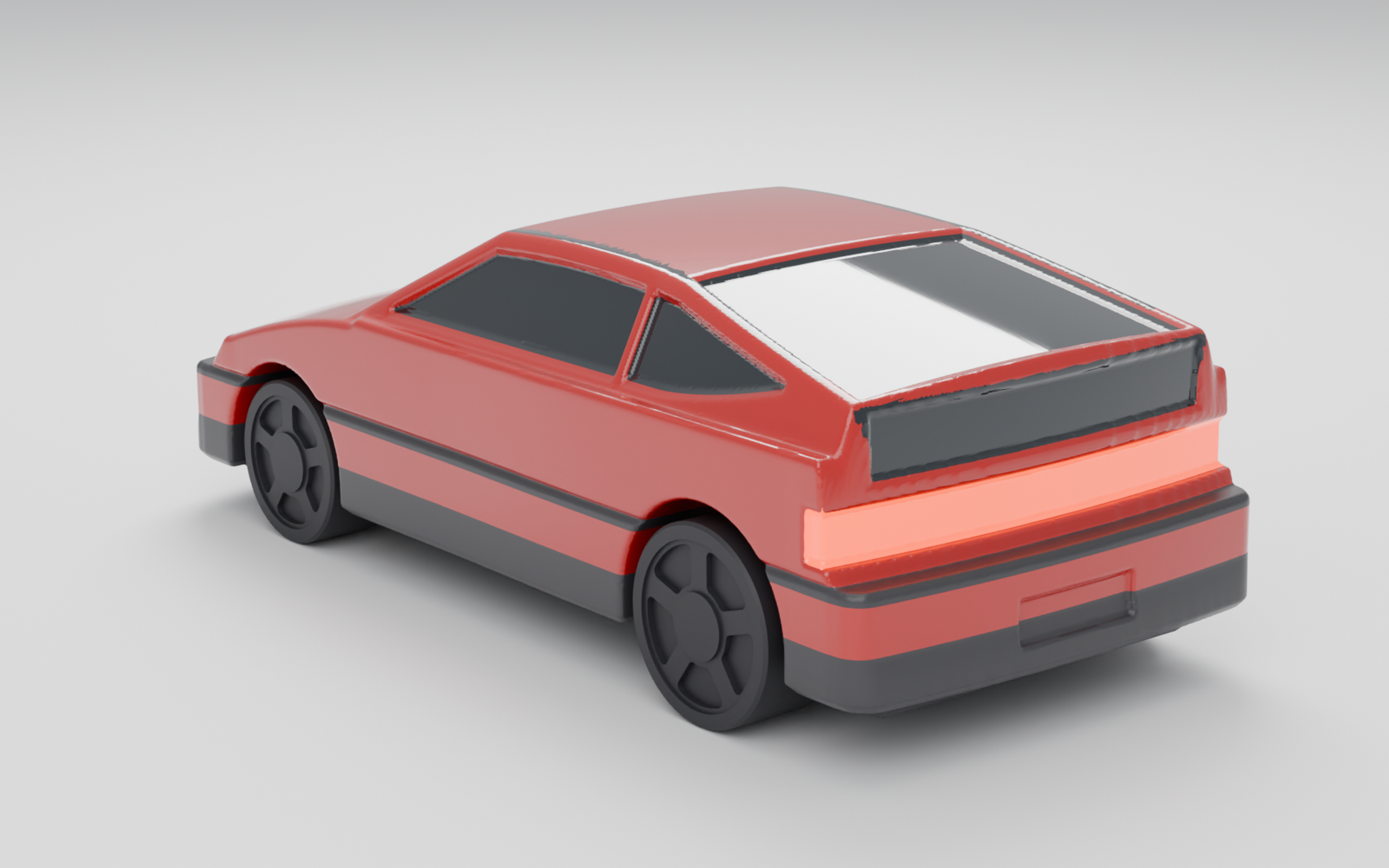

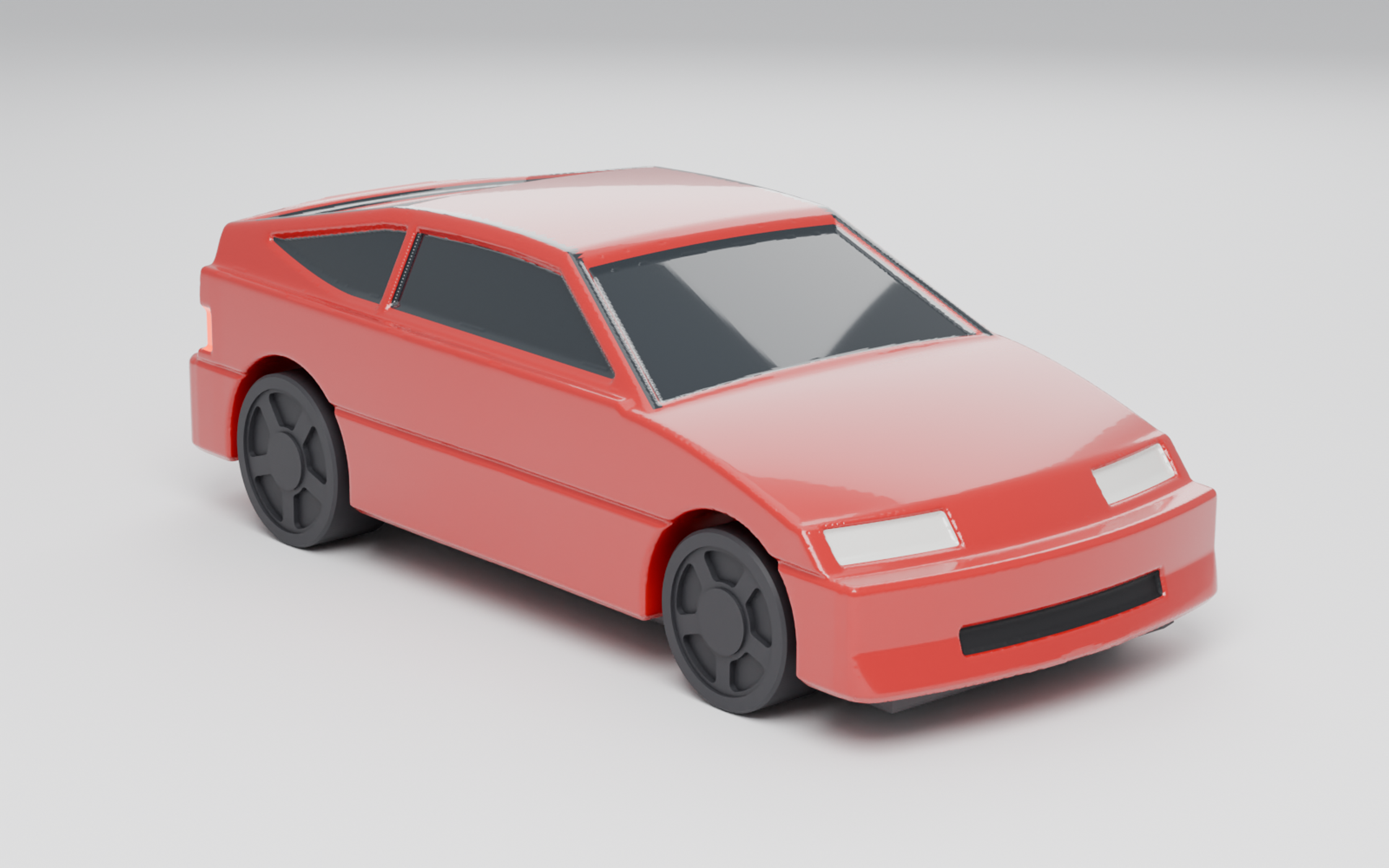

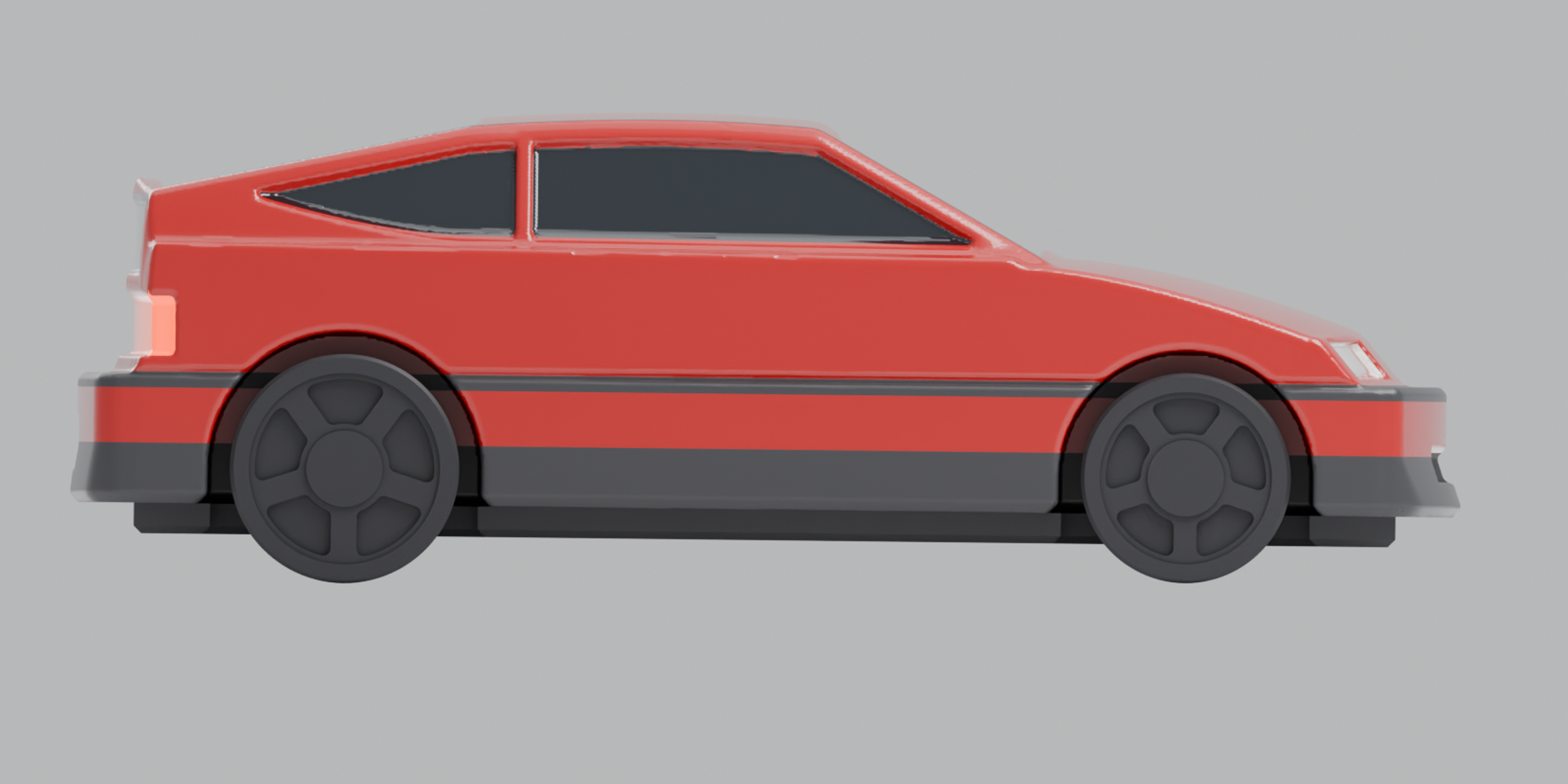

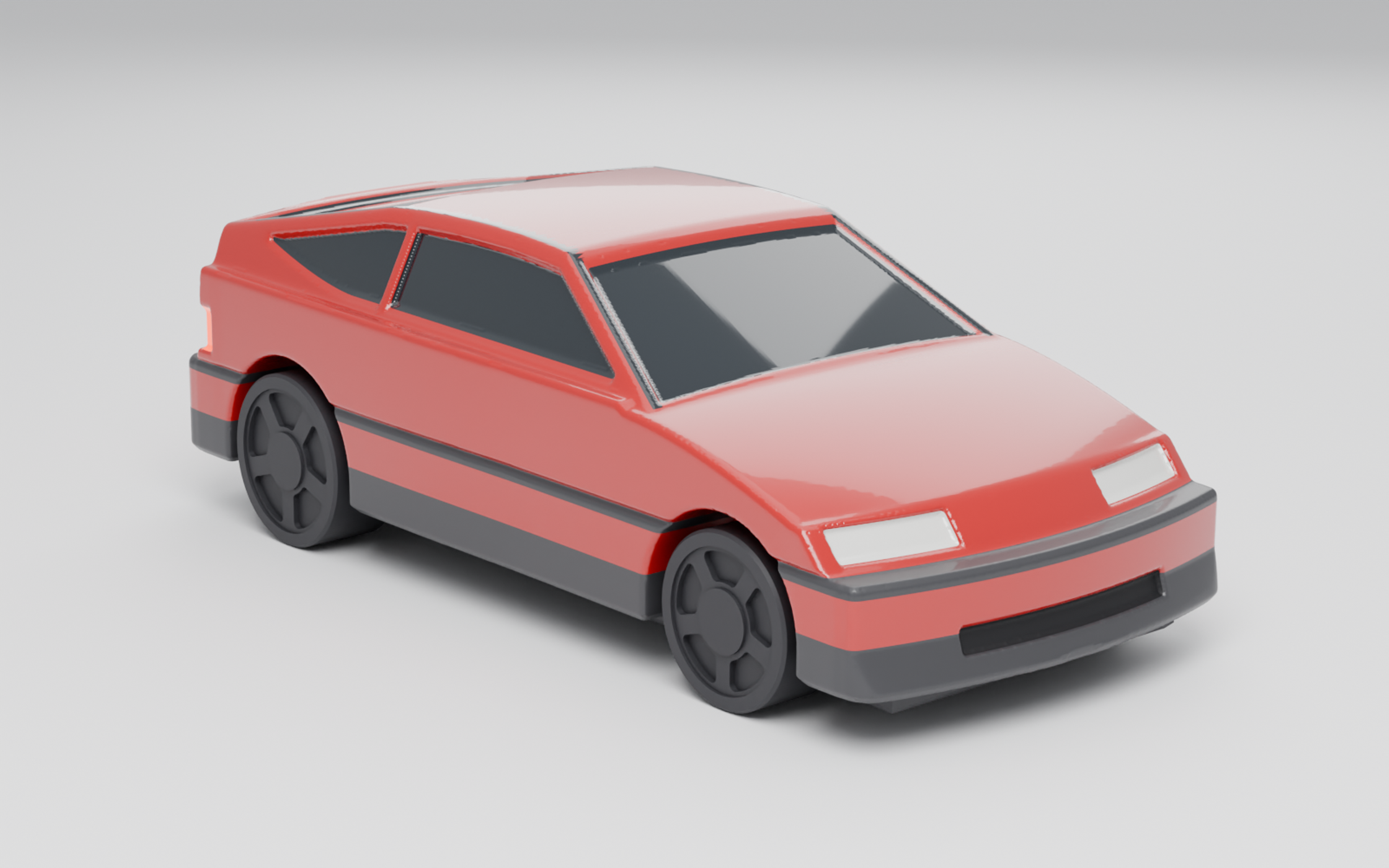

- Hatch Coupe: a short two-seat hatch with a chopped tail. About 72.7 x 31.8 x 24.3 mm on the chassis.

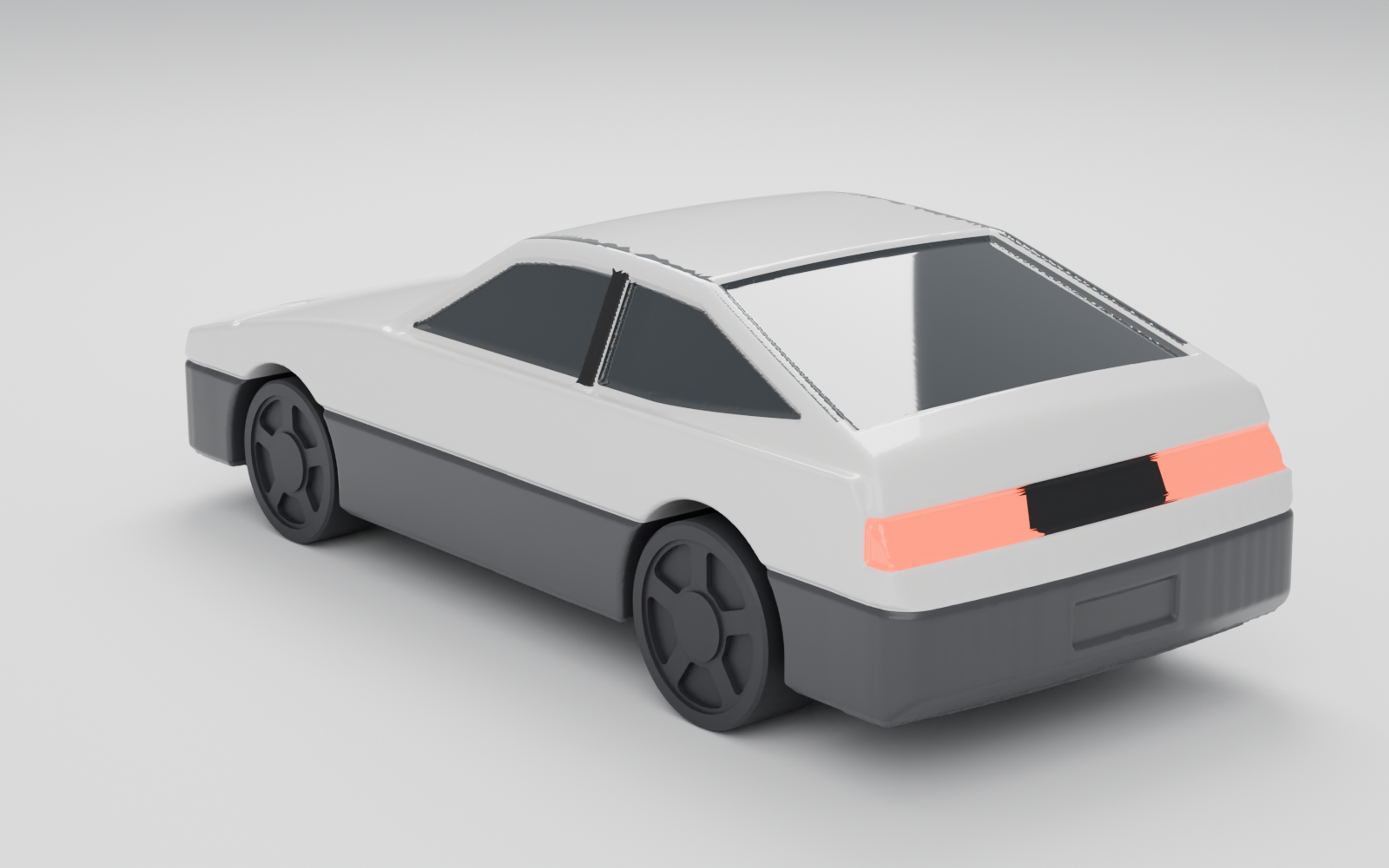

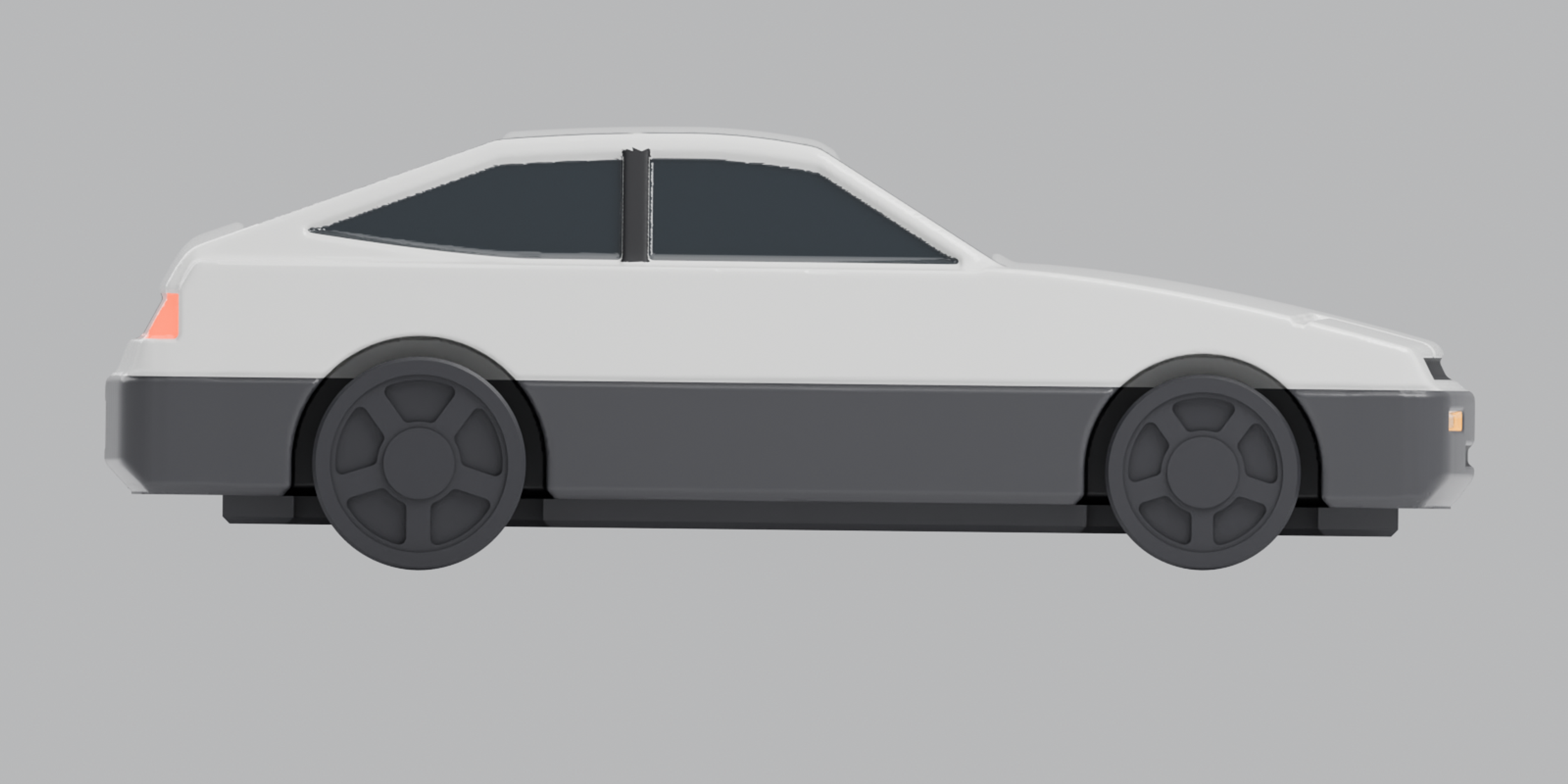

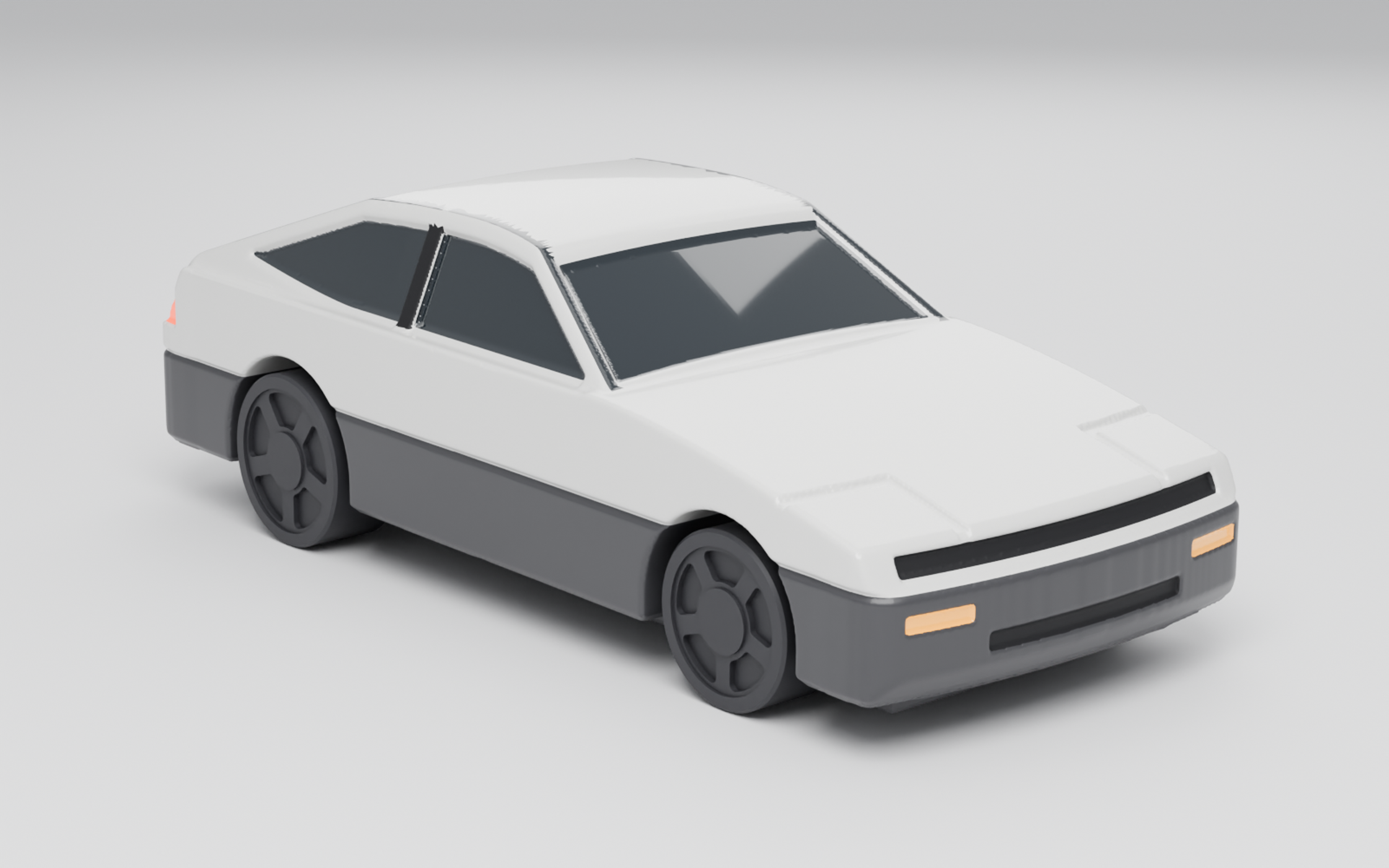

- Pop-Up Coupe: a wedge-shaped hatch coupe with pop-up lamps. About 76.9 x 31.8 x 24.6 mm.

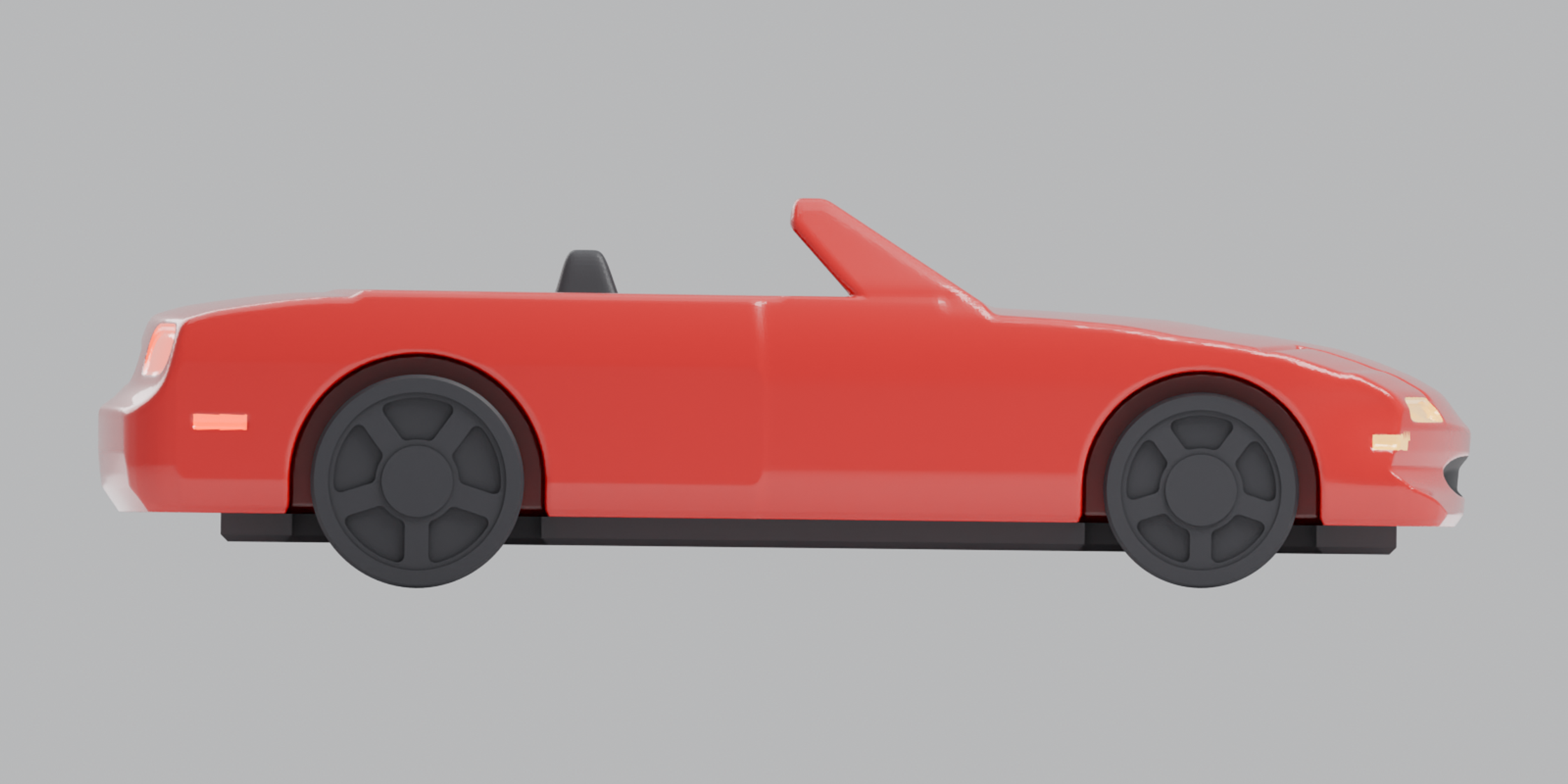

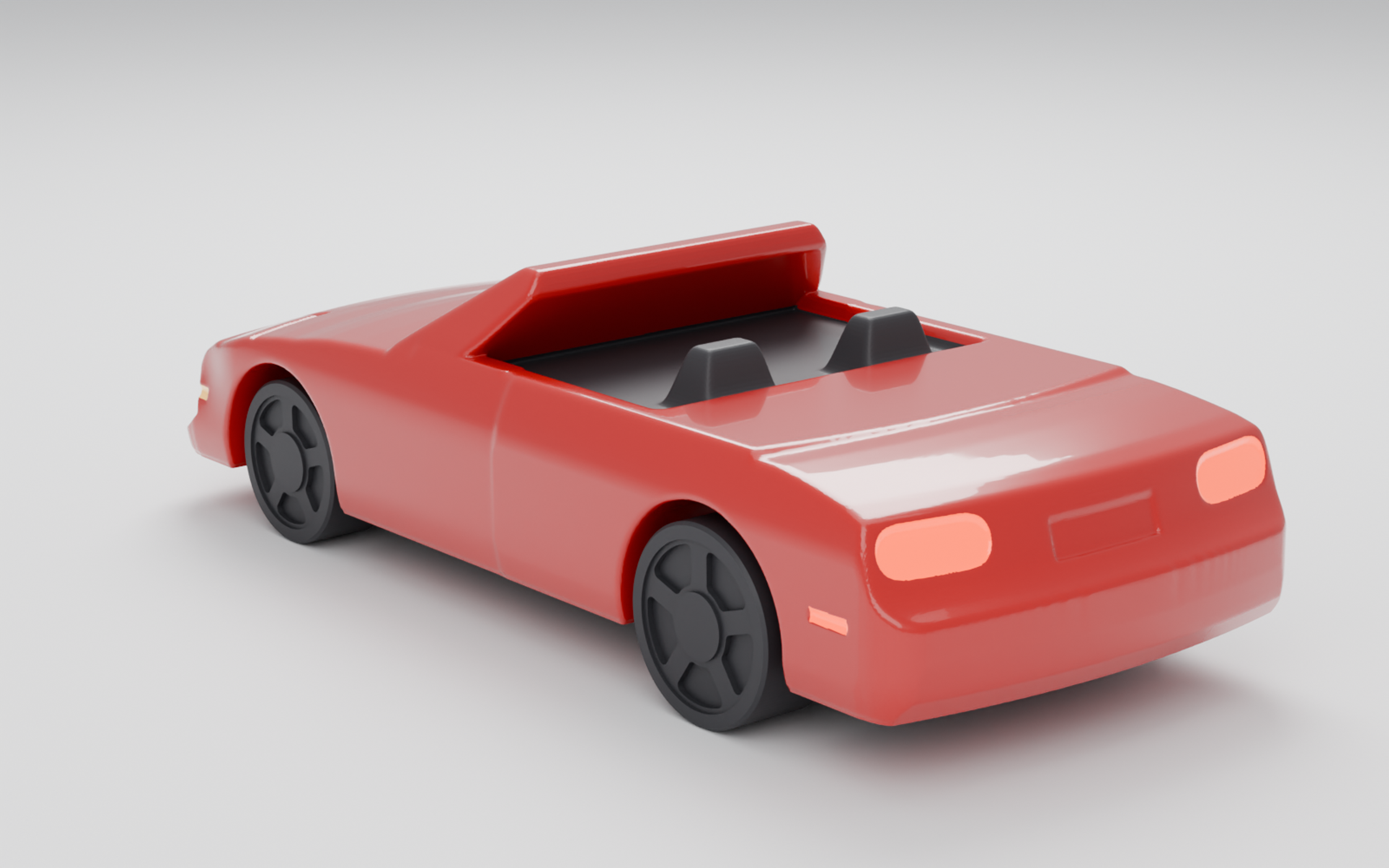

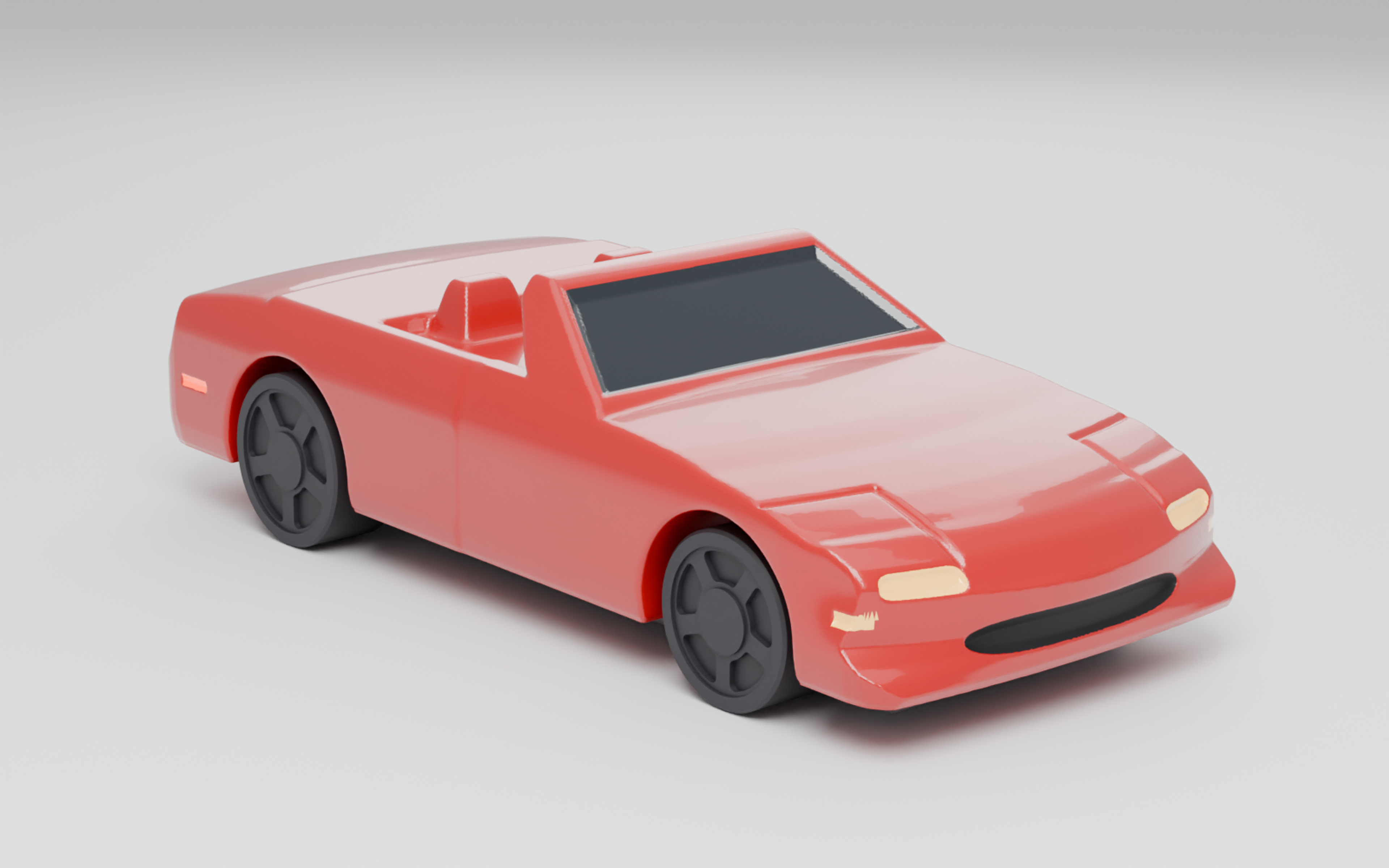

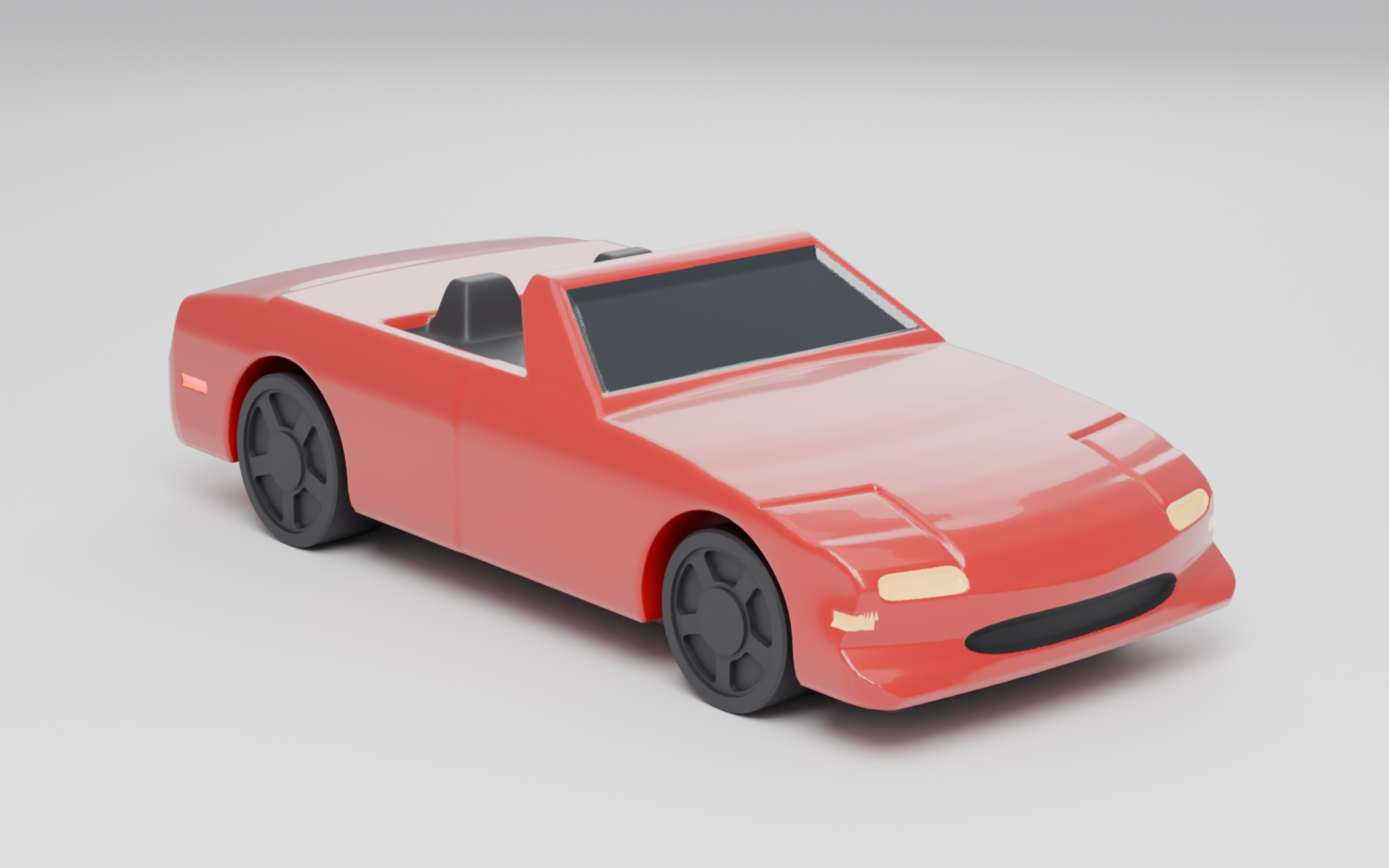

- Pocket Roadster: a small open two-seater. About 77.1 x 32.0 x 21.7 mm.

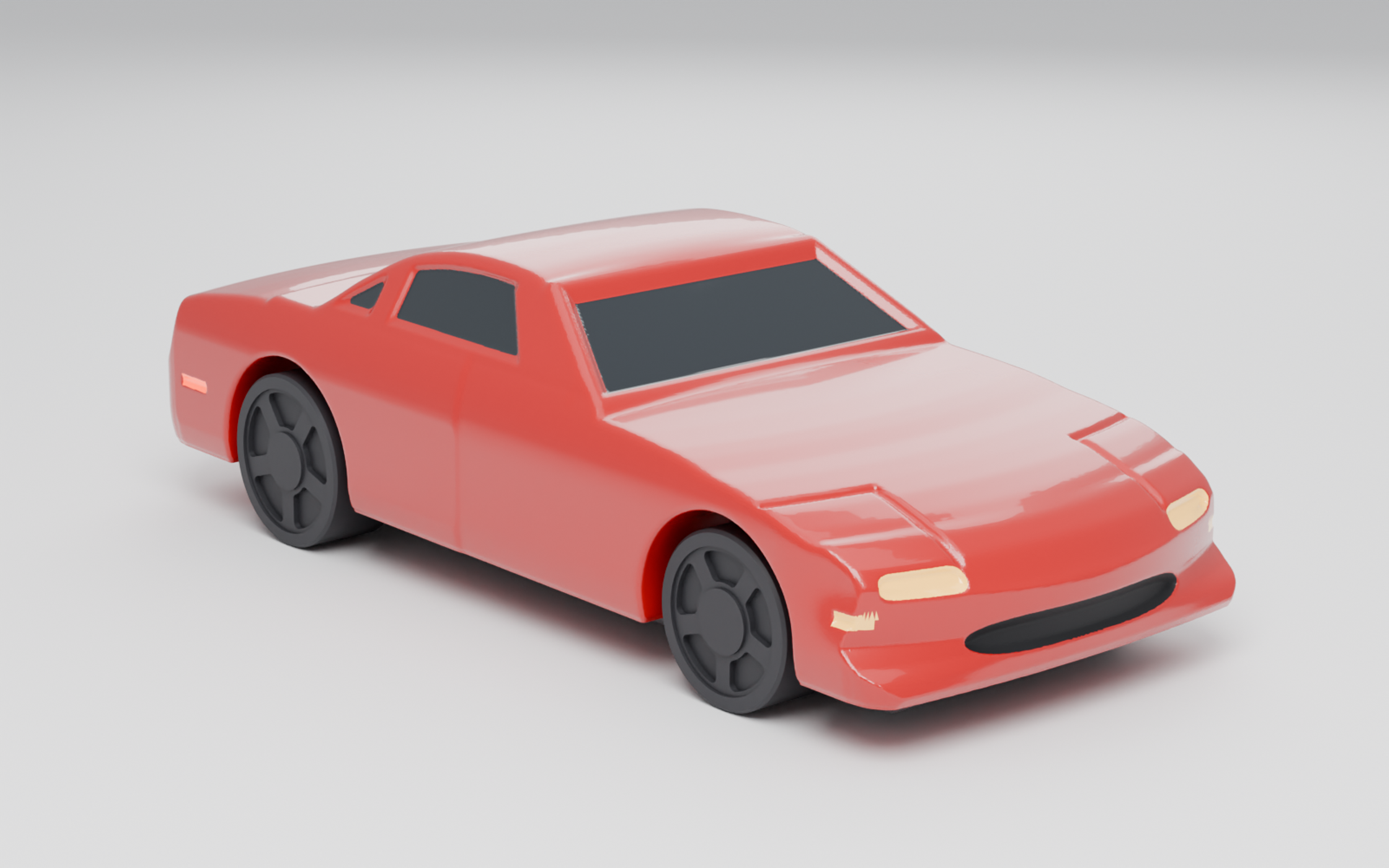

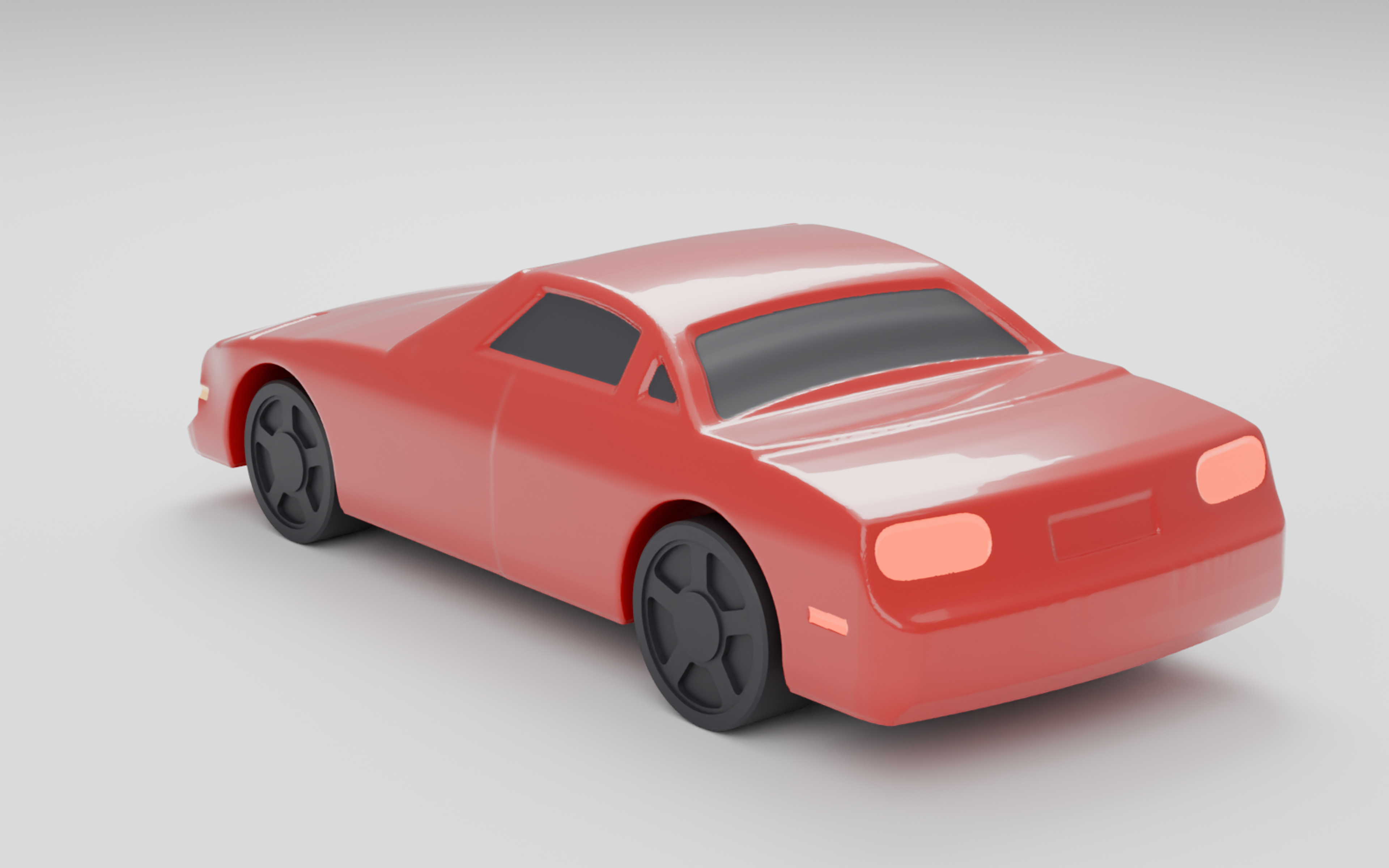

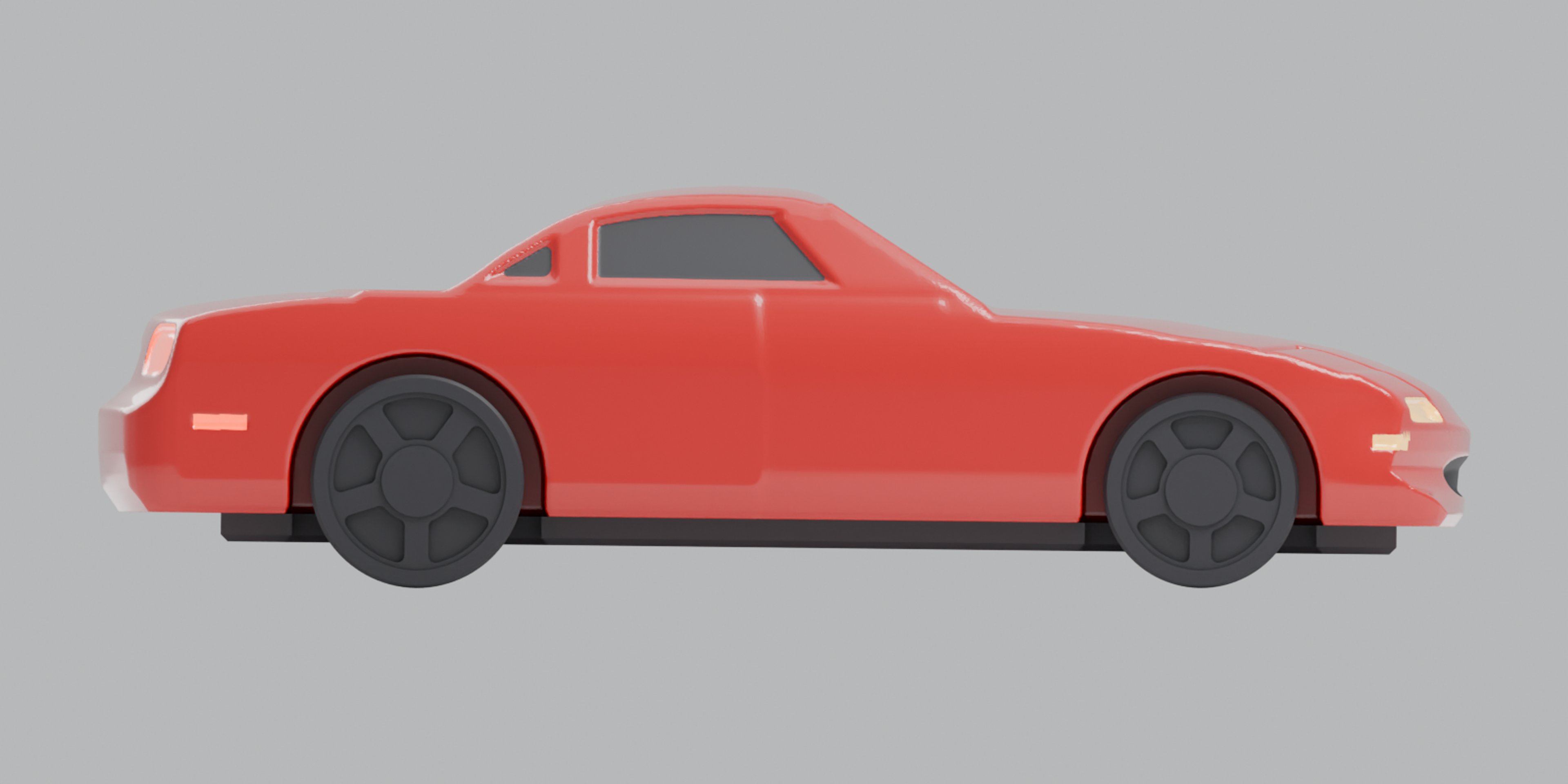

- Bonus: Pocket Roadster Hardtop, the same car with a fixed roof. About 77.1 x 32.0 x 22.3 mm.
Each car is its own download with the body, the two-tone files, the standard chassis (44 mm wheelbase), classic 5-spoke wheels (11 mm front, 12 mm rear), the play shim and optional two-colour wheel parts. These are the same chassis and wheel files as the free R1 Roadster kit, so a chassis you already printed fits every body here.
Printing: PLA on a 0.4 mm nozzle, 0.12 mm layers, 3 walls, 15% infill, no supports. Bodies print upright, rim down, as supplied. Slicer estimates for the bodies: about 13.5 to 15.5 g and about 2 hours each.
Two-tone is optional. The Hatch Coupe and Pop-Up Coupe do it on a single-extruder printer with filament changes at set heights (listed in each README). The roadster's dark cockpit and the hardtop's dark glass need a multi-material printer.
You supply two standard paperclips per car for the axles. An adult straightens, cuts and files the wire and drills the axle holes with a 1.2 mm pin vise drill; the README in each download walks through it.
CAD-checked, not print-tested: fit on the chassis, wall thickness and print estimates are CAD and slicer values.
The lengths follow each car's true 1:64 scale, so the Pop-Up Coupe and both roadsters run a little longer than the Hatch Coupe.

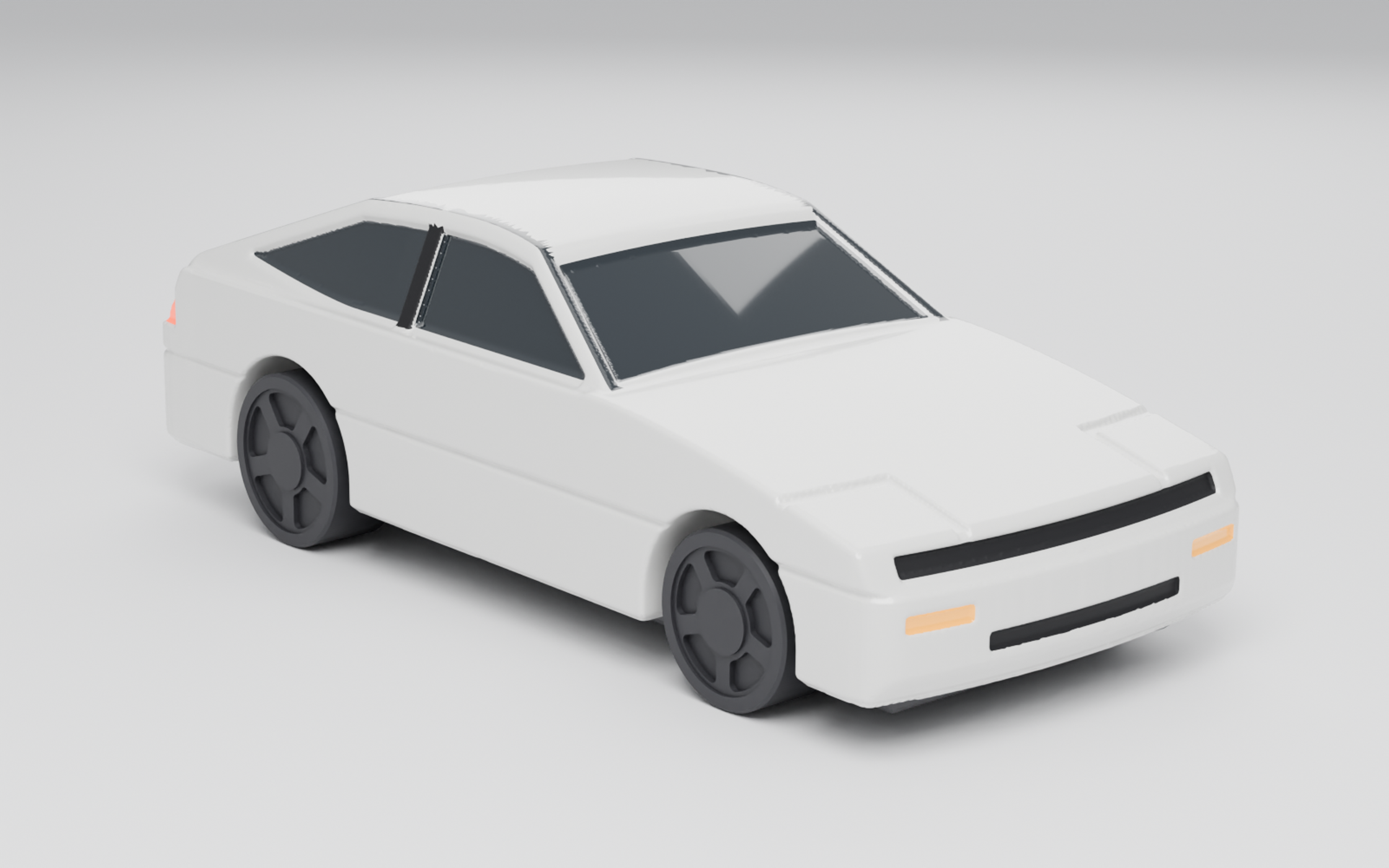

The glass, lamps and black slots in the renders are two-tone or painted; a single-colour print comes out in one colour.

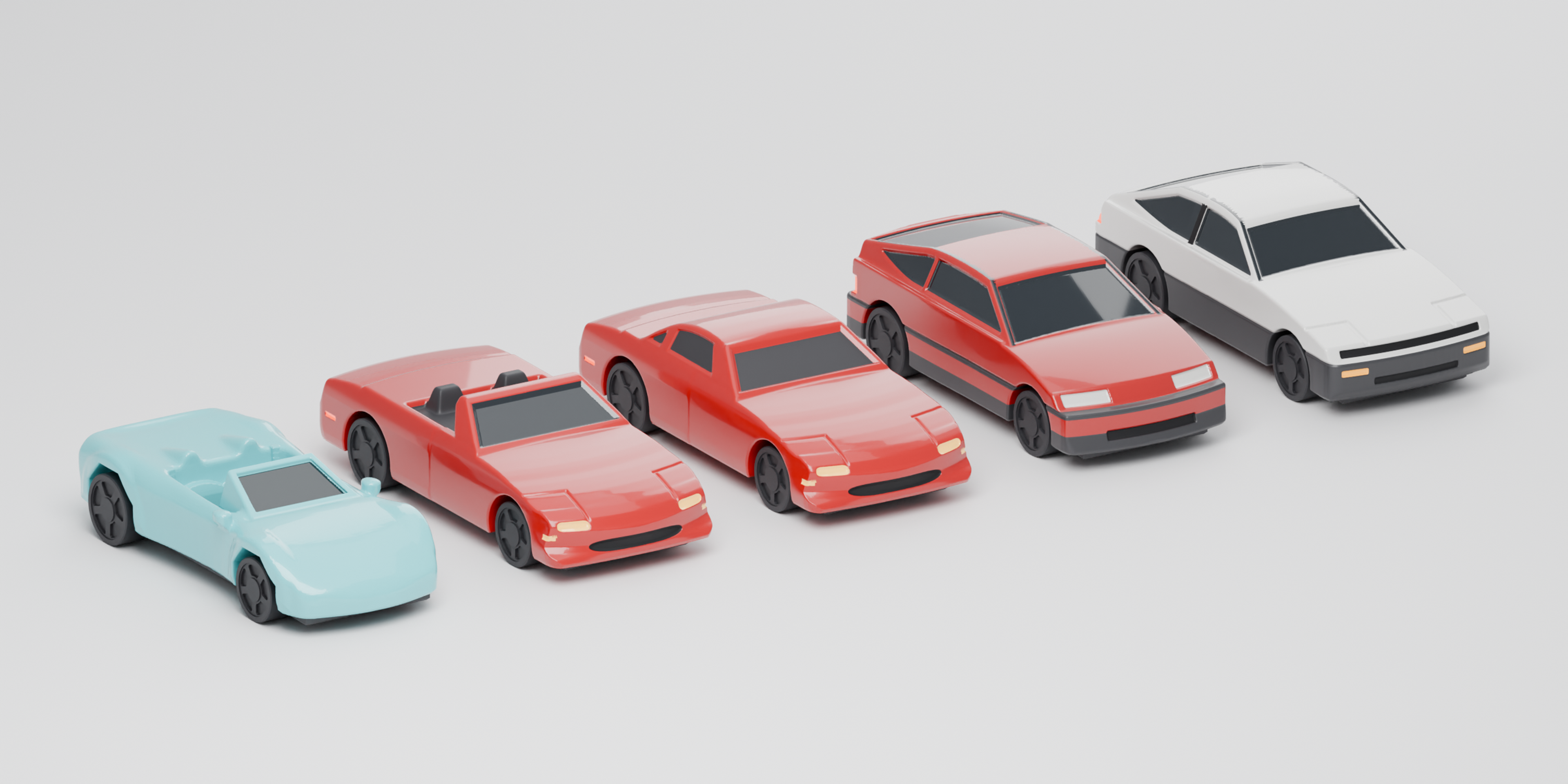

The lineup image also shows the free R1 Roadster (light blue, far left). It is a separate free download and not part of this set.
Optional: all four cars can also run on real metal axles with the free Metal Axle Conversion 1:64 and a 1:64 replacement axle kit with 0.98 in shafts; paperclip and metal-axle parts don't mix.
For ages 8 and up once built. Small parts: not for children under 3.
Licensed by Raymond Thurman, doing business as SaiyanPrints.
Print notes
- PLA, 0.4 mm nozzle, 0.12 mm layers (0.16 mm first), 3 perimeters, 7 top / 5 bottom, 15% gyroid, 4 mm brim, no supports. Bodies upright, rim down, as supplied. - Hatch Coupe body: 14.89 g, about 2 h 6 min. Two-tone by filament change: start dark, change after about 3.16, 6.04 and 6.88 mm above the bed. - Pop-Up Coupe body: 15.51 g, about 2 h 13 min. Two-tone by filament change: start dark, change once after about 6.64 mm. - Pocket Roadster body: 13.52 g, about 2 h 2 min. Two-tone (dark cockpit) on multi-material printers only. - Pocket Roadster Hardtop body: 13.81 g, about 2 h 1 min. Two-tone (dark glass) on multi-material printers only. - Chassis: floor down, 15% infill, 3.24 g, about 45 min. Wheels: inner face down, 100% infill, 0.58 g (11 mm) and 0.78 g (12 mm) each. - Estimates are slicer values. CAD-checked, not print-tested.
Files
- Hatch_Coupe_164.zipzip14 MB
- PopUp_Coupe_164.zipzip14 MB
- Pocket_Roadster_164.zipzip8.0 MB
- Pocket_Roadster_Hardtop_164.zipzip16 MB
